N S T A L L A T O N N S T R U C T O N S
M 2 - 1 2 1 1
FLEETWOOD CROSS HANDLE MONOBASIN
M 2 - 1 2 1 2

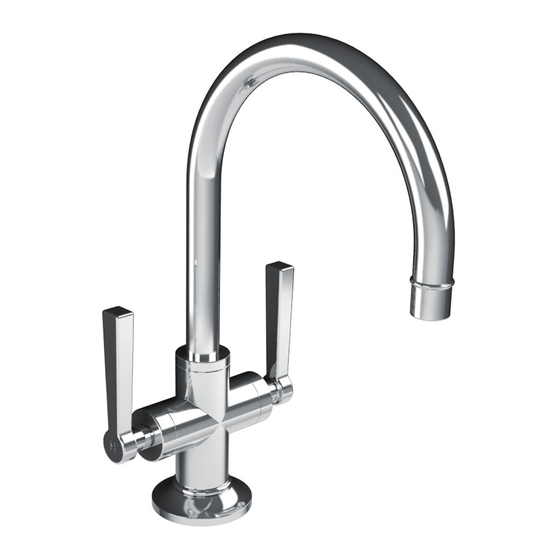

FLEETWOOD LEVER MONOBASIN
M2-1211
M2-1212

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M2-1211 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lefroy Brooks M2-1211

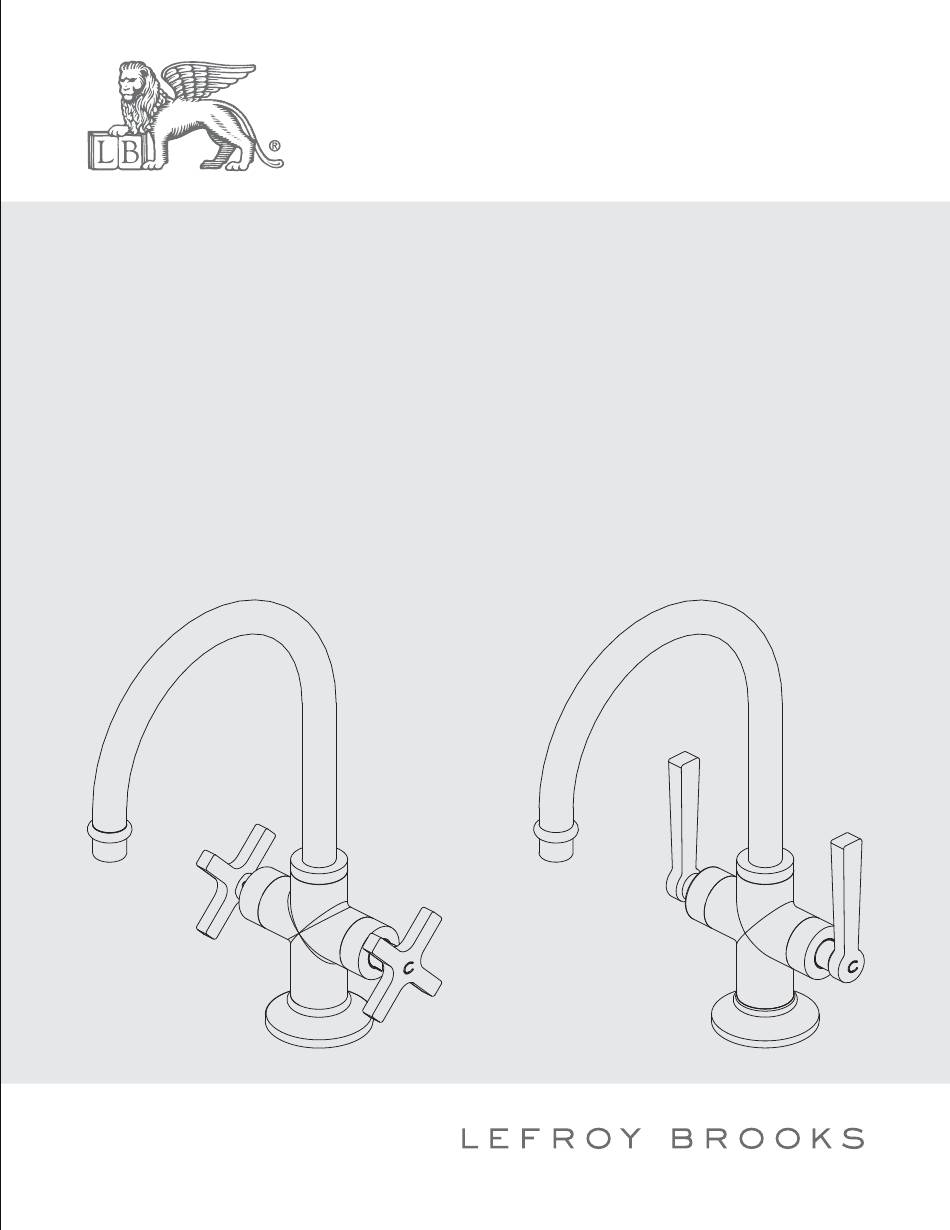

  • Page 1 N S T A L L A T O N N S T R U C T O N S M 2 - 1 2 1 1 FLEETWOOD CROSS HANDLE MONOBASIN M 2 - 1 2 1 2 FLEETWOOD LEVER MONOBASIN M2-1211 M2-1212...
  • Page 2 Dimensions in Inches (& Millimetres) M2-1211 6 1/2" (165mm) Ø3/4" (Ø19mm) Ø1 1/4" 5 5/8" (Ø31.8mm) (143mm) Ø2 3/8" (Ø60mm) 2- 9/16-24UNEF-2B Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
  • Page 3 Dimensions in Inches (& Millimetres) M2-1212 6 1/2" (165mm) Ø3/4" (Ø19mm) 5 3/4" Ø1 1/4" (145.5mm) (Ø31.8mm) Ø2 3/8" (Ø60mm) 2-9/16-24UNEF-2B Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
  • Page 4 W h a t y o u n e e d t o k n o w Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth.
  • Page 5 S t e p s 1 - 3 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Put the base under the bottom of faucet. After installing faucet, remove aerator and Attach the fixing bolt and flexible hoses to open the hot and cold supplies.
  • Page 6 E x p l o d e d V i e w Parts List M2-1211 Spout (139860W) Collar (000096) Handle ( C ) (029685C) Oil-seal (010519N) O-ring (004005N) Set screw (292598) Aerator insert (553641N) Plastic ring (200002) Escutcheon (071489) Aerator housing (305849W)
  • Page 7 E x p l o d e d V i e w Parts List M2-1212 Spout (139860W) O-ring (004005N) Escutcheon (071489) O-ring (004640N) Oil-seal (010519N) Plastic ring (200002) Aerator insert (553641N) Clip (012060) Washer (013039) Washer (013040) Aerator housing (305849W) O-ring (004031N) Fixing bolt (017139) Handle ( H ) (069826H)
  • Page 8 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.

This manual is also suitable for:

M2-1212
