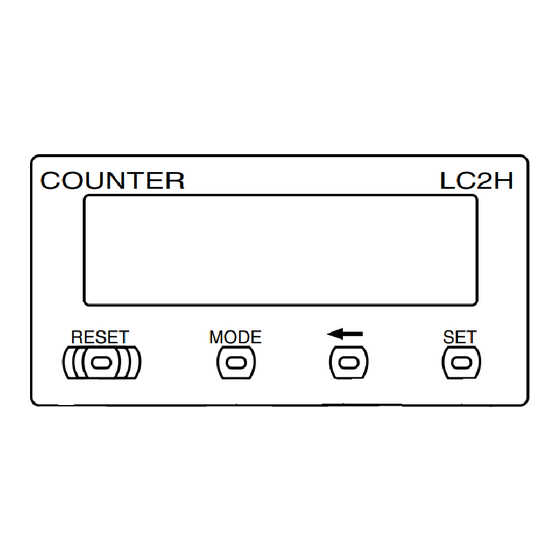

Panasonic LC2H Manual

Preset counter
Hide thumbs

Advertisement

Quick Links

PRODUCT TYPES
No. digits
Counting speed
30 Hz/5 kHz
8 digits
switchable
Options
Note: Mounting frame and rubber gasket are not included.
PRESET
COUNTER
FEATURES
1. Preset function equipped in half size
(24 × 48 mm
2. Display has backlight for instant
recognition.
Counting
Green or (Red)
(backlight)
Green or Red can
be selected at setup.
Output mode
• Maintain output/hold count
• Maintain output/over count
• One shot/over count
• One shot/recount
Mounting frame
Rubber gasket
0.945 × 1.890
inch).
Counting up
Red or (Green)
(backlight)
(Lit or Flashing)
Red or (Green)
(backlight)
(Lit or Flashing)
Lit or Flashing can
be selected at setup.
Output
Operating voltage
Transistor (1a)
24 V DC
Use for waterproofing (front panel surface)
07/2004
LC2H
Counters
3. 8.7 mm
0.343 inch
Character Height
(previously 7 mm
0.276
Easy-to read character height increased
from 7 mm to 8.7 mm
0.276 inch to 0.343
inch.
4. Plenty of Digits
8 digits
5. Counting Speed Switchable between
30 Hz and 5 kHz
6. Conforms to IP66 Protective
Construction (Front panel surface)
Weatherproofing supported by using
optional mounting frame and rubber
gasket
7. Includes reassuring lock mode and
lock switch to prevent erroneous
operation.
8. Screw terminals are constructed to
protect fingers to ensure safety.
9. Complies with CE marking.
Part No.
LC2HP-FEW-B-DC24V
LC2H
inch)
8.7mm
.343inch
ATH3803
ATH3804
79

Advertisement

loading

  Also See for Panasonic LC2H

  Related Manuals for Panasonic LC2H

  Summary of Contents for Panasonic LC2H

  • Page 1 LC2H LC2H PRESET COUNTER Counters FEATURES 1. Preset function equipped in half size 3. 8.7 mm 0.343 inch Character Height (24 × 48 mm 0.945 × 1.890 inch). (previously 7 mm 0.276 inch) 2. Display has backlight for instant Easy-to read character height increased recognition.
  • Page 2: Specifications

    LC2H SPECIFICATIONS Item Descriptions Rated operating voltage 24 V DC Rated power consumption Max. 1.5 W Rated control capacity 100 mA 30 V DC Input mode Addition/Subtraction (selectable by front switch) Max. counting speed 30 Hz/5 kHz (selectable by slide switch on side) Min.
  • Page 3 LC2H Dimensions inch General tolerance: ±1.0 ±.039 • External dimensions 44.8 1.764 54.4 2.142 10.4 .409 1.732 .197 1.890 COUNTER LC2H .866 .945 RESET MODE .276 • Panel cut out dimensions • When installing repeatedly (sealed installation) The standard panel cut out is shown below.
  • Page 4 LC2H 4. Input setting mode This is the mode for setting addition or 4) Pressing the front panel reset key sets Display after entering input setting mode subtraction. the content displayed and returns you to (Example showing “UP”) regular operation mode.
  • Page 5: Operation Mode

    LC2H OPERATION MODE Output mode Operation Example when input mode is either addition or Subject:ubtraction Output control is maintained after count-up Output completion and until resetting. During that time, the count display does not Able Unable Output maintain/ Counting able/unable change from that at count-up completion.
  • Page 6 LC2H_Preset.fm Seite 84 Donnerstag, 24. Juni 2004 3:31 15 LC2H PRECAUTIONS IN USING THE LC2H SERIES CAUTIONS FOR USE 1. Insulation sheet • LC2H preset counter Before using a panel mounting type, 1) The front plate will not be waterproof please pull and remove the insulation when this product is installed on a panel.
  • Page 7 LC2H_Preset.fm Seite 85 Freitag, 11. Juni 2004 9:34 09 LC2H Options 1. Accessories (for LC2H total counter) 3. Installation parts Panel cover (black) Mounting frame (Suitable for installation frame type LC2H total counter and LC2H preset counter) Part No.: AEL3801...
