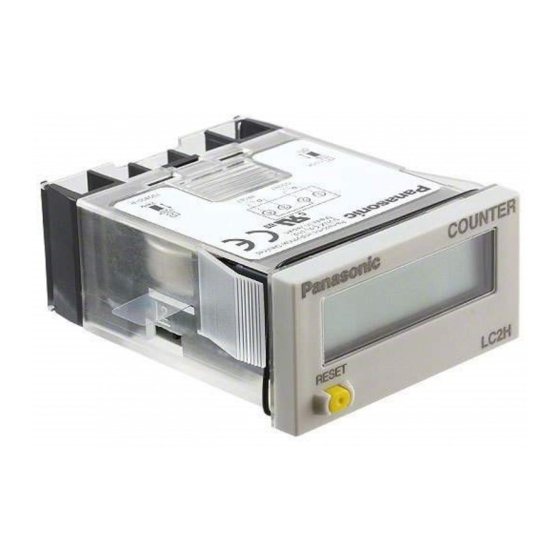

Panasonic LC2HP-FEW-B-DC24V Manual

LC2H
Panel mounting type
One-touch installation type
Panel mounting type
Installation frame type
PC board mounting type
RoHS Directive compatibility information
http://www.nais-e.com/
Product chart
Installation type
Panel
One-touch installation type
mounting
Installation frame type
type
PC board mounting type
Product types
1. Panel mounting type
1) One-touch installation type
1 Standard type
No. digits Counting speed
2 kHz/30 Hz switchable
8 digits
Note) Please ask us about types without front resetting.
2 Backlight type
No. digits Counting speed
8 digits 2 kHz/30 Hz switchable
Features
1. 8.7 mm
(previously 7 mm)
Easy-to-read character height increased
from 7 mm to 8.7 mm
inch.
2. Plenty of Digits
3. Counting Speed Switchable
between 2 kHz and 30 Hz
4. Panel Mounting Type Features
2 Installation Methods
Comes with very easy one-touch
installation type and also installation
frame type that uses the bracket on the
timer/counter. Choose a method that
suits the application.
5. Battery Replacement Easy on
Environment
To replace battery simply remove body
for the one-touch installation type, and
remove battery lid for the installation
frame type.
Type
Non-voltage input type
Front reset
Yes
30 Hz
Front reset
Yes
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
DIN HALF SIZE
LCD COUNTER
.343 inch Character Height
.276 inch to .343
8.7mm
.343inch
8 digits
Standard type
Voltage input type
(4.5 to 30 V DC)
—
Input method
Non-voltage input type
Voltage input type (4.5 to 30 V DC)
Free voltage input type (24 to 240 V AC/DC)
Input method
Voltage input type (4.5 to 30 V DC)
LC2H
Counters
6. Screw Terminals Designed for
Safety
Built in finger protection.
7. Panel Covers Replacable
(Standard color is ash gray.)
Change the panel design by replacing
with a black panel cover.
8. Conforms to IP66 Protective
Construction (Only installation frame
type.) (Front panel surface)
9. Input Methods
1) Non-voltage input method
2) Voltage input method
3) Free voltage input method
10. Backlight Type Added to Series
and Now 2-color Switchable (green/
red)
Easy viewing even in dark places and
switchable between green and red
(Voltage input type).
11. Compliant with UL, c-UL and CE.
Free voltage input type Voltage input type
(24 to 240 V AC/DC) (4.5 to 30 V DC)
—
LC2H-FE-2KK
LC2H-FE-DL-2KK
LC2H-FE-FV-30
LC2H-FE-DL-2KK-B
Backlight type
—
Part No.
Part No.
