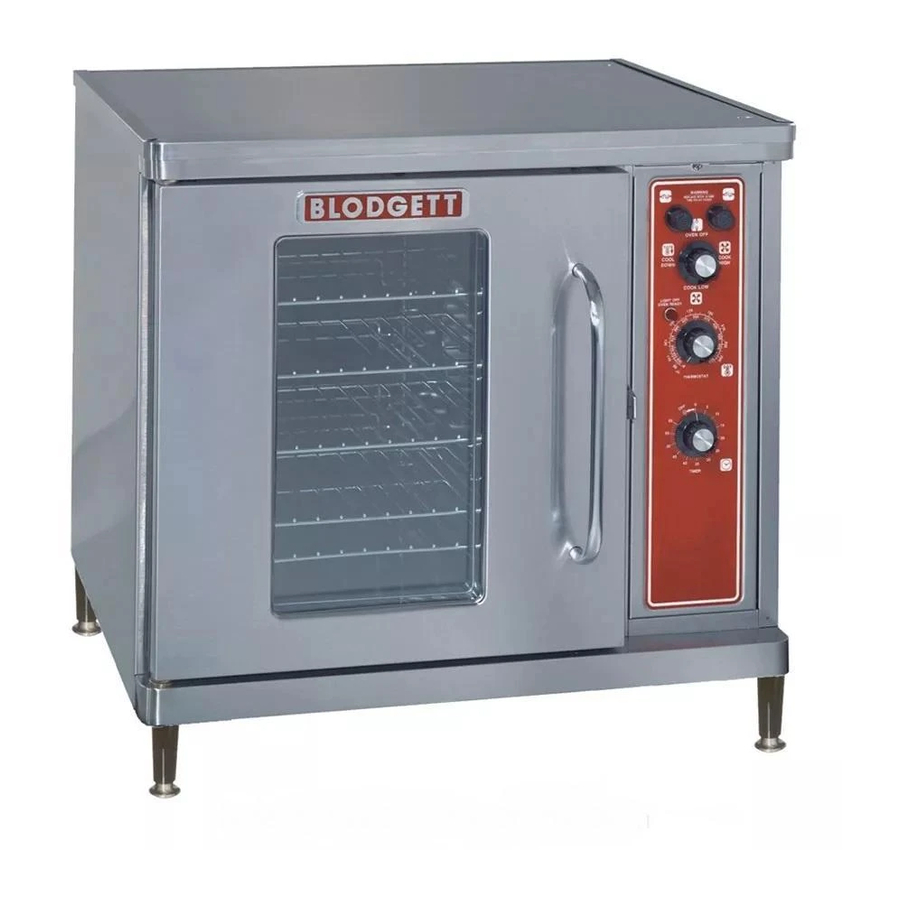

Electric convection ovens
Hide thumbs
Also See for CTB:
- Installation & operation manual (78 pages) ,
- Installation operation & maintenance (35 pages) ,
- Installation manual (18 pages)
Table of Contents
Advertisement

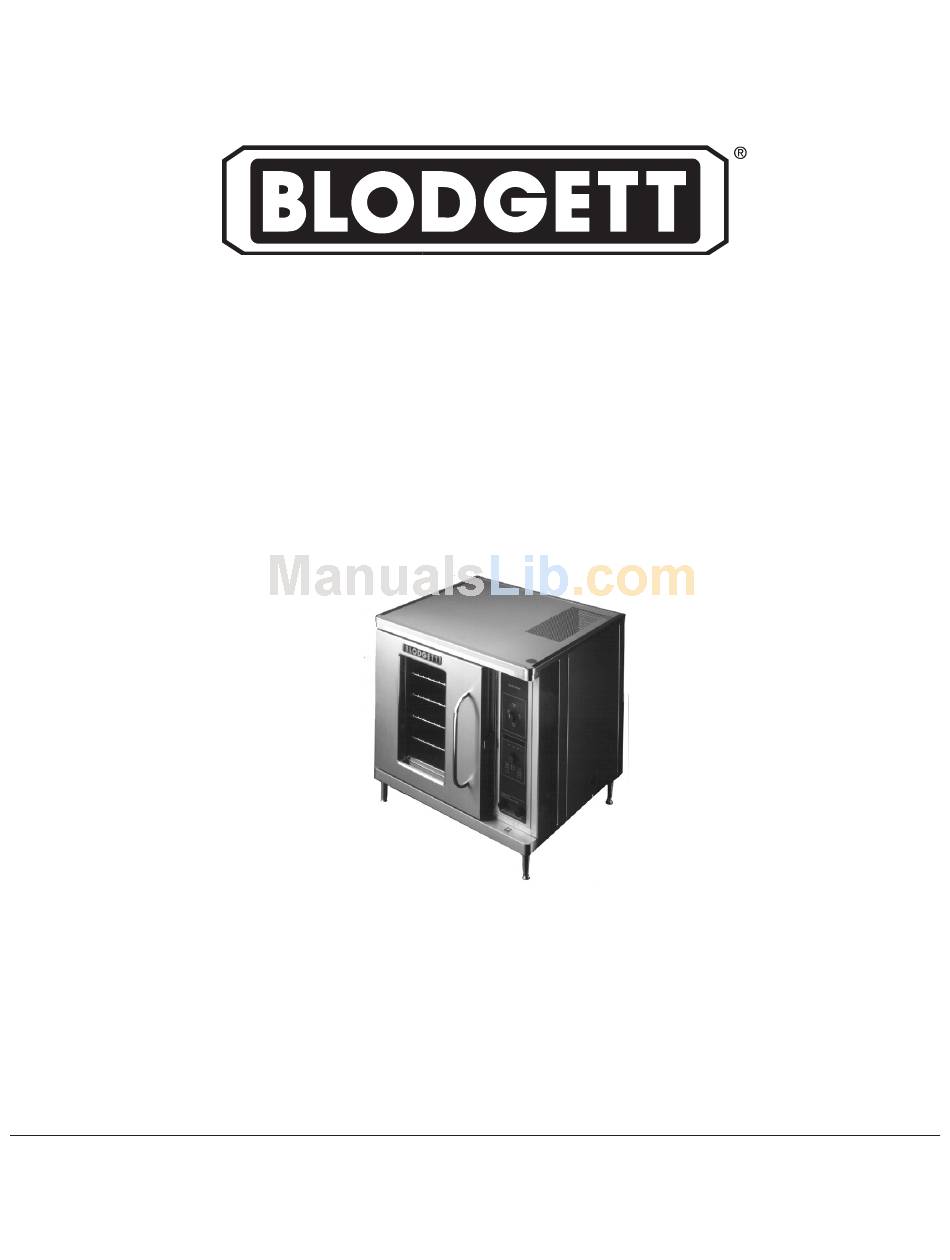

CTB & CTBR SERIES
ELECTRIC CONVECTION OVENS
REPLACEMENT PARTS LIST
EFFECTIVE JANUARY 12, 2012
The Company reserves the right to make substitution in the event that items specified are not available.
ERRORS: Descriptive and/or typographic errors are subject to correction.
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802) 860-3732
Superseding All Previous Parts Lists.
BLODGETT OVEN COMPANY
www.blodgett.com
P/N 54768 Rev B
Advertisement
Table of Contents
Related Manuals for Blodgett CTB
Summary of Contents for Blodgett CTB
-
Page 1: Replacement Parts List
CTB & CTBR SERIES ELECTRIC CONVECTION OVENS REPLACEMENT PARTS LIST EFFECTIVE JANUARY 12, 2012 Superseding All Previous Parts Lists. The Company reserves the right to make substitution in the event that items specified are not available. ERRORS: Descriptive and/or typographic errors are subject to correction. -
Page 2: Electrical Components
7/83 THROUGH 9/86 Ref. Part Description 15956 Timer, 60 Minute w/o Knob (Cook Only) 16030 Knob, Timer 16536 Thermostat, Cook KX-234-36 w/o Knob (140º - 500º) 17212 Knob, Thermostat 90588 Contactor, 50 AMP 16607 Control Decal, Lexan (Cook Only) CTB/CTBR... - Page 3 Knob, Cool Down Switch, Black Rocker, Black 32313 or 32302 Motor Blower Wheel 16880 or 33946 Microswitch 21430, 3" or 23034, 4” Axial Fan 20162 or 16037 16605 Indicator Fuse Light 11204 Terminal Block 6138 R11087 Contactor, 3 Pole CTB/CTBR...
-
Page 4: Solid State Manual Controls
Control Decal, Wendy's only (3 Set Point) 30465 Rocker Switch, DPDT (For 1or 3 set pt. only) 55186 Panel & Decal CTB/R Infinite Temp Control, 2 speed 52360 Control Decal w/Panel (8 Set Point), single speed (Before 12/7/2008) 20945 Decal (8 Set Point), 2 speed (After 5/3/2010) -
Page 5: Solid State Digital Controls
Fuse Holder (Before 6/88) 16880 Microswitch Assy., Door 23086 Suppressor Assy. 52414 Control Panel & Decal Assy (Before 4-13-2010) 30669 Control Panel & Decal (After 4-13-2010) 90034 Grounding Lug 24931 Spacer, Control Qty 2 36429 Circuit Breaker JANUARY 12, 2012 5 KEY CTB/CTBR... -
Page 6: Cook & Hold Controls
Control Panel & Decal Assy., (After 10/87) INTELLIPLUS & INTELLIHOLD CONTROLS 12 KEY & 13 KEY Ref. Part Description NOTE: Intelliplus/hold Controllers are no longer available. Please see page 9 for IQ2 conversion kit information. 23392 Probe, Temperature 24181 Knob, Control 23086 Suppressor Assy. CTB/CTBR... - Page 7 23086 Suppresor Assy 21675 Relay, SPDT 240V Qty 1 16563 Relay Bracket 21058 Harness, Wiring Control Compartment 34411 Harness, Wiring 2 SP 36290 Control Panel & Decal Assy, CH102 JANUARY 12, 2012 CH102 CONTROLS 14 KEY BACK OF FUSEHOLDER CTB/CTBR...
- Page 8 EXCLUSIVE TO KFC IQ CONTROLS 1997 AND AFTER OR CTB-AP (ALL PURPOSE) Ref. Part Description 34968 Control, "IQ" w/'SCK' for U.S. 34450 Motor, 230V, 2SP (for IQ Cntrl.) 33902 Relay 33073 Relay Board 33074 Probe, RTD 1000 Ohm 33088 Probe Clip...
- Page 9 1SP 1PH 7.5 KW 37036 IQ2 Conversion Kit (From Intellitouch, Burger King Only) 2SP 1 or 3 PH 5 & 7.5 KW NOTE: Conversion Kits above include all components to convert your unit. You may order parts separately after conversion is completed. CTB/CTBR...
- Page 10 Mechanical contactor conversion kit (1 or 3 ph) NOTE: The Fastron Digital Timer on the side or top of your oven is not supplied or serviced by Blodgett. If you have issues with this, please contact Fast. STANDS, LEGS, CASTERS Ref. Part...
-
Page 11: Exterior Components
Crown Assy. 90086 Nameplate, Blodgett 8585 Steam Vent Box w/ Screws for CTB-1 90092 Steam Vent Riser w/ Screws for CTB-2 S/S 18699 Access Panel, S/S (Removeable Bodyside) (All units Before 07/01/98) 34875 Access Panel, S/S (Removeable Bodyside) CTB-AP (07/01/98 and after) -
Page 12: Exclusive To Export
EXCLUSIVE TO KFC CE CTB-AP (All Purpose) Ref. Part Description 34968 Control, "IQ" w/'SCK' CE (After 4/22/2007) FW531 Control, "IQ" w/'SCK', Recon. CE (Before 4/22/2007) 34450 Motor, 230V, 2SP (for IQ Cntrl) CE 90097 Element Assy, 230V 5KW CE 8596 Element Assy, 230V, 7.5KW CE...
