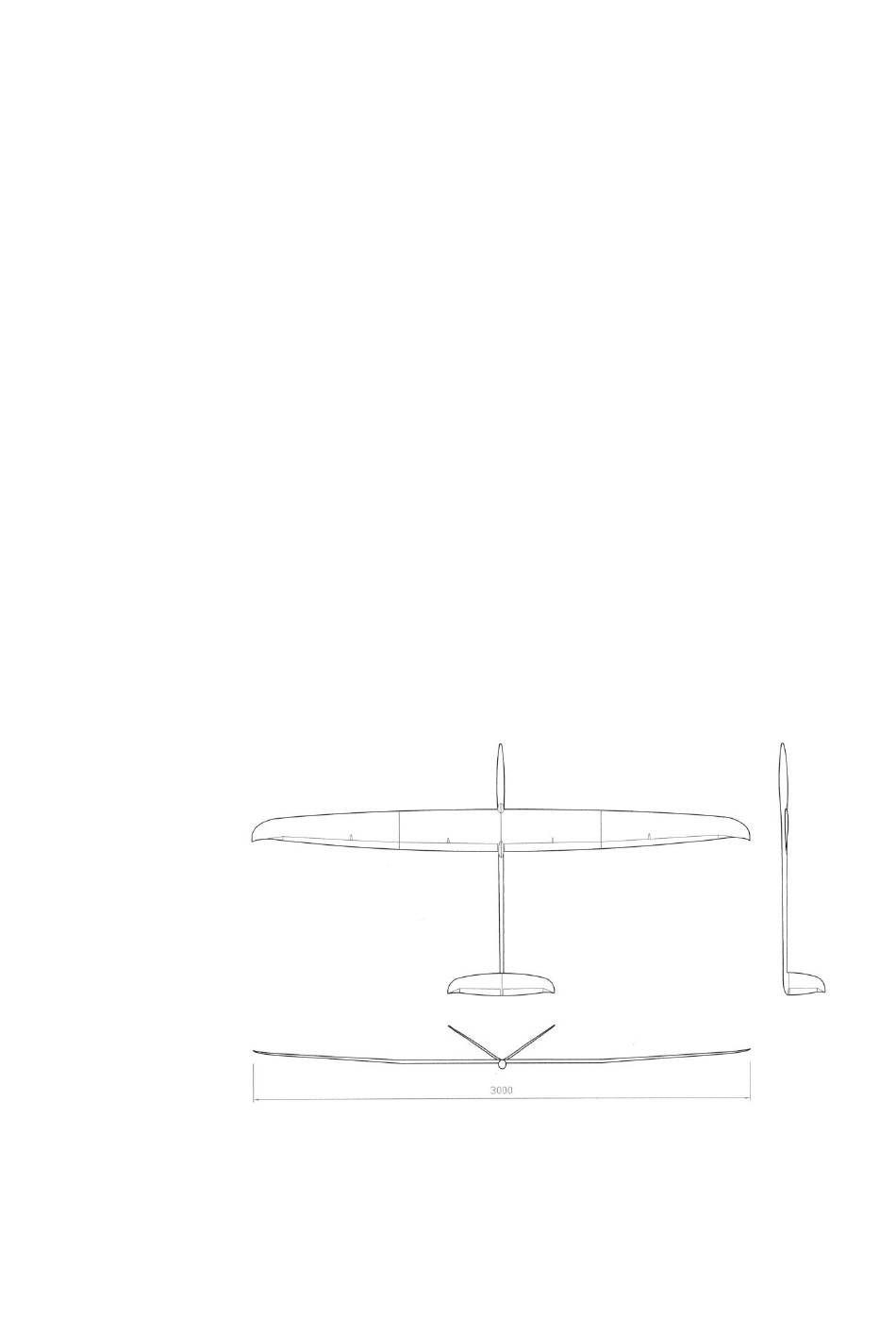

Erwin XL building Instruction
www.pcm.at
Wing span [mm]:
Aspect ratio:
Wing area [dm2]:
Wing loading:
Weight [g]:
Airfoil:
–
ERWIN XL slope
ERWIN XL ultralight
Erwin XL ultralight:
Erwin XL ultralight Elektro:
Erwin XL ultralight:
Erwin XL ultralight Elektro:
BUILDING INSTRUCTION
-
ERWIN XL ultralight Elektro
October 2012
3000
14,67
61,33
Erwin XL slope:
45,6-70,1
23,6-24,5
Erwin XL slope:
2800-4300
1250
1450-1500
1
20,4
VS1
Advertisement
Table of Contents
Related Manuals for PCM ERWIN XL slope
Summary of Contents for PCM ERWIN XL slope
- Page 1 Erwin XL building Instruction October 2012 Wing span [mm]: 3000 Aspect ratio: 14,67 Wing area [dm2]: 61,33 Wing loading: Erwin XL slope: 45,6-70,1 Erwin XL ultralight: 20,4 Erwin XL ultralight Elektro: 23,6-24,5 Weight [g]: Erwin XL slope: 2800-4300 Erwin XL ultralight:...
-
Page 2: Table Of Contents
7a. Electronic components in fuselage (electric drive) – ELECTRIC version 8. Wing 9. Installation of antenna BEFORE THE FIRST FLIGHT 10. Ballast system 11. Fixing of the wing 12. Check list before starting 13. Attention, Erwin XL is sensitive to the sun www.pcm.at... -
Page 3: Kit - Contents
Cables (electricity) Cable for antenna, possibly steel wire for extension of Hook for winch start antenna Plugs Epoxy-glue (for example UHU 300 endfest or Stabilit, no fast hardening epoxy resin) Cotton flocks to thicken glue Connector for push rods, M2,5mm www.pcm.at... -
Page 4: Electronical Equipment
Erwin XL building Instruction October 2012 3. Electronical equipment Servos for the wing Erwin XL slope: Futaba S3150 Graupner DES 448 Erwin XL ultralight + elektro: Dymond Hyperion Atlas HP DS09SCD Servos for the V-tail Hitec HS65HB or MG Robbe... -
Page 5: Settings For The First Flight
October 2012 4. Settings for the first flight (measure from the leading edge of the wing to the back) Erwin XL slope Centre of gravity: weak conditions: 88-94mm (f.e. plain, soft wind on slope) strong wind on slope: up to 110mm possible... -
Page 6: Assembling The Model
As the electric version is equipped with an engine, there is only little space in the fuselage cone. Therefore it makes sense to install the servos in the tail. By this means you can also save weight, as you need no or only little lead. www.pcm.at... -
Page 7: Gluing Of Fuselage
If the v-tail isn’t aligned correctly, chamfer the edges of the fitting. Put the two parts of the fuselage together again and turn one part until the v-tail is mounted symmetrically. Then glue the parts together. Use epoxy-glue and some cotton flocks to thicken the glue. www.pcm.at... -
Page 8: Electronic Components In Fuselage - Glider Version
“UHU endfest 300” (epoxy 2 component glue) thickened with cotton flocks. Thread a push rods into the pipes, which act as pushrods for controlling the elevator. Fix the remaining part of the ball connector to the pushrods. (Here to be seen on Erwin – 2 meter) www.pcm.at... -
Page 9: 7A. Electronic Components In Fuselage (Electric Drive) - Electric Version
So you can correct the mounting of the engine later by adding thin washers. As there is no space for the receiver in the fuselage cone, it is placed behind the wing joiner. Use the template enclosed to mark the opening in the right position and cut it. www.pcm.at... - Page 10 The tubes should be long enough … … to cover the sharp edge of carbon fibre at the holes ... … and to be still easily accessible inside the fuselage when threading the antenna. Secure the receiver in the fuselage with foam against dislodgement. www.pcm.at...
- Page 11 Fix the wire first with adhesive tape on the accumulator. So you can find the correct centre of gravity. You can drill small holes in the sidebars of the fuselage board as a locking mechanism for the accumulator. Do this before you glue the sidebars. www.pcm.at...
- Page 12 Wait until the glue has hardened, then you can remove the fuselage board. If you want to use the model for competition, you can place logger, limiter or current sensor on top of the board. www.pcm.at...
-
Page 13: Wing
Aileron Flap For gluing the lever use epoxy-glue with cotton flocks. When fitting the lever in the correct position, notice that the hole in the lever should be situated vertically above the hinge line. www.pcm.at... - Page 14 You can also fix a piece of steel wire to the trailing end of both control surfaces with adhesive tape. Let the wire be movable inside the tape on one control surface. If you want an easier solution, connect the two control surfaces with an adhesive tape. www.pcm.at...
-
Page 15: Installation Of Antenna
Erwin XL building Instruction October 2012 9. Installation of antenna As Erwin XL slope is completely made of carbon, a part of the antenna must be situated outside the model. One possiblity is to „extend“ the fuselage at the rear end with a steel wire of about 450mm. -
Page 16: Before The First Flight
Erwin XL ultralight has just one connector. If the glider accelerates too slowly, don’t hesitate to add further weight. Erwin XL slope can do well with more weight, in the air as well as when landing. 2x carbon short, 150g... -
Page 17: Fixing Of The Wing
The model is heated up to 50° during production, but in the sun the model can easily reach higher temperatures. During flight the model is sufficiently cooled by the airstream. This sensitiveness is high shortly after production / purchase and will get less gradually. www.pcm.at...
