TC-Helicon VoicePrism Software Upgrade

How to Upgrade VoicePrism Software

1. Make note of the current version number (press the Utility button and tab to the Version
page).
2. Chain several units together by connecting the MIDI Thru port to the MIDI In port of the
next unit. Connect the MIDI output from your computer to the MIDI In port of the first unit.
3. Using a MIDI tool such as MIDI-OX load the "Upload.syx" file.
4. Transmit the file. All units should display a message saying "YOU MAY START
UPLOAD..." (see
never be made available to the customer because it bypasses the download password
mechanism.
5. Load and transmit the "ClearFlash.syx" file. This will erase the VoicePrism software flash
chip. Note, erasing the flash will not only remove the software but also clear all user
presets and preference settings.
6. Wait for at least 10 seconds after sending the "ClearFlash.syx" file. It takes a few seconds
to erase the flash.
7. Load "VPxxx.syx" where xxx represents the current version number. If you are using MIDI-
OX make sure that there is a 60 ms delay after each F7 (one of the options in the Sysex,
Configure dialog box in MIDI-OX, see
necessary, depending on the type of MIDI device you are using.
8. Transmit the file.
9. When the file has been sent, all units should reset automatically.
10. Confirm that the new software has been loaded by checking the version number again.
11. Perform the BIST procedure (see below).

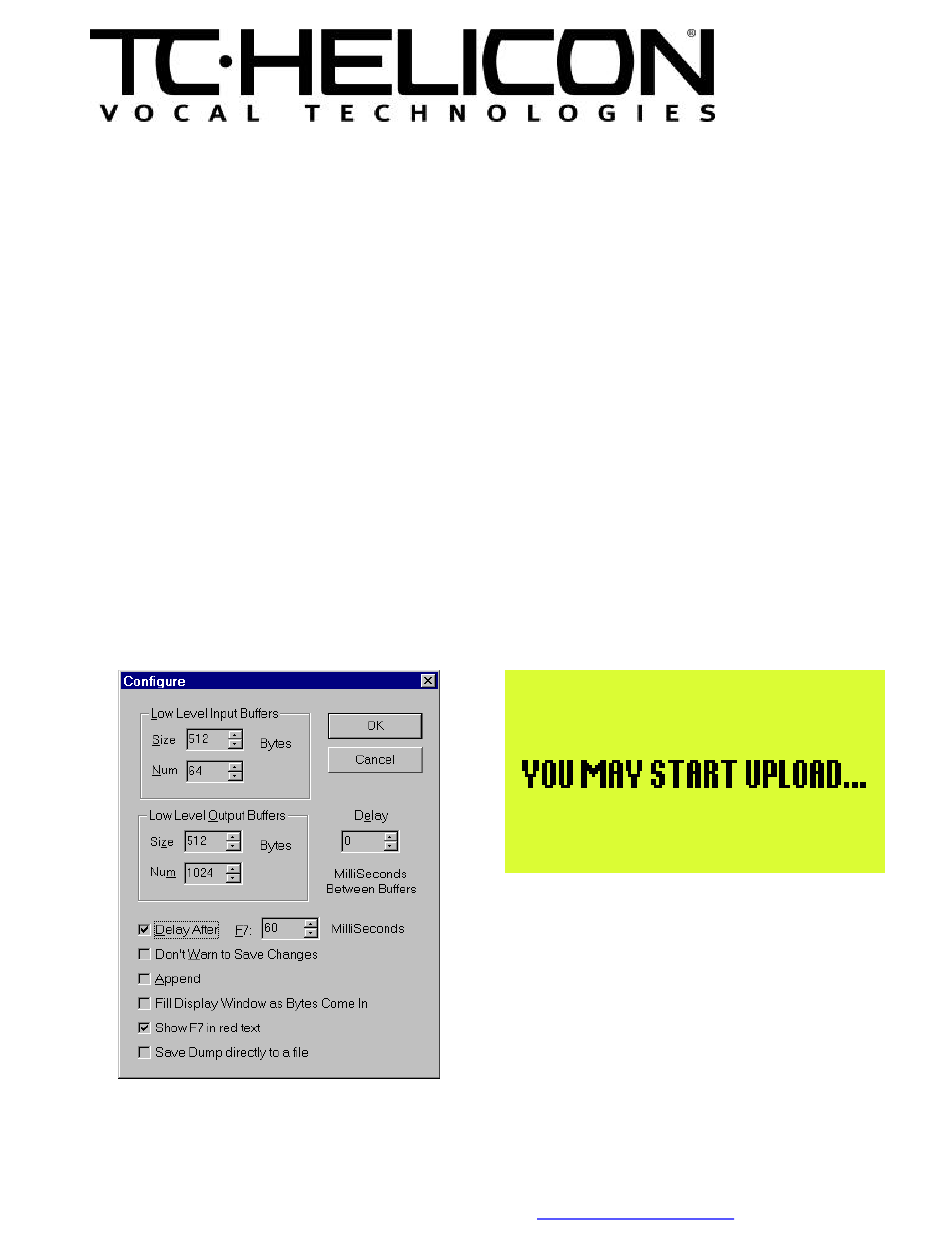

Figure 1 - Sample MIDI-OX Sysex Configuration
Phone: +45 8742 7000 Fax: +45 8742 7010 E-Mail:
) Note, the "Upload.syx" file is only for internal use and should
Figure 2
Figure 1
TC Electronic A/S
Sindalsvej 34
DK-8240 Risskov
Denmark
www.tc-helicon.com
for an example). This might not be absolutely
Figure 2 - Upload Screen
