TABLE OF CONTENTS

1 Specifications ----------------------------------------------------- 2
2 Schematic Diagram ---------------------------------------------- 2
3 Wiring Connection ----------------------------------------------- 3
4 Trouble Shooting Chart ---------------------------------------- 4
5.2. Disassembly of Motor Case Set ----------------------- 7
5.3. Disassembly of Cord Reel Unit ------------------------ 8
5.4. Disassembly of Rail Base Unit ------------------------- 9
5.5. Disassembly of Fan Motor Unit ------------------------ 9
6.1. Exploded View -------------------------------------------- 11
6.2. Attachment Exploded View ----------------------------12
6.3. Packing Instruction ---------------------------------------13
6.4. Replacement Parts List ---------------------------------14

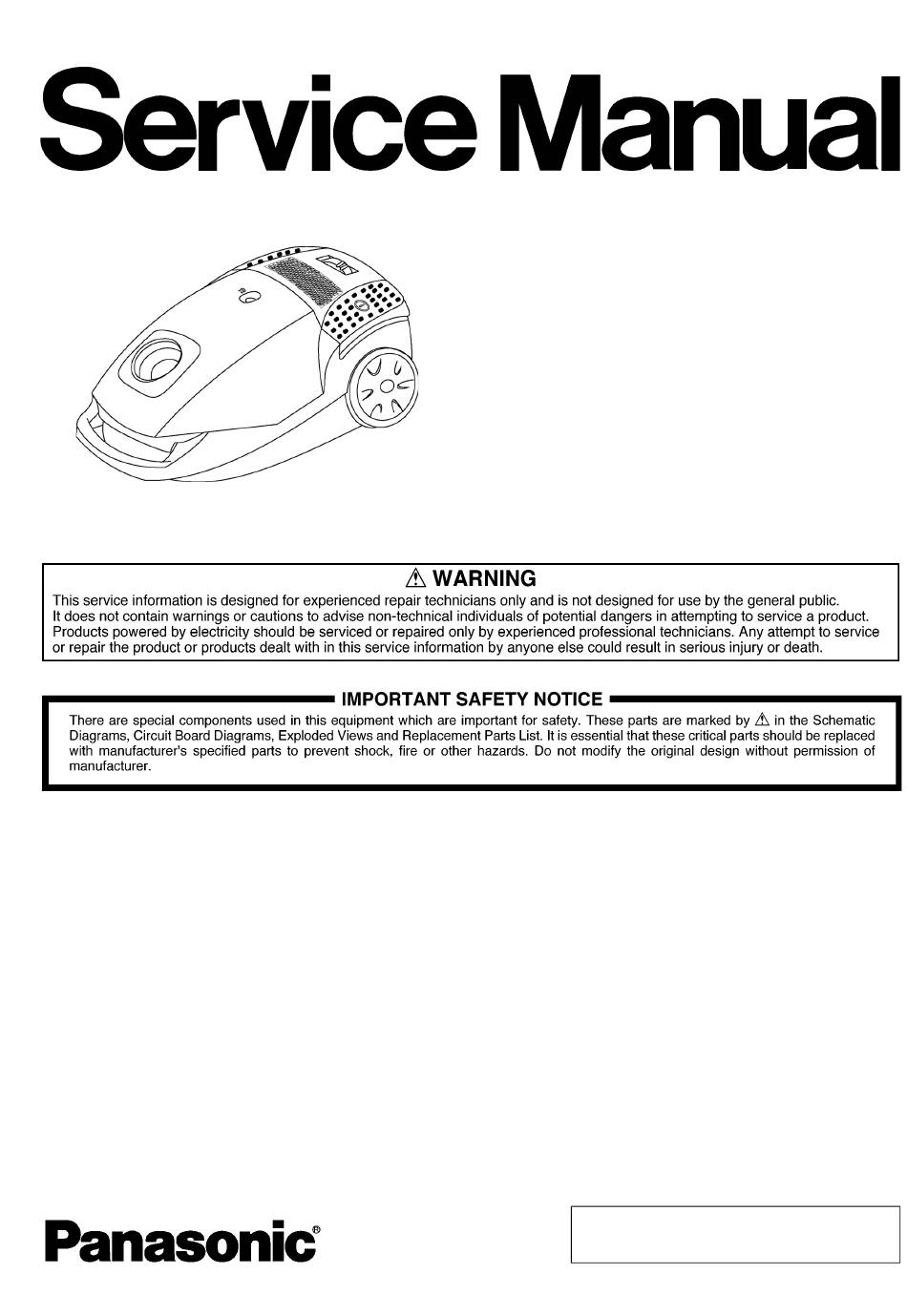

Model No.
DESTINATION: UK, NEW ZEALAND, AUSTRLIA, CON-
PAGE
© 2012 Panasonic Manufacturing Malaysia Berhad
(6100-K). Unauthorized copying and distribution is a
violation of law.
Vacuum Cleaner
MC-CG522RC79-DE
MC-CG522RA76-CH
MC-CG522RP47-GB
MC-CG522RG43-AU
MC-CG522RG43-NZ
TINENTAL AND SWITZERLAND
PMMA120510CE
PAGE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-CG522RC79-DE and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic MC-CG522RC79-DE

  • Page 1: Table Of Contents

    6 Exploded View and Replacement Parts List -----------11 6.1. Exploded View -------------------------------------------- 11 6.2. Attachment Exploded View ----------------------------12 6.3. Packing Instruction ---------------------------------------13 6.4. Replacement Parts List ---------------------------------14 © 2012 Panasonic Manufacturing Malaysia Berhad (6100-K). Unauthorized copying and distribution is a violation of law.
  • Page 2: Specifications

    1 Specifications Model MC-CG522RC79-DE, MC-CG522RA76-CH, MC-CG522RP47-GB, MC-CG522RG43-AU, MC-CG522RG43-NZ Power Source 230V~240V~50Hz Input Power (Max) 1300W Input Power (IEC) 1200-1250W Power Control SLIDE Dust Capacity 3.0L Automatic Cord Rewind Vac Gauge Exhaust Filter ELECTROSTATIC Extension Wands METAL TELESCOPIC WAND Blower Operation...
  • Page 3: Wiring Connection

    3 Wiring Connection...
  • Page 4: Trouble Shooting Chart

    4 Trouble Shooting Chart...
  • Page 6: Disassembly And Assembly Instruction

    5 Disassembly and Assembly Instruction 5.1. Disassembly of Upper and Step 4 Release 2 catches using philip screwdriver. Step 5 Remove Body Cover. Lower Body Step 1 Open Dust Cover & remove Dust Bag. Step 2 Release Dust Cover from Hanger. Step 6 Take out the filter.
  • Page 7: Disassembly Of Motor Case Set

    Step 8 Remove 4 screws from back side of body. 5.2. Disassembly of Motor Case Set Step 9 Lift up Upper Body. Step 1 Remove the On/Off swich. Step 10 Remove Upper Body from Lower Body. Step 2 Remove Volume Ass’y. Step 3 Take out the Motor Case Set.
  • Page 8: Disassembly Of Cord Reel Unit

    5.3. Disassembly of Cord Reel Unit Step 4 Release the Fuse. Step 1 Pull up the Cord Reel Unit. Step 2 Release 2 connector wires at the Rail Base Unit. Step 3 Release Printed Circuit Board (P.C.B) from catches.
  • Page 9: Disassembly Of Rail Base Unit

    Disassembly of Fan 5.4. Disassembly of Rail Base Unit 5.5. Step 1 Insert a slotted screwdriver into the shaft of the Cord Motor Unit Reel Unit and turning it 90 anti-clockwise. Step 1 Lift up Fan Motor Unit from the lower body. Step 2 Remove the Cord Reel Unit from the Rail Base Unit.
  • Page 10 Step 3 Disconnect 2 Wire Terminals. Step 4 Remove Motor Support Rubber and Motor Support Rubbers.
  • Page 11: Exploded View And Replacement Parts List

    6 Exploded View and Replacement Parts List 6.1. Exploded View Plug E2 Plug C3 Plug...
  • Page 12: Attachment Exploded View

    6.2. Attachment Exploded View...
  • Page 13: Packing Instruction

    6.3. Packing Instruction METAL WAND TELESCOPIC HOSE UNIT FLOOR NOZZLE ASS’Y CURVED WAND CONNECTION WAND CREVICE NOZZLE DUSTING BRUSH UNIT NOZZLE HOLDER COMPLETE SET...
  • Page 14: Replacement Parts List

    6.4. Replacement Parts List Safety Ref. No. Part No. Part Name & Description Remarks XTN4+10FFJ SCREW XTN4+12BFJ PAN TAP SCREW XTN4+16BFJ PAN TAP SCREW YMV02ADN000 UPPER BODY YMV08EDP000 SWITCH PEDAL SPRING YMV30KDN000-P FILTER ELECTROSSTATIC YMV01DDN000 BUCKLE YMV46HBW000 BAG CLAMPER SPRING YMV92LDR0R0 DUST COVER UNIT YMV0NAAR000...
