ACO401
DE
Betriebsanleitung
EN
Operating Manual
FR
Manuel d'utilisation
IT
Manuale d'istruzioni
ES
Instrucciones de uso
NL
Handleiding
SV
Bruksanvisning
FI
Käyttöohje
NO
Bruksanvisning
PT
Manual de instruções
DA
Betjeningsvejledning
EL
Οδηγίες λειτουργίας
RU
Инструкция по эксплуатации
PL
Instrukcja obsługi
CS
Návod k obsluze
43280/b03int
0716

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KE KELIT ACO401 and is the answer not in the manual?

Questions and answers

Related Manuals for NovoPress KE KELIT ACO401

Summary of Contents for NovoPress KE KELIT ACO401

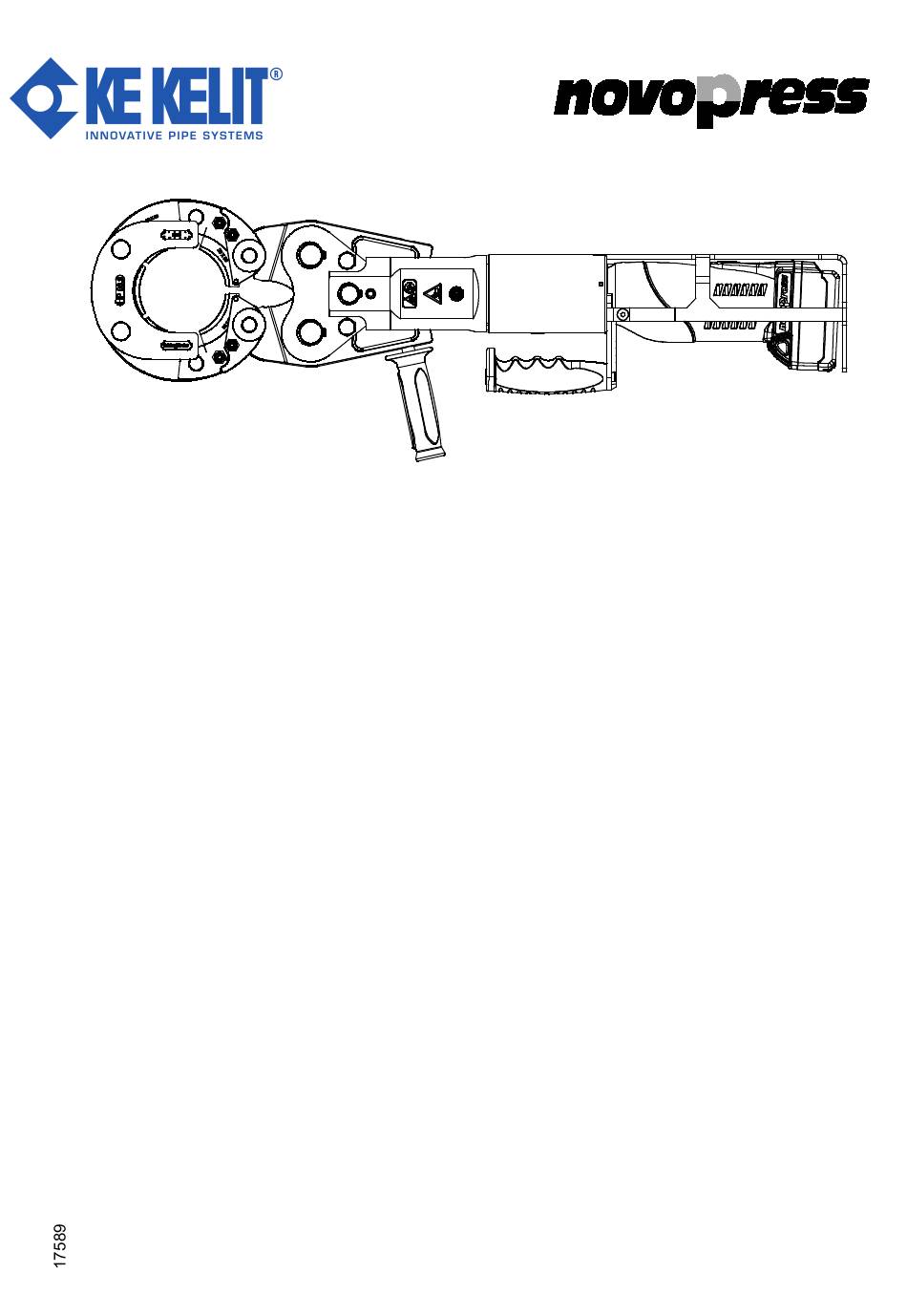

  • Page 1 ACO401 Betriebsanleitung Operating Manual Manuel d'utilisation Manuale d'istruzioni Instrucciones de uso Handleiding Bruksanvisning Käyttöohje Bruksanvisning Manual de instruções Betjeningsvejledning Οδηγίες λειτουργίας Инструкция по эксплуатации Instrukcja obsługi Návod k obsluze 43280/b03int 0716...
  • Page 2 ...

  • Page 4: Table Of Contents

    These press devices are intended exclusively for use with press collars manufactured by Novopress or approved by Novopress, in agreement with the system supplier. If you are uncertain whether your press device is suitable for the press tools described here, please contact the system supplier.

  • Page 5: Basic Safety Information

    ACO401 Basic safety information The following pictograms are used to highlight sections of text. Please follow these instructions and act with special caution in these cases. All health and safety instructions must also be passed on to other users and technicians. WARNING! This information indicates a potentially dangerous situation that could result in serious injury or death.
  • Page 6 ACO401 WARNING! Risk of injury from ejected fragments Incorrect or improper use or the use of worn or damaged press tools and press devices carries a risk of injury from ejected fragments. Therefore – Press tools and press devices may only be used by trained personnel. –...

  • Page 7: Symbols On The Device

    ACO401 Symbols on the device Symbol Meaning Warning: Danger of crushing Service sticker; indicates when the next service is Warning due to ejected fragments Scope of supply The scope of supply for the standard equipment includes • ACO401 press device incl. Operating Manual •...

  • Page 8: Technical Data

    ACO401 Technical data ACO401 Device ACO401 Rated voltage 18 V DC Rated load 100 kN Height 280 mm Length 660 mm Width 105 mm Net weight 13.0 kg without battery Max. noise level 91 db(A) Noise pressure level at 80 db(A) the user's ear Vibration value <2.5 m/s²...

  • Page 9: Short Description Of The Press Device (Fig. 1)

    ACO401 Information! The batteries are not charged when delivered. Therefore – Charge the batteries before using them for the first time. Battery charger For information on the function and operation of the battery charger and the rechargeable batteries, please consult the Operating Manual provided for the battery charger. Short description of the press device (Fig.

  • Page 10: Start-Up And Operation

    ACO401 6.3.3 Battery level indicator The battery level is displayed when button (B) is pressed. The number of LEDs lit up denotes the battery level. If the battery is inserted in the press device when the battery level is checked, the last pressing operation must have been completed at least 1 minute prior to this.
  • Page 11 ACO401 Meaning of the LED display LED display Condition/ cause Measure Green LED lit up. Operational. Green LED off Automatic press cycle is (pressing operation on, device ends the pressing operation in progress). automatically. Green LED flashes. Insufficient battery Charge or replace battery. charge.
  • Page 12 ACO401 Closing the collar (Fig. 6 + 7) • By pressing the outer end of the shell gently, the shell moves inwards. (Fig. 6) • The line (A) must be at the same height of the edge (B) when the press collar is positioned correctly.
  • Page 13 ACO401 Performing the pressing operation WARNING! Risk of injury from ejected fragments Incorrect or improper use of press tools or the use of worn or damaged press tools carries a risk of injury from ejected fragments. Therefore – Ensure that the nominal size of the press fitting matches the nominal size of the press tool.
  • Page 14 ACO401 Information! To ensure that the press collars function correctly, the sliding segments must be free to move. The sliding segments are always pressed back automatically into the correct starting position by springs. Ensure that marking lines (M) on shells (C) are aligned with the edges of the sliding segments (D) when the press collar is in starting position.

  • Page 15: Re-Pressing

    ACO401 Information! Ensure there is no gap between the segments of the press collar when the pressing operation is complete. In order to start the process, press the start button and hold it down. After the pressing operation has been completed, open the adaptor jaw using the grip and detach it from the press collar.

  • Page 16: Cleaning, Maintenance And Repair (Fig. 13, 14, 15)

    You can find the addresses of authorised specialist workshops by contacting Novopress or at www.novopress.de. Service intervals Service and repair work may only be carried out by Novopress or the authorised Novopress specialist workshops. Information! The next service is stated on the press device and the press collar.

  • Page 17: Disposal

    Warranty and guarantee Novopress provides the full statutory warranty of 24 months for its press devices and tools. The warranty period always commences on the date of delivery, which must be proven by means of the sales documentation in case of doubt.

  • Page 18: Ec Conformity Declaration

    Service work and parts provided in response to warranty claims do not have to be paid for. However, all shipping costs shall be borne by the user. Claims can only be recognised if the tool is delivered to Novopress or a Novopress workshop in an assembled state.
  • Page 19 Repairs / Service...
