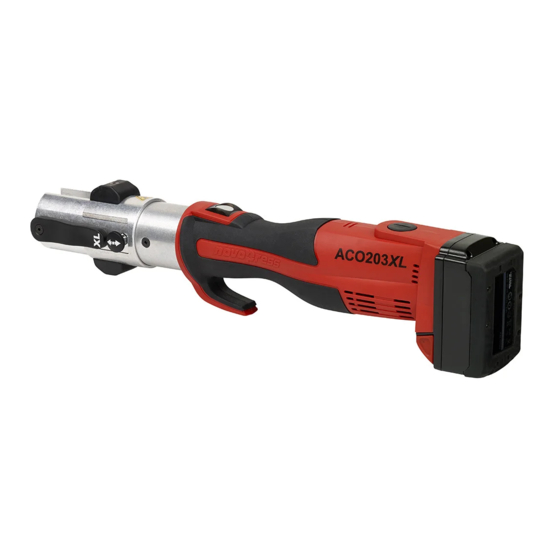

ACO203XL / ACO203XL BT
Pos: 4 /RVT/Allgemeines/Länderkennzeichen/Länderkennzeichen DE bis CS @ 0\mod_1380201864709_0.docx @ 923 @ @ 1
Operating Manual
Pos: 5 /RVT/Allgemeines/Länderkennzeichen/Länderkennzeichen HU @ 0\mod_1380202020728_0.docx @ 929 @ @ 1
Pos: 6 /RVT/Allgemeines/Länderkennzeichen/Länderkennzeichen RO @ 1\mod_1428484469434_0.docx @ 10957 @ @ 1
Pos: 7 /RVT/Allgemeines/Länderkennzeichen/Länderkennzeichen ZH @ 0\mod_1380202130807_0.docx @ 935 @ @ 1
Pos: 8 /RVT/Allgemeines/Länderkennzeichen/Länderkennzeichen KO @ 2\mod_1460102582321_0.docx @ 20618 @ @ 1
=== Ende der Liste für Textmarke Titelblatt ===
46950/b05int
0318
Advertisement
Table of Contents
Related Manuals for NovoPress KE KELIT ACO203XL
Summary of Contents for NovoPress KE KELIT ACO203XL

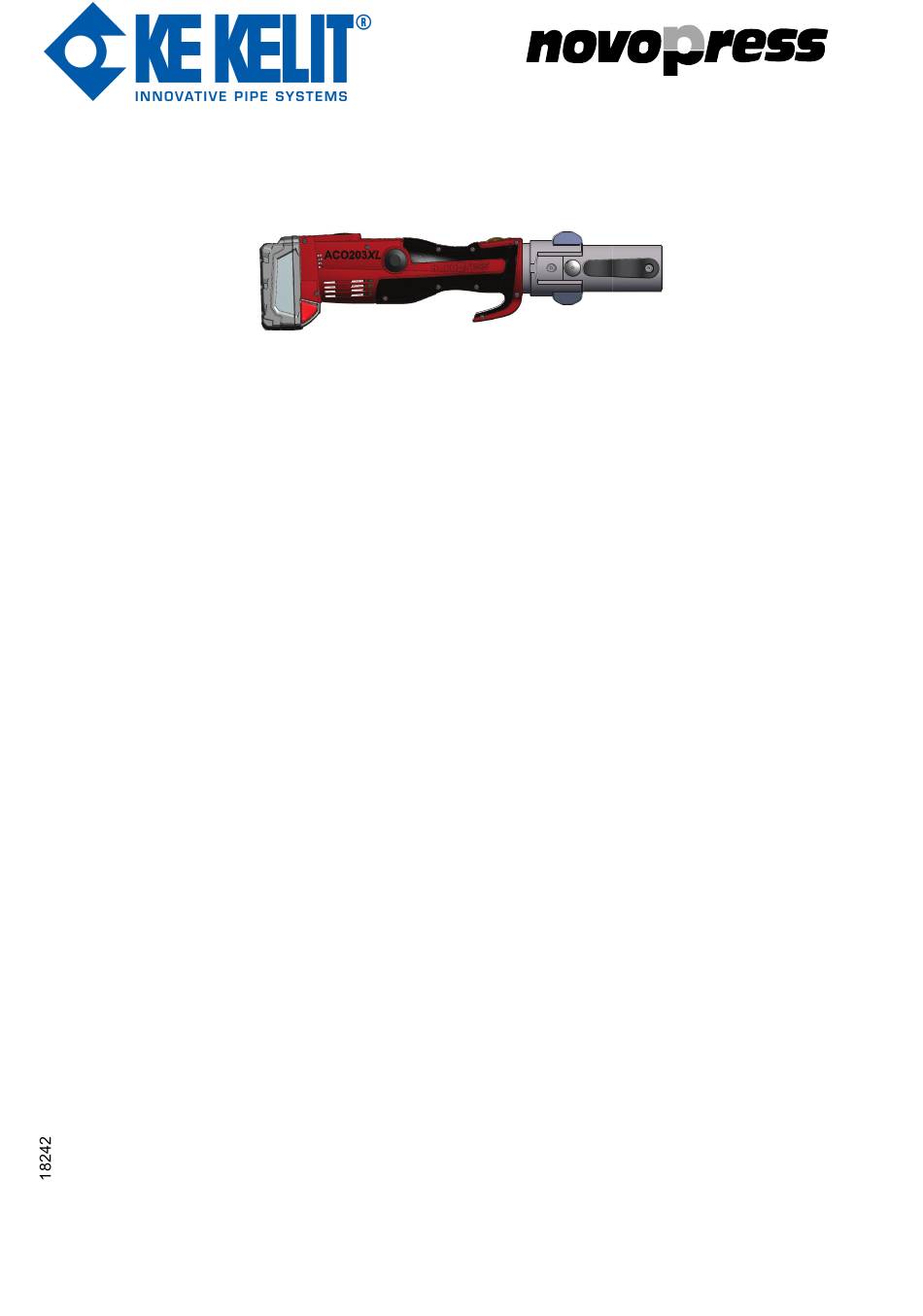

- Page 1 Pos: 2 /RVT/Allgemeines/Bild-Deckblatt/Bild-Deckblatt-ACO203XL @ 1\mod_1447400144182_0.docx @ 15377 @ @ 1 Pos: 3 /RVT/Allgemeines/Titelseiten/Kopie von Titelseite 1,5 Produkt-Word2013 @ 5\mod_1518532164172_0.docx @ 34726 @ @ 1 ACO203XL / ACO203XL BT Pos: 4 /RVT/Allgemeines/Länderkennzeichen/Länderkennzeichen DE bis CS @ 0\mod_1380201864709_0.docx @ 923 @ @ 1 Operating Manual Pos: 5 /RVT/Allgemeines/Länderkennzeichen/Länderkennzeichen HU @ 0\mod_1380202020728_0.docx @ 929 @ @ 1 Pos: 6 /RVT/Allgemeines/Länderkennzeichen/Länderkennzeichen RO @ 1\mod_1428484469434_0.docx @ 10957 @ @ 1...
- Page 2 ACO203XL / ACO203XL BT Pos: 10 /RVT/Strichbilder/ACO203XL-Strichbild-17cm @ 4\mod_1511964868103_0.docx @ 33256 @ @ 1...
- Page 3 ACO203XL / ACO203XL BT === Ende der Liste für Textmarke Grafik ===...
-
Page 4: Table Of Contents
Proper use These press devices are intended exclusively for use with press jaws/adaptor jaws and press collars manufactured by Novopress or approved by Novopress in agreement with the system supplier. For further details, please contact the system supplier or Novopress direct. - Page 5 ACO203XL / ACO203XL BT Please read this Operating Manual carefully. The safety instructions it contains must be observed. Compliance with local safety regulations is essential! WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 6: Definition Of Terms
ACO203XL / ACO203XL BT Definition of terms volt ampere hour Ø diameter ampere db(A) decibel (sound pressure) hour hertz minute watt °C degree Celsius second kilowatt kilonewton m/s² metre divided by square second gram a.c. Alternating current voltage (acceleration) kilogram d.c. -
Page 7: Scope Of Supply
ACO203XL / ACO203XL BT Scope of supply The scope of supply for the standard equipment includes: ACO203XL / ACO203XL BT Press device incl. operating manual Battery charger incl. operating Optional additional accessories (e.g. press jaws, instructions adaptor jaws, press collars) may also be included. Battery 18 V d.c. -
Page 8: Brief Description Of The Press Device
The press device can now be connected with the NovoCheck app. (For more information, go to www.novopress.de) When the connection to the wireless interface was established successfully, the blue LED (10) lights up. The blue LED (10) goes out if no connection has been established until the first pressing operation is performed. - Page 9 ACO203XL / ACO203XL BT If you do not wish to establish a connection, press the start button (1) once again and perform the pressing operation. 7.7 Battery Information! The batteries are not charged at the factory. Therefore: – Charge the batteries before using for the first time. Information! Limited temperature range for charging and storing the batteries.
-
Page 10: Commissioning And Operation
ACO203XL / ACO203XL BT Commissioning and operation 8.1 Preparing the ACO203XL/ACO203XL BT CAUTION! Fingers risk being crushed if the device is operated without a press jaw/adaptor jaw (Fig. 4) If no press jaw/adaptor jaw is fitted, fingers could be placed in the at-risk zone. Fingers could be crushed when the device is started. - Page 11 ACO203XL / ACO203XL BT 8.2 Meaning of the LED display LED display Status/cause Measure All LEDs off. The device is switched off. Briefly press the start button (1) (see section 7.8). Green LED (2) lights up. On standby. Green LED (2) off Automatic press cycle is on, (pressing operation in device ends the pressing...
-
Page 12: Cleaning, Maintenance And Repair
You can find the addresses of authorised specialist workshops by contacting Novopress or at www.novopress.de. Service intervals Service and repair work may only be carried out by Novopress or the authorised Novopress specialist workshops. Information! The next service deadline is indicated on the press device. -
Page 13: Disposal
Service work and parts provided in response to warranty claims do not have to be paid for. However, all shipping costs shall be borne by the user. Claims can only be accepted if the device is delivered to Novopress or a Novopress workshop in an assembled state. -
Page 14: Eu Declaration Of Conformity
ACO203XL / ACO203XL BT Repair warranty Novopress provides the following repair and spare parts warranty beyond the warranty period for new products that undergo repair after this period: • 6-month warranty for replaced spare parts. • 12-month warranty for replaced assemblies. - Page 15 Scharnhorststr. 1 Postfach 101163 41460 Neuss 41411 Neuss Germany Germany Tel.: +49 (2131) 2880 Fax: +49 (2131) 28855 www.novopress.de E-mail: info@novopress.de...
