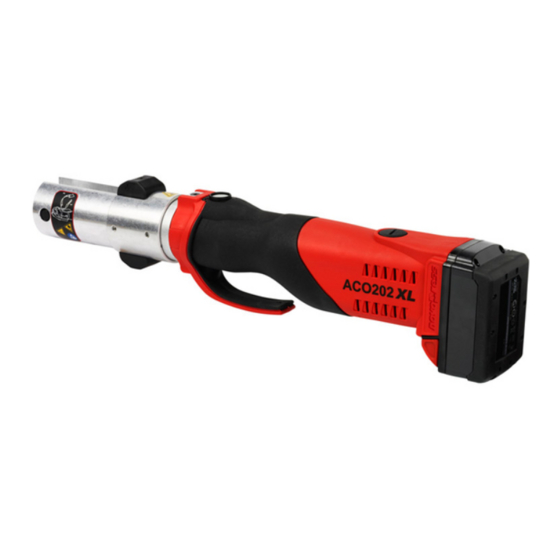

NovoPress Comfort-Line ACO202XL Operating Manual

Pressing tool
Hide thumbs Also See for Comfort-Line ACO202XL:
Table of Contents

Advertisement

Quick Links

Download this manual
ACO202XL
EN
Operating Manual
45381/b03int
0912

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Comfort-Line ACO202XL and is the answer not in the manual?

Questions and answers

Related Manuals for NovoPress Comfort-Line ACO202XL

Summary of Contents for NovoPress Comfort-Line ACO202XL

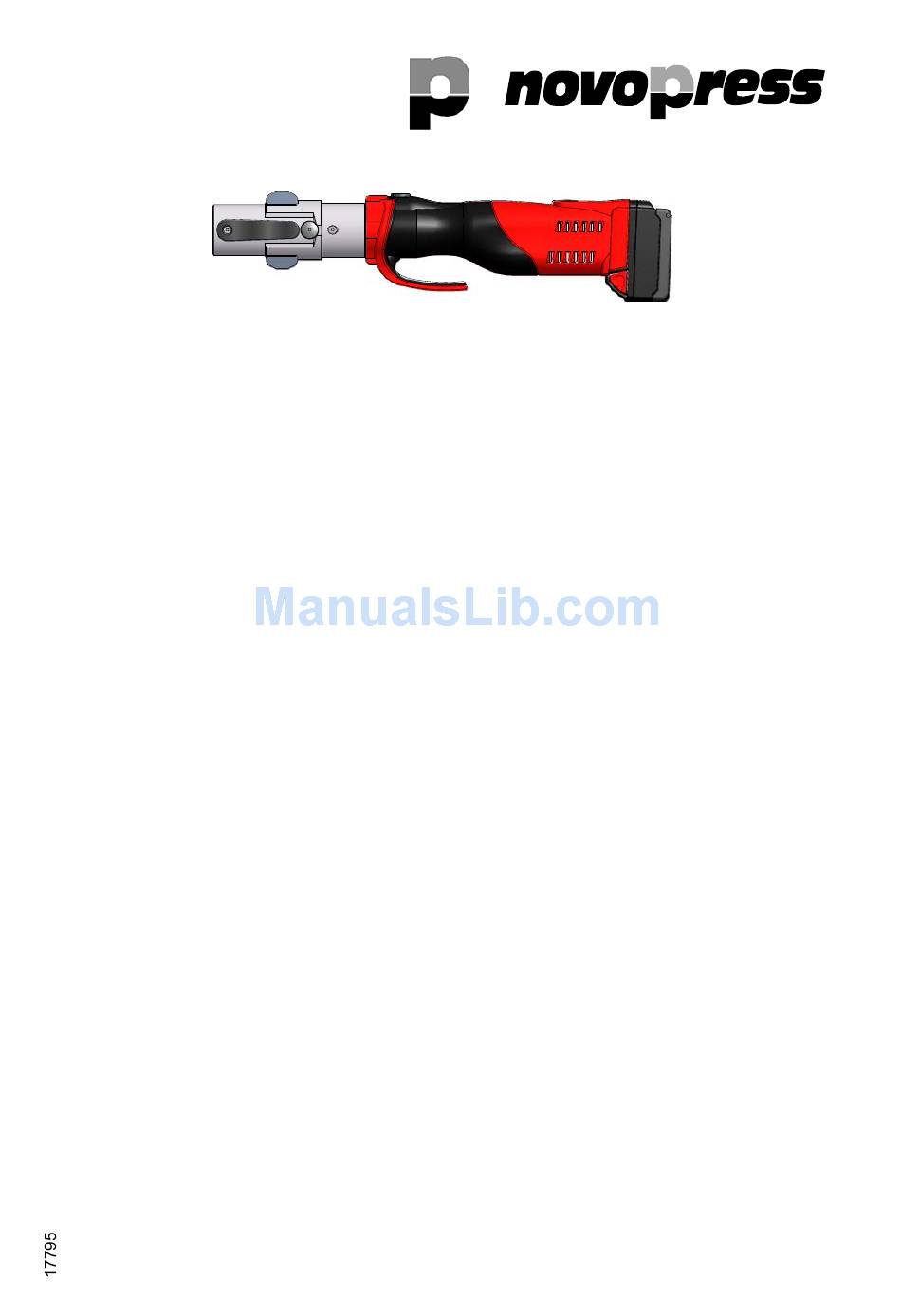

  • Page 1 ACO202XL Operating Manual 45381/b03int 0912...

  • Page 5: Table Of Contents

    Proper use These press devices are intended exclusively for use with press jaws/adaptor jaws and press collars manufactured by Novopress or approved by Novopress in agreement with the system supplier. For further details, please contact the system supplier or Novopress direct.

  • Page 6: Basic Safety Information

    ACO202XL Basic safety information The following pictograms are used to highlight sections of text. Please follow these instructions and act with particular caution in these cases. Pass all health and safety instructions on to other users and technicians. WARNING! This information indicates a potentially dangerous situation that could result in serious injury or death.

  • Page 7: Definition Of Terms

    ACO202XL WARNING! Risk of injury from ejected fragments Incorrect or improper use or the use of worn or damaged press tools and press devices carries a risk of injury from ejected fragments. Therefore: – Press tools and press devices may only be used by trained personnel. –...

  • Page 8: Symbols On The Device And Information On The Rating Plate

    ACO202XL Symbols on the device and information on the rating plate Symbol Meaning Warning of ejected fragments Warning: Danger of crushing Service sticker; indicates when the next service is due. Using the retaining pin Information on the rating plate Manufacturer logo Power consumption incl.

  • Page 9: Scope Of Supply

    ACO202XL Scope of supply The scope of supply for the standard equipment includes: ACO202XL Press device incl. operating manual Safety information Battery charger incl. operating manual Service addresses Battery 18 V DC Carrying case Optional additional accessories (e.g. press jaws, adaptor jaws, press collars) may also be included.

  • Page 10: Brief Description Of The Press Device

    ACO202XL Battery charger For information on the function and operation of the battery charger and the rechargeable batteries, please consult the battery charger operating instructions. Brief description of the press device Automatic press cycle (Fig. 1) The device features an automatic press cycle. This ensures that the pressing operation is always completed.
  • Page 11 ACO202XL Battery Information! The batteries are not charged at the factory. Therefore: – Charge the batteries before using for the first time. Information! Limited temperature range for charging and storing the batteries. Therefore: – It is imperative that the operating instructions for the battery charger are complied with.

  • Page 12: Commissioning And Operation

    ACO202XL Commissioning and operation Preparing the ACO202XL CAUTION! Fingers risk being crushed if the device is operated without a press jaw/adaptor jaw (Fig. 4) If no press jaw/adaptor jaw is fitted, fingers could be placed in the at-risk zone. Fingers could be crushed when the device is started. Therefore: –...
  • Page 13 ACO202XL Meaning of the LED display LED display Status/cause Measure Green LED off. The device is switched Briefly press the start button (see section off. 7.7). Green LED lights up. Ready for operation. Green LED off Automatic press cycle is (pressing operation on, device ends the in progress).

  • Page 14: Cleaning, Maintenance And Repair

    ACO202XL CAUTION! Keep fingers away from the at-risk zone if no press jaw/adaptor jaw is fitted (Fig. 4) Fingers risk being crushed. Therefore: – Do not operate the device without the press jaws. – Keep your fingers away from the at-risk zone. Information! Always comply with the operating instructions for the press tools.

  • Page 15: Disposal

    You can find the addresses of authorised specialist workshops on the “Service addresses” sheet provided or at www.novopress.de. Service intervals Service and repair work may only be carried out by Novopress or the authorised Novopress specialist workshops. Information! The next service deadline is indicated on the press device.

  • Page 16: Warranty And Guarantee

    Novopress provides an extended warranty of one year for all new press devices, adaptor jaws and press collars that have been serviced at least every 12 months by Novopress or by an authorised Novopress workshop. There is a charge for this service work. For details of costs, please contact Novopress or an authorised Novopress workshop.

  • Page 17: Eu Declaration Of Conformity

    Applicable standards: EN 55014-1; EN 55014-2; EN 60745-1; EN ISO 14121-1; EN ISO 12100-1; EN ISO 12100-2 Novopress GmbH & Co KG _______________________ Scharnhorststr. 1 Sven Meyer...
  • Page 18 ACO202XL...
  • Page 19 Repairs / Service Scharnhorststr. 1 Postfach 101163 41460 Neuss 41411 Neuss Germany Germany Tel.: +49 (2131) 2880 Fax: +49 (2131) 28855 www.novopress.de E-mail: info@novopress.de...
