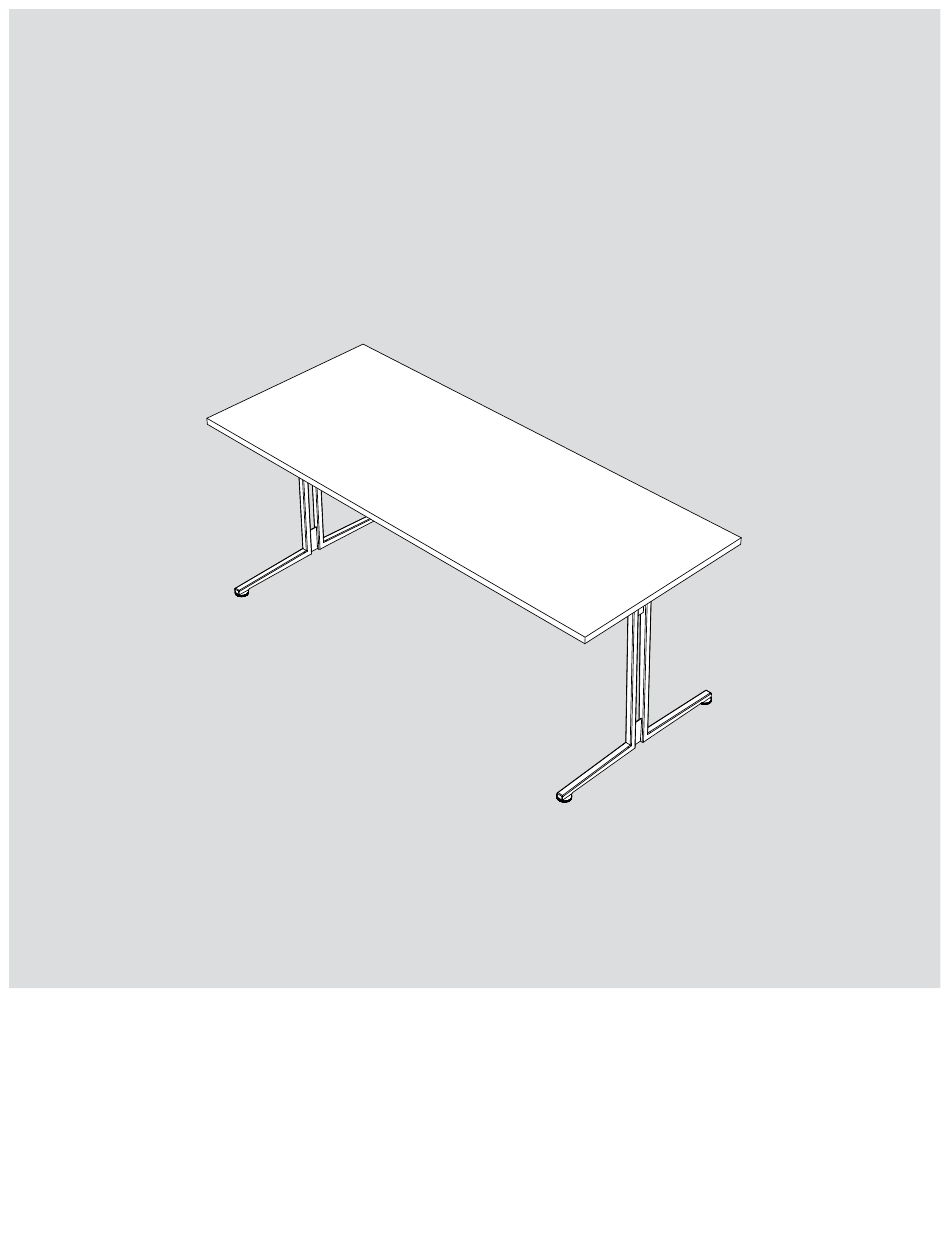

- Page 1 SCULPT TABLE LEG USER GUIDE...
- Page 2 PRODUCT OVERVIEW FEATURES • BIFMA tested and approved • Ten-year warranty • Easy assembly • Multiple color options...
- Page 3 TABLE OF CONTENTS Parts Diagram 30" T-Leg Safety Information Assembly Instructions CUSTOMER SERVICE If you have any problems with your table base, please contact our service department. STANDARDS & CERTIFICATIONS Meets 2014 BIFMA standards. WARRANTY Contact your sales representative for warranty information.
- Page 4 PARTS DIAGRAM PARTS DIAGRAM 30" T-LEG PARTS 1. Mounting Plate 2. Column 3. Foot 4. Glides...
- Page 5 SAFETY INFORMATION SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS Save these instructions. INSTALL ONLY APPROVED WORK SURFACES This table system does not include a work surface (desktop). Maximum load for table is 200 lb, including work surface. Maximum desktop dimensions are 30"x72". If you are unsure if your preferred work surface meets specifications, contact customer service.
- Page 6 ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS The assembly of the table frame to be made in accordance with this manual. Changes to the table frame or improper use may affect the safety, function, and life of your product. This manual applies to the following table legs: 30" T-Leg INSTALL COLUMN ASSEMBLY TO THE TABLE TOP Use the chart below to locate the position of the pilot holes on the table top: FRONT CORNER...
- Page 7 ASSEMBLY INSTRUCTIONS Mark the locations of the pilot holes. Drill the pilot holes to the size recommended by the table top manufacturer. Install the screws through the mounting plate into the table top. NOTE: The holes in the mounting plate are .280 in 2.5in 2.5in If you have any difficulty assembling this unit, or need to order replacement parts, please contact...
- Page 8 SCULPT USER GUIDE...
