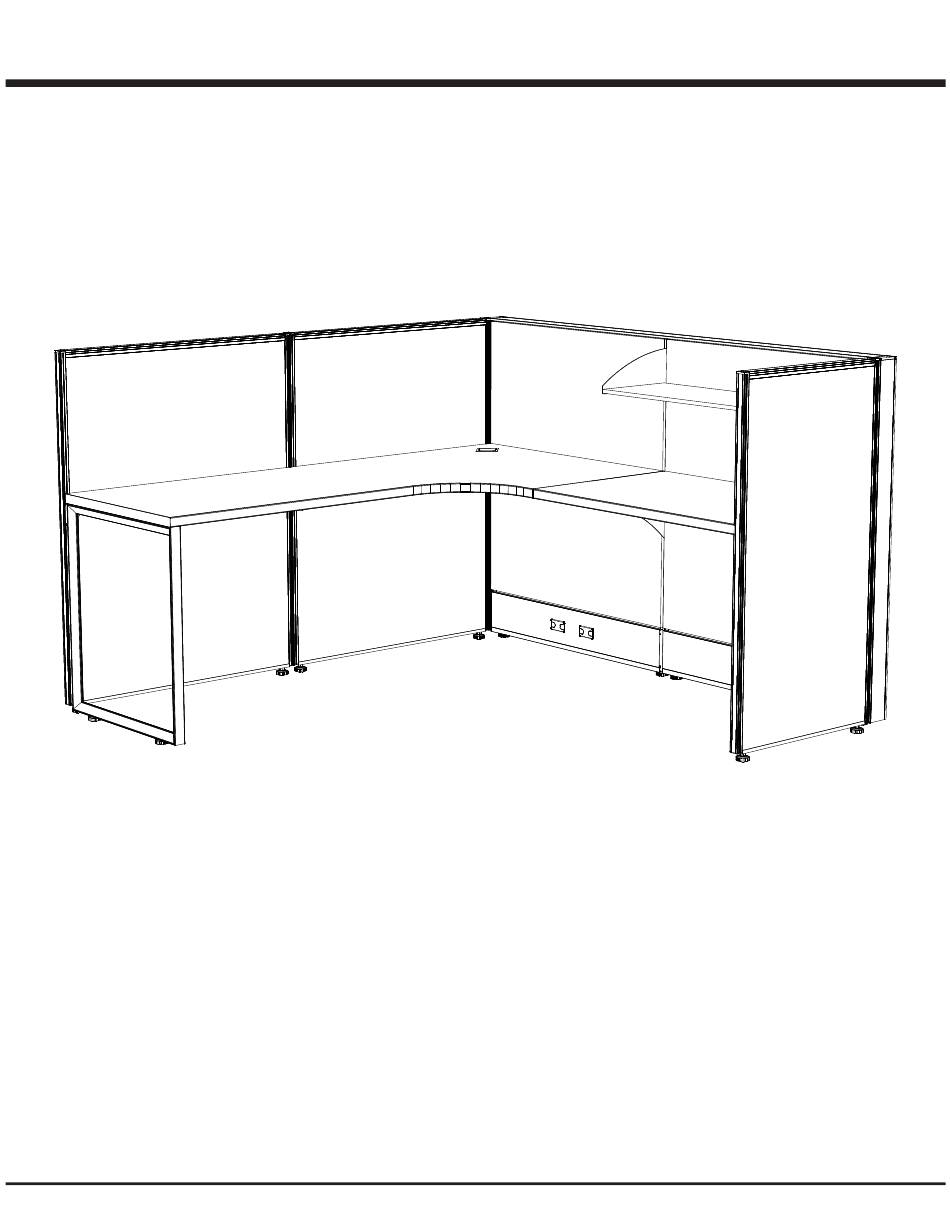

- Page 1 EZcube Installation Guide RSI Systems Furniture...
- Page 2 RSI Systems Furniture...
- Page 3 EZcube Installation Guide Panels Connection Posts 9-11 Top Cap / End Trim 12-13 Worksurface Brackets Support Leg Shelf Power Blocks Duplexes RSI Systems Furniture...
- Page 4 STEP 3: Grab your X3 Panel Screw (M6x30mm), stick it STEP 4: Before fully tightening the bracket make sure the top through Connector-B and start screwing it into Connec- and sides of the panels are all lined up. tor-A that is mounted inside the connecting panel. RSI Systems Furniture...
- Page 5 STEP 3: While you are connecting you should hear the spring loaded locking bracket snap into place. To ensure a solid connec- tion lift up slightly on the panel to ensure a solid locked connection RSI Systems Furniture...
- Page 6 STEP 3: Make sure the top cap line on the X31 Post lines up with the top of the side rail then finish tight- ening the post screw. RSI Systems Furniture...
- Page 7 STEP 2: Lift up the panel you are connecting and lower in on to the interlocking brackets of the X31 Post you are connecting to. STEP 3: Lift up slightly on the panel to ensure the panel and post are locked together. RSI Systems Furniture...
- Page 8 Connector-A brackets that are included in your hardware pack. STEP 3: Make sure the bottom top cap line on the X3 Post lines up with the top of the side rail then fin- ish tightening the screw. RSI Systems Furniture...
- Page 9 Note: Do not over tighten screws. Note: For top cap installation instructions see page-xx RSI Systems Furniture...
- Page 10 STEP 2: Slowly move down the panel and snap it into place as you move down to the end. STEP 3: Make sure that the top cap is completely seated against the top of panel. RSI Systems Furniture...
- Page 11 STEP 2: Unscrew the X1 connecting brackets and slide up and off the panel STEP 3: Put the side top cap back on the panel then grab the end trim and Insert L-Shaped end first then snap into place RSI Systems Furniture...
- Page 12 STEP 1: Angle the work surface bracket and insert the top tooth into the Side Rail STEP 2: Make sure the bracket is completely seated on the side rail NOTE: The top of the brackets should be installed around 28.5” so they match up with the support legs. RSI Systems Furniture...
- Page 13 STEP 3: Measure the height on the X3 work surface brack- ets so you know what height to install the brackets at. STEP 4: Slide the loose backplate down the side rail slot with the cantilever attached. Tighten the screws once you have reached the correct location. RSI Systems Furniture...
-
Page 14: Support Leg
STEP 3: Slide the leg over and attach the corner bracket to the worksurface. STEP 4: Slide the leg back to its original loca- tion and attach the remaining screws. RSI Systems Furniture... - Page 15 STEP 1: Install the shelf ends to the bottom shelf pan with the screws provided. STEP 2: Angle the shelf and insert the top tooth into the side STEP 3: Make sure the shelf is completely seated on the side rail. rail RSI Systems Furniture...
-
Page 16: Power Block
STEP 3: Position the power block so it slides onto the existing mounting brackets mounted inside the cable channel. STEP 4: Keep sliding until you hear the power block snap into place on the panel. RSI Systems Furniture... - Page 17 X3 Shelf STEP 1: Insert the duplexes into the mounted power block STEP 2: Once inserted, slide the duplexes toward the outer edge until you hear them snap into place RSI Systems Furniture...
