RSI Systems Furniture EZcube Installation Manual

Hide thumbs Also See for EZcube:

Advertisement

Quick Links

Download this manual
EZcube Installation Guide
RSI Systems Furniture

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZcube and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RSI Systems Furniture EZcube

Summary of Contents for RSI Systems Furniture EZcube

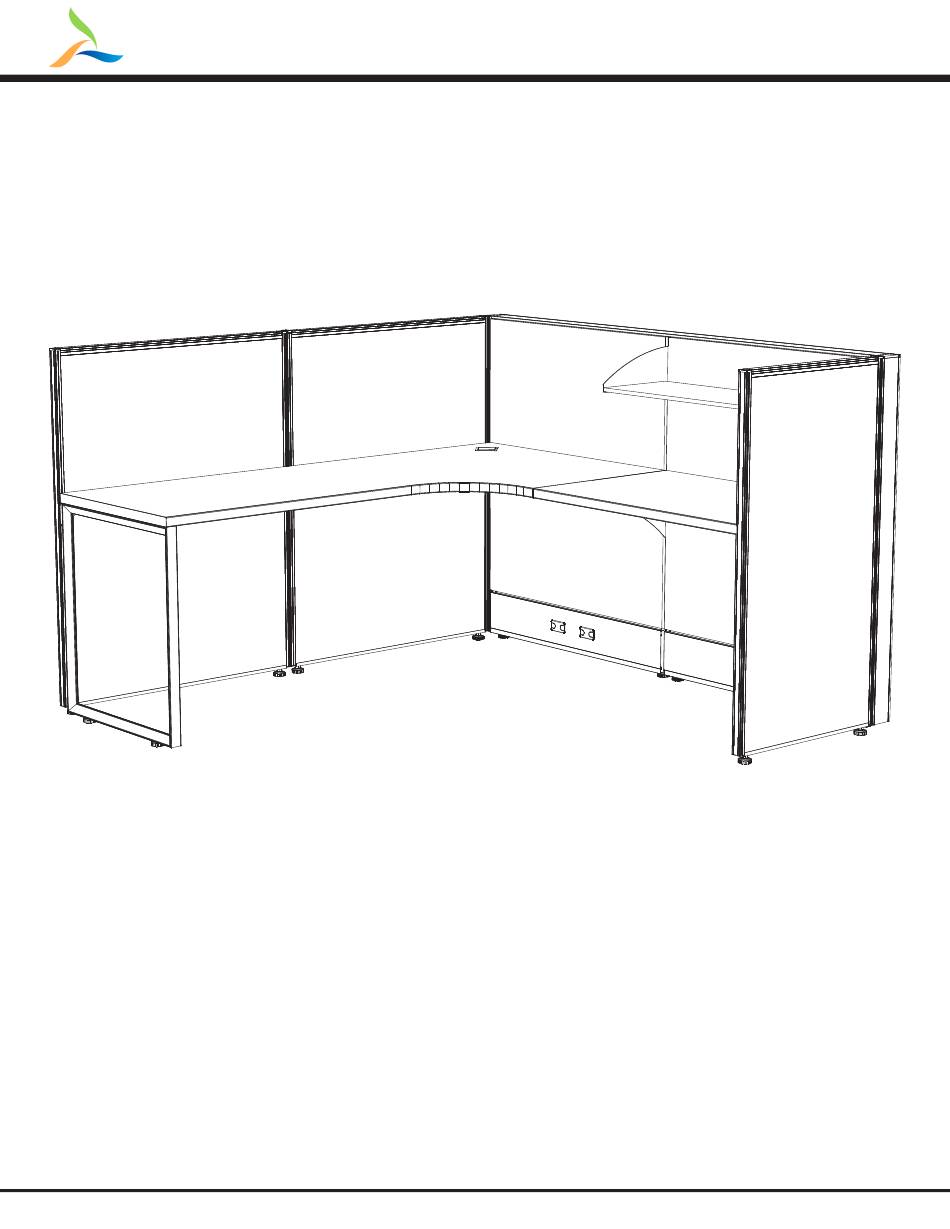

  • Page 1 EZcube Installation Guide RSI Systems Furniture...
  • Page 2 RSI Systems Furniture...
  • Page 3 EZcube Installation Guide X31 Connection Post Panel-to-Panel X3 Connection Post 10-11 Topfeed 12-13 X1 Connection Post 14-15 End Trim X3 Top Cap Shelf 18-19 Worksurface Supports Support Leg Power Block Duplex Panel Jumper 24-27 Basefeed Light Blocking Strips Frameless Glass...
  • Page 4 X3 Panel to X31 Post CON-B (Non-Threaded Connector CON-A (Threaded Connector) STEP 1: Lift up and remove the fabric tile from one side of STEP 2: Determine which side of the panel has CON-A and CON-B the panel. RSI Systems Furniture...
  • Page 5 STEP 3: Align X31 Post to X3 Panel Rail, push your X31 Post Screw through the CON-B and screw the pole into the post. See Photo above for proper alignment instructions. RSI Systems Furniture...
  • Page 6 When lowering it onto the post you should hear the X1 The top of the X1 panel should line up with the top of the Panel Lock click. X31 post. RSI Systems Furniture...
  • Page 7 STEP 1: Grab your X3 Panel Screw (M8x30mm), stick it STEP 2: Before fully tightening the screw make sure the top through CON-B and start screwing it into CON-A that is and sides of the panels are aligned. mounted inside the panel you are connecting to. RSI Systems Furniture...
  • Page 8 STEP 2: Lift up the panel you are connecting and slide Side-1 onto the interlocking brackets of Side-2. You should hear the locking bracket click into place once Side-1 is completely seated on Side-2. NOTE: Every X1 Panel connection should be locked into place with an X1 Panel Lock RSI Systems Furniture...
  • Page 9 CON-B brackets that are included in your hardware pack. STEP 3: Make sure the bottom top cap line on the X3 Post lines up with the top of the side rail then fin- ish tightening the screw. RSI Systems Furniture...
  • Page 10 NOTE: TFM whips plug directly into the end of the power block. If you receive a 180” whip with a 10’ pole you will jump a panel before plugging the TFM whip into the power block. RSI Systems Furniture...
  • Page 11 NOTE: TFM whips plug directly into the end of the power block. If you receive a 180” whip with a 10’ pole you will jump a panel before plugging the TFM whip into the power block. RSI Systems Furniture...
  • Page 12 STEP 4: Ensure your connecting brackets are in the same position as shown above so it properly locks to the X1 Connection Post. If installed correctly it should match the opposite side of the panel and should have two locking brackets installed on the same panel. RSI Systems Furniture...
  • Page 13 STEP 8: Grab your next X1 Panel and install it as you normally would on any other X1 Panel. Listen for the locking bracket to click into place to ensure a solid connection RSI Systems Furniture...
  • Page 14 Note: Do not over tighten screws. This will Note: For top cap installation instructions see page-16 cause the screws to strip out and not hold the end trim properly RSI Systems Furniture...
  • Page 15 STEP 2: Unscrew the X1 connecting brackets then slide the brackets up and off the panel STEP 3: Insert the X1 End Trim by either sliding it down from the top or snap- ping it in from the side as shown above. RSI Systems Furniture...
  • Page 16 STEP 3: Make sure that the bottom of the top cap is completely seated against the top of panel. Never use a hammer or mallet on top caps RSI Systems Furniture...
  • Page 17 STEP 1: Install the shelf ends to the bottom shelf pan with the screws provided in your hardware pack. STEP 2: Angle the shelf and insert the top tooth into the side STEP 3: Make sure the shelf is completely seated on the side rail. rail RSI Systems Furniture...
  • Page 18 STEP 1: Angle the work surface bracket and insert the top tooth into the Side Rail STEP 2: Make sure the bracket is completely seated on the side rail NOTE: The top of the brackets should be installed around 28.5” RSI Systems Furniture...
  • Page 19 STEP 4: Slide the loose X1 Cantilever Connection Bracket down the side rail slot with the cantilever attached. Tighten the screws once you have reached the correct height. RSI Systems Furniture...

  • Page 20: Support Leg

    STEP 3: Slide the leg over and attach the corner bracket to the worksurface. STEP 4: Slide the leg back to its original loca- tion and attach the remaining screws. NOTE: The support leg should be flush with the end of the panel so it covers up the support bracket RSI Systems Furniture...

  • Page 21: Power Block

    STEP 3: Position the power block so it slides onto the existing X3 Power Mount Brackets mounted inside the cable channel. STEP 4: Keep sliding until you hear the power block snap into place on the panel. RSI Systems Furniture...
  • Page 22 Duplex STEP 1: Insert the duplexes into the mounted power block STEP 2: Once inserted, slide the duplexes toward the outer edge until you hear them snap into place RSI Systems Furniture...

  • Page 23: Power Jumper

    STEP 1: Feed the power jumper through the cable channel and connect the power blocks together STEP 2: Upon inserting the jumper into the power block you should feel it click into place. NOTE: Jumpers can be stretched and lengthened by 3” by pulling on each end. RSI Systems Furniture...
  • Page 24 Starting from the bottom, cut down the X31 Post 5.5”-6” to insert the basefeed directly into the X3 Panels Shortened X31 Connection Posts should be installed at basefeed locations to allow the basefeed to install directly into the spine panels RSI Systems Furniture...
  • Page 25 Run Basefeed through the opening in 1-Way 120 degree post OPTION-3 Remove duplex cover and feed the basefeed whip through the opening. Note: This will only work if you DO NOT have a power block installed in this panel. RSI Systems Furniture...
  • Page 26 RSI Systems Furniture...
  • Page 27 STEP 1: Prior to installing the power block, first plug in the basefeed to the power block STEP 2: Slide the power block onto the mounting brackets at an angle as shown above STEP 3: Finish turning the power block onto the brackets until you hear the power block snap into place RSI Systems Furniture...
  • Page 28 STEP 2: Angle the strip and start inserting it into the X3 rail at the top of the panel Shared X3 Light Strip STEP 2: Finish by pushing the strip into place all the way down the panel. NOTE: Use a hinge cutter to cut strips down to fit above worksurfaces / support brackets RSI Systems Furniture...
  • Page 29 STEP 4: Grab the glass and start inserting the corner in at an angle. Make sure the unfinished side is installed in- as you did in Step 2. side the bracket. STEP 5: Make sure that the glass is completely seated at the bottom of the bracket. RSI Systems Furniture...
  • Page 30 RSI Systems Furniture 235 S. 56th St. Chandler, AZ 85226 800-280-5000 5/19...
