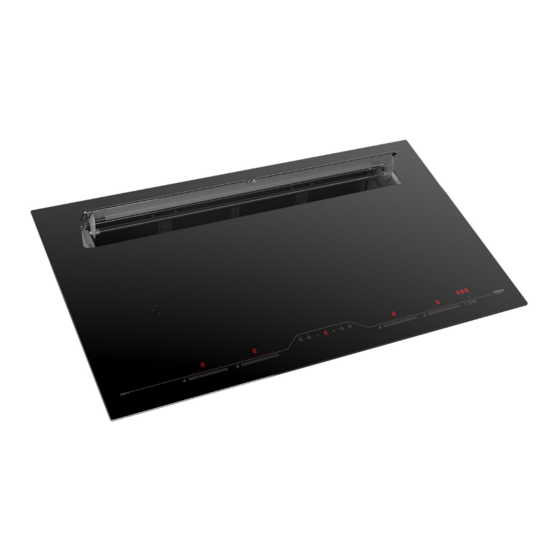

AIRFORCE Aspira Induction slim g5 OCTA Instruction On Mounting And Use Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
aspira induction
Model: slim g5
MONTAGE- UND GEBRAUCHSANWEISUNG
D
GB
INSTRUCTIONS ON MOUNTING AND USE
F
PRESCRIPTIONS DE MONTAGE ET MODE D'EMPLOI
NL
MONTAGEVOORSCHRIFTEN EN GEBRUIKSAANWIIZING
ES
MONTAJE Y MODO DE EMPLEO
ISTRUZIONI DI MONTAGGIO E D'USO
I
MONTERINGS- OG BRUGSVEJLEDNING
D K
FI
ASENNUS- JA KÄYTTÖOHJEET
NO
INSTRUKSJONER FOR MONTERING OG BRUK
SE
MONTERINGS- OCH BRUKSANVISNINGAR

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aspira Induction slim g5 OCTA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AIRFORCE Aspira Induction slim g5 OCTA

Summary of Contents for AIRFORCE Aspira Induction slim g5 OCTA

  • Page 1 aspira induction Model: slim g5 MONTAGE- UND GEBRAUCHSANWEISUNG INSTRUCTIONS ON MOUNTING AND USE PRESCRIPTIONS DE MONTAGE ET MODE D’EMPLOI MONTAGEVOORSCHRIFTEN EN GEBRUIKSAANWIIZING MONTAJE Y MODO DE EMPLEO ISTRUZIONI DI MONTAGGIO E D’USO MONTERINGS- OG BRUGSVEJLEDNING ASENNUS- JA KÄYTTÖOHJEET INSTRUKSJONER FOR MONTERING OG BRUK MONTERINGS- OCH BRUKSANVISNINGAR...
  • Page 2 ANWEISUNGEN WARNINGS Caution his instruction handbook is conserved together with the for future consultation. If the equipment is sold or transferred to another person, make certain the instruction handbook is supplied together with it, so that the new user can become aware of the operation of the cooker hood and related warnings.
  • Page 3 ANWEISUNGEN WARNINGS leaning and maintenance must not be carried out by children without proper supervision. f the power cord is damaged, it must be replaced by a qualified service centre or technician only. he electrical installation must have a breaker upstream from the appliance which ensures that all poles are disconnected with a contact gap of at least 3mm.

  • Page 4: Fire Hazard

    ANWEISUNGEN WARNINGS he induction hob should not be used as a work surface. The rough underside of food containers can scratch the surface of the cooktop. lways keep the cooking areas and underside of food containers perfectly dry. Fire hazard il and grease that are too hot will catch fire quickly.

  • Page 5: Burn Hazard

    ANWEISUNGEN WARNINGS Burn hazard AUTION: This appliance and its accessible parts become very hot during use. ay attention to avoid touching the heating elements. eep children under 8 years of age away from the appliance, unless they are continually monitored. o not place objects such as knives, forks, spoons or lids on the induction top, as they may overheat.
  • Page 6 ANWEISUNGEN WARNINGS Non-suitable food containers ever use recipients made of: normal finegrained steel, glass, pottery, copper and aluminium. Do not place empty containers on the cooking zone, as they may cause damage. o not place hot recipients on the control panel, in the area of the pilot lights or on the edge of the cooking top, as they may cause damage.
  • Page 7 ANWEISUNGEN WARNINGS ny interventions or repairs on the unit during the warranty period must be carried out solely by the manufacturer’s authorised service centre; conversely, the warranty will be is invalidated and terminated immediately. The manufacturer will not recognise any warranties under any circumstances for any problems subsequently encountered.

  • Page 8: Noise Emissions

    ANWEISUNGEN WARNINGS Noise emissions nduction can generate slight noise emissions, which can vary depending on the material, type of pot and power setting selected. When the cooktop is used frequently, the cooling fan turns itself on to protect the electronics, generating a buzzing sound: this is perfectly normal.
  • Page 9 Fig.1 Min. 70 mm Min.4mm Schublade Drawer Tiroir Schuif Cajón Cassetto Skuffe Laatikko Skuff Låda...
  • Page 11 X + 513 X + 488 X - 17 ( X ) MIN 827 / MAX 982 X + 86 X - 10 X + 213 X - 32 X + 211...
  • Page 12 Um sich besser an die Beschaffenheit jeder Küche anzupassen, kann slim g5 auf 4 verschiedene Weisen installiert werden; wählen sie den Montagetyp, der am besten zu ihrem Küchenmöbel passt. slim g5 can be installed in 4 different modes to better suit the layout of every kitchen;...
  • Page 13 Installation Version 1 Installatie versie 1 Installation version 1 Versión de instalación 1 Installation version 1 Installazione versione 1...
  • Page 14 Installation Version 1 Installatie versie 1 Installation version 1 Versión de instalación 1 Installation version 1 Installazione versione 1 MIN 827 / MAX 982 X-17,5 O 70 ( X ) R 10...
  • Page 15 Installation Version 2 Installatie versie 2 Installation version 2 Versión de instalación 2 Installation version 2 Installazione versione 2...
  • Page 16 Installatie versie 2 Installation Version 2 Versión de instalación 2 Installation version 2 Installazione versione 2 Installation version 2 MIN 827 / MAX 982 O 70 X - 17,5 ( X ) R 10...
  • Page 17 Installation Version 3 Installatie versie 3 Installation version 3 Versión de instalación 3 Installation version 3 Installazione versione 3...
  • Page 18 Installation Version 3 Installatie versie 3 Installation version 3 Versión de instalación 3 Installation version 3 Installazione versione 3 MIN 827 / MAX 982 O 70 X - 187,5 ( X ) R 10...
  • Page 19 Installation Version 4 Installatie versie 4 Installation version 4 Versión de instalación 4 Installation version 4 Installazione versione 4...
  • Page 20 Installation Version 4 Installatie versie 4 Installation version 4 Versión de instalación 4 Installation version 4 Installazione versione 4 MIN 827 / MAX 982 X -187,5 ( X ) R 10...
  • Page 21 AFV0010...
  • Page 22 X>140mm...
  • Page 23 X<140mm...
  • Page 25 pay attention! place exactly at 255mm...
  • Page 28 90°...
  • Page 30 AFV0002 VT02WA...
  • Page 31 Only for the “slim g5 motion” version...
  • Page 32 Only for the “slim g5 motion” version...
  • Page 33 Es ist streng verboten, Gliedmaßen oder jegliche andere Teile des menschlichen Körpers oder eines Tiers in die Nähe der Reichweite der Verkleidung aus Paneel-Teilen zu halten. Positionieren Sie keine Pfannen, Pfannengriffe oder andere Gegenstände in die Reichweite der Bewegung der Verkleidung aus Paneel-Teilen. It is strictly prohibited to place limbs or any other part of the human body or that of any animal in the vicinity of the range of motion of the baffle.
  • Page 35 AFV0002...
  • Page 36 AFV0005...
  • Page 39 pay attention! place exactly at 258 mm...
  • Page 46 Charcoal filter installation and replacement SEZ. A-A A k t i v k o h l e f i l t e r Charcoal Filter Filtre à charbon Koolstoffilter Filtro al carbòn Filtro al carbone...

  • Page 47: Electrical Connection Diagram

    Electrical connection diagram 220-240V 220-240V 220-240V The induction hob is composed of 2 modules, each one can absorb 3.7kW max. The total rated power of the product is 14,8kW (3,7kW+3,7kW+3,7kW+3,7kW)
  • Page 48 FUNZIONAMENTO OPERATION Aspira is equipped with touch sensitive electronic sensor keys. Switching on the cooktop Press the power button If no other control is enabled, the hob turns off automatically for safety reasons. Activating the desired cooking zones Every cooking zone is equipped with its own dedicated slider. The hob automatically detects which cooking zone to activate, based on the position of the pot.
  • Page 49 FUNZIONAMENTO OPERATION Power Operating limit in minutes Toggle Fun- ction Liv.1- Bridged mode If the pot used is large enough to cover two adjacent cooking zones, the slider of each zone turns on; at this point, touch both sliders simultaneously to activate the Bridge function, indicated by the symbols [ and ], that allows you to control both cooking zones simultaneously, as a single larger zone.
  • Page 50 FUNZIONAMENTO OPERATION Pod detection Place on the cooking zones a pot, of suitable material and diameter, as shown in the section on suitable cookware. The zones will activate. If the pots used are not suitable, hence not recognized by the various cooking zones, the potdetection function will indicate this problem with the symbol “u”...
  • Page 51 FUNZIONAMENTO OPERATION By pressing this key with at least one cooking zone active, the pause function is activated; this function stops temporarily (for a maximum of 10 min.) any plane activity including any active timers. To disable this function press again the pause key and unlock by acting on the right slider. If the cooking plane is unintentionally extinguished (with at least one of the cooking zones active) it is possible to call up all the functions previously activated with the recall function.
  • Page 52 FUNZIONAMENTO OPERATION slim g5 Display This device allows you to choose the operating mode (suction or filtration), depending on the installation. Upon first start-up, the display shows which operating mode is enabled. Filtration: the display shows the letters C and the filter reset button flashes quickly. Suction: the display indicates the letter C and the filter reset button is off.
  • Page 53 FUNZIONAMENTO OPERATION A:Timer key: when touching the key, the timer will be enabled, regardless of the selected suction speed. Upon first touch, the time will be 5 minutes (shown by a flashing button on the key), the second touch corresponds to 10 minutes (double flashing time) and the third touch to 20 minutes (triple flashing time) The timer key will flash throughout the entire operation.
  • Page 54 CLEANING AND MAINTENANCE FUNZIONAMENTO Cooking top The cooking top must be cleaned after each use. Allow the appliance to cool before cleaning it. Prior to cleaning the ceramic glass cooking hob, it is advisable to activate the Child Lock function, so that the cooking top is not switched on accidentally (see Child Lock function).
  • Page 55 CLEANING AND MAINTENANCE FUNZIONAMENTO OPERATION TABLE OF COOKING TOP ERRORS These errors appear on the cooking top display. Error code Description Possible causes Solution Continuous activation of one or more keys. The Liquids or cookware on Clean the control zone or flashing control turns off after 10 the control zones.

This manual is also suitable for:

Aspira induction slim g5 motion
