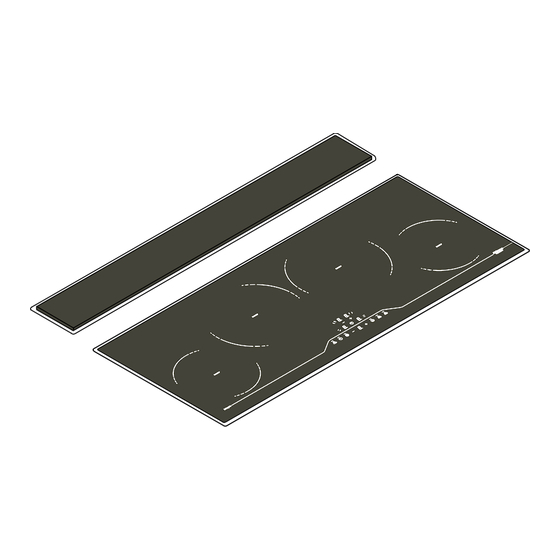

- Page 1 integra MONTAGE- UND GEBRAUCHSANWEISUNG INSTRUCTIONS ON MOUNTING AND USE PRESCRIPTIONS DE MONTAGE ET MODE D’EMPLOI MONTAGEVOORSCHRIFTEN EN GEBRUIKSAANWIIZING MONTAJE Y MODO DE EMPLEO ISTRUZIONI DI MONTAGGIO E D’USO...
- Page 2 ANWEISUNGEN WARNINGS Caution his instruction handbook is conserved together with the INTEGRA for future consultation. If the equipment is sold or transferred to another person, make certain the instruction handbook is supplied together with it, so that the new user can become aware of the operation of the cooker hood and related warnings.
-
Page 3: Fire Hazard
ANWEISUNGEN WARNINGS to the cooking top. Never start up a damaged unit, as it may pose a safety risk. he unit’s installation and electrical connection to the power grid must be carried out by qualified service technicians only. The device’s electrical safety can be guaranteed solely if a regular ground connection is provided for the cooking top. -
Page 4: Burn Hazard
ANWEISUNGEN WARNINGS Burn hazard AUTION: This appliance and its accessible parts become very hot during use. Pay attention to avoid touching the heating elements. Keep children under 8 years of age away from the appliance, unless they are continually monitored. o not place objects such as knives, forks, spoons or lids on the induction top, as they may overheat. - Page 5 ANWEISUNGEN WARNINGS Non-suitable food containers ever use recipients made of: normal finegrained steel, glass, pottery, copper and aluminium. Do not place empty containers on the cooking zone, as they may cause damage. o not place hot recipients on the control panel, in the area of the pilot lights or on the edge of the cooking top, as they may cause damage.
-
Page 6: Noise Emissions
ANWEISUNGEN WARNINGS and terminated immediately. The manufacturer will not recognise any warranties under any circumstances for any problems subsequently encountered. Replace any defective or damaged parts with original spare parts: only original spare parts can ensure compliance with safety standards. otice to persons with pacemakers: keep in mind that an electromagnetic field is generated in the immediate vicinity of the unit while it is in operation. - Page 7 Airforce laboratories to ensure the best performance. In particular, the rear vent grills for aspirated and filtered air (which follow a straight extraction path) have been developed and calibrated to diffuse outgoing air in a circular 360°...
-
Page 8: First Usage
ANWEISUNGEN WARNINGS he minimum distance between the closed movable trolley and the surface above it must be at least 600 mm. AUTION: if the hood is safety-locked (with the ! button and on/off button illuminated in red) and the position of the trolley allows the release procedure to be brought forward, qualified service technicians can raise or lower the trolley by simultaneously pressing the ! button and grease filters saturation button (trolley ascent in successive increments), or the ! button and carbon filters saturation button (trolley descent in successive increments). - Page 14 Fig.1 Min. 65 mm Min. 45 mm Schublade Drawer Min. 20 mm Tiroir Schuif Cajón Cassetto Fig.2 Einbauküche / Einbauofen Built-in cooker / built-in oven Cuisine encastrable / four encastrable Min. 20 mm Inbouwfornuis/ inbouwoven Cocina empotrada/ horno empotrado Cucina da incasso / forno da incasso...
- Page 19 FUNZIONAMENTO OPERATION If a cooking zone remains lit for too long at the same power level, the appliance will automatically switch it off, and the residual heat indicator H will appear. Switch it back on to reset the cooking zone’s operation. The table below lists the maximum uninterrupted operating time for each power level: Powen Operating limit in minutes...
- Page 20 FUNZIONAMENTO OPERATION Lock function: touch the power button, then simultaneously press the button that indicates the cooking zone at the lower right, followed by the – key; press the button that indicates the cooking zone at the lower right once again.Once the Child Lock function has been enabled, the symbol L will appear on the display.To disable the Child Lock function: touch the power button, then simultaneously press the button that indicates the cooking zone at the lower right, followed by the –...
- Page 21 FUNZIONAMENTO OPERATION Intensive: the “intensive“ function (speed 10) is enabled when this button is pressed, timed at about 8 minutes, after which the motors will be reset to last speed used. Grease filters saturation: when illuminated, indicates that the metal grids require washing (this occurs after about 40 hours of use).
- Page 22 CLEANING AND MAINTENANCE FUNZIONAMENTO Cooking top The cooking top must be cleaned after each use. Allow the appliance to cool before cleaning it. Prior to cleaning the ceramic glass cooking hob, it is advisable to activate the Child Lock function, so that the cooking top is not switched on accidentally (see Child Lock function).
-
Page 23: Cleaning And Maintenance
CLEANING AND MAINTENANCE FUNZIONAMENTO CLEANING AND MAINTENANCE D&D Hood D&D Hood The hood should be cleaned frequently, both on the inside (except for the area behind the grease filter) and outside. Use a clean cloth dampened with denatured alcohol or neutral liquid detergents for cleaning. -
Page 24: Operation
CLEANING AND MAINTENANCE FUNZIONAMENTO OPERATION TABLE OF COOKING TOP ERRORS These errors appear on the cooking top display. Error code Description Possible causes Solution If the display in one of the cooking zones shows C, E, C flashing, E flashing Contact the authorised one of these symbols, an Problems or changes... - Page 25 CLEANING AND MAINTENANCE FUNZIONAMENTO Continuous activation of Dry and clean the glass or one of the control keys; Liquid or pot on the remove the pot from the Er 03 or the control switches off control zone control zone. after 10 seconds. Contact the authorised The power returns to Fault detected on a...
