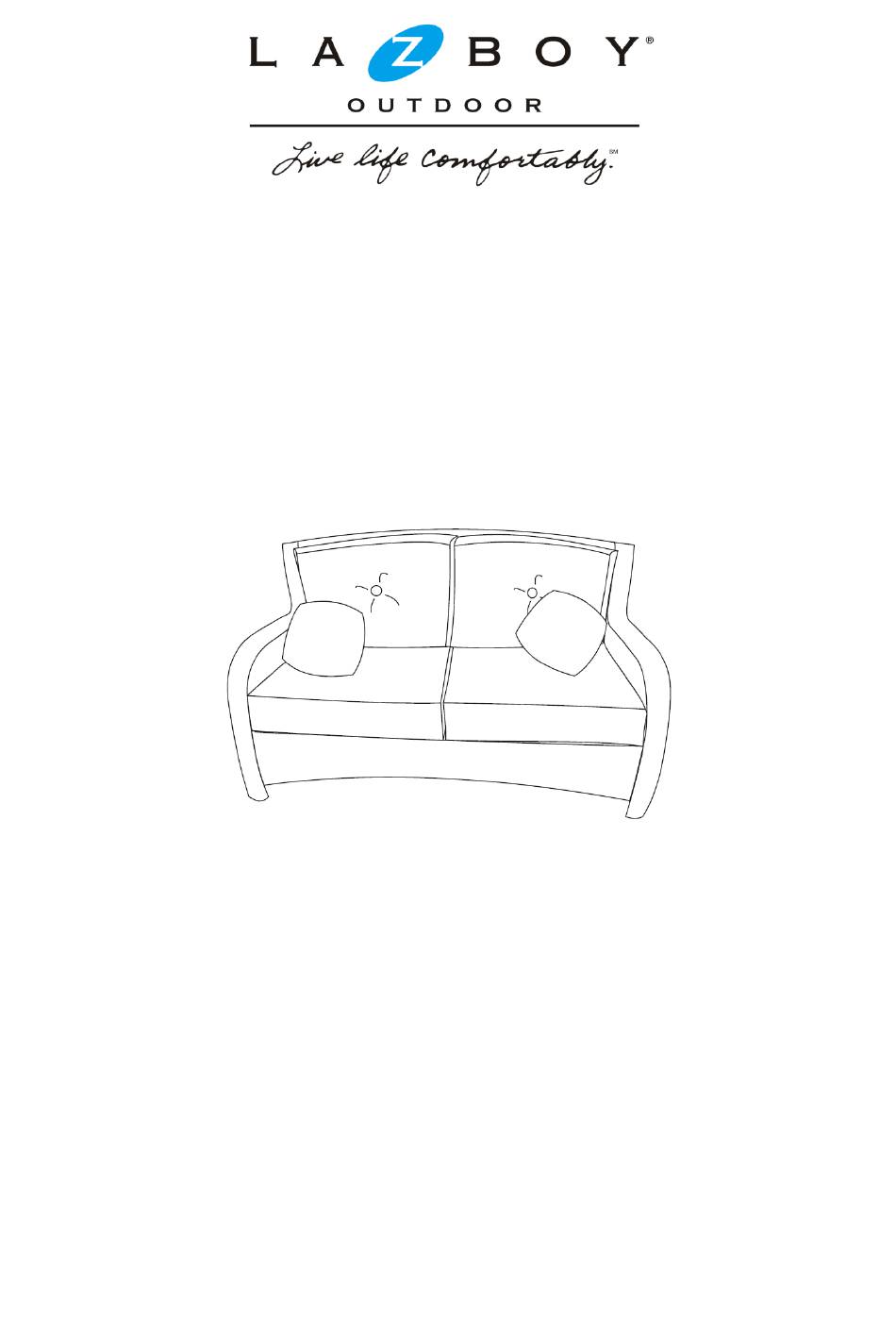

Sawyer 6PC Seating Set
Loveseat
Owner's Manual
If you have any problems with this product, DO NOT RETURN IT TO THE STORE.
CALL OUR CUSTOMER SERVICE HOTLINE AT
(877) 592-7514
8am-5pm (EST), Monday - Friday
La-Z-Boy® is a registered trademark of La-Z-Boy Incorporated and is used under license to
BJI,Inc. © 2017 La-Z-Boy Incorporated.
Page 1 of 4

Advertisement

loading

Related Manuals for LAZBOY Sawyer

Summary of Contents for LAZBOY Sawyer

  • Page 1 Sawyer 6PC Seating Set Loveseat Owner’s Manual If you have any problems with this product, DO NOT RETURN IT TO THE STORE. CALL OUR CUSTOMER SERVICE HOTLINE AT (877) 592-7514 8am-5pm (EST), Monday - Friday La-Z-Boy® is a registered trademark of La-Z-Boy Incorporated and is used under license to BJI,Inc.

  • Page 2: Parts List

    For warranty and other helpful information, please visit www.lazboyoutdoor.com or call 1-877-592-7514, Monday-Friday, 8AM-5PM (EST) or email us at customerservice@lazboyoutdoor.com. Care and Maintenance Be careful to never allow water to build up in frames as this will cause corrosion and freeze damage in cold climates.

  • Page 3: Assembly Steps

    Open Wrench Seat Cushion Back Cushion Toss Pillow Assembly Steps: Note: Do not fully tighten bolts until assembly is completed and alignment is correct. Step 1. Place the seat frame (A) on a flat surface.(Figure 1) Figure 1 Step 2. With the help of another person, carefully place the seat (B) into the seat frame. Connect the seat to the seat frame with bolts (C), washers (D) by using open wrench (F), then cover the bolts with bolt covers (E).
  • Page 4 Step 3.Place the seat cushions (G), back cushions (H) and the toss pillows (I) on the seat. Your loveseat is now ready to use. (Figure 4 ) Figure 4 Look under lounge chairs and ottomans for cushions. Page 4 of 4...
  • Page 5 Sawyer 6PC Seating Set Coffee Table Owner’s Manual If you have any problems with this product, DO NOT RETURN IT TO THE STORE. CALL OUR CUSTOMER SERVICE HOTLINE AT (877) 592-7514 8am-5pm (EST), Monday - Friday La-Z-Boy® is a registered trademark of La-Z-Boy Incorporated and is used under license to BJI,Inc.
  • Page 6 For warranty and other helpful information, please visit www.lazboyoutdoor.com or call 1-877-592-7514, Monday-Friday, 8AM-5PM (EST) or email us at customerservice@lazboyoutdoor.com. Care and Maintenance Be careful to never allow water to build up in frames as this will cause corrosion and freeze damage in cold climates.
  • Page 7 PARTS LIST Q’TY PART# DESCRIPTION PICTURE Table Rim with Glass Table Leg Short Leg Connector Long Leg Connector Leg Connecting Plate M6 x 15 Bolt Washer Cover Open Wrench Assembly Steps: Note: Do not fully tighten bolts until assembly is completed and alignment is correct. Step 1.
  • Page 8 Step 3.Then loosely attach the legs (B) to the table top (A) with bolts (F) and washers (G) by using open wrench (I). (Figure 2 ) Figure 2 Step 4. Attach short leg connector (C) to table legs (B) with bolts (F) and washers (G) by using open wrench (I).
  • Page 9 Step 6. Insert the leg connecting plate (E) to the one of the long leg connector (D). (Figure 5) Figure 5 Step 7. Then insert the leg connecting plate (E) to the other long leg connector(D) and at the same time assemble the long leg connector to the table legs with bolts (F) and Washers (G). (Figure 6) Figure 6 Step 8.
  • Page 10 Warning: a..Do not crawl, stand, or sit on glass table tops. b..Do not set or lay heavy items on glass table tops. c..Avoid extreme hot & cold items being placed on glass table tops. d..This glass table top is produced with tempered glass which is designed to safely shatter in small pieces when impacted or stressed beyond strength limitations.
