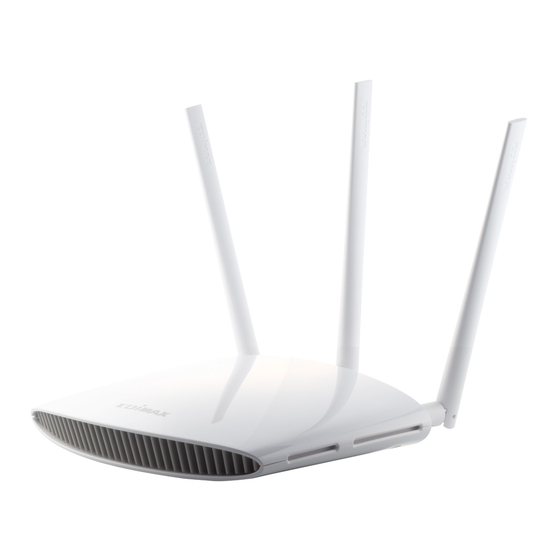

Edimax EW-7208APC User Manual
  1. Manuals
  2. Brands
  3. Edimax Manuals
  4. Wireless Access Point
  5. EW-7208APC
  6. User manual

Edimax EW-7208APC User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EW-7208APC
User Manual
09-2014 / v1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW-7208APC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edimax EW-7208APC

Summary of Contents for Edimax EW-7208APC

  • Page 1 EW-7208APC User Manual 09-2014 / v1.0...

  • Page 2: Table Of Contents

    CONTENTS I. Product Information ................1 I-1. Package Contents ......................1 I-2. LED Status ........................2 I-3. Back Panel ........................3 I-4. Safety Information ......................4 II. Installation .................... 5 II-1. Access Point Mode ......................9 II-2. Range Extender Mode ....................14 II-3.
  • Page 3 III-3-6-4. Upgrade ........................72 III-3-6-5. Restart .......................... 73 III-4. Main Menu: Other Modes ................... 74 III-4-1. Status ........................... 75 III-4-2. Setup Wizard ........................ 76 III-4-3. Internet/WISP ......................78 III-4-3-1. WAN Setup ........................79 III-4-3-1-1. Dynamic IP ........................79 III-4-3-1-2. Static IP ........................80 III-4-3-1-3.
  • Page 4 III-4-9-2. Password ........................135 III-4-9-3. Remote Access ......................136 III-4-9-4. Backup/Restore ......................137 III-4-9-5. Upgrade ........................137 III-4-9-6. Restart ........................138 III-4-9-7. Logs ..........................138 III-4-9-8. Active DHCP Client .....................139 III-4-9-9. Statistics ........................139 IV. Appendix ................... 140 IV-1. Configuring your IP address ..................140 IV-1-1. How to check that your computer uses a dynamic IP address .........141 IV-1-1-1.

  • Page 5: Product Information

    I-1. Package Contents Before you start using this product, please check if there is anything missing in the package, and contact your dealer to claim the missing item(s): CD-ROM EW-7208APC Antenna x 3 Ethernet Cable Quick Installation Guide Power Adapter...

  • Page 6: I-2. Led Status

    I-2. LED Status Color LED Status Description EW-7208APC is on. Power White EW-7208APC is off. Internet connection is ready. Internet Factory default state, or Ethernet Blue Flashing cable not connected, or no Internet connection. 2.4GHz Wi-Fi wireless activity 2.4GHz Wi-Fi (transferring/receiving data).

  • Page 7: I-3. Back Panel

    I-3. Back Panel 5GHz Antenna 2.4GHz Antenna 2.4GHz Antenna Reset/WPS Button Power Port Wireless Radio ON/OFF Switch LAN Ports 1–4 Internet/WAN Port...

  • Page 8: I-4. Safety Information

    2. Do not place the device in or near hot/humid places, such as a kitchen or bathroom. 3. Do not pull any connected cable with force; carefully disconnect it from the EW-7208APC. 4. Handle the device with care. Accidental damage will void the warranty of the device.

  • Page 9: Ii. Installation

    II. Installation Screw in the included antennas to the back of the EW-7208APC, taking care to attach the two 2.4GHz antennas to the outside and the 5GHz antenna to the center. Each antenna is labeled on the base with “2.4GHz” or “5GHz”.
  • Page 10 Open a web browser and if you do not automatically arrive at the “Get Started” screen shown below, enter the URL http://edimax.setup and click “Get Started” to begin the setup process. If you cannot access http://edimax.setup, please make sure your Wi-Fi device is set to use a dynamic IP address.
  • Page 11 Choose if you want to use your EW-7208APC in its default access point mode or in a different mode. The EW-7208APC’s five available modes are outlined below: Access Point Mode The device connects to an existing router via Ethernet cable and provides 2.4GHz and/or 5GHz Internet (wireless and Ethernet) access for your network devices.
  • Page 12 Follow the on-screen instructions to complete setup. Refer to the following chapters if you need help. Wi-Fi Access Point: Other Modes:...

  • Page 13: Ii-1. Access Point Mode

    Click “YES, I NEED A Wi-Fi ACCESS POINT” button. Connect the yellow LAN port of your EW-7208APC to the LAN port of your existing router using an Ethernet cable, then click “Next”. Select whether to use the 5GHz wireless frequency, 2.4GHz wireless...
  • Page 14 Select “Obtain an IP address automatically” or “Use the following IP address” for your EW-7208APC. If you are using a static IP, enter the IP address, subnet mask and default gateway. Click “Next” to proceed to the next step. “Obtain an IP address automatically” is the recommended setting for most users.
  • Page 15 Enter a name and password for your 2.4GHz & 5GHz wireless networks, then click “Next” to continue. A summary of your configuration will be displayed, as shown below. Check that all of the details are correct and then click “Next” to proceed. If you wish to backup the device’s settings, click “Backup this configuration”...
  • Page 16 Please wait a moment until the EW-7208APC is ready. A final congratulations screen will indicate that setup is complete. You can now connect to the device’s new SSID(s) which are shown on the screen then close the browser window.
  • Page 17 The EW-7208APC is working and ready for use. Refer to IV-2. Connecting to a Wi-Fi network if you require more guidance.

  • Page 18: Ii-2. Range Extender Mode

    II-2. Range Extender Mode Select “Range Extender” from the top menu and click “Next”. Please ensure your EW-7208APC is within Wi-Fi range of your existing wireless router. Click “Next” to continue. Select whether to use the 5GHz wireless frequency, 2.4GHz wireless...
  • Page 19 Select the Wi-Fi network name (SSID) which you wish to connect to for the specified frequency and click “Next” to continue. If the Wi-Fi network you wish to connect to does not appear, try clicking “Refresh”. To connect to a hidden SSID, check the “Setup extender manually” box and enter the details manually on the next page, as shown below.
  • Page 20 Enter your existing wireless network’s security key/password in the “Security Key” field and click “Next” to continue. Wait a moment while the EW-7208APC tests the wireless connection.
  • Page 21 Select “Obtain an IP address automatically” or “Use the following IP address” for your EW-7208APC. If you are using a static IP, enter the IP address, subnet mask and default gateway. Click “Next” to proceed to the next step. “Obtain an IP address automatically” is the recommended setting for most users.
  • Page 22 The device will use the same wireless password/security key as the existing wireless network. If you wish to backup the EW-7208APC’s settings, click “Backup this configuration” to open a new window and save your current configuration to a .txt file.
  • Page 23 Please wait a moment until the EW-7208APC is ready. A final congratulations screen will indicate that setup is complete. You can now connect to the device’s new SSID(s) which are shown on the screen then close the browser window.
  • Page 24 The EW-7208APC is working and ready for use. Refer to IV-2. Connecting to a Wi-Fi network if you require more guidance.

  • Page 25: Ii-3. Wireless Bridge Mode

    II-3. Wireless Bridge Mode Select “Wireless Bridge” from the top menu and click “Next”. Please ensure your EW-7208APC is within Wi-Fi range of your existing wireless router. Click “Next” to continue. Select the frequency (2.4GHz or 5GHz) of your existing wireless network.
  • Page 26 Select the Wi-Fi network name (SSID) which you wish to connect to and click “Next” to continue. If the Wi-Fi network you wish to connect to does not appear, try clicking “Refresh”. To connect to a hidden SSID, check the “Setup wireless bridge manually”...
  • Page 27 Enter your existing wireless network’s security key/password in the “Security Key” field and click “Next” to continue. Wait a moment while the EW-7208APC tests the wireless connection.
  • Page 28 Select “Obtain an IP address automatically” or “Use the following IP address” for your EW-7208APC. If you are using a static IP, enter the IP address, subnet mask and default gateway. Click “Next” to proceed to the next step. “Obtain an IP address automatically” is the recommended setting for most users.
  • Page 29 If you wish to backup the EW-7208APC’s settings, click “Backup this configuration” to open a new window and save your current configuration to a .txt file. Please wait a moment until the EW-7208APC is ready.
  • Page 30 A final congratulations screen will indicate that setup is complete. Please close the browser window. The EW-7208APC is working and ready for use. You can now connect the EW-7208APC to your network device using an Ethernet cable and connect to your network as usual.

  • Page 31: Ii-4. Wi-Fi Router Mode

    II-4. Wi-Fi Router Mode Select “Wi-Fi Router” from the top menu and click “Next”. Select whether to use the iQ Setup wizard (recommended) to detect your Internet connection type, or enter the settings manually. Manual configuration is only recommended for advanced users.
  • Page 32 Connect the blue Internet port of your EW-7208APC to the LAN port of your modem using an Ethernet cable, and then click “Next”. Please wait a moment while the EW-7208APC tests the connection. Click “Next” to continue and configure the device’s wireless network.
  • Page 33 Enter a name and password for your 2.4GHz & 5GHz wireless networks, then click “Next” to continue. A summary of your configuration will be displayed, as shown below. Check that all of the details are correct and then click “Next” to proceed.
  • Page 34 If you wish to backup the device’s settings, click “Backup this configuration” to open a new window and save your current configuration to a .txt file. Please wait while the EW-7208APC applies your settings.
  • Page 35 A final congratulations screen will indicate that setup is complete. You can now connect to the device’s new SSID(s) which are shown on the screen then close the browser window. The EW-7208APC is working and ready for use. Refer to IV-2. Connecting to a Wi-Fi network...

  • Page 36: Ii-5. Wisp Mode

    WISP Mode Select “WISP” from the top menu and click “Next”. Please ensure your EW-7208APC is within Wi-Fi range of your WISP network and click “Next” to continue. Select whether to use the iQ Setup wizard (recommended) to detect your Internet connection type, or enter the settings manually.
  • Page 37 Select the wireless frequency (2.4GHz or 5GHz) of your WISP network. Select the WISP SSID which you wish to connect to and click “Next” to continue. If the Wi-Fi network you wish to connect to does not appear, try clicking “Refresh”.
  • Page 38 To connect to a hidden SSID, check the “Setup WISP manually” box and enter the details manually on the next page, as shown below. Enter your existing wireless network’s security key/password in the “Security Key” field and click “Next” to continue.
  • Page 39 Wait a moment while the EW-7208APC tests the wireless connection. Click “Next” to continue your Internet service type configuration.
  • Page 40 Wait a moment while the EW-7208APC connects to the Internet. When the Internet is connected, click “Next” to configure your wireless network.
  • Page 41 Enter a name and password for your 2.4GHz & 5GHz wireless networks, then click “Next” to continue. A summary of your configuration will be displayed, as shown below. Check that all of the details are correct and then click “Next” to proceed.
  • Page 42 If you wish to backup the device’s settings, click “Backup this configuration” to open a new window and save your current configuration to a .txt file. Please wait a moment until the EW-7208APC is ready.
  • Page 43 A final congratulations screen will indicate that setup is complete. You can now connect to the device’s new SSID(s) which are shown on the screen then close the browser window. The EW-7208APC is working and ready for use. Refer to IV-2. Connecting to a Wi-Fi network...

  • Page 44: Ii-6. Wps Setup

    II-7. Reset to Factory Default Settings If you experience problems with your EW-7208APC, you can reset the device back to its factory settings. This resets all settings back to default. Press and hold the WPS/Reset button found on the back panel for at least 10 seconds, until the power LED begins to flash.

  • Page 45: Iii. Browser Based Configuration Interface

    III. Browser Based Configuration Interface After you have setup the EW-7208APC as detailed in II. Installation or the included Quick Installation Guide, you can use the browser based configuration interface to configure advanced settings. Please ensure that your computer is set to use a dynamic IP address.
  • Page 46 You will arrive at the “Status” screen. Use the menu down the left side to navigate.

  • Page 47: Iii-2. Save Settings

    III-2. Save Settings After you configure any settings, click the “Save Settings” button at the bottom of the screen to save your changes. The device needs to restart in order to bring any changes into effect. Then, click “click here to restart” in order to restart the device and bring the changes into effect.

  • Page 48: Iii-3. Main Menu: Access Point Mode

    III-3. Main Menu: Access Point Mode The main menu displays different options depending on your device’s operating mode. The default access point mode menu is described below, with other modes in the following chapter III-4. Main Menu: Other Modes. Access Point...

  • Page 49: Status

    III-3-1. Status The “Status” page displays basic system information about the device, arranged into categories. Screenshots displayed are examples.The information shown on your screen will vary depending on your configuration.

  • Page 50: Setup Wizard

    III-3-2. Setup Wizard You can run the setup wizard again to reconfigure the basic settings of the device, or you can run a wizard to help you switch the device to a different operating mode. Select “Setup Wizard” or “Switch to Router/Access Point/Range Extender/Wireless Bridge/WISP mode”...
  • Page 51 Follow the on-screen wizard to setup your device in a different mode. Refer to II. Installation Step 3 onwards for help if needed. If you don’t see the “Get Started” screen, try reconnecting to the edimax.setup SSID and go to http://edimax.setup in a web browser.

  • Page 52: Iii-3-3. Lan

    IP address instead of using the URL http://edimax.setup. IP Address Specify the IP address here. This IP address will be assigned to the EW-7208APC and will replace the default IP address. Subnet Mask Specify a subnet mask. The default value is 255.255.255.0...

  • Page 53: Iii-3-4

    III-3-4. 2.4GHz Wireless & 5GHz Wireless The “2.4GHz Wireless” & “5GHz Wireless” menu allows you to configure SSIDs and security settings for your access point. WPS, access control and scheduling functions can also be managed from here.

  • Page 54: Basic

    Band Displays the wireless standard used for the EW-7208APC’s “2.4GHz (b+g+n)” means that 802.11b, 802.11g, and 802.11n wireless clients can connect to the EW-7208APC. Wireless Network This is the name of your Wi-Fi network for Name (SSID) identification, also sometimes referred to as “SSID”.
  • Page 55 Enable Wireless Check the box to enable wireless clients Clients Isolation isolation. This prevents wireless clients connected to the EW-7208APC from communicating with each other and improves security. Typically, this function is useful for corporate environments or public hot spots and can prevent brute force attacks on clients’...
  • Page 56 AP Bridge-WDS: Wireless Distribution System (WDS) can bridge/repeat access points together in an extended network. WDS settings can be configured as shown below. When using WDS, configure the IP address of each access point to be in the same subnet and ensure there is only one active DHCP server among connected access points, preferably on the WAN side.
  • Page 57 Wireless Security: Select an encryption type from the drop-down menu: “WPA Pre-shared Key” is the recommended and most secure encryption type.

  • Page 58: Iii-3-4-1-1

    III-3-4-1-1. Disable Encryption is disabled and no password/key is required to connect to the EW-7208APC. Disabling wireless encryption is not recommended. When disabled, anybody within range can connect to your device’s SSID. Enable 802.1x Check the box to enable the 802.1x Authentication authentication.

  • Page 59: Iii-3-4-1-2. Wep

    III-3-4-1-2. WEP (Wired Equivalent Privacy) is a basic encryption type. For a higher level of security consider using WPA encryption. Key Length Select 64-bit or 128-bit. 128-bit is more secure than 64-bit. Key Format Choose from “ASCII” (any alphanumerical character 0-9, a-z and A-Z) or “Hex” (any characters from 0-9, a-f and A-F).

  • Page 60: Iii-3-4-1-3

    III-3-4-1-3. WPA Pre-Shared Key WPA pre-shared key is the recommended and most secure encryption type. WPA Unicast Select from WPA (TKIP), WPA2 (AES) or WPA2 Cipher Suite Mixed. WPA2 (AES) is safer than WPA (TKIP), but not supported by all wireless clients. Please make sure your wireless client supports your selection.

  • Page 61: Iii-3-4-1-4

    III-3-4-1-4. WPA Radius WPA RADIUS is a combination of WPA encryption and RADIUS user authentication. If you have a RADIUS authentication server, you can authenticate the identity of every wireless client against a user database. WPA Unicast Select from WPA (TKIP), WPA2 (AES) or WPA2 Cipher Suite Mixed.

  • Page 62: Multiple Ssid

    III-3-4-2. Multiple SSID The EW-7208APC supports up to four additional SSIDs for each wireless band in access point mode. Once configured, these SSIDs are displayed in the “Multiple SSID Status” table as shown below. Use the “Multiple SSID Basic Settings” box to configure additional SSIDs.
  • Page 63 Band Displays the wireless standard used for the EW-7208APC’s frequency band: 2.4GHz (b+g+n): Allows 802.11b, 802.11g, and 802.11n wireless clients to connect to the EW-7208APC. Channel Number Channel number for the guest network is the same as the main SSID and cannot be adjusted independently.

  • Page 64: Iii-3-4-3. Wps

    III-3-4-3. WPS Wi-Fi Protected Setup is a simple way to establish connections between WPS compatible devices. WPS can be activated on compatible devices by pushing a WPS button on the device or from within the device’s firmware/configuration interface. When WPS is activated in the correct manner and at the correct time for two compatible devices, they will automatically connect.
  • Page 65 be active for 2 minutes. Configure via Client Enter the wireless client’s PIN code here and PIN Code click “Start PIN” to activate PIN code WPS. Refer to your wireless client’s documentation if you are unsure of its PIN code.

  • Page 66: Access Control

    This function allows you to define a list of network devices permitted to connect to the EW-7208APC. Devices are each identified by their unique MAC address. If a device which is not on the list of permitted MAC addresses attempts to connect to the EW-7208APC, it will be denied.
  • Page 67 consisting of up to 16 alphanumerical characters. Click “Add” to add the MAC address to the MAC address filtering table. MAC address entries will be listed in the table as shown below. Select an entry using the “Select” checkbox. Delete Selected/ Delete selected or all entries from the table.
  • Page 68 Check/uncheck the box “Enable Schedule Settings” to enable/disable the wireless on/off scheduling function. The EW-7208APC must remain connected to the Internet and use an NTP server for the schedule feature to function correctly. Wireless scheduling can save energy and increase the security of your network.

  • Page 69: Schedule

    Add the schedule to the table of active schedules. Active schedules will be displayed in the table as shown below. Select an entry using the “Select” checkbox. Delete Selected/ Delete selected or all entries from the table. Delete All...

  • Page 70: Advanced

    III-3-5. Advanced Advanced features of the EW-7208APC can be configured from the “Advanced” menu. III-3-5-1. 2.4GHz Wireless These settings are for experienced users only. Please do not change any of the values on this page unless you are already familiar with these functions.
  • Page 71 N Data Rate Set the data rate of 802.11n. The default is set to Auto. Channel Width Select wireless channel width (bandwidth used by wireless signals from the device) – the recommended value is Auto 20/40MHz. Preamble Type Set the wireless radio preamble type. The default value is “Short Preamble”.

  • Page 72: 5Ghz Wireless

    III-3-5-2. 5GHz Wireless These settings are for experienced users only. Please do not change any of the values on this page unless you are already familiar with these functions. Fragment Threshold Set the Fragment threshold of the wireless radio. The default value is 2346. RTS Threshold Set the RTS threshold of the wireless radio.
  • Page 73 Preamble Type Set the wireless radio preamble type. The default value is “Short Preamble”. CTS Protect Enabling this setting will reduce the chance of radio signal collisions between 802.11b and 802.11g wireless access points. It’s recommended to set this option to “Auto”. Tx Power Set the power output of the wireless radio.

  • Page 74: Administration

    III-3-6. Administration Various administrative functions can be accessed from the “Administration” menu. III-3-6-1. Time Zone Set Time Zone Select the time zone of your country or region. Time Server Address The travel router supports NTP (Network Time Protocol) for automatic time and date setup.

  • Page 75: Password

    III-3-6-2. Password You can change the password used to login to the browser-based configuration interface here. It is advised to do so for security purposes. Please make a note of the new password. In the event that you forget the password and are unable to login to the browser based configuration interface, see II-7.

  • Page 76: Backup/Restore

    III-3-6-4. Upgrade The upgrade page allows you to upgrade the system firmware to a more recent version. You can download the latest firmware from the Edimax website. After the upgrade, the system will restart. Do not switch off or disconnect the device during a firmware upgrade, as this could damage the device.

  • Page 77: Iii-3-6-5. Restart

    III-3-6-5. Restart In the event that the router malfunctions or is not responding, then it is recommended that you restart the device.

  • Page 78: Iii-4. Main Menu: Other Modes

    III-4. Main Menu: Other Modes The main menu displays different options depending on your device’s operating mode. For WPS function in Range Extender mode, please refer to 2.4GHz  Wireless & 5GHz Wireless Wi-Fi Router Range Extender Wireless Bridge WISP...

  • Page 79: Iii-4-1. Status

    III-4-1. Status The “Status” page displays basic system information about the device, arranged into categories. Screenshots displayed are examples.The information shown on your screen will vary depending on your configuration.

  • Page 80: Setup Wizard

    III-4-2. Setup Wizard You can run the setup wizard again to reconfigure the basic settings of the device, or you can run a wizard to help you switch the device to a different operating mode. Select “Setup Wizard” or “Switch to Router/Access Point/Range Extender/Wireless Bridge/WISP mode”...
  • Page 81 Follow the on-screen wizard to setup your device in a different mode. Refer to II. Installation Step 3 onwards for help if needed. If you don’t see the “Get Started” screen, try reconnecting to the edimax.setup SSID and go to http://edimax.setup in a web browser.

  • Page 82: Iii-4-3

    Enable / Disable Enable or disable your WISP connection. SSID The name of the WISP network which your EW-7208APC is connected to. Manually enter an SSID if you wish or use “Site Survey” below. Site Survey Select wireless frequency and click “Site Survey List”...

  • Page 83: Iii-4-3-1. Wan Setup

    III-4-3-1. WAN Setup Select a Wide Area Network (WAN) connection mode and configure the settings. If you are unsure about your connection type, contact your ISP. In WISP mode, only Dynamic IP, Static IP & PPPoE are available for WAN Connection Mode. III-4-3-1-1.

  • Page 84: Iii-4-3-1-2

    Host Name Enter the host name of your computer. MAC Address For some applications, you may need to designate a specific MAC address for the router. Please enter the MAC address here. If you are connecting the router to a computer, press “Clone Mac”...
  • Page 85 Fixed IP Address Input the IP address assigned by your ISP here. Subnet Mask Input the subnet mask assigned by your ISP here. Default Gateway Input the default gateway assigned by your Address ISP here. Some ISPs may call this “Default Route”.

  • Page 86: Iii-4-3-1-3

    III-4-3-1-3. PPPoE Select “PPPoE” if your ISP is providing you Internet access via PPPoE (Point-to-Point Protocol over Ethernet). User Name Enter the user name assigned by your ISP here. Password Enter the password assigned by your ISP here. MAC Address For some applications, you may need to designate a specific MAC address for the router.
  • Page 87 which limits the lifespan of network data to improve performance. Service Name Give this Internet service a name (optional). Enter the maximum transmission unit (MTU) value of your network connection. The default value is 1392. Connection Type Specify a connection type: 1.

  • Page 88: Iii-4-3-1-4. Pptp

    III-4-3-1-4. PPTP Select “PPTP” if your ISP is providing you Internet access via PPTP (Point-to-Point Tunneling Protocol). Then select “Obtain an IP address automatically” or “Use the following IP address” depending on your ISP.
  • Page 89 Host Name Enter the host name of your computer here If required. MAC Address For some applications, you may need to designate a specific MAC address for the router. Please enter the MAC address here. If you are connecting the router to a computer, press “Clone Mac”...

  • Page 90: Iii-4-3-1-5. L2Tp

    shutting down an idle connection. Only available when “Connect on Demand” (above) is selected. III-4-3-1-5. L2TP Select “L2TP” if your ISP is providing you Internet access via L2TP (Layer 2 Tunneling Protocol). Host Name Enter the host name of your computer here If required.
  • Page 91 Subnet Mask Input the subnet mask assigned by your ISP here. Default Gateway Input the default gateway assigned by your ISP Address here. Some ISPs may call this “Default Route”. MAC Address If your ISP filters access by MAC addresses, enter your computer’s MAC address here.

  • Page 92: Iii-4-3-2. Ddns

    III-4-3-2. DDNS Dynamic DNS (DDNS) is a service which provides a hostname-to-IP service for dynamic IP users. The changing nature of dynamic IPs means that it can be difficult to access a service provided by a dynamic IP user; a DDNS service though can map such dynamic IP addresses to a fixed hostname, for easier access.
  • Page 93 NS2GO http://www.ns2go.com NO-IP http://www.noip.com...

  • Page 94: Iii-4-4. Lan

    IP address instead of using the URL http://edimax.setup. IP Address Specify the IP address here. This IP address will be assigned to the EW-7208APC and will replace the default IP address. Subnet Mask Specify a subnet mask. The default value is 255.255.255.0...
  • Page 95 Start IP Enter the start IP address for the DHCP server’s IP address leases. End IP Enter the end IP address for the DHCP server’s IP address leases. Your device’s DHCP server can be configured to assign static (fixed) IP addresses to specified network devices, identified by their unique MAC address.

  • Page 96: Iii-4-5

    III-4-5. 2.4GHz Wireless & 5GHz Wireless The “2.4GHz Wireless” & “5GHz Wireless” menu allows you to configure SSID and security settings for your Wi-Fi network along with a guest Wi-Fi network. WPS, access control and scheduling functions can also be managed from here.

  • Page 97: Iii-4-5-1. Basic

    Band Displays the wireless standard used for the EW-7208APC’s “2.4GHz (b+g+n)” means that 802.11b, 802.11g, and 802.11n wireless clients can connect to the EW-7208APC. Wireless Network This is the name of your Wi-Fi network for Name (SSID) identification, also sometimes referred to as “SSID”.
  • Page 98 Enable Wireless Check the box to enable wireless clients Clients Isolation isolation. This prevents wireless clients connected to the EW-7208APC from communicating with each other and improves security. Typically, this function is useful for corporate environments or public hot spots and can prevent brute force attacks on clients’...
  • Page 99 AP Bridge-WDS: Wireless Distribution System (WDS) can bridge/repeat access points together in an extended network. WDS settings can be configured as shown below. When using WDS, configure the IP address of each access point to be in the same subnet and ensure there is only one active DHCP server among connected access points, preferably on the WAN side.
  • Page 100 Wireless Security: Select an encryption type from the drop-down menu: “WPA Pre-shared Key” is the recommended and most secure encryption type. In WISP mode, WPA RADIUS is unavailable for the wireless band that is used to connect to WISP’s AP.

  • Page 101: Iii-4-5-1-1

    III-4-5-1-1. Disable Encryption is disabled and no password/key is required to connect to the EW-7208APC. Disabling wireless encryption is not recommended. When disabled, anybody within range can connect to your device’s SSID. Enable 802.1x Check the box to enable the 802.1x Authentication authentication.

  • Page 102: Iii-4-5-1-2. Wep

    III-4-5-1-2. WEP (Wired Equivalent Privacy) is a basic encryption type. For a higher level of security consider using WPA encryption. Key Length Select 64-bit or 128-bit. 128-bit is more secure than 64-bit. Key Format Choose from “ASCII” (any alphanumerical character 0-9, a-z and A-Z) or “Hex” (any characters from 0-9, a-f and A-F).

  • Page 103: Iii-4-5-1-3

    III-4-5-1-3. WPA Pre-Shared Key WPA pre-shared key is the recommended and most secure encryption type. WPA Unicast Select from WPA (TKIP), WPA2 (AES) or WPA2 Cipher Suite Mixed. WPA2 (AES) is safer than WPA (TKIP), but not supported by all wireless clients. Please make sure your wireless client supports your selection.

  • Page 104: Iii-4-5-1-4

    III-4-5-1-4. WPA Radius WPA RADIUS is a combination of WPA encryption and RADIUS user authentication. If you have a RADIUS authentication server, you can authenticate the identity of every wireless client against a user database. WPA Unicast Select from WPA (TKIP), WPA2 (AES) or WPA2 Cipher Suite Mixed.

  • Page 105: Iii-4-5-2. Guest

    Enable Wireless Check the box to enable wireless clients Clients Isolation isolation. This prevents wireless clients connected to the EW-7208APC from communicating with each other and improves security. Typically, this function is useful for corporate environments or public hot spots and can prevent brute force attacks on clients’...
  • Page 106 Encryption Please refer to III-3-5-1. Basic: Wireless Security for details about security settings. WPA RADIUS encyrption type and 802.1x Authentication are not available for the guest network.

  • Page 107: Iii-4-5-3. Wps

    III-4-5-3. WPS Wi-Fi Protected Setup is a simple way to establish connections between WPS compatible devices. WPS can be activated on compatible devices by pushing a WPS button on the device or from within the device’s firmware/configuration interface. When WPS is activated in the correct manner and at the correct time for two compatible devices, they will automatically connect.
  • Page 108 Configure via Push Click “Start PBC” (Push-Button Configuration) Button to activate WPS on the access point. WPS will be active for 2 minutes. Configure via Client Enter the wireless client’s PIN code here and PIN Code click “Start PIN” to activate PIN code WPS. Refer to your wireless client’s documentation if you are unsure of its PIN code.

  • Page 109: Access Control

    This function allows you to define a list of network devices permitted to connect to the EW-7208APC. Devices are each identified by their unique MAC address. If a device which is not on the list of permitted MAC addresses attempts to connect to the EW-7208APC, it will be denied.
  • Page 110 consisting of up to 16 alphanumerical characters. Click “Add” to add the MAC address to the MAC address filtering table. MAC address entries will be listed in the table as shown below. Select an entry using the “Select” checkbox. Delete Selected/ Delete selected or all entries from the table.

  • Page 111: Iii-4-5-5. Schedule

    This function is not available in WISP mode for the wireless band that is used to connect to WISP’s AP. The EW-7208APC must remain connected to the Internet and use an NTP server for the schedule feature to function correctly.
  • Page 112 Select which command applies to this schedule from the drop-down menu, either “Wireless On” or “Wireless Off”. Add the schedule to the table of active schedules. Active schedules will be displayed in the table as shown below. Select an entry using the “Select”...

  • Page 113: Iii-4-6. Firewall

    III-4-6. Firewall The “Firewall” menu provides access to URL blocking, access control, DMZ and DoS functions to improve the security of your wireless network. SPI firewall Enable or disable the Stateful Packet Inspection (SPI) firewall. III-4-6-1. URL Blocking This function can block Internet access by either specific URLs or keywords. Check/uncheck the “Enable URL Blocking”...
  • Page 114 URL/Keyword Enter the URL or keyword to be blocked. Add the URL or keyword to the blocked table. Blocked URLs/keywords entries will be listed in the table as shown below. Select an entry using the “Select” checkbox. Delete Selected / Delete selected or all entries from the table.

  • Page 115: Access Control

    This function allows you to define a list of network devices permitted or denied to connect to the EW-7208APC. Devices are each identified by their unique MAC address or IP address. Specific services can also be allowed/denied for IP addresses.
  • Page 116 MAC Filtering: Enable MAC Check the box to enable MAC filtering and Filtering select whether to “Deny” or “Allow” access for specified MAC address. Client PC MAC Enter a MAC address of computer or network Address device manually without dashes or colons e.g. for MAC address ‘aa-bb-cc-dd-ee-ff’...
  • Page 117 IP Filtering: Enable IP Filtering Check the box to enable IP filtering and select whether to “Deny” or “Allow” access for specified IP address. Add PC Opens a new window to add a new IP to the list, to deny or allow access/services according to above.
  • Page 118 Client PC Enter a description for reference/identification Description of up to 16 alphanumeric characters. Client PC IP address Enter a starting IP address in the left field and the end IP address in the right field to define a range of IP addresses; or enter an IP address in the left field only to define a single IP address.

  • Page 119: Iii-4-6-3. Dmz

    III-4-6-3. DMZ A Demilitarized Zone (DMZ) is an isolated area in your local network where private IP addresses are mapped to specified Internet IP addresses, allowing unrestricted access to the private IP addresses but not to the wider local network. You can define a virtual DMZ host here.

  • Page 120: Iii-4-6-4. Dos

    DMZ entries will be displayed in the table shown below: Delete Selected/ Delete selected or all entries from the table. Delete All III-4-6-4. DoS Denial-of-Service (DoS) is a common form of malicious attack against a network. The router’s firewall can protect against such attacks. If you are not familiar with these functions, it is recommended you keep the default settings.
  • Page 121 Ping of Death Specify the frequency of ping of death packets which will trigger the router’s DoS protection function. Discard Ping from Check this box and the router will not answer ping requests from the Internet. Port Scan Intruders use “port scanners” to detect open Internet IP address ports.

  • Page 122: Iii-4-7. Qos

    QoS allows you to ensure that sufficient bandwidth is available. Minimum or maximum bandwidth can be guaranteed for a specified application. EW-7208APC QoS can improve the ’s performance. QoS is recommended to optimize performance for online gaming.
  • Page 123 Rule Name Enter a name for the QoS rule for reference/identification. Bandwidth Set the bandwidth limits for the QoS rule: 1. Select “Download” or “Upload” for the QoS rule. 2. Enter the bandwidth limit. 3. Select whether the bandwidth is a “Guarantee”...
  • Page 124 Local Port Range Enter the port range to activate the QoS rule. Enter a single port number e.g. 110 or a range of port numbers e.g. 110-120 Remote IP Address Enter the remote IP address range which will activate the QoS rule. Enter a starting IP address in the left field and the end IP address in the right field to define a range of IP addresses;...

  • Page 125: Iii-4-7-2. Iqos

    III-4-7-2. iQoS iQoS is a more intuitive and automated tool to manage internet bandwidth than manually configuring the settings using QoS. For online gamers or users with bandwidth requirements for audio/video, iQoS is a useful function. iQoS cannot be used in conjunction with QoS and vice-versa. When one is enabled, the other is automatically disabled.
  • Page 126 The icons represent the following categories: Internet Browsing P2P/BT Downloads Multimedia Online Gaming The iQoS table is ordered left to right, high to low priority. Click a small icon below the table to insert it into the table, and click a large icon in the table to remove it.

  • Page 127: Iii-4-8. Advanced

    III-4-8. Advanced Advanced features of the EW-7208APC can be configured from the “Advanced” menu. III-4-8-1. Static Routing Static routing is a method of configuring path selection of routers, characterized by the absence of communication between routers regarding the current topology of the network. The opposite of static routing is dynamic routing, sometimes also referred to as adaptive routing.
  • Page 128 Enable Static Routing Check/uncheck the box to enable/disable static routing. Destination LAN IP Enter the destination network’s IP address. Subnet Mask Enter the subnet mask of the destination network. Default Gateway Enter the default gateway of the destination network. Hop Count Enter the hop count (the distance between destination network and this broadband router) here.

  • Page 129: Port Forwarding

    III-4-8-2. Port Forwarding This function allows you to redirect a single port or consecutive ports of an Internet IP address to the same port of a local IP address. The port number(s) of the Internet IP address and local IP address must be the same. If the port number of the Internet IP address and local IP address is different, please use the “Virtual Server”...
  • Page 130 Delete Selected/ Delete selected or all entries from the table. Delete All...

  • Page 131: Iii-4-8-3. Virtual Server

    III-4-8-3. Virtual Server This function allows you to set up an internet service on a local computer, without exposing the local computer to the internet. You can also build various sets of port redirection, to provide various internet services on different local computers via a single internet IP address.

  • Page 132: Iii-4-8-4. 2.4Ghz Wireless

    Delete Selected/ Delete selected or all entries from the table. Delete All III-4-8-4. 2.4GHz Wireless These settings are for experienced users only. Please do not change any of the values on this page unless you are already familiar with these functions. Fragment Threshold Set the Fragment threshold of the wireless radio.
  • Page 133 Channel Width Select wireless channel width (bandwidth used by wireless signals from the device) – the recommended value is Auto 20/40MHz. Preamble Type Set the wireless radio preamble type. The default value is “Short Preamble”. CTS Protect Enabling this setting will reduce the chance of radio signal collisions between 802.11b and 802.11g wireless access points.

  • Page 134: Iii-4-8-5. 5Ghz Wireless

    III-4-8-5. 5GHz Wireless These settings are for experienced users only. Please do not change any of the values on this page unless you are already familiar with these functions. Fragment Threshold Set the Fragment threshold of the wireless radio. The default value is 2346. RTS Threshold Set the RTS threshold of the wireless radio.
  • Page 135 Preamble Type Set the wireless radio preamble type. The default value is “Short Preamble”. CTS Protect Enabling this setting will reduce the chance of radio signal collisions between 802.11b and 802.11g wireless access points. It’s recommended to set this option to “Auto”. Tx Power Set the power output of the wireless radio.

  • Page 136: Iii-4-8-6. Igmp

    III-4-8-6. IGMP IGMP is a communications protocol used to establish multicast group memberships. It allows for a more efficient use of resources and better performance for applications such as IPTV video streaming. IGMP Snooping IGMP snooping monitors traffic between hosts and multicast routers to facilitate bandwidth conservation.

  • Page 137: Iii-4-8-7. Upnp

    III-4-8-7. UPnP Universal plug-and-play (UPnP) is a set of networking protocols which enables network devices to communicate and automatically establish working configurations with each other. Select “Enable” or “Disable”.

  • Page 138: Iii-4-9. Administration

    III-4-9. Administration Various administrative functions can be accessed from the “Administration” menu. III-4-9-1. Time Zone Set Time Zone Select the time zone of your country or region. Time Server Address The travel router supports NTP (Network Time Protocol) for automatic time and date setup.

  • Page 139: Iii-4-9-2. Password

    III-4-9-2. Password You can change the password used to login to the browser-based configuration interface here. It is advised to do so for security purposes. Please make a note of the new password. In the event that you forget the password and are unable to login to the browser based configuration interface, see II-7.

  • Page 140: Remote Access

    III-4-9-3. Remote Access Check “Enabled” to enable the remote access feature and then enter the appropriate values. Host IP Address Specify the IP address which is allowed remote access. Port Specify a port number (0–65535) used for remote access.

  • Page 141: Iii-4-9-4. Backup/Restore

    III-4-9-5. Upgrade The upgrade page allows you to upgrade the system firmware to a more recent version. You can download the latest firmware from the Edimax website. After the upgrade, the system will restart. Do not switch off or disconnect the device during a firmware upgrade, as this could damage the device.

  • Page 142: Iii-4-9-6. Restart

    III-4-9-6. Restart In the event that the router malfunctions or is not responding, then it is recommended that you restart the device. III-4-9-7. Logs You can view the system log and security log here. Use the drop down menu in the top-right corner to select which log to view.

  • Page 143: Iii-4-9-8. Active Dhcp Client

    Save Click “Save” to save the log on your computer as .txt file. Clear Click “Clear” to clear/erase the existing log. Refresh Click “Refresh” to refresh the log and update any activity. III-4-9-8. Active DHCP Client Information about active DHCP clients is shown in the table, which displays the DHCP server assigned IP address, MAC address and time expired for each computer or device on the local network.

  • Page 144: Iv. Appendix

    IV-1. Configuring your IP address For first time access to the URL http://edimax.setup, please ensure your computer is set to use a dynamic IP address. This means your computer can obtain an IP address automatically from a DHCP server. You can check if your computer is set to use a dynamic IP address by following IV-1-1.

  • Page 145: Iv-1-1. How To Check That Your Computer Uses A Dynamic Ip Address

    IV-1-1. How to check that your computer uses a dynamic IP address Please follow the instructions appropriate for your operating system. IV-1-1-1. Windows XP Click the “Start” button (it should be located in the lower-left corner of your computer), then click “Control Panel”. Double-click the “Network and Internet Connections”...

  • Page 147: Iv-1-1-2. Windows Vista

    IV-1-1-2. Windows Vista Click the “Start” button (it should be located in the lower-left corner of your computer), then click “Control Panel”. Click “View Network Status and Tasks”, then click “Manage Network Connections”. Right-click “Local Area Network”, then select “Properties”. The “Local Area Connection Properties” window will then appear, select “Internet Protocol Version 4 (TCP / IPv4)”, and then click “Properties”.

  • Page 149: Iv-1-1-3. Windows 7

    IV-1-1-3. Windows 7 Click the “Start” button (it should be located in the lower-left corner of your computer), then click “Control Panel”. Under “Network and Internet” click “View network status and tasks”. Click “Local Area Connection”.
  • Page 150 Click “Properties”. Select “Internet Protocol Version 4 (TCP/IPv4) and then click “Properties”.
  • Page 151 Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” should be selected.

  • Page 152: Iv-1-1-4. Windows 8

    IV-1-1-4. Windows 8 From the Windows 8 Start screen, you need to switch to desktop mode. Move your curser to the bottom left of the screen and click. In desktop mode, click the File Explorer icon in the bottom left of the screen, as shown below.
  • Page 153 In the window that opens, select “Change adapter settings” from the left side. Choose your connection and right click, then select “Properties”.
  • Page 154 Select “Internet Protocol Version 4 (TCP/IPv4) and then click “Properties”. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically” should be selected.

  • Page 156: Iv-1-1-5. Mac Os

    IV-1-1-5. Mac OS Have your Macintosh computer operate as usual, and click on “System Preferences”. In System Preferences, click on “Network”. Click on “Wi-Fi” in the left panel and then click “Advanced” in the lower right corner. Select “TCP/IP” from the top menu and “Using DHCP” in the drop down menu labeled “Configure IPv4”...

  • Page 158: Iv-1-2. How To Modify The Ip Address Of Your Computer

    IV-1-2. How to modify the IP address of your computer Please follow the instructions appropriate for your operating system. In the following examples we use the IP address 192.168.2.10 though you can use any IP address in the range 192.168.2.x (x = 3 – 254) in order to access iQ Setup/browser based configuration interface.
  • Page 159 Your existing static IP address will be displayed in the “IP address” field before you replace it. Please make a note of this IP address, subnet mask, default gateway and DNS server addresses. IP address: 192.168.2.10 Subnet Mask: 255.255.255.0 Preferred DNS Server: 192.168.2.1 Click ‘OK’...

  • Page 160: Iv-1-2-2. Windows Vista

    IV-1-2-2. Windows Vista Click the “Start” button (it should be located in the lower-left corner of your computer), then click “Control Panel”. Click “View Network Status and Tasks”, then click “Manage Network Connections”. Right-click “Local Area Network”, then select “Properties”. The “Local Area Connection Properties” window will then appear, select “Internet Protocol Version 4 (TCP / IPv4)”, and then click “Properties”.

  • Page 161: Iv-1-2-3. Windows 7

    IV-1-2-3. Windows 7 Click the “Start” button (it should be located in the lower-left corner of your computer), then click “Control Panel”. Under “Network and Internet” click “View network status and tasks”. Click “Local Area Connection”.
  • Page 162 Click “Properties”.
  • Page 163 Select “Internet Protocol Version 4 (TCP/IPv4) and then click “Properties”. Select “Use the following IP address” and “Use the following DNS server addresses”, then input the following values: Your existing static IP address will be displayed in the “IP address” field before you replace it. Please make a note of this IP address, subnet mask, default gateway and DNS server addresses.

  • Page 164: Iv-1-2-4. Windows 8

    IV-1-2-4. Windows 8 From the Windows 8 Start screen, you need to switch to desktop mode. Move your curser to the bottom left of the screen and click. In desktop mode, click the File Explorer icon in the bottom left of the screen, as shown below.
  • Page 165 Right click “Network” and then select “Properties”. In the window that opens, select “Change adapter settings” from the left side.
  • Page 166 Choose your connection and right click, then select “Properties”. Select “Internet Protocol Version 4 (TCP/IPv4) and then click “Properties”.
  • Page 167 Select “Use the following IP address” and “Use the following DNS server addresses”, then input the following values: Your existing static IP address will be displayed in the “IP address” field before you replace it. Please make a note of this IP address, subnet mask, default gateway and DNS server addresses.

  • Page 168: Iv-1-2-5. Mac

    IV-1-2-5. Mac Have your Macintosh computer operate as usual, and click on “System Preferences” In System Preferences, click on “Network”. Click on “Wi-Fi” in the left panel and then click “Advanced” in the lower right corner. Select “TCP/IP” from the top menu and select “Manually” from the drop down menu labeled “Configure IPv4”, then click “OK”.
  • Page 169 Your existing static IP address will be displayed in the “IP address” field before you replace it. Please make a note of this IP address, subnet mask, default gateway and DNS server addresses. In the “IPv4 Address” and “Subnet Mask” field enter IP address 192.168.2.10 and subnet mask 255.255.255.0.
  • Page 170 Click “Apply” to save the changes.

  • Page 171: Iv-1-3. How To Find Your Network Security Key

    IV-1-3. How to Find Your Network Security Key To find your network security key, please follow the instructions appropriate for your operating system. If you are using Windows XP or earlier, please contact your ISP or router manufacturer to find your network security key. IV-1-3-1.
  • Page 172 Click on “Manage wireless networks” in the left menu. You should see the profile of your Wi-Fi network in the list. Right click on your Wi-Fi network and then click on “Properties”. Click on the “Security” tab, and then check the box labeled “Show characters”.

  • Page 173: Iv-1-3-2. Mac

    IV-1-3-2. Mac Open a new Finder window, and select “Applications” from the menu on the left side. Open the folder labeled “Utilities” and then open the application “Keychain Access”. Select “Passwords” from the sub-menu labeled “Category” on the left side, as shown below.
  • Page 174 Double click the SSID of your network and you will see the following window. Check the box labeled “Show password” and you will be asked to enter your administrative password, which you use to log into your Mac. Enter your password and click “Allow”.
  • Page 175 Your network security password will now be displayed in the field next to the box labeled “Show password”. In the example below, the network security password is “edimax1234”. Please make a note of your network security password.

  • Page 176: Iv-1-4. How To Find Your Router's Ip Address

    IV-1-4. How to Find Your Router’s IP Address To find your router’s IP address, please follow the instructions appropriate for your operating system. IV-1-4-1. Windows XP, Vista & 7 Go to “Start”, select “Run” and type “cmd”, then press Enter or click “OK”. A new window will open, type “ipconfig”...
  • Page 177 Your router’s IP address will be displayed next to “Default Gateway”.

  • Page 178: Iv-1-4-2. Windows 8

    IV-1-4-2. Windows 8 From the Windows 8 Start screen, move your curser to the top right corner of the screen to display the Charms bar. Click “Search” and enter “cmd” into the search bar. Click the “Command Prompt” app which be displayed on the left side.
  • Page 179 A new window will open, type “ipconfig” and press Enter.
  • Page 180 Your router’s IP address will be displayed next to “Default Gateway”.

  • Page 181: Iv-1-4-3. Mac

    IV-1-4-3. Mac Launch “System Preferences” and click on “Network”. If you are using an Ethernet cable to connect to your network, your router’s IP address will be displayed next to “Router”. If you are using Wi-Fi, click “Wi-Fi” in the left panel, and then “Advanced” in the bottom right corner.
  • Page 182 Click the “TCP/IP” tab and your router’s IP address will be displayed next to “Router”.

  • Page 183: Iv-2. Connecting To A Wi-Fi Network

    , or ) in the system tray and select “Connect to a network”. Search for the SSID of your EW-7208APC and then click “Connect”. If you set a password for your network, you will then be prompted to enter it.
  • Page 184 After correctly entering your password, you will be successfully connected to the EW-7208APC’s wireless network.

  • Page 185: Iv-3. Troubleshooting

    Troubleshooting 1. In range extender mode, is my EW-7208APC dual-band? a. Yes. The EW-7208APC can extend 2.4GHz & 5GHz Wi-Fi signals concurrently, but you must connect your EW-7208APC to each (2.4GHz & 5GHz) network separately during iQ setup. During iQ Setup, you will be asked to select both a 2.4GHz &...
  • Page 186 SSID (above) +"_2EX". Encryption Select and enter the encryption information for your existing, hidden network. 4. What do the LEDs mean? The LEDs can be identified by icons on the underside of the EW-7208APC.
  • Page 187 Color LED Status Description Power EW-7208APC is on. White EW-7208APC is off. Internet connection is ready. Internet Factory default state, or Ethernet Blue Flashing cable not connected, or no Internet connection. 2.4GHz Wi-Fi wireless activity 2.4GHz Wi-Fi (transferring/receiving data). Blue Flashing 2.4GHz WPS is active.
  • Page 188 7. How do I reset my device to factory default settings? a. To reset the device back to its factory default settings, press and hold the WPS/Reset button for over 10 seconds, until the white power LED begins to flash. Please wait a few minutes for the product to restart. When the device restarts, all settings will be reset.
  • Page 189 EW-7208APC. If you are too far away from your existing router, then it is difficult for the EW-7208APC to receive a wireless signal.
  • Page 190 In this scenario, you need to first connect a computer to one of your EW-7208APC’s LAN ports using an Ethernet cable. Then you need to modify your computer’s IP address to 192.168.2.x where x is any value between 3 and 254.

  • Page 191: Glossary

    V. Glossary Default Gateway (Wireless bridge): Every non-access point IP device needs to configure a default gateway’s IP address. When the device sends out an IP packet, if the destination is not on the same network, the device has to send the packet to its default gateway, which will then send it out towards the destination.
  • Page 192 A network mask is also a 32-bit binary pattern, and consists of consecutive leading 1’s followed by consecutive trailing 0’s, such as 11111111.11111111.11111111.00000000. Therefore sometimes a network mask can also be described simply as “x” number of leading 1’s. When both are represented side by side in their binary forms, all bits in the IP address that correspond to 1’s in the network mask become part of the IP network address, and the remaining bits correspond to the host ID.
  • Page 193 Application Protocol Port Number Telnet SMTP POP3 H.323 1720 SNMP SNMP Trap HTTP PPTP 1723 PC Anywhere TCP 5631 PC Anywhere UDP 5632 Access point: A access point is an intelligent network device that forwards packets between different networks based on network layer address information such as IP addresses.
  • Page 194 means the user can use the familiar Netscape or Microsoft Internet Explorer to Control/configure or monitor the device being managed.
  • Page 195 COPYRIGHT Copyright  Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.

  • Page 196: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 197: Eu Declaration Of Conformity

    EU Declaration of Conformity This equipment is in compliance with the essential requirements and other relevant English: provisions of Directive 1999/5/EC, 2009/125/EC. Cet équipement est conforme aux exigences essentielles et autres dispositions de la Français: directive 1999/5/CE, 2009/125/CE. Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními směrnic 1999/5/ES, 2009/125/ES.

  • Page 198: Declaration Of Conformity

    Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directives. Equipment: AC750 Multi-Function Dual-Band Wi-Fi Access Point Model No.: EW-7208APC The following European standards for essential requirements have been followed:...
