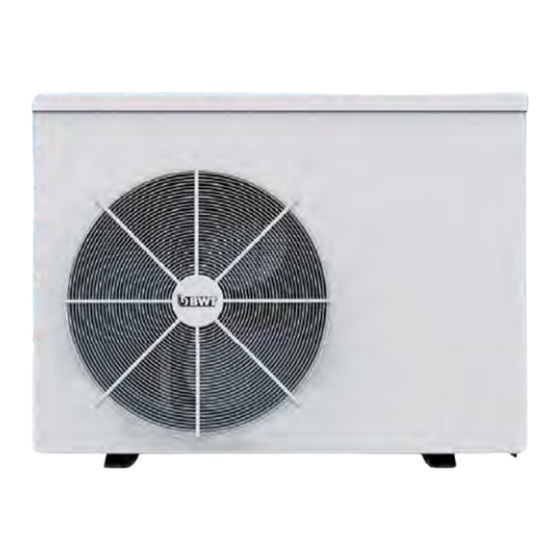

- Page 1 BWT myPOOL Inverter Heat Pump MP-IHP 50 – MP-IPH 62 – MP-IPH 80 MP-IPH 96 – MP-IPH125 – MP-IPH 165...
-
Page 2: Table Of Contents
Content Application ............Features ............III. Technical Parameter ......... Dimension ............Installation instruction ........Operation instruction ........VII. Testing .............. VIII. Precautions ............Maintenance ............ Trouble shooting for common faults ....Appendix 1: Heating priority (Optional) ... XII. Appendix 2: Heating priority (Optional) ... - Page 3 Warning Please read the following tips before installation, use and maintenance. Installation, removal and maintenance must be carried out by professional personnel in accordance with the instructions. Gas leakage test must be done before and after installation. 1. Use It must be installed or removed by professionals, and it is forbidden to dismantle and refit without permission.
- Page 4 Vacuum completely before welding, field welding is not allowed, welding can only be performed by professional personnel in professional maintenance center. Installation must be stopped if any gas leakage, and the unit must be returned to professional maintenance center. 3. Transportation & Storage Sealing is not allowed during transportation Transporting goods at a constant speed is needed to avoid sudden acceleration or sudden braking, so as to reduce the collision of goods.
-
Page 5: Application
Thank your choosing our product and your trust in our company. To help you get maximum pleasure from using this product, please read this instruction manual carefully and operate strictly according to the user manual before starting the machine, otherwise the machine may be damaged or cause you unnecessary harm. -
Page 6: Technical Parameter
III. Technical Parameter MP-IHP 50 MP-IHP 62 MP-IHP 80 MP-IHP 96 MP-IHP 125 MP-IHP 165 Model Advised pool volume (m 10~24 14~28 20~35 20~40 30~55 35~70 Operating air temperature ( ) 0~43 Performance Condition: Air 26°C, Water 26°C, Humidity 80% Heating capacity (kW) 12.5 16.5... -
Page 7: Dimension
IV. Dimension UNIT=MM MP-IHP 50 MP-IHP 62 MP-IHP 80 MP-IHP 96 MP-IHP 125 MP-IHP 165 Above data is subject to modification without notice. Note: The picture above is the specification diagram of the pool heater, for technician’s installation and layout reference only. The product is subject to adjustment periodically for improvement without further notice. -
Page 8: Installation Instruction
V. Installation instruction 1. Drawing for water pipes connection (Notice The drawing is just for demonstration, and layout of the pipes is only for reference.) 2. Connecting your power wire Please use cross screwdriver to take off the 2 screws at the bottom of the right side panel. - Page 9 For power supply: 230V 50Hz Distribution Box Swimming Pool Heat Pump Wiring Board (Customer prepare) Power Cord Power Supply Fuse 230V 50Hz Breaker Earthing Note Must be hard wired, no plug allowed. The swimming pool heater must be earthed well. 3.
- Page 10 A. Installation 1) The inlet and outlet water unions can’t bear the weight of soft pipes. The heat pump must be connected with hard pipes! between the pool and the heat pump. B. Installation instruction 1) Location and size The heat pump should be installed in a place with good ventilation * MINIMUM DISTANCE Filter Water processor...
- Page 11 2) The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid and fastened; the bracket must be strong enough antirust treated; 3) Please don’t stack substances that will block air flow near inlet or outlet area, and there is no barrier within 50cm behind the main machine, or the efficiency of the heater will be reduced or even stopped;...
-
Page 12: Operation Instruction
VI. Operation instruction SYMBOL DESIGNATION OPERATION Power ON/OFF Press to power on or off the heat pump Press to select Smart/Silence mode Mode Smart mode:100%-20% capacity Silence mode:80%-20% capacity Heat/Cool/Auto Press to shift among cooling, heating and auto Up/ Down Press to set desired water temperature Note: You may set the desired water temperature from 12 to 40 . - Page 13 2.2.1. Mode selections will be light as standard when you turn on the heat pump. Press the button to enter the Silence mode, the will be light. Press the button again to exit and enter the SMART mode. 2.2.2. Compulsory defrosting When the heat pump is heating and the compressor is working continuously for 10 minutes, press both “...
-
Page 14: Testing
VII. Testing Inspection before use Check installation of the whole machine and the pipe connections according to the pipe connecting drawing; Check the electric wiring according to the electric wiring diagram and earthing connection; Make sure that the main machine power switch is off; Check the temperature setting;... - Page 15 Please don’t put hands into outlet of the swimming pool heater, and don’t remove the screen of the fan at any time; If there are abnormal conditions such as noise, smell, smoke and electrical leakage, please switch off the machine immediately and contact the local dealer.
-
Page 16: Maintenance
IX. Maintenance Caution: Danger of electric shock power supply of the heater before “Cut off” cleaning, examination and repairing In winter season when you don’t swim: Cut off power supply to prevent any machine damage Drain water clear of the machine. !!Important: Unscrew the water nozzle of inlet pipe to let the water flow out. -
Page 17: Trouble Shooting For Common Faults
X. Trouble shooting for common faults FAILURE REASON SOLUTION No power Wait until the power recovers Power switch is off Switch on the power Heat pump doesn’t Fuse burned Check and change the fuse The breaker is off Check and turn on the breaker evaporator blocked Remove the obstacles Fan running but... - Page 18 Failure code DISPLAY NOT FAILURE DESCRIPTION No water protection Power supply excesses operation range Excessive temp difference between inlet and outlet water(Insufficient water flow protection) Ambient temperature too high or too low protection Anti-freezing reminder DISPLAY FAILURE DESCRIPTION High pressure protection Low pressure protection 3 phase sequence protection (three phase only) Water outlet temp too high or too low protection...
-
Page 19: Appendix 1: Heating Priority (Optional)
XI. Appendix 1: Heating priority (Optional) -
Page 20: Appendix 2: Heating Priority (Optional)
XII. Appendix 2: Heating priority (Optional) - Page 21 Parallel connection with filtration clock A: Water pump timer B: Water pump wiring of Heat Pump Note: The installer should connect A parallel with B (as above picture). To start the water pump, condition A or B is connected. To stop the water pump, both A and B should be disconnected.
