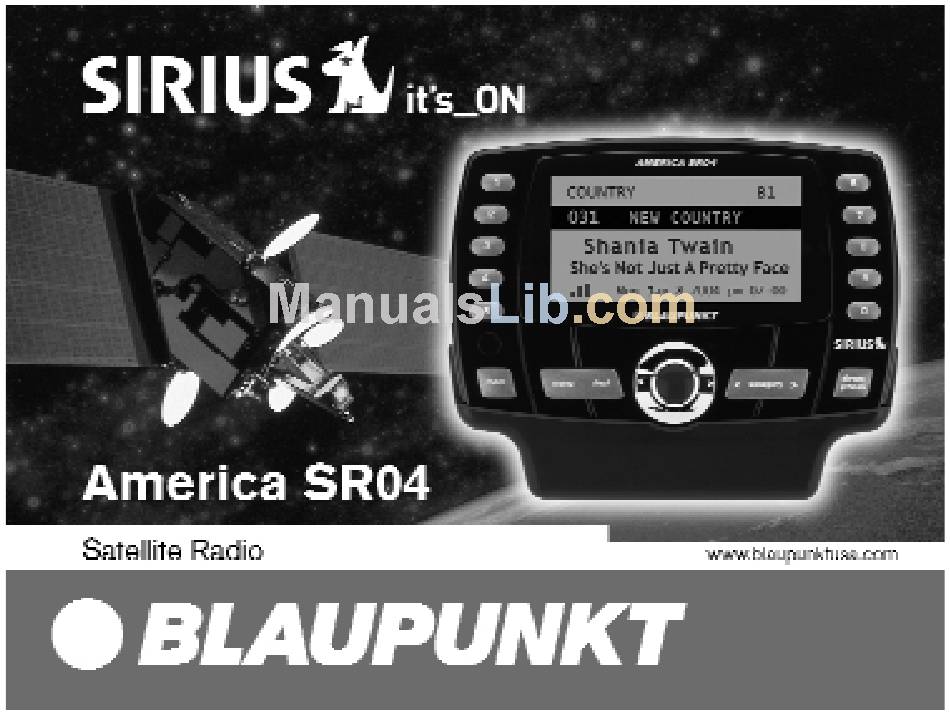

Blaupunkt Sirius America SR04 User Manual
Blaupunkt Sirius America SR04 User Manual

Blaupunkt Sirius America SR04 User Manual

Blaupunkt satellite radio user manual

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sirius America SR04 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blaupunkt Sirius America SR04

  • Page 3: Table Of Contents

    Main Unit ..............3 Remote Control Unit .
  • Page 4: Main Unit

    Main Unit...
  • Page 5 Press Term Short POWER (Blue Button) Long Short Preset/Direct Long Short Short + "1" FUNC Short + "2" Short + "3" Long Short Numbers (0-9) Long CAT (UP/DN) Short CH (UP/DN) Short DISP Short Short Main Unit Key Function Function - (When Power Off) Power On - (At Menu or List) Select - (At Tuning Mode) Display Channel List...
  • Page 6: Remote Control Unit

    Remote Control Unit...
  • Page 7: Remote Control Key Function

    - (At Tune Mode) Display the PDT Information (per Page) - Toggles PDT List (Artist/Title) - Change Band (B1->B2->B3->B1->…) - In Favorite List change to other Favorite List (Favorite 1-> Favorite2-> Favorite3-> Favorite1->..) - Favorite List display - Recall PDT List - No Function with America SR04...
  • Page 8: Congratulations

    SIRIUS and have your SIRIUS ID Number ready. You can obtain your SIRIUS ID Number by tuning to channel “000” or by looking at the back of the AMERICA SR04 chassis for a bar code starting with the letters SID.
  • Page 9: Precautions

    WARNING Take the following precautions to prevent fire and personal injury: • Do not operate the unit in a way that will divert your attention away from the road. Use the unit responsibly and obey all traffic laws at all times. •...
  • Page 10: Cleaning The Unit

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult your local Blaupunkt dealer for further technical assistance. Cleaning the Unit: If the unit needs to be cleaned, use only a soft damp cloth to wipe the unit. Use of chemicals and...
  • Page 11: Installation

    Installation To insert the tuner into the cradle, gently slide the tuner straight down onto the cradle's connector pin until it clicks into place. To remove the tuner from the cradle, gently press the release button on the back of the tuner and pull the tuner straight up out Release Button of the cradle.
  • Page 12: Vehicle

    Installation Installation in a Vehicle: Mounting the AMERICA SR04 (Do not insert the AMERICA SR04 into the Car Cradle until the following steps are complete) 1. Determine where in the vehicle you would like the unit to be mounted. • Find a location where it easy to view the front display of the unit.
  • Page 13: Installation In A Vehicle: Mounting The Antenna

    • The Antenna should not have any objects obstructing its view to the sky. 3. Insert the America SR04 tuner into the car cradle and temporarily plug the cigarette power cable into the cigarette power receptacle and turn the unit ON.
  • Page 14: Installation In A Vehicle: Running The Antenna Cable

    After you have determined that the unit was temporarily installed correctly, and you had connection to SIRIUS Satellite Radio, you should permanently install the cables for the system. This will allow for a clean installation, and prevent any possibilities of driver or passengers of the vehicle tripping over or interfering with the cables.
  • Page 15: Home

    (Do not insert the AMERICA SR04 into the Car Cradle until the following steps are complete) You can also use your AMERICA SR04 with a home stereo. To do this, you must purchase an accessory kit, SR04 HOME KIT (Part Number 7 607 001 131).
  • Page 16 SIRIUS Satellite Broadcasts on your FM radio. Note, in some areas, the FM Frequency you select may be occupied by a local FM station. In this case, select the next higher frequency in the AMERICA SR04 menu AND on your FM radio until you can hear the SIRIUS Satellite Broadcast on your FM radio.
  • Page 17: Activating Your Sirius Subscription

    3. Once the streams are updated, the screen will change to the PREVIEW Channel 184. On this channel, you will see the message “Call 1-888-539-SIRIUS to Subscribe.” 4. When you call, you will need the SIRIUS ID number of your AMERICA SR04. This is located in 3 places: •...
  • Page 18: Operation

    Basic Operation After you have activated your SIRIUS subscription, you can start listening to the 100+ channels on your America SR04. The main display of the America SR04 will show the following information. Tuning Control You can select SIRIUS channels by the following methods: 1.
  • Page 19 • Once you have selected a channel, you can store the channel as a preset. 30 presets total can be stored in the America SR04. 10 presets per preset bank B1, B2, and B3. To access Bank 2 and Bank 3, repeatedly press the DIRECT/PRESET button until you see the desired bank in the top right of your display.
  • Page 20: Memory Button

    The S-Seek Function allows the user to save and search for 10 favorite songs whenever the America SR04 is powered on. When a song is playing that you wish to save, press and release the MEM button. This will place that song’s PDT (Program Definition Text) into the memory.
  • Page 21 When the AMERICA SR04 is powered on, it will actively search (S-SEEK) for these saved songs while you listen to other channels. If it finds one of the saved songs playing on another channel, you will hear a short alert tone and the display will show the name of the saved song. From here, you can press the OK button to change to that song.
  • Page 22: Menu Options

    FACTORY DEFAULT option in the MENU, listed below. FM TRANSMITTER: In the application where your America SR04 is using the FM Transmitter to transfer sound into your radio, this menu allows you to select which frequency the unit will use.
  • Page 23: System

    The SYSTEM menu allows you to change the following: • AUDIO LEVEL: Select this feature to raise or lower the audio output from the America SR04 to match your sound system levels. Change the value using the CATEGORY UP / DOWN button and press OK to confirm.
  • Page 24: Feature Shortcuts

    Operation Feature Shortcuts • Some features can be quickly accessed by using the MENU button and a 0-9 key in combination. To access the features, press and release the MENU key and then press: • #1 key to LOCK a channel. You will be asked for your password. Once the channel is locked, you must enter the password before you can reselect the channel.
  • Page 25: Troubleshooting Guide

    Symptom America SR04 does not turn on. Check Antenna Message on display. Audio Static and other noise. No Sound Sound output but no display information. Possible Cause Lack of power to unit. Bad connection to antenna. FM Transmitter interference. Audio Cable disconnected or FM transmitter turned off.
  • Page 26: Limited Warranty

    Limited Warranty (United States) Robert Bosch Corporation (for products sold in the United States) warrants new Blaupunkt car audio products distributed in the United States through authorized Blaupunkt dealers, or which are imported as original vehicle equipment by the automobile manufacturer, to be free from defects in material and...
  • Page 27 PRODUCTS COVERED BY IT. WE SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES ARISING FROM THE SALE OR USE OF ANY BLAUPUNKT CAR AUDIO PRODUCTS, WHETHER SUCH CLAIM IS IN CONTRACT OR TORT. NO ATTEMPT TO ALTER, MODIFY, OR AMEND THIS WARRANTY SHALL BE EFFECTIVE UNLESS AUTHORIZED IN WRITING BY AN OFFICER OF ROBERT BOSCH CORPORATION.
  • Page 28 Robert Bosch Corporation Sales Group - Blaupunkt Division 2800 S. 25th Avenue, Broadview, Illinois 60155 U.S.A. www.blaupunktusa.com Copyright 2004 by the Robert Bosch Corporation No portion of this work may be reproduced in any form without the written consent of the Robert Bosch Corporation...
