PowerMaster II RF Wattmeter

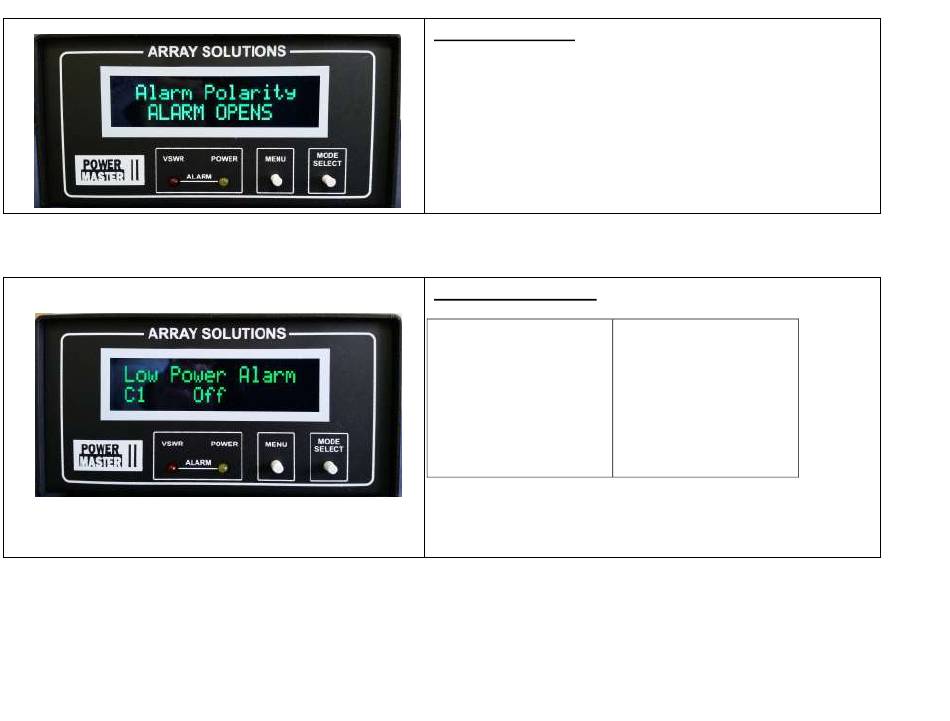

Alarm Polarity Menu
(This option only displays if VSWR Alarm Limit is set ON )
Select by pushing the mode select button:
ALARM OPENS Relay
ALARM CLOSES Relay
This applies to the PTT/ALC relay only – not the Power Monitor relay.
Low Power Alarm Menu
Push the mode select button to choose trip point in watts:
Off
5
50
100
250
500
1,000
2,000
If the peak power remains below this setting for a few seconds the
power alarm LED will light and the power monitor relay will actuate.
Push the mode select button to reset the alarm and LED
www.arraysolutions.com
Note: the 10 kW coupler
will show higher ranges;
VHF, UHF and QRP
couplers will show lower
ranges
