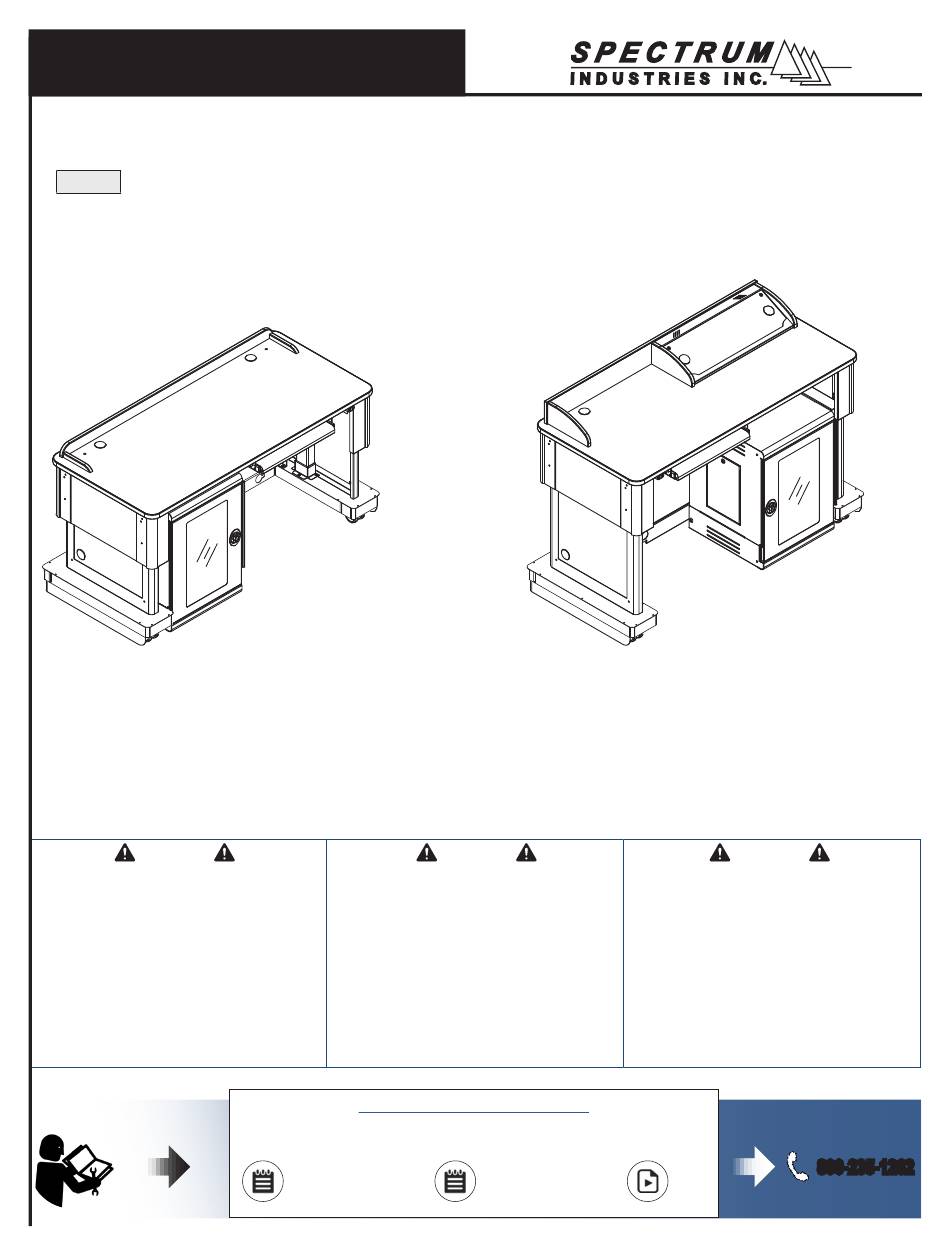

Owner's Manual
Freedom XRS Elite Lectern
55289
XRS Elite with surround, keyboard tray,
and rack cabinet installed on left
(shown retracted)
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported within 5
days of receipt. To report information regarding missing parts or
damage, to purchase parts or accessories, or if you have any
questions, please contact us.
Thank you for purchasing Spectrum products!
??
™
Important
Avant d'utiliser ce produit:
• Veillez à lire ce guide
• Respectez les consignes de sécurité et d'utilisation
• Vérifiez que vous disposez de toutes les pièces
nécessaires à l'installation
Les pièces endommagées pendant le transport doivent faire
l'objet d'un rapport dans les 5 jours de leur réception. Veuillez
prendre contact avec nous si des pièces manquent ou sont
abîmées, si vous avez des questions, ou encore pour acheter
des pièces ou des accessoires.
Merci pour votre achat d'un produit Spectrum!
www.spectrumfurniture.com
Owner's Manual
Le manuel du propriétaire
El manual del propietario
Antes de utilizar este producto:
• Lea este manual
• Cumpla con todas las instrucciones de prevención de
accidentes y operativas
• Revise que todas las partes y las cantidades correctas
estén incluidas
Si alguna parte se dañó durante el embarque, deberá reportarla
en un lapso de 5 días a partir de la recepción. Para reportar
cualquier información sobre partes faltantes o dañadas, para
adquirirlas o comprar accesorios, o bien, si tiene alguna duda,
póngase en contacto con nosotros.
Specs
Spécifications
Especificaciones
XRS Elite with overbridge, keyboard tray,
and rack cabinet installed on right
(shown extended)
Importante
¡Gracias por adquirir productos Spectrum!
800-235-1262
Video
Vidéo
Vídeo
0118857R12 Page 1 of 20
