Assembly Instructions
Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt. To
report information regarding missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) 0120202
Logo Panel
Installation

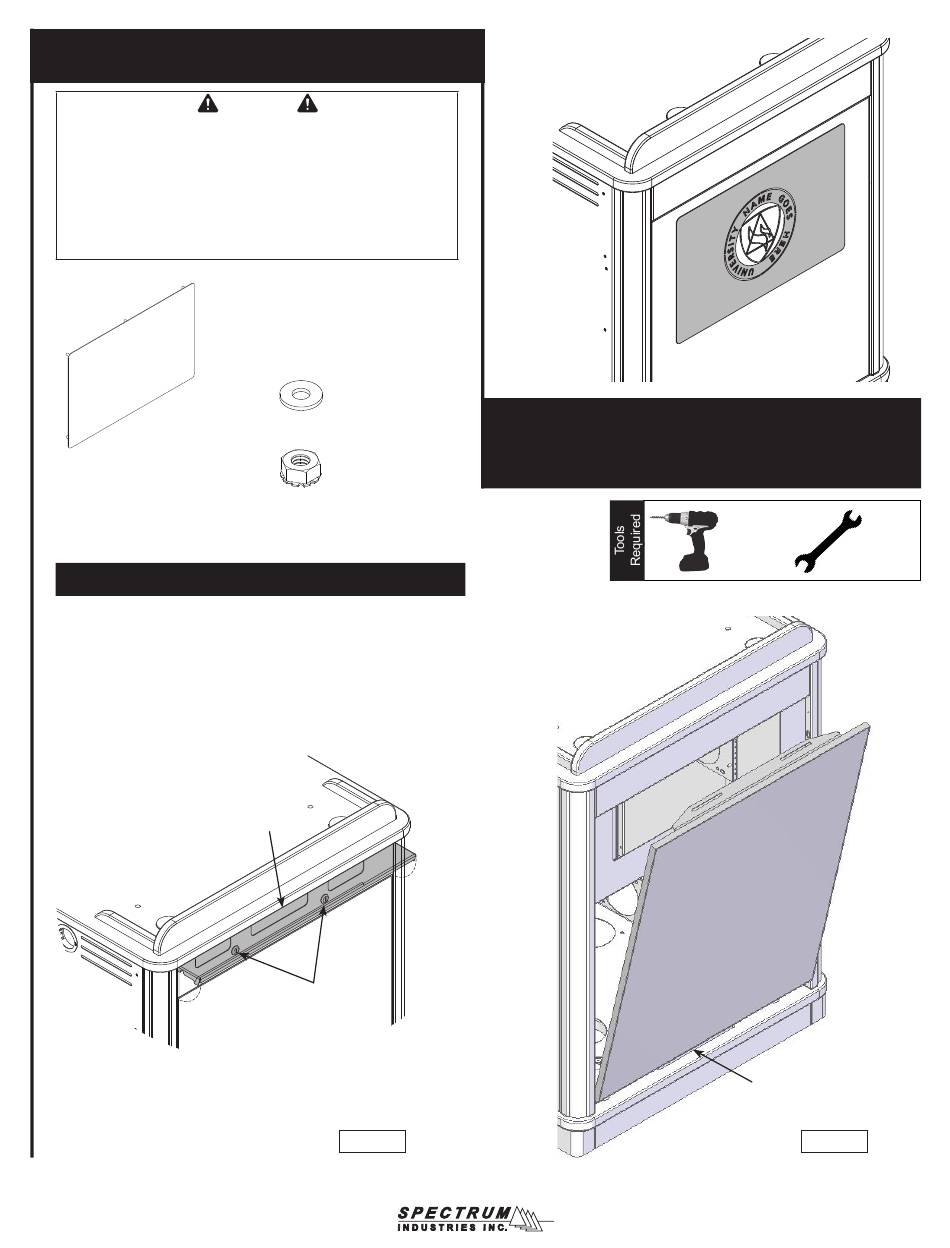

1. Locate and flip-up the audience-side flip-up panel. Figure 1A.
2. Unlock the two panel locks.
3. Carefully lift out the audience-side panel. Figure 1B.
Flip-up panel
(6) 026059
1/4" Flat washer
(6) 0104260
10-32 Keps nut
Audience side
panel lock access
Figure 1A
Customized Logo Panel
for MM Series Link and Compact Lecterns
55111
Drill with
1/4" drill bit
Audience-side
panel
Slot in base panel
Figure 1B
0120372R2 Page 1 of 2
3/8" or
adjustable
wrench
