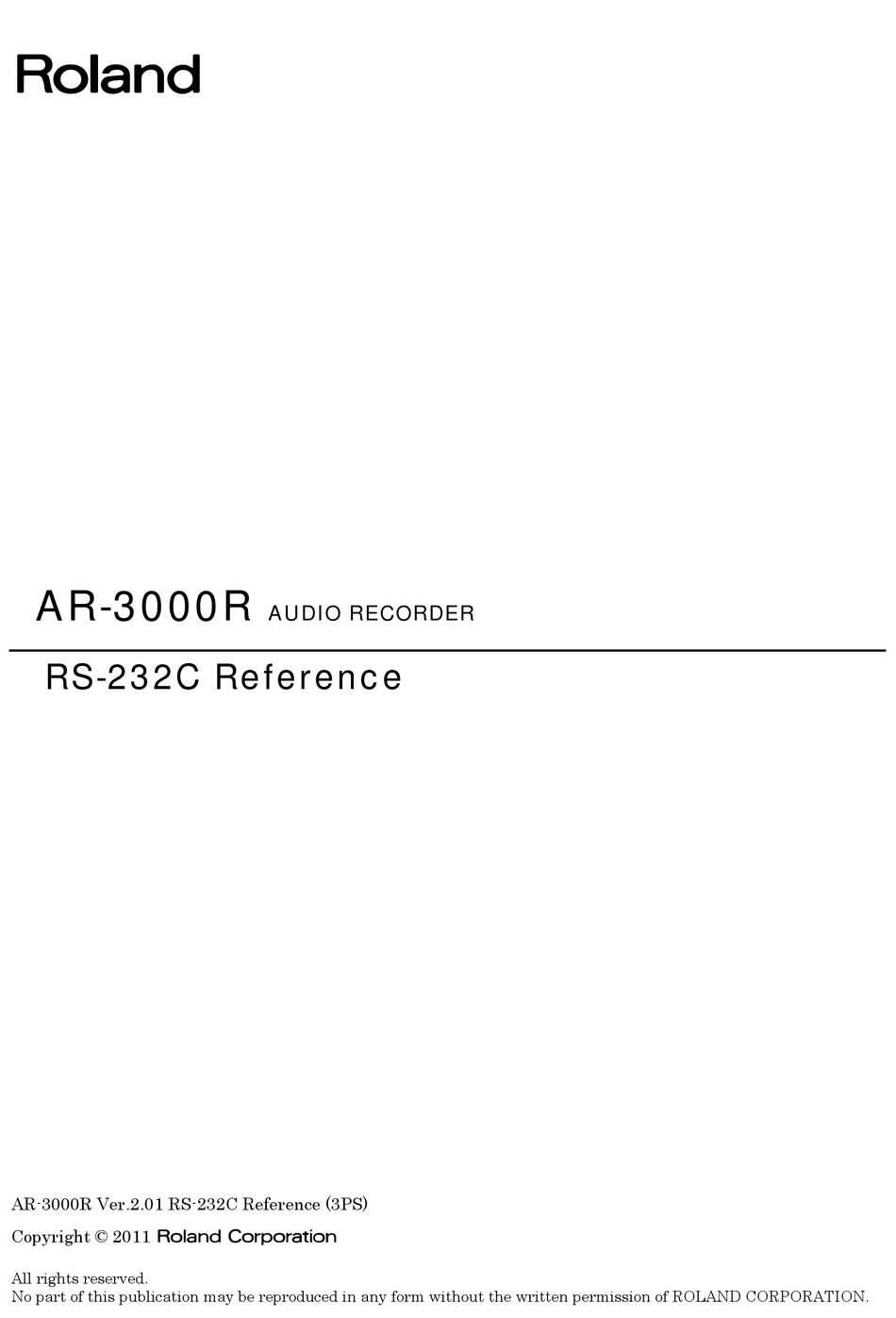

- Page 1 AR-3000R AUDIO RECORDER RS-232C Reference AR-3000R Ver.2.01 RS-232C Reference (3PS) Copyright © 2011 All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION.
-
Page 2: Table Of Contents
Precautions............................10 Section 4 Details of each Command........................11 Commands Transmitted from the External Device (Computer) to the AR-3000R......11 Details of Commands Sent from the External Device (Computer) to the AR-3000R.......12 4.2.1 Control Commands ........................12 = PA Specifying the Playback Phrase .................12 = PL Playback Start ......................13... - Page 3 Activity Sensing (Verify AR-3000R Unit Activity)............38 = VR Version Request......................38 4.2.5 Reply Commands ........................38 = ACK Response to Normal Reception of a Command............38 = ER Reply to the AR-3000R When an Error Has Occurred ..........39 R Ver.2.01 R AR-3000 S-232C Reference - 3...
- Page 4 = Xon (11H)/Xoff (13H) Allow or Disable Transmission. Used for Handshaking....39 Commands Sent from the AR-3000R to the External Device (Computer) ........39 Details of Commands Sent from the AR-3000R to the External Device (Computer).......40 4.4.1 Setting Output Commands ......................40 < SU Phrase Setting Output....................40...
-
Page 5: Introduction
Section 1 Introduction This manual explains how to control the AR-3000R using RS-232C. For details on the operation of the AR-3000R itself, refer to the AR-3000R owner's manual. This manual assumes that you have a basic understanding of computers. For explanations of computer terminology or operation, please refer to commercially available manuals. -
Page 6: Setup
Section 2 Setup 2.1 About the RS-232C Interface RS-232C is a standardized type of serial interface. The connections which are used by the AR-3000R are discussed below. 2.1.1 Connector and Cable Connector specifications Cable specifications *2 *1. These are already connected in inside of the AR-3000R. (4–6 and 7–8) *2. -
Page 7: 2.5 Computer Settings
Baud Rate If the AR-3000R's power is turned on when a card is not inserted, the baud rate will default to 9600 bps. If a card is then inserted, the settings will change to the settings which are contained in the card. -
Page 8: Overview Of Commands
Depending on the command, four types of communication protocol are used between the computer and the AR-3000R. As also explained in chapter 4, the ACK referred to in this document is ASCII code 06H (ACK), and the ER command is a command that transmits/receives an error. -
Page 9: Command Format
If no error has occurred, transmit the command you wish to execute. d. To confirm, the AR-3000R will send back the command that it received in step “c”. e. If the command is correct, send an ACK. This will cause the command to be executed. Then, after receiving the command, the AR-3000R will automatically exit Delete mode. -
Page 10: About Output Parameters
Example) Time: 00H00M06S14F7S / 05M40S / 00S04F / 30S0 _. 3.2 Precautions 1) After you make settings, erase, or copy, we recommend that you call up the AR-3000R internal memory data and check the contents. 2) While the computer and the AR-3000R are communicating, please avoid the following actions, which could result in destruction of the data in the card. -
Page 11: Details Of Each Command
LW: Recorded Phrase Protect Mode Convert Card In Delete mode, when a command other than an Edit command is received by the AR-3000R, it will automatically exit Delete mode, and execute that command. If the AR-3000R receives an Edit command when not in Delete mode, it will transmit an ER command, and ignore the Edit command that was received. -
Page 12: 4.2 Details Of Commands Sent From The External Device (Computer) To The Ar-3000R
4) Request commands This command causes the AR-3000R to output the status of its current settings. When a Request command is transmitted to the AR-3000R, the AR-3000R will transmit the requested contents as the Setting output command. In this case, an ACK will not be returned. However for the AC and AQ commands, an ACK will be output. -
Page 13: Playback Start
R output. It is not possible to playback the L and R channels independently. Compatible with mono phrases. Not compatible with stereo phrases. For more details, refer to the AR-3000R Owner's Manual. -
Page 14: Pll Playback Start - Left Channel (Dual Mono Mode)
Compatible with mono phrases. Not compatible with stereo phrases. For more details, refer to the AR-3000R Owner's Manual. Caution: If the AR-3000R is not set to Dual Mono Mode, the ER command is output. > PLR Playback Start - Right Channel (Dual Mono Mode) -
Page 15: Rl Playback From The Middle Of A Phrase
An offset time that exceeds the recording time for the phrase cannot be specified. (The AR-3000R outputs an ER command.) You can play back a phrase from a point offset by a specified time before or after a paused point by sending this command while playback is paused (see the PE command). -
Page 16: Rm Recording Standby Mode
5 WAV (*) d: Recording type 0 Mono 1 Stereo * This parameter was added from the AR-3000R system version 2.00. Example) stxRM:A1,3,2,1,0,0,0; This sets as follows; phrase “A0001”, RDAC-Grade “Standard”, RDAC-Mode “Mode 2”, Recording type “Stereo”, Trigger recording “OFF”, recording source ”LINE-IN”. -
Page 17: Ae Starting Time-Stamped Recording
The phrase number is automatically assigned to a free number where nothing is recorded. Use the ST command to stop recording. Also, the AR-3000R automatically returns the total number of phrases recorded on the card when it receives an AE command. (Refer to AE command 4. 4. 1) Caution: The recording source of the AE command is fixed to the LINE-IN. -
Page 18: Pd Delete Phrase
Phrase Editing = PD Delete Phrase Function: Delete phrase Syntax: stxDM; stxPD:a; a: Phrase number = PI Seek and Set Playback Points at the Locations of Silent Portions Function: Seek and set playback points at the locations of silent portions Syntax: stxDM;... -
Page 19: Pm Join Phrase
3 Mode 3 4 H-Linear 5 WAV (*) b: Source Phrase number c: Write-destination Phrase number * This parameter was added from AR-3000R system version 2.00. Note: Only audio phrases can be specified. R Ver.2.01 R AR-3000 S-232C Reference - 19... -
Page 20: Rt Recording-Type Convert
The card in slot A is formatted as follows; the maximum number of phrases “500”. Note: The type and capacity of the card is detected automatically. Use only cards which the AR-3000R is able to use. Caution: It is not possible to format an unformatted card with the FM command. -
Page 21: Cd Delete Card
= CD Delete Card Function: Delete Card Syntax: stxDM; stxCD:a; a: Card in slot 0 Card in slot A 1 Card in slot B Example) stxCD:0; Erase all phrases from a card in slot A. = CP Copy Card Function: Copy Card Syntax: stxDM;... -
Page 22: Co Convert Card
3 AR-3000 WAV file name (*) b: Select card 0 Card in slot A to Card in slot A 1 Card in slot A to Card in slot B * These parameters were added from AR-3000R system version 2.00. 4.2.3 Setting Commands Phrase Settings <... -
Page 23: Py Delay Time Settings
End (0H0M0S0F0S - 23H59M59S**F9S) Note: The number of digits for **F (frame) increases according to the value of MTC type. Caution: The AR-3000R cannot respond to this command during crossfades, repeats or intervals. > PR Phrase Repeat Settings Function:... -
Page 24: Fd Fade In And Fade Out Settings
> FD Fade In and Fade Out Settings Function: Fade In and Fade Out settings Syntax: stxFD:a,b,c,d,e; a: Phrase number b: Fade In Type 0 OFF 1 Time 1 2 Time 2 3 Time 3 4 (0S1 - 59S9) c: Fade In Time (0S1 - 59S9) * This parameter is ignored when fade out type is 0 to 3. -
Page 25: Pu Pattern Phrase Settings
For the pattern phrase number, specify a phrase number where nothing is recorded. For the playback phrase number, Audio phrases, MIDI phrases, and pattern phrases can be specified. > PS Pattern phrase Set up for AR-3000R Function: Pattern Phrase settings Syntax 1: (Sequence or Random 1) stxPS:a,b,c,d,e,f,g, .. -
Page 26: Ss Song Phrase Settings
(0 - 59) g: second (0 - 59) Note: From the AR-3000R system version 2.01, the time stamp information is set as modified time of the file. You can check modified time of the file by PC. Card Settings... -
Page 27: Ms Midi Settings
MIDI Settings = MS MIDI Settings Function: MIDI settings Syntax: stxMS:a,b,c,d,e; a: Card in slot 0 Card in slot A 1 Card in slot B b: MIDI Receive Channel 1-16 MIDI Channel c: MIDI OUT 0 OUT 1 THRU d: MIDI Note Trigger 0 Trigger 1 Gate e: Device ID (1 - 32) -
Page 28: Mm Mmc Mode Settings
> MM MMC Mode Settings Function: MMC Mode settings Syntax: stxMM:a,b; a: Card in slot 0 Card in slot A 1 Card in slot B b: MMC Mode 0 OFF 1 Master 2 Slave > MT MTC Settings Function: MTC settings Syntax: stxMT:a,b,c,d,e,f,g,h,i;... -
Page 29: Sm System Settings
System Settings < SM System Settings Function: System settings Syntax: stxSM:a,b,c,d,e,f; a: Card in slot 0 Card in slot A 1 Card in slot B b: Line Input select 0 Mute: Line Thru ON, Volume 0% 1 Mix: Line Thru ON, Volume 100% 2 OFF: Line Thru OFF c: Channel Playback (Dual Mono mode) -
Page 30: Ci Control Input Mode Settings
> CI Control Input Mode Settings Function: Control Input Mode setting Syntax: stxCI:a,b,c, ..,q; a: Card in slot 0 Card in slot A 1 Card in slot B b: Control Input Mode 0 Direct Play 1 Program (Count Play) 2 Binary Play 3 Binary REC c: Direct Playback Method... -
Page 31: Dl Direct Playback Settings
> DL Direct Playback Settings Function: Direct Playback setting Syntax: stxDL:a,b,c, ..,q,r; a: Card in slot 0 Card in slot A 1 Card in slot B b - q: Phrase number which you wish to assign to control input pin b (CH1) c (CH2) q (CH16) -
Page 32: Br Communication Speed Settings
Note: Even if you use this command to specify the communication speed of the card, that of the AR-3000R will not be changed. It can be changed by turning on again or by setting from the front panel of the AR-3000R itself. -
Page 33: Eq Equalizer Settings
> EQ Equalizer Settings Function: Equalizer setting Syntax: stxEQ:a,b,c,d,e,f,g; a: Card in slot 0 Card in slot A 1 Card in slot B b: Equalizer 0 Off 1 On c: Equalizer Low Gain dB (-12 - +12) d: Equalizer Low Frequency 0 200 Hz 1 400 Hz e: Equalizer High Gain dB (-12 - +12) -
Page 34: Do Display Parameter Settings
> DO Display Parameter Settings Function: Display Parameter setting Syntax: stxDO:a,b,c,d; a: Card in slot 0 Card in slot A 1 Card in slot B b: Display Sleep 0 Off 1 On c: Sleep Time (0M30S - 59M59S) = DC Display Contrast Settings Function: Display contrast setting... -
Page 35: Pq Phrase Setting Contents Request
The value of the Phrase Output Counter (described below) will not change. (---> refer to the SU command) Function 2: If the phrase number is not specified as a parameter, the AR-3000R will output the phrase settings for automatically incremented phrase number by the Phrase Output Counter. -
Page 36: Pattern Phrase Setting Contents Request
Command.) The AR-3000R outputs an ER command for phrases in which time information is not recorded. Function 2: Time Stamp request If the phrase number is not specified as a parameter, the AR-3000R will output the Time Stamp information for automatically incremented phrase number by the Phrase Output Counter. -
Page 37: Mq Card Remaining Capacity Request
= MQ Card Remaining Capacity Request Function: Card remaining capacity request Syntax: stxMQ; Note: refer to CR command < IQ MIDI Setting Contents Request Function: MIDI setting contents request Syntax: stxIQ:a; a: Card in slot 0 Card in slot A 1 Card in slot B Note: refer to MS command... -
Page 38: Dq Direct Playback Setting Contents Request
Activity sensing (Verify AR-3000R unit activity) Syntax: stxAC; Note: Normally, an ACK command will be output from the AR-3000R by using this command. During playback, playback pause, recording standby, recording or recording pause the Phrase number will be output. = VR... -
Page 39: Er Reply To The Ar-3000R When An Error Has Occurred
4.3 Commands Sent from the AR-3000R to the External Device (Computer) The following three types of commands are sent from the AR-3000R to an external device. In this explanation, “external device” refers to the computer. “AR” refers to the AR-3000R. -
Page 40: Details Of Commands Sent From The Ar-3000R To The External Device (Computer)
4.4 Details of Commands Sent from the AR-3000R to the External Device (Computer) 4.4.1 Setting Output Commands Phrase Settings < SU Phrase Setting Output Function: Phrase setting output Syntax: stxSU:a,"b",c,d,e,f,g,h,i,j,k,l,m,n,o; a: Phrase number b: Phrase name (up to 12 characters) -
Page 41: Ru Phrase Setting Output
(0M0S - 59M59S) l: Control Output 0 OFF 1 ON * This parameter was added from AR-3000R system version 2.00. Note: refer to QQ command The number of digits for **F (frame) increases according to the value of MTC type. -
Page 42: Pu Pattern Phrase Setting Output
< PU Pattern Phrase Setting Output Function: Pattern Phrase setting output Syntax: stxPU:a,b,c,d, ..,c,d; a: Pattern Phrase number b: Pattern Phrase Playback mode 0 Sequence 1 Random c: Phrase number to be played back (A1-A1000,B1-B1000) d: Delay Time (00S0 - 59S9) Note: refer to 2Q command >... -
Page 43: Ti Time Stamp Settings
= TI Time Stamp Settings Function: Time Stamp settings Syntax: stxTI:a,b,c,d,e,f,g; a: Phrase number b: year (1998 - 2050) c: month (1 - 12) d: day (1 - 31) e: hour (0 - 23) f: minute (0 - 59) g: second (0 - 59) Note: refer to TQ command Card Settings... -
Page 44: Ms Midi Setting Output
MIDI Settings < MS MIDI Setting Output Function: MIDI setting output Syntax: stxMS:a,b,c,d,e; a: Card in slot 0 Card in slot A 1 Card in slot B b: MIDI Receive Channel 1 – 16 MIDI Channel c: MIDI OUT 0 OUT 1 THRU d: MIDI Note Trigger 0 Trigger... -
Page 45: Nm Midi Note Map Setting Output
= NM MIDI Note Map Setting Output Function: MIDI note map setting output Syntax: stxNM:a,2, ..,129; a: card in slot 0 Card in slot A 1 Card in slot B 2-129: 128 phrase numbers which you assigned to note numbers from C- to G9 Phrase number assigned to note number C- Phrase number assigned to note number G9 Note:... -
Page 46: Sy System Setting Output
> SY System Setting Output Function: System setting output Syntax: stxSY:a,b,c,d,e,f,g,h,i,j,k,l,m,n,o,p,q,r,s,t,u,v,w,x; j: Line Thru Volume % (0 - 100) a: Card in slot 0 Card in slot A k: Line Thru Fade Out (0S5 - 59S9) 1 Card in slot B l: Line Thru Fade In (0S5 - 59S9) b: Control Input select... -
Page 47: Dp Direct Playback Setting Output
2 During recording standby 3 During playback pause 4 During recording pause (*) b: Phrase number * This parameter was added f rom the AR-3000R system version 2.01. Note: During Dual Mono Mode, this is output twice. refer to the 4.2.4 AC command R Ver.2.01 R... -
Page 48: Vr Version Output
(**H**M**S**F*S) Note: When operation is paused with the PE command, the AR-3000R outputs the elapsed time from the start of the phrase to the point where paused. The number of digits for **F (frame) increases according to the value of MTC type... -
Page 49: Card Operation Progress Status Output
= %% Card Operation Progress Status Output Function: Card operation progress status output When a card operation is performed, this tells what percent has been completed. Syntax: stx%%:a; a: Percent (0 - 100) Note: ACK output will terminate this. This is transmitted automatically in response to the following commands. Delete Phrase Seek and Set Playback Points at the Locations of Silent Portions Delete the silent portions (Truncate) -
Page 50: Er Replies When An Error Has Occurred
The command could not be executed for some other reason. Unsupported card or incorrect format. Format the card by panel operation. 100 The AR-3000R received a 2Q or 3Q command even though the specified phrase was not a pattern phrase. -
Page 51: Xon (11H) / Xoff (13H) Allow Or Disable Transmission. Used For Handshaking
315 A card in AR-2000 format was inserted in either slot A or B (or both). Or the syntax of the command was incorrect or inappropriate. 316 The AR-3000R without AR-NT1R received a NT or KQ command. 320 The AR-3000R gets hot. Ventilate well to avoid overheating, and keep the unit cool. Note: When these commands occur, commands from the external device will be ignored. -
Page 52: Appendix
Section 5 Appendix 5.1 AR-3000R Commands List 5.1.1 AR-2000 Compatible Commands List # Commands transmitted from the external device (computer) to the AR-3000R # Control Commands Playback Commands PhrAse Specifying the playback phrase type 2 PLay Playback start type 1... - Page 53 ACK (06H) Response to normal reception of a command type 0 ERror Reply to the AR-3000R when an error has occurred type 2 Xon (11H)/Xoff (13H) Allow or disable transmission type 0 # Commands sent from the AR-3000R to the external device...
-
Page 54: Ar-3000R Commands (Commands Newly Added With The Ar-3000/3000R) List
5.1.2 AR-3000R Commands (Commands Newly Added with the AR-3000/3000R) List # Commands transmitted from the external device (computer) to the AR-3000R # Control Commands Playback Commands PLay Busy on Playback start (During Phrase Play Busy Out On) type 1 PLay L ch... -
Page 55: 5.2 Characters That Can Be Used In Phrase Names And Card Names
# Commands sent from the AR-3000R to the external device # Setting Output Commands Phrase Settings phRase set Up Phrase setting output type 2 Pattern phrase Set up Pattern phrase setting output type 2 Song phrase Set up Song phrase setting output... -
Page 56: 5.3 Sample Algorithms
Playing Back a Phrase *1 Refer to the error number to determine the cause. Is the command format incorrect? *2 “ACK” will be output if the AR-3000R correctly recognizes the command. Note: - You can check the operating status by transmitting the AC command. -
Page 57: Recording (Normal Recording)
5.3.2 Recording (Normal Recording) *1 Setting such as RDAC-Grade and RDAC-Mode are made by RM command parameters. Note: - You can check the operating status by transmitting the AC command. - You can stop recording by transmitting the ST command. R Ver.2.01 R AR-3000 S-232C Reference - 57... -
Page 58: Recording (Time-Stamped Recording)
5.3.3 Recording (Time-Stamped Recording) *1 Setting such as RDAC-Grade and RDAC-Mode are made by AE command parameters. Note: - You can check the operating status by transmitting the AC command. R Ver.2.01 R AR-3000 S-232C Reference - 58... -
Page 59: Verifying The Parameters (Data Settings) Of All Phrases Starting With The Lowest-Numbered Phrase
The AR-3000R has an internal counter for phrase output. When a phrase is output, the phrase that corresponds to the AR-3000R's counter will be output. The maximum value will be the highest phrase number of each card. This will be reset by the AQ command (to the lowest phrase number). -
Page 60: Deleting A Phrase
5.3.5 Deleting a Phrase *1 The AR-3000R will return the same PD command for confirmation. *2 By transmitting “stxER:1;” you can exit Delete mode. R Ver.2.01 R AR-3000 S-232C Reference - 60...
