Summary of Contents for Blaupunkt CR67

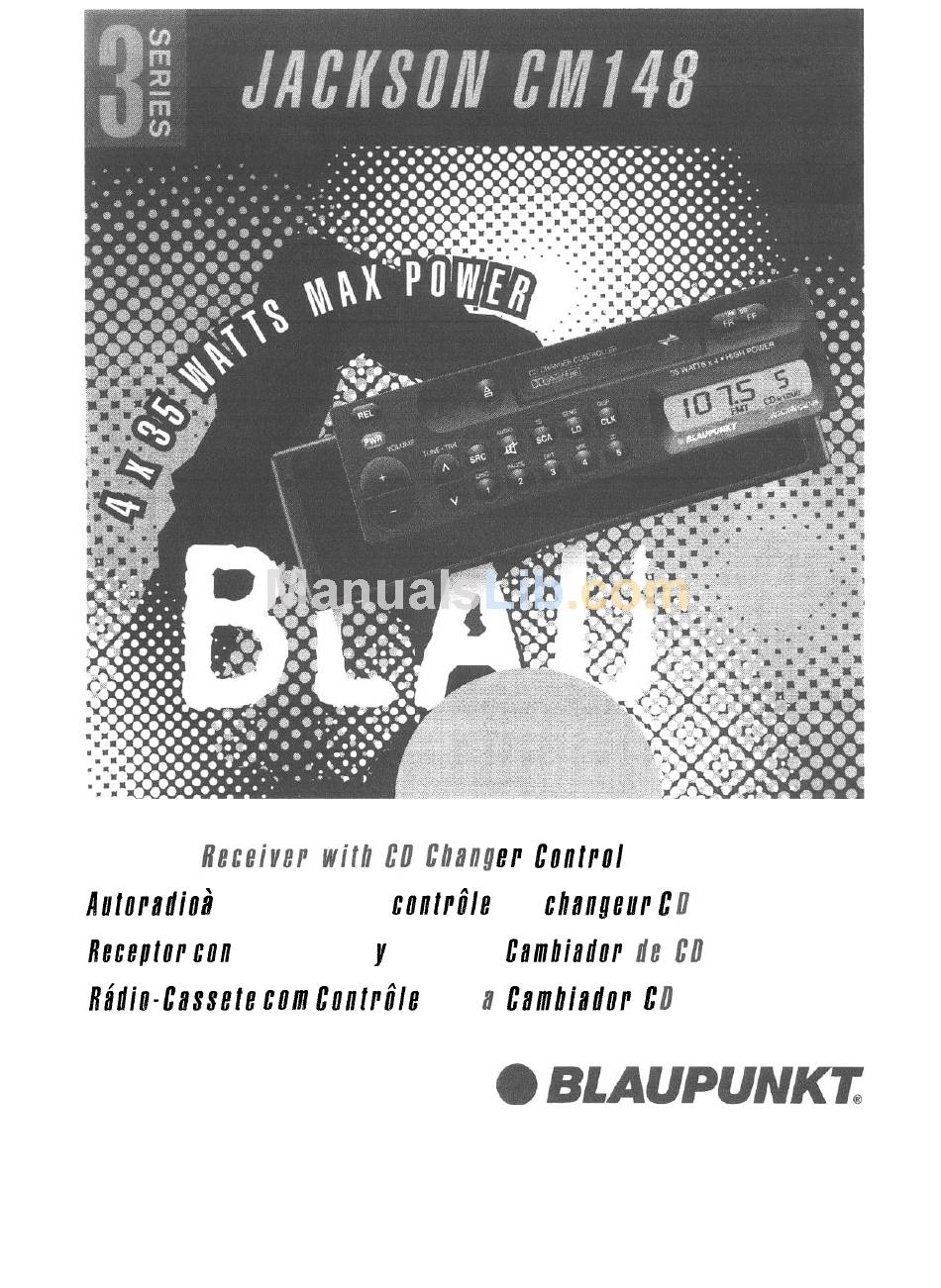

- Page 1 Cassette Control cassette et c~~t~~le de chanlelrr 6 ~~tQpedi~ i Receptor cun Cassette y Control Camhiador Radii-C~ssete corn CantrQ”le par t~~hi~d~r C Bosch Group...
-
Page 2: Owner's Record
The model and warranty numbers are located on the top of the unit. Record the warranty (serial) number in the space provided below. Refer to these numbers whenever you call upon your Blaupunkt dealer regarding this product. Warranty Number Attach Sales Receipt Here... -
Page 3: Table Of Contents
Table of Contents English FCC Warning..2 Owner’s Record..2 Features ... 4 Precautions ..4 Detachable Face ..5 Electrical Connections and Installation ... 6 Installation ..8 Maintenance ... 10 Specifications ... 1 1 Location of Controls ... 12 Instructions-General Operation ... -
Page 4: Features
1 E NGLISH ] Features Congratulations on your purchase of this Blaupunkt Cassette Receiver. Its Codem III-US FM/AM Tuner and Autoreverse Cassette Tape Player mechanism provide the ultimate in radio sound reproduction. Its high-power amplifier and 4-Channel preamp output provide you with tremendous system configuration flexibility. -
Page 5: Detachable Face
Detachable Face Detaching & Attaching the Face: The face of this unit can be detached and taken with you to prevent it from being stolen. Detaching the Face: Press the REL (Release) Button and detach the face by gently pulling it off as illustrated. Note: Do not pull it straight out from the chassis. -
Page 6: Electrical Connections And Installation
“speaker”) to each of the units’ four pairs of speaker leads. You can connect the 2 RCA preamp outputs to multiple external amplifiers and power multiple speakers or speaker systems through the amplifiers. (Blaupunkt amplifiers and speakers available separately). To add front preamp output, purchase Blaupunkt part 8634494218... - Page 7 You can use a either or both of these two methods. Connecting the Speaker Leads To prevent short circuits or serious damage to the unit and/or speakers: Connect the speaker leads only as indicated in the wiring diagram. Disconnect the vehicle battery’s negative terminal before making connections.
- Page 8 The illustration below shows a typical installation, however, you may need to adjust the installation, depending on the unit. If you have questions or need additional installation hardware, consult your Blaupunkt dealer. Make sure the unit is firmly anchored (preferably at both front and back) and does not vibrate.
- Page 9 You may have difficulty mounting this unit in some Japanese cars that have IS0 mounting features (side-bracket mounting systems). In this case, consult your Blaupunkt dealer. Run a blade along the slits on the back of the front trim ring, unscrew the two side screws, and separate it from the unit.
-
Page 10: Maintenance
Maintenance Removing the Unit Use the Release Keys as shown below. Keep them in a safe place in case you need them in the future. Fuse Replacement When replacing the fuse, be sure to use one with the correct amperage, which will be stated on the fuse case. -
Page 11: Specifications 1
Wecifications Audio Power Specifications Power Output and Total Harmonic Distortion: 13.5 watts per channel minimum continuous average output into 4 ohms, 4 channels driven, from 30-15,000 Hz with no more than 1% total harmonic distortion. Other Specifications Tuner Tuning Range: Intermediate Frequency: FM Mono Sensitivity: Seek lo sensitivity:... -
Page 12: Location Of Controls
4 seconds of inactivity. 7 8 9 CD CHhNGER ZONTRC LLER 35 WAlTS x 4 fillnl0 OISP SENS 0 BLAUPUNKT Balance Right Fade to Rear 14. A Button Seek and Manual Tuning CD Track Up Audible CD Cue Clock Hours 15. -
Page 13: Audio Operation
Any button press while ignition off displays time for about 8 seconds. Ignition-On Unit lights up and clock is displayed. Release for Detachable Faceplate Push REL to detach face. Already-inserted cassette remains in unit. Current settings and source mode are stored. If power was not switched off before face removed, unit will automatically power- on when face is reattached. -
Page 14: Radio Operation
Bass, Treble, Balance and Fade Press Mute/AUDIO for more than l/2 second to access Bass. Subsequent presses access Treble, Balance and Fade modes. Bass -Adjust from +7 to -7 at 2 dB/step using + to increase bass, Treble Adjust from +7 to -7 at 2 dB/step using + to increase treble,- to decrease. Balance Adjust balance from 9 (all the way left) using + to -9 (all the way right) using -. -
Page 15: Cassette Tape Player Operation
Preset Station Storage After tuning desired frequency on desired band, press and hold a Preset Button for more than 2 seconds to store current frequency. Audio is muted during storage, preset number appears, and beep acknowledges storage. Preset Station Selection Press desired Preset Button. - Page 16 Changer Control Your receiver is ready to control a Blaupunkt CD changer with the Disc Management System, such as the CDC-A05 or CDGA071 changers (or CDC-A08, if adapter 7607898093 is used). See your Blaupunkt dealer for more information. Activating Changer Press SRC as many times as necessary to access Changer Mode, which is indicated in display by Track Number/Disc Number display.
-
Page 17: Troubleshooting Guide
CD-ROM (computer) disc. “No Disc” No magazine or disc in changer If the above mentioned solutions do not help to improve the situation, consult your nearest Blaupunkt dealer or in SCannihg operation. Unit stops at each volume Adjust the with the + button. - Page 18 German Headquarters: Blaupunkt-Werke GmbH Postfach 77 77 77 D-31 132 Hildesheim Germany Robert Bosch Corporation Sales Group - Blaupunkt Division 2800 South 25th Avenue, Broadview, Illinois 60153 I-800-950-BLAU Robert Bosch, SA., DE, C. V. Dr. Lucia 270 Cols. Doctores, Mexico 06720...
