Mount Flexible arm
This LCD monitor is designed for use with a flexible arm.
1. Follow the instructions on how to Remove Monitor Stand for Mounting.
2. Using the specified 4 screws, attach the arm to the monitor (Figure F.1).
Spring washer
Flat washer
CAUTION: Use ONLY 4 M4 sized screws when mounting to avoid damage to the monitor and stand.
To fulfill the safety requirements the monitor must be mounted to an arm which guaranties the necessary stability
under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm
(e.g. TUEV GS mark).
Tighten all screws (recommended Fasten Force: 98 - 137 N•cm).
Attaching the flexible arm should be done by two or more people if the monitor cannot be placed face down on a
flat surface for installation.
12 mm
100 mm
100 mm
Weight of LCD assembly: 4.2 kg

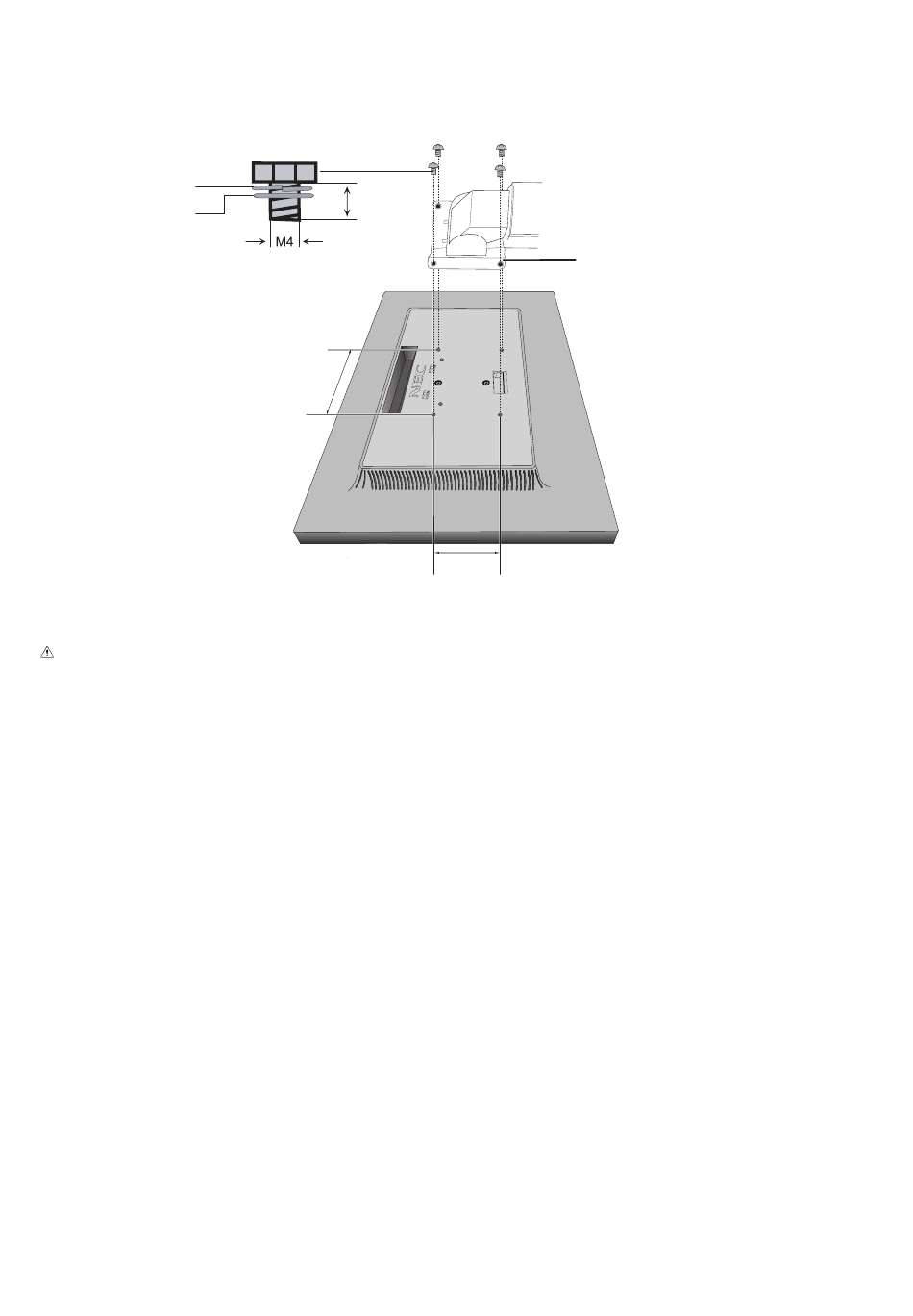

Figure F.1
English-10
Thickness of Bracket (Arm)
2.0~3.2 mm
