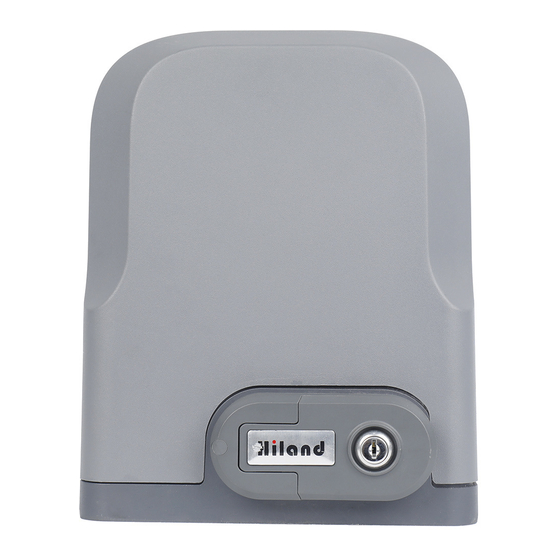

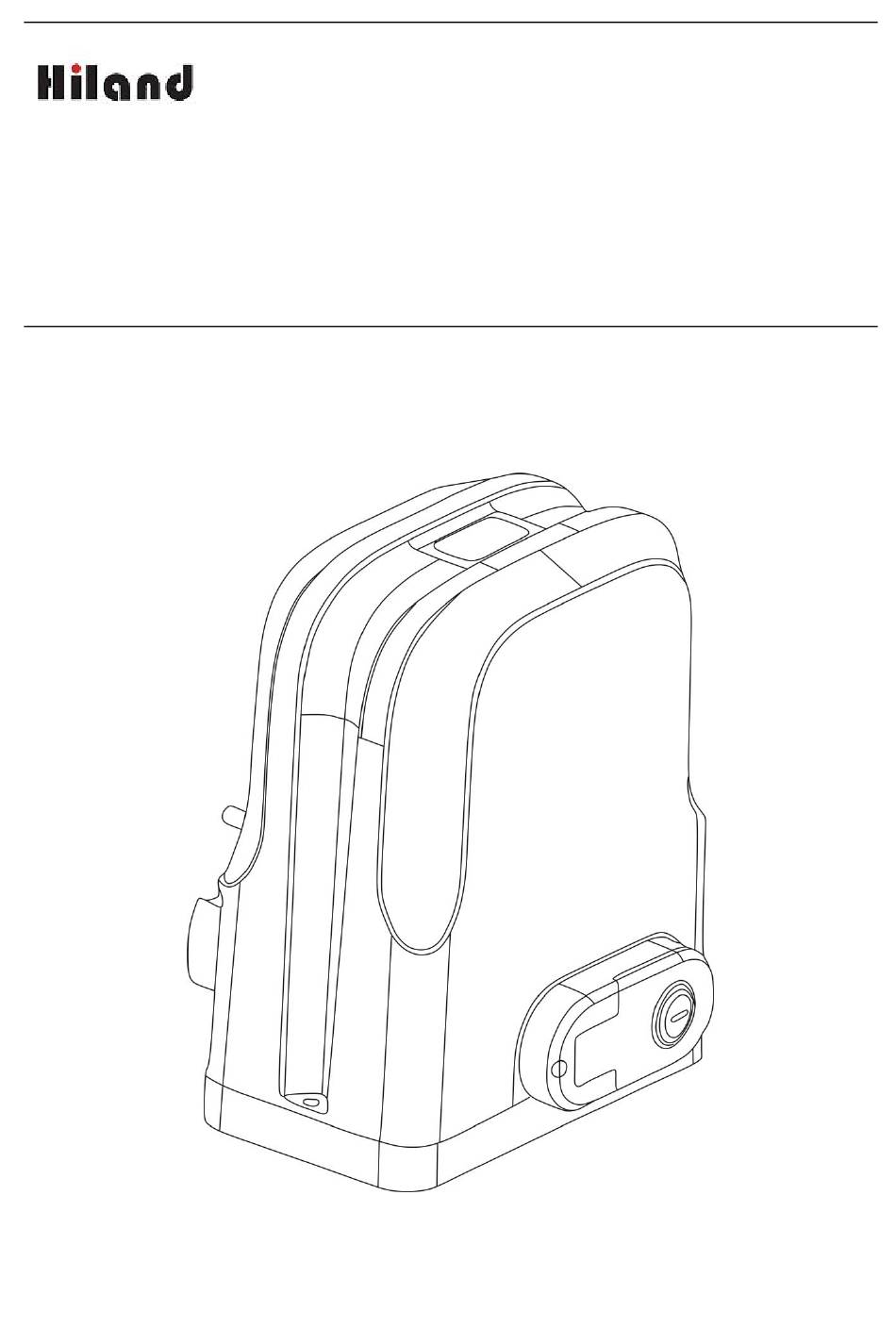

- Page 1 Sliding gate opener SLG5280X user manual(SL0720) Sliding Gate Opener SLG5280X User Manual (With control board SL0720)
-
Page 2: Safety Instruction
Sliding gate opener SLG5280X user manual(SL0720) Dear users, Thank you for choosing this product. Please read the manual carefully before assembling and using it. Please do not leave out the manual if you send this product to a third party. - Page 3 Sliding gate opener SLG5280X user manual(SL0720) 2. Packing List (standard) Picture Name Quantity Main engine Manual release key According to the model already choose Remote control Spring limit switch accessories box / Magnetic limit switch accessories box Spring limit switch block...
-
Page 4: Technical Parameters
Sliding gate opener SLG5280X user manual(SL0720) Packing list (Optional) Picture Name Quantity Metal rack 1m/pc Nylon rack 1m/pc Keypad（different models are optional） Flash lamp（different models are optional） （different models Photocell 1pair are optional） Mounting plate 1piece 3. Technical parameters SLG52802... -
Page 5: Installation
10.10Kg 4. Installation SLG5280X sliding gate opener is applicable to gate weight less than 600kg, and length of the sliding gate should be less than 8m. The drive mode adopts the gear and rack transmission. This gate opener must be installed inside the enclosure or yard for protection. - Page 6 Sliding gate opener SLG5280X user manual(SL0720) ① Gate opener; ② Wireless keypad ; ③ Gate; ④ Infrared sensor; ⑤ Alarm lamp; ⑥ Safety stop block; ⑦ Gear rack; ⑧ Remote control; 4.2 Size of main engine and accessories 4.2.1 Size of main engine Figure 2 4.2.2 Size of mounting plate...
- Page 7 Please cast a concrete pedestal with the size of 400mm x 250mm and depth of 200mm in advance, Please verify whether the distance between so as to firmly install SLG5280X gate opener. the gate and gate opener is suitable before casting the pedestal.
- Page 8 Sliding gate opener SLG5280X user manual(SL0720) Figure 5: Turn on 90° 4.3.3 Gear rack installation Fix the mounting screws to the rack. Put the rack on the output gear, and weld the mounting screw to the gate (each screw with one solder joints firstly).
- Page 9 Sliding gate opener SLG5280X user manual(SL0720) Gear Gear rack rack Output Output gear gear Figure 7 Warnings · To ensure safety, install safety stop blocks on both ends of the rails to prevent the gate out of the rail. Before installing the main engine, make sure that the safety stop blocks are in place and whether it has the function of preventing the gate from moving out of the rail and out of the safety range.
- Page 10 Sliding gate opener SLG5280X user manual(SL0720) Figure 8 The installation of spring limit switch stop block is shown in Figure 9: M6×10 M6×10 M6×10 M6×10 Figure 9...
- Page 11 Sliding gate opener SLG5280X user manual(SL0720) Magnetic limit switch - The installation site of magnetic limit switch is shown in Figure 10: Figure 10 The installation of magnetic limit switch block is shown in Figure 11: Left side mounting Right side mounting M6×18...
-
Page 12: Control Board Wiring
Sliding gate opener SLG5280X user manual(SL0720) 5. Control board wiring 5.1 The opener should be install on the left side of the sliding door because it is set as clockwise when delivery . If needs to install on the right side of the sliding door ,the DIP switch 3 should be changed into the opposite side. - Page 13 Sliding gate opener SLG5280X user manual(SL0720) 5.4.3 External control (COMMAND) interface: control switch connects normally open switch. 5.4.4 Dip switch settings: DIP7 DIP8： Auto close time DIP5 DIP6 ： function cancelled DIP4 Latch and non-latch OFF OFF ： No Auto close Deadman,latch ON：...
-
Page 14: Maintenance
Sliding gate opener SLG5280X user manual(SL0720) circuit when leave factory). 7. Operational processes 7.1 Three button control process (DIP 2 at OFF position) 7.2 Single button control process (DIP 2 at ON position) Description: Single button control , press-open-press-stop-press-stop; Only the learned button is effective in the... -
Page 15: Exception Handling
1. remove the resistance 2. resistance potentiometer setting too 2. reset the resistance potentiometer low or changes after long time The interpretation and ownership of this manual belong to Hiland company. Any change of the product can be without prior notice.
