Description

Dedicated to fulfilling the demanding requirements of

performance-conscious

proudly releases its Extreme Plus 600X CompactFlash

cards with Turbo MLC technology. With its amazing

performance, the Transcend 600x CompactFlash

memory card allows the professional photographers

and enthusiasts to get the most from your digital single

lens reflex (DSLR) camera. Users are guaranteed to

makes consecutive shooting and non-stop video

recording and share their digital artwork with the world!

Placement

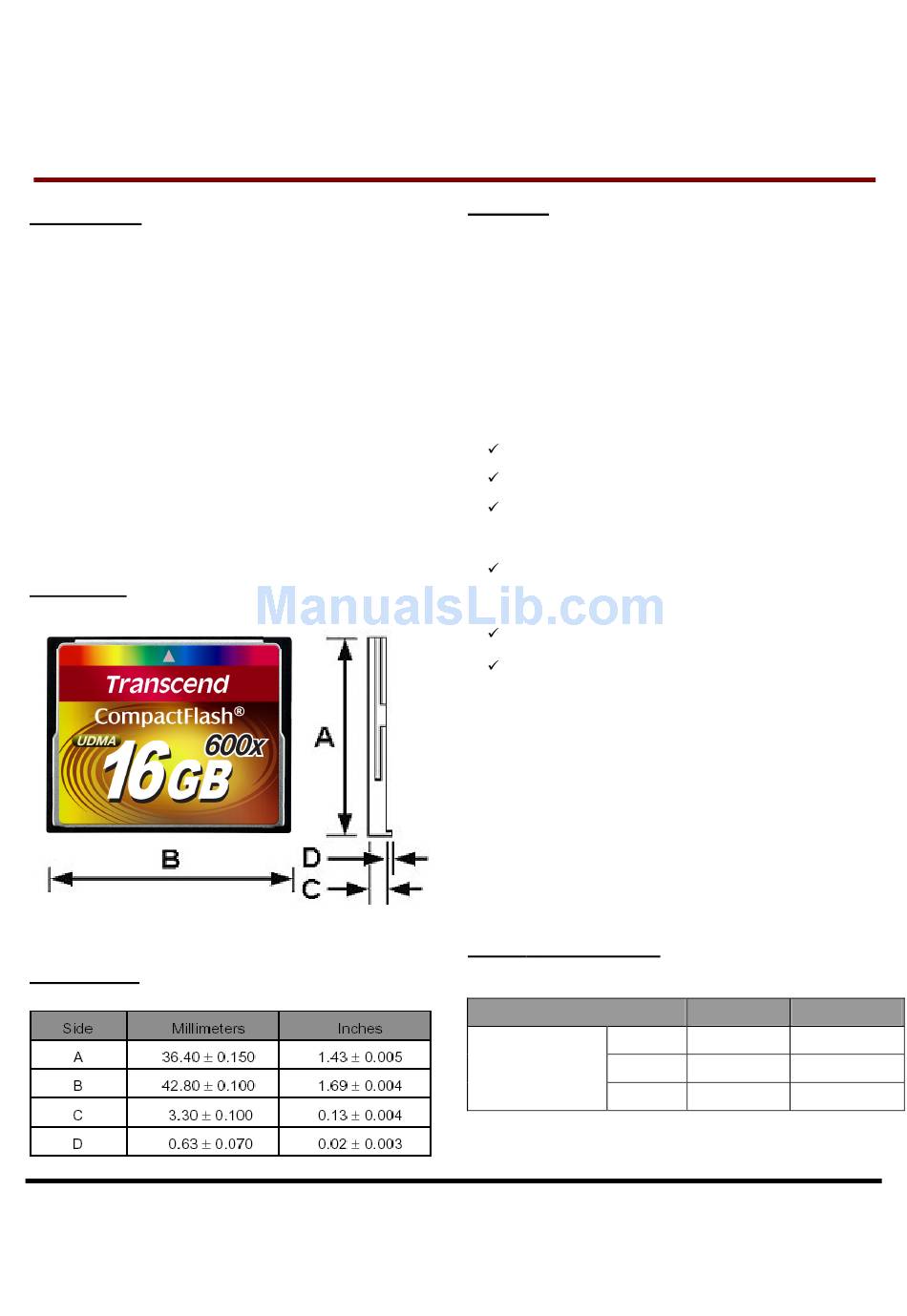

Dimensions

Transcend Information Inc.

photographers,

Transcend

Features

• CompactFlash Specification Version 4.1 Complaint

• RoHS compliant products

• Single Power Supply: 3.3V ± 5 % or 5V ± 1 0%

• Operating Temperature: -25

• Storage Temperature: -40

• Operating/ Storage Humidity: 5% to 95%

• Operation Modes:

PC Card Memory Mode

PC Card IO Mode

True IDE Mode

• True IDE Mode supports:

Ultra DMA Mode 0 to Ultra DMA Mode 6 (Ultra DMA

mode 5/6 must use Power supply: 3.3V)

MultiWord DMA Mode 0 to MultiWord DMA Mode 4

PIO Mode 0 to PIO Mode 6

• PC Card Mode supports up to Ultra DMA Mode 6

• True IDE mode: Fixed Disk (Standard)

• PC Card Mode: Removable Disk (Standard)

• Durability of Connector: 10,000 times

• Built-in 15 bit ECC (Error Correction Code) functionality

• Support Global Wear-Leveling to extend product life

• Compliant to CompactFlash, PC Card Mode, and ATA

standards

Power Consumption

Product

Standby

Power

Consumption

(DC 3.3V

)

℃

600X CompactFlash Card

C to 85

TS8GCF600 TS16GCF600

2.4mA

222.8mA

Read

Write

218.1mA

* Maximum value

2.5mA

232.8mA

211.5mA

V1.0
