artisan 2618-1B Instruction Manual And Parts Catalog

Cylinder bed compound needle feed lockstitch sewing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
artisan
2618
-1B
.2

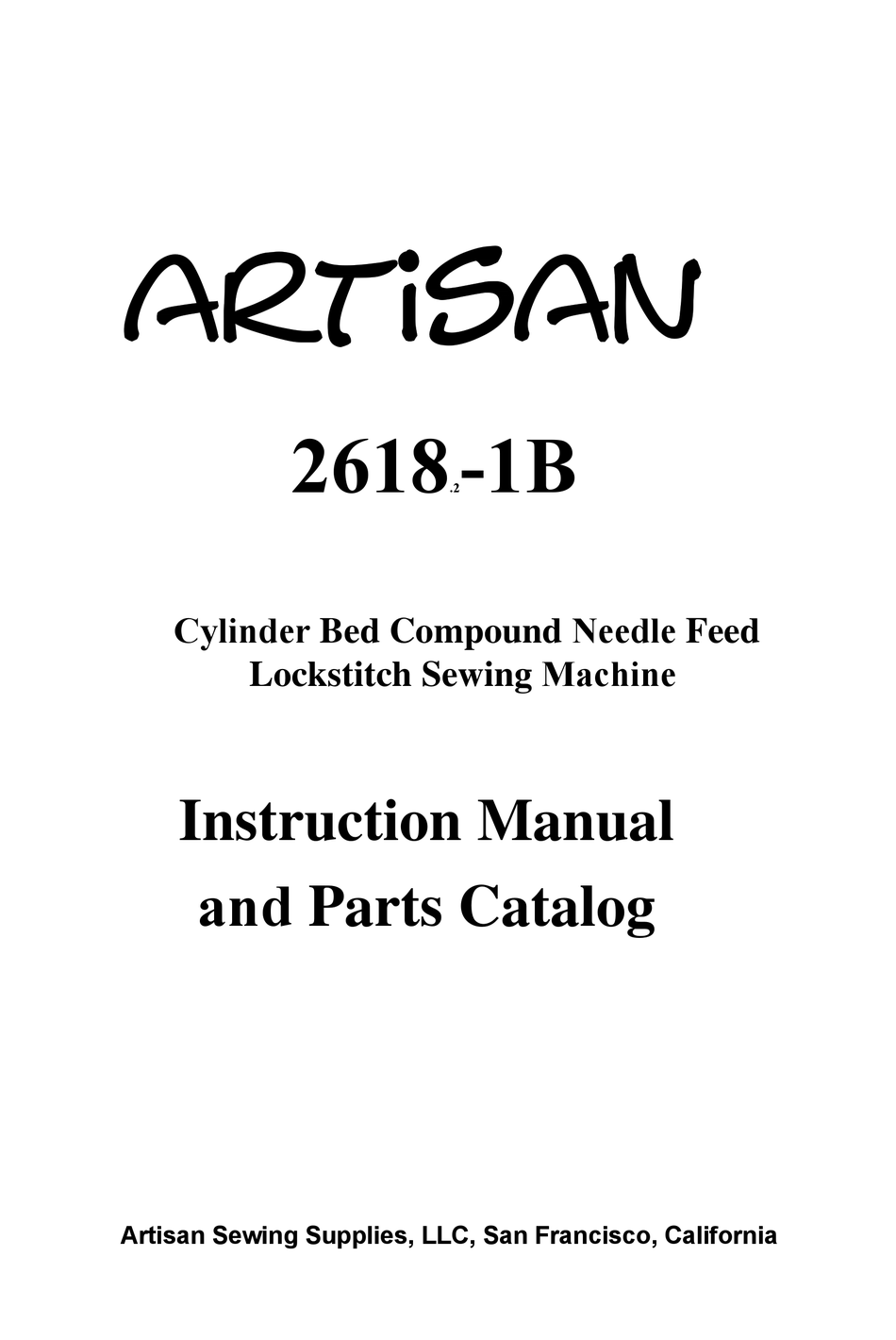

Cylinder Bed Compound Needle Feed
Lockstitch Sewing Machine
Instruction Manual
and Parts Catalog
Artisan Sewing Supplies, LLC, San Francisco, California

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2618-1B and is the answer not in the manual?

Questions and answers

Related Manuals for artisan 2618-1B

Summary of Contents for artisan 2618-1B

  • Page 1 2618 Cylinder Bed Compound Needle Feed Lockstitch Sewing Machine Instruction Manual and Parts Catalog Artisan Sewing Supplies, LLC, San Francisco, California...

  • Page 2: Table Of Contents

    CONTENTS INSTRUCTION MANUAL Ⅰ.PRECAUTIONS BEFORE STARTING OPERATION ..........1 Ⅱ.SPECIFICATIONS ............... 1 Ⅲ. CAUTIONS ON USE ..............2 1. Lubrication ................. 2 2. Winding of bobbin thread ............2 3. Attaching the needle ..............3 4. Threading of needle threads ............3 5.

  • Page 3: Ⅰ.precautions Before Starting Operation

    Ⅰ、PRECAUTIONS BEFORE STARTING OPERATION 1. Safety precautions 1） When turning the power on, keep your hands and fingers away from the area around/under the needle and the area around the pulley. 2）Power must be turned off when the machine is not in use, or when the operator leaves the seat. 3）Power must be turned off when tilting the machine head, installing or removing the “V”...

  • Page 4: Ⅲ. Cautions On Use

    Ⅲ、CAUTIONS ON USE 1. Lubrication · When a new sewing machine is first operated, or when a sewing machine is operated which is out of use for long period of time, it will be necessary to oil through the oil holes after removing the rubber plugs shown below.

  • Page 5: Attaching The Needle

    3. Attaching the needle Note: Before installing the needles, be sure to turn off the power. 4.Threading of needle threads ” 1）Pass each needle thread through thread guide“ Note: When thin slippery thread (polyester thread or filament thread, for example) is used pass the thread through thread ”...

  • Page 6: Setting Of Bobbin

    5.Setting of b obbin 1）Pulling out 5cm thread tail from the bobbin. 2）Hold the bobbin so that the bobbin thread is would in right direction and put it into the hook. 6.Threading of bobbin threads 1）Put the hook into the bobbin case and press ①...

  • Page 7: Thread Tension

    7.Thread tension 1）Adjusting the bobbin thread tension Turn tension screw, clockwise to increase the bobbin thread tension, or counter clockwise to decrease it. 2）Adjusting the needle thread tension · Needle thread tension should be adjusted in reference to bobbin thread tension. ·...

  • Page 8: Adjusting The Pressure Of The Presser Foot

    10.Adjusting the pressure of the presser foot Pressure to fabric can be adjusted by turning the pressure adjusting screw. 11.Adjusting the presser foot and the walking foot 1）Loosen not 1, and change the position of the cam rod boss accordingly. Highest position---The stroke is maximized.

  • Page 9: Relationship Between Hook Motion And Opener Motion

    13.Relationship between hook motion and opener motion 1）Turn the balance wheel by hand and stop when the opener holder is located most remotely from the throat plate. 2） Make sure gap between the bobbin case holder A and the opener is approximately 0.2 mm. 3）...

  • Page 10: Safety Mechanism

    16.Safety mechanism If the thread is caught in the hook while the sewing machine is in operation, the safety mechanism actuates to idle the lower sprocket only if the thread is caught in the hook while the sewing machine is in operation, the safety mechanism actuates to idle the lower sprocket only. 1）How to reset ·...

  • Page 11: Arm Bed And Its Accessories

    A. ARM BED AND ITS ACCESSORIES...
  • Page 12 A. ARM BED AND ITS ACCESSORIES Pig. Part No. Description Remarks HA300B2170 Face plate screw SM11/64(40)×9 H4730B8001 Guide mounting plate H4727B8001 Face plate HA300C2030 Screw SM11/64(40)×8 H4731J8001 Holder H4711J7101 Oil pipe HH61B17101 Oil pipe H411040160 Screw HA100E2150 Screw SM11/64(40)×10 H4722E8001 Washer H4721E8001 Guide for slide block H4716B8001 Oil guard plate H4718B8001 Arm side cover...
  • Page 13 A. ARM BED AND ITS ACCESSORIES Pig. Part No. Description Remarks HE107I8001 Screw H4100B2090 Washer H4100B2070 Screw SM1/4(24)×9.8 H4100B2060 Link plate H4100B2100 Hinge H4100B2110 Hinge screw SM1/4(24)×9.8 -11-...

  • Page 14: Thread Tension Regulator Mechinism

    B. THREAD TENSION REGULATOR MECHINISM -12-...
  • Page 15 B. THREAD TENSION REGULATOR MECHINISM Pig. Part No. Description Remarks H3221B3142 Tension releasing plate H3221B6811 Screw SM9/64(40)×3 H3221B6812 Tension releasing spring H4705C8001 Screw H4706C8001 Lever HA7311C306 Screw SM9/64(40)×7 H4707C8001 Mounting plate H007013050 Stop ring H3221B6810 Nut H4708C8001 Spring H4709C8001 Push button H3221B0681 Porcelain cluct H3221B0682 Pin H3221B0685 Thread tension stud...
  • Page 16 B. ARM BED AND ITS ACCESSORIES Pig. Part No. Description Remarks H3221B6819 Stopper H3200B2100 Screw SM9/64(40)×6.5 H3230K0751 Screw SM11/64(40)×10 H32481B121 Thread tension stud -14-...

  • Page 17: Arm Shaft Mechanism

    C. ARM SHAFT MECHANISM -15-...
  • Page 18 C. ARM SHAFT MECHANISM Pig. Part No. Description Remarks H2405D0662 Hinge pin HA105D0662 Screw SM1/4(40)×4 H4706D8001 Needle bar crank HA307C0662 Screw SM1/4(40)×6 H32111B204 Arm shaft bushing (left) HH61C08001 Arm shaft H5332C8001 Feed cam (right) H4716F8001 Oil wick HA100C2060 Screw SM9/32(28)×13 HA100C2070 Screw SM9/32(28)×14 H2405D0664 Screw...

  • Page 19: Needle Bar ＆ Thread Take-Up Lever Mechanism

    D. NEEDLE BAR ＆ THREAD TAKE-UP LEVER MECHANISM -17-...
  • Page 20 D. NEEDLE BAR ＆ THREAD TAKE-UP LEVER MECHANISM Pig. Part No. Description Remarks H4725F8001 Presser bar H3400C2020 Screw H3200I2030 Washer H3400C2010 Needle bar guide H4726F8001 Presser bar connecting link H4729F8001 Spring H4753E8001 Screw SM11/64(40)×17.5 H4728F8001 Guide for slide block H4730F8001 Vibrating presser bar extension H2405D1122 Oil wick H4706F8001 Pin H4707F8001 Screw...

  • Page 21: Preaaer Foot Mechanism

    E. PREAAER FOOT MECHANISM -19-...
  • Page 22 E. PREAAER FOOT MECHANISM Pig. Part No. Description Remarks H4705E8001 Feed lifting rock shaft H4706E8001 Screw SM1/4(24)×7 H4707E8001 Bushing H0030550608 Thumb nut M6×0.75 H3115F0671 Screw SM1/4(28)×16 H4709E8001 Regulating crank H2013J0065 Washer H2014J0066 Connecting rod H2000J2100 Screw M6×0.75 H20111C106 Felt clip H4713E8001 Oil wick HA307C0662 Screw SM1/4(40)×6...
  • Page 23 E. PREAAER FOOT MECHANISM Pig. Part No. Description Remarks H4727E8001 Spring HH60E48001 Knee lifter lever H2000I2140 Screw H2000I2150 Knee lifter lever joint H2000I2160 Nut SM3/16(32) HH60E58001 Knee lifter rod -21-...

  • Page 24: Stitch Regulator Mechanism

    F. STITCH REGULATOR MECHANISM -22-...
  • Page 25 F. STITCH REGULATOR MECHANISM Pig. Part No. Description Remarks HA720F0686 Screw SM3/16(28)×12 HA720F0685 Bushing H5341H8001 Plate for stitch length HA7421F120 Dial HA720F0683 Stopper pin releasing lever HA720F0687 Coil spring HA700F2030 Stopper pin HA100F2090 Spring for stopper pin HA109F0674 Seal 14×2.4 HA720F0681 Screw bar HH61F18001 Feed regulator crank HH61F28001 Feed reversing lever shaft...
  • Page 26 F. STITCH REGULATOR MECHANISM Pig. Part No. Description Remarks HA100F2130 Screw SM15/64(28)×5 H5320H8001 Screw SM15/64(28)×23.5 HH60F78001 Link lever HH60F68001 Link lever H5314H8001 Crank HA700F2100 Screw SM11/64(40)×7 HA800F2020 Screw SM15/64(28)×13.5 H5308H8001 Reverse block shaft HA100C2020 Set screw SM15/64(28)×10 H5306H8001 Reverse block shaft H5307H8001 Bushing for reverse block shaft -24-...

  • Page 27: Feeding And Feed Lifting ＆ Rotating Hook Shaft Mechanism

    G. FEEDING AND FEED LIFTING ＆ ROTATING HOOK SHAFT MECHANISM -25-...
  • Page 28 G. FEEDING AND FEED LIFTING ＆ ROTATING HOOK SHAFT MECHANISM Pig. Part No. Description Remarks H4967K8001 Screw SM11/64(40)×7.2 HBG6260081 Washer HBG6264081 Feed dog HBG6255081 Slide HBG6261081 Shaft HBG7256081 Screw SM9/64(3.57)×40 HA7311C306 Screw SM9/64(3.57)×40 HBG6256081 Feed rocker shaft crank plate HBG6253081 Feed rocker shaft crank HBG6253081 Pin HBG6263081 Link HBG6258081 Plate...

  • Page 29: Hook Saddle Mechanism

    H. HOOK SADDLE MECHANISM H-29 21G01-034 Needle Plate Attaching Screw -27-...
  • Page 30 H. HOOK SADDLE MECHANISM Pig. Part No. Description Remarks HD806I8001 Bobbin HH60H67101 Rotating hook HE117B8001 Rotating position guide HE046C8001 Screw SM0.1339(36)×6 HE116B8001 Guide plate slide block HE121B8001 Washer HE120B8001 Screw SM13/64(32)×16.5 HE125B8001 Bushing HE124B8001 Washer H2404I0652 Screw SM9/64(40) HE127B7101 Guide plate HE126B8001 Felt HE147B8001 Rotating hook bracket HE028E8001 Screw...

  • Page 31: Accessories

    I. ACCESSORIES -29-...
  • Page 32 I. ACCESSORIES Pig. Part No. Description Remarks HH60I68001 Belt cover (left) H2000O0360 Screw SM11/64(40)×6 H0207L8001 Screw SM15/64(28)×18 H6760B8001 Washer H6307L8001 Belt cover (upper) HH60I78001 Belt cover (right) HH60I88001 Screw SM15/64(28) HN720J8001 Screw SM15/64(28)×10 H005006060 Washer H8000H2070 Pothook HPG100E203 Chain HB00001060 Sockt wrench HE105I8001 Spanner HA300J2210 Screw driver (small) HA300J2200 Screw driver (middle)
  • Page 33 The description covered in this manual is subject to change for improvement of the commodity without notice 2014.1. Printed...
