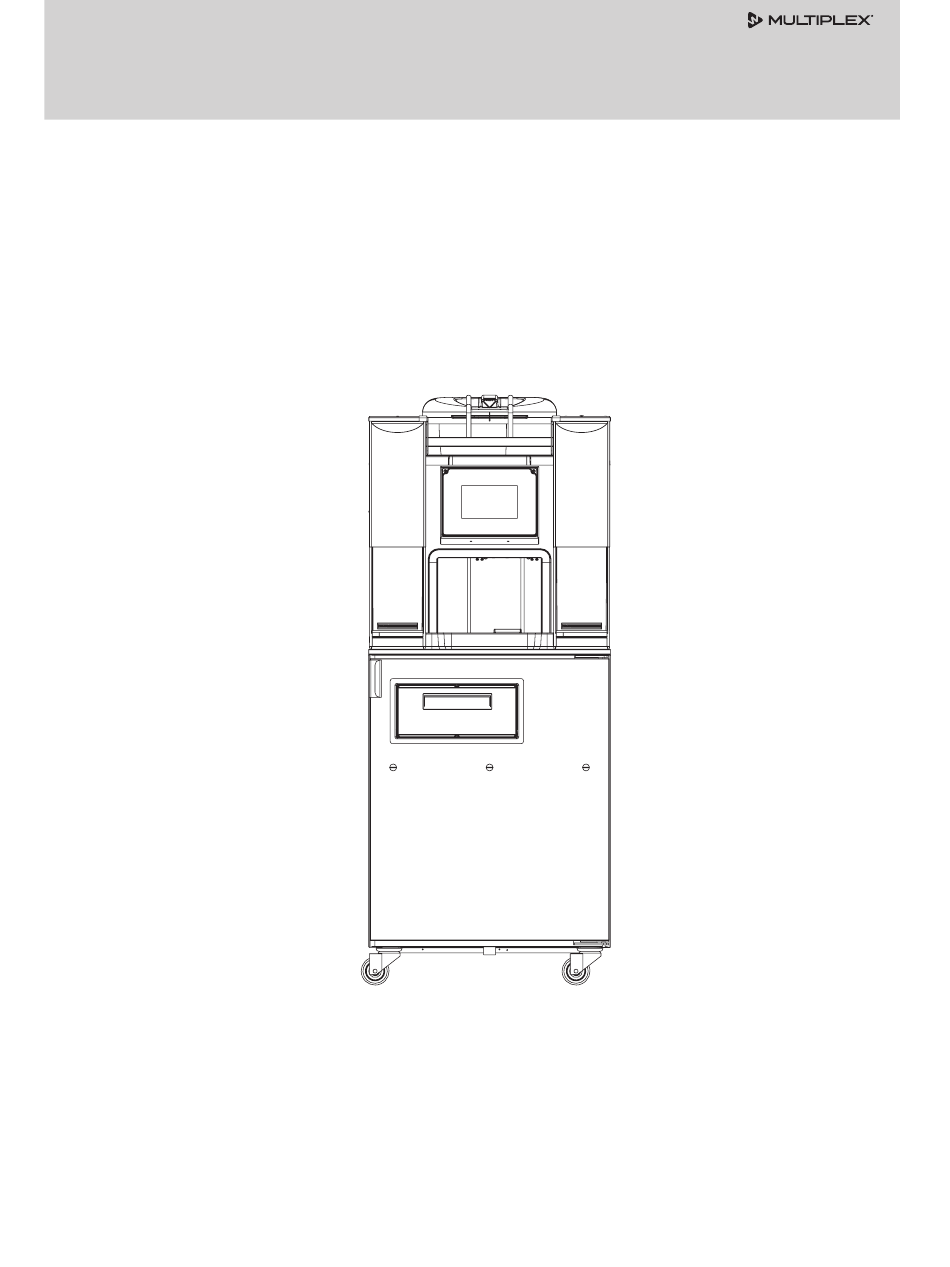

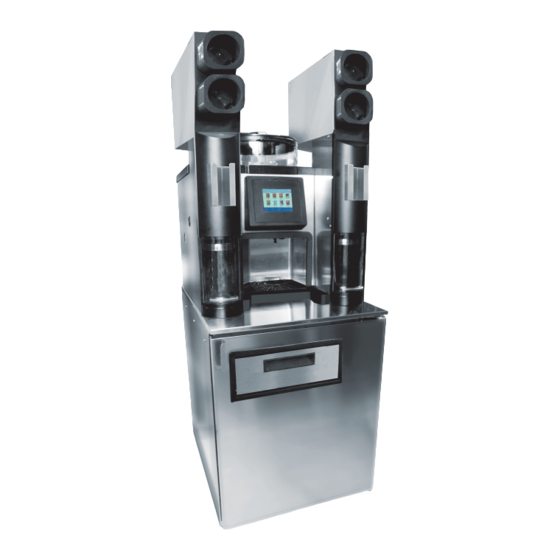

- Page 1 Blended-In-Cup® (BIC) Manual Fill Beverage System 2020 Tune Up - North America Welbilt KitchenCare® Tel. 844-724-2273 Blend-In-Cup Machine ® MA-8-2, MA-8-2BF, MA-8-2AF March 2020 Printed in The United States of America Part Number 9295059...
- Page 2 Manager must approve additional repairs. • All right and left references are based off of standing in front of the unit. Phone: 844-724-2273 Multiplex Fax: 920-683-7592 Page 2 of 13 2100 Future Drive Sellersburg, IN 47172...
- Page 3 • Press green check • Arrow Down • Select the Service Menu • Enter "A" • Press the green check • Select Outputs and activate each valve Phone: 844-724-2273 Multiplex Fax: 920-683-7592 Page 3 of 13 2100 Future Drive Sellersburg, IN 47172...
- Page 4 Wash, rinse, and sanitize the dispensing mounting plate. Doing so makes the replacing of the LMS Valves much easier. Phone: 844-724-2273 Multiplex Fax: 920-683-7592 Page 4 of 13 2100 Future Drive Sellersburg, IN 47172...
- Page 5 12. Wash, rinse and sanitize each of the removed items. Recall the tubing orientation is 1-9 in a counter clockwise manner as shown. Phone: 844-724-2273 Multiplex Fax: 920-683-7592 Page 5 of 13 2100 Future Drive Sellersburg, IN 47172...
- Page 6 VMP00125. If a thick shim needs replaced, only one (1) new thick .056 shim is included, you must reuse one existing shim during replacement. Phone: 844-724-2273 Multiplex Fax: 920-683-7592 Page 6 of 13 2100 Future Drive Sellersburg, IN 47172...
- Page 7 Swing the Hall Effect mounting bracket to the side allowing room for easy removal of the shaver belt. 23. Remove the existing shaver belt. Phone: 844-724-2273 Multiplex Fax: 920-683-7592 Page 7 of 13 2100 Future Drive Sellersburg, IN 47172...
- Page 8 27. Use a soft bristle brush to remove the dust, dirt, and debris from the condenser coil. 28. Use shop vacuum to clean the condensate drain pan. Phone: 844-724-2273 Multiplex Fax: 920-683-7592 Page 8 of 13 2100 Future Drive Sellersburg, IN 47172...
- Page 9 NOTE: To increase the pressure lift the knob at the top of the regulator and turn clockwise. To decrease the pressure lift the knob at the top and turn counter clockwise. Phone: 844-724-2273 Multiplex Fax: 920-683-7592 Page 9 of 13 2100 Future Drive Sellersburg, IN 47172...
- Page 10 • Continue calibrating each flavor, water, Strawberry Mocha and ice. Banana Seasonal Caramel Slushy Mango Pineapple Yogurt Assigned Phone: 844-724-2273 Multiplex Fax: 920-683-7592 Page 10 of 13 2100 Future Drive Sellersburg, IN 47172...
-
Page 11: Maintenance
53. With the manager present make sample drinks of each size. 54. Confirm operation of all functions. 55. Provide the removed parts to the manager. Phone: 844-724-2273 Multiplex Fax: 920-683-7592 Page 11 of 13 2100 Future Drive Sellersburg, IN 47172... - Page 12 57. Maintain a copy of the Tune Up Checklist to be submitted along with the invoice for payment. Submit claim for service work through MultiplexBeverage.com Claims Processing System (CPS) www.multiplexbeverage.com/ Service/Warranty#Claims-Processing-System Phone: 844-724-2273 Multiplex Fax: 920-683-7592 Page 12 of 13 2100 Future Drive Sellersburg, IN 47172...
- Page 13 By signing this you agree that the Preventive Maintenance has been done completely and is satisfactory. Store Manager Signature: Date: Store Manager Printed Name: Time: Phone: 844-724-2273 Multiplex Fax: 920-683-7592 Page 13 of 13 2100 Future Drive Sellersburg, IN 47172...
