Attribute Memory Function

Attribute memory is a space where CompactFlash Storage Card and CF+ Card identification and
configuration information are stored, and is limited to 8 bit wide accesses only at even addresses. The card
configuration registers are also located here. For CompactFlash Storage Cards, the base address of the ard
configuration registers is 200h. For CF+ cards, the base address of the card configuration registers is
determined by the Configuration tuple (CISTPL_CONFIG).
Transcend Information Inc.
6 6
6 6
6 6

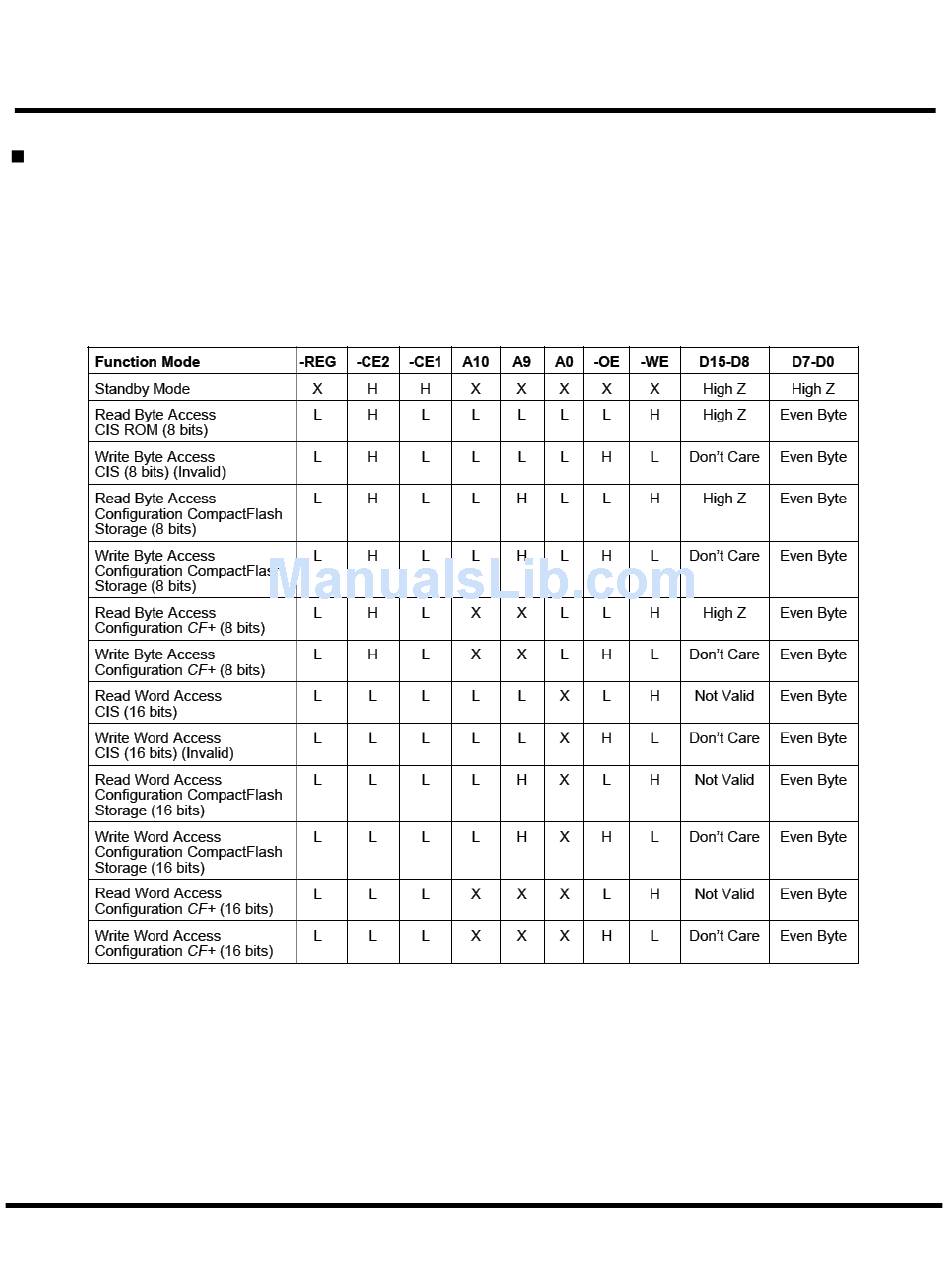

Table 31: Attribute Memory Function
