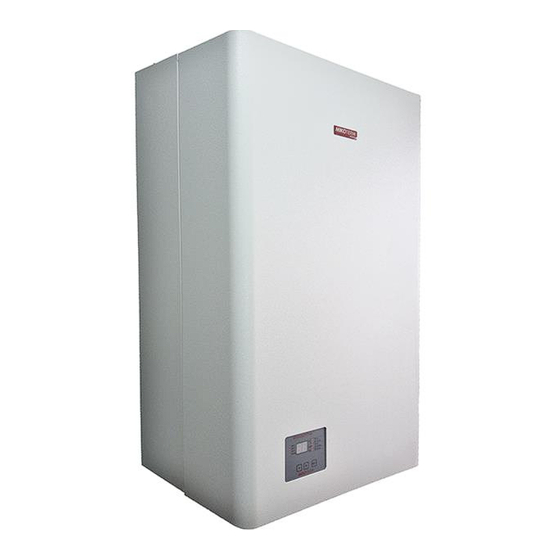

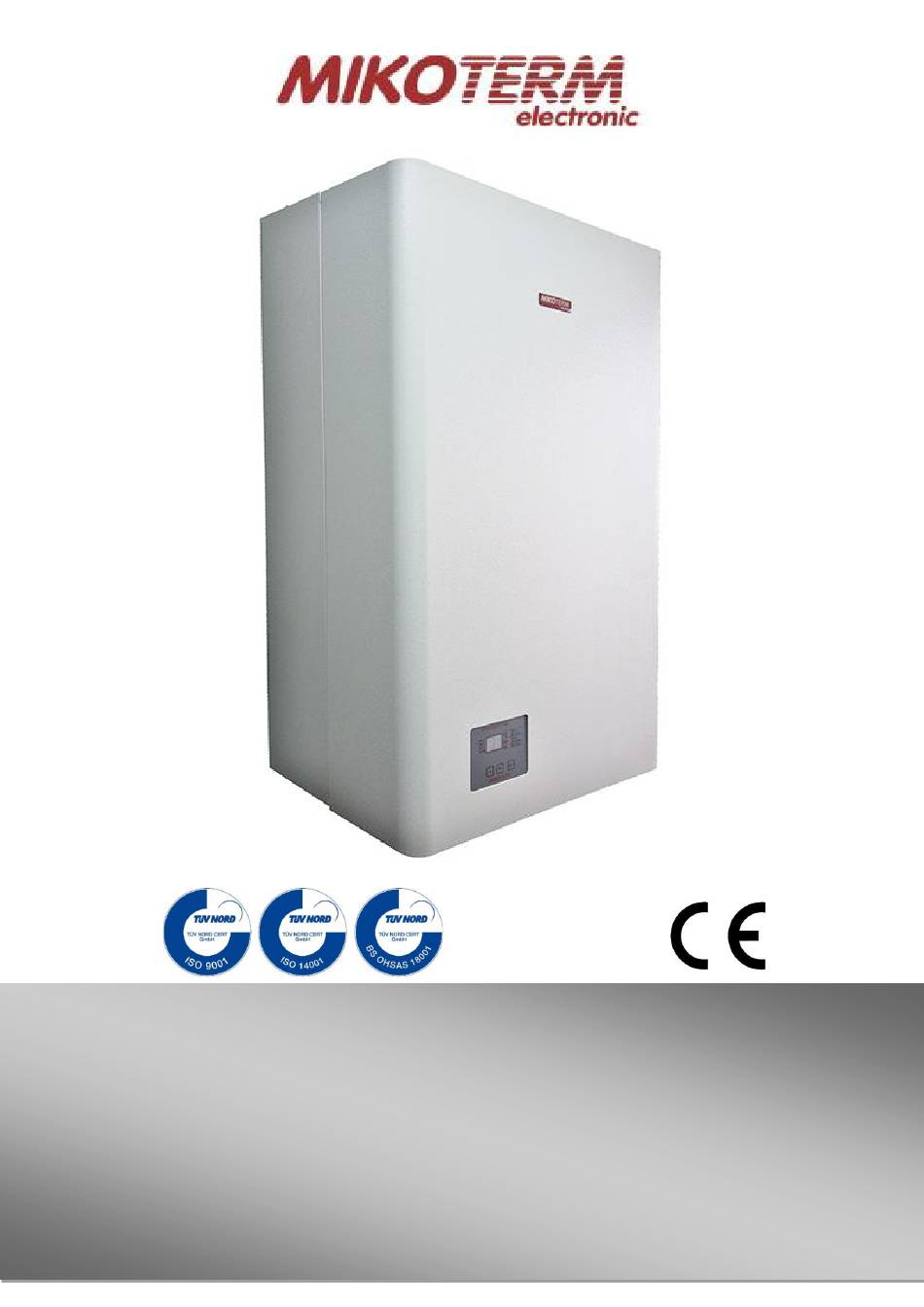

- Page 1 Guidebook for installation, handling and maintenance – ENG eCompact Plus Electric block-boiler for heating systems with thermoregulatory microprocessor FG-eCompactPlus-01/2020...
-
Page 2: Table Of Contents
CONTENT Content 1. Description of symbols and instructions for safe work 8. Cleaning and maintenance 2. Device data Boiler heating Typology Check the working pressure; add the water and air-vent 2.1.1 Statement on compliance installations 2.1.2 Regular application Add the water and vent installation Instructions for mounting Inspection and maintenance log 9. -
Page 3: Description Of Symbols And Instructions For Safe Work
Description of symbols and instructions for safe work Description of symbols and instructions for safe work Description of symbols Instructions for safe work Warnings General safety instructions Non-compliance with safety instructions may cause heavy Warnings in text are marked by gray triangle, injuries –... -
Page 4: Cleaning And Maintenance
Description of symbols and instructions for safe work Life threat of electric power shock Secure electric power connecting is done by authorised service! Comply with connecting scheme Prior to any work: turn off electric power supply. Secure against accidental turn on. ... -
Page 5: Device Data
Device data Device data Inhibitors and anti-frost products These instructions contain important information about safe and professional assembly, commissioning and maintenance It is not allowed to use protective products against frost neither of the boiler. inhibitors. Id it is not possible to avoid anti-frost protection then These instructions are for installers who have knowledge for should use anti-frost products allowed for heating installations. - Page 6 Device data Minimum distances burnable Product description construction materials Basic components of boiler: Boiler body Depending on valid regulations, other minimum distances Device frame and casing could be applied, different than mentioned below. Control unit Comply with regulations of electrical installations and ...
- Page 7 Device data Return boiler’s line Terminal for room thermostat 1 IN Microprocessor plate Start boiler’s line 2 OUT Heater relay (9÷18kW) / contactor (24÷27kW) Boiler’s exchanger Temperature sensor Electric heaters Safety thermostat (STB) Expansion dish Control panel with display Circulating pump Flexible hose of expansion dish Vent valve (on pump) Drainage hose of air vent...
-
Page 8: Waste Disposal
Device data Waste disposal Dispose packaging materials in ecologically sound manner Components that should be changed dispose in ecologically sound manner 2.10 Delivery scope When delivery the boiler stick to the following: Check if packaging is damaged during delivery ... -
Page 9: Dimensions And Technical Data
Device data 2.12 Dimensions and technical data 2.12.1 Dimensions and technical data for boiler Image 2: Dimensions and connection... -
Page 10: Technical Data
Device data 2.12.2 Technical data eCompact eCompact eCompact eCompact eCompact eCompact Unit Plus 6kW Plus 9kW Plus 12kW Plus 18kW Plus 24kW Plus 27kW Power Usability level Number of power grades 3×2 3×3 3×4 3×6 3×8 3×9 Division of power grades V AC 3N ~ 400/230V 50Hz Network voltage... -
Page 11: Transportation
Transportation Transportation NOTE: Transport damages Pay attention on instructions for transportation on packaging Use adequate transportation means, i.e. carts for bags with tighten strip. The product should be in horizontal position during transportation Avoid shocks or collisions Packed boiler put on carts for bags if needed secure it with strip and drive it to its mounting place ... -
Page 12: Distances
Installation Installation of device Distances CAUTION: Human or material damages occurred because of irregular installation! Never install boiler without expansion dish (AG) DANGER: Fire threat due to burnable materials and safety valve and liquids! Boiler must not be installed in protective zone of Do not dispose burnable materials and liquids important area or at the place of bath close to the boiler... - Page 13 Installation Demounting front boiler casing Mounting boiler Boiler casing can be removed for simple handling and installation (image 4) NOTE: Material damage occurred by irregular installation on the wall! Unscrew 3 bolts at top lid It is necessary to use proper material for fixing Unscrew 3 bolts at bottom lid With slow pulling toward you demount front casing of the boiler...
-
Page 14: 4.7.2 Heating Pump Air Emission And De-Blocking
Installation Filling the installations and watertight testing Before system filling, the boiler must be connected on electric installations and turned on (over ON/OFF switcher at bottom side of the boiler), to STAND BY regime to follow up with pressure value in installations on display. -
Page 15: Positions Of Introducer For The Introduction Of The Power Cable
Electric connecting Electric connecting When connecting boiler on electric installation take DANGER: Life threat from electric shock! care on connections scheme and connecting plans. Respect mandatory diameters of cables and fusses Electric works must be done only by power outside the boiler qualified person Turn off voltage supply before opening This device is manufactured for connection to three-... -
Page 16: Connecting Power (Voltage) Cable
Electric connecting Connecting power (voltage) cable Neutral (zero) duct line is connected to corresponding row Commencing should be performed according to the immobilizer (N) which is placed on the right hand side of mounting scheme as given in the image 7 the fuses set with voltage trigger. -
Page 17: Scheme For Connecting Power (Voltage) Cable
– ONLY FOR POWER OF 6kW AND Connect external control of boiler (room thermostat) Image 10: Connecting scheme of digital programmable Image 11: Scheme of room thermostat MIKOTERM EST 113 R5 connecting room thermostat (with battery supply ) WARNING: Use room thermostat with no-voltage contacts... - Page 18 Electric connecting Electric schemes of connection All quoted cross-sections of cables are minimal. Cross-sections that should be placed depend on length of the line and placing mode. Cable cross-sections should be dimensioned according to local regulations Legend Legend LCTR 2 Microprocessor thermoregulator 3P A Three-pole automatic fuse...
- Page 19 Electric connecting Image 12: Boiler electric scheme eCompact Plus with nominal power of 6kW...
- Page 20 Electric connecting Image 13: Boiler electric scheme eCompact Plus with nominal power of 9kW and 12kW...
- Page 21 Electric connecting Image 14: Boiler electric scheme eCompact Plus with nominal power of 18kW, 24kW and 27kW...
-
Page 22: Commissioning
Commissioning Commissioning When complete below described works fill First turn on Commissioning log (chapter 6.3). NOTE: Material damage due to incorrect Before commissioning handling! Instruct client/user how to handle device NOTE: Material damage occurred due to unprofessional operating! Start-up without sufficient quantity of water ... - Page 23 Heating installation handling Heating installation handling Working Instruction Boiler power Steps (kW) 6 kW 2+2+2 Safety Instructions 9 kW 3+3+3 12 kW 4+4+4 Only adults familiar with instructions and working mode 18 kW 6+6+6 may operate the boiler 24 kW 8+8+8 Make sure there are no children in the boiler area...
- Page 24 Heating installation handling Regulation of heating 7.3.2 Boiler given power adjusting Circulating pump and electrical heaters turn on by command of room thermostat Use the ‘‘-’’ or ‘‘+’’ buttons to select the mode for setting the When boiler reaches set temperature of water in the default power - the LED next to the "Sets power"...
- Page 25 Heating installation handling 7.3.3 Warnings about pressure If the pressure in the system decreases to P≤0.6 bar, the boiler Pressure measurements are done by digital sensor integrated in circular pump. If the sensor is stopped or in circuit break, works normally, but diode indicating pressure measurements then all heaters and pump will turn off (delayed for 2 min), and starts to flash slowly (image 18).
- Page 26 Heating installation handling 7.3.4 Low temperature warning If temperature of the system decreases to T≤4 °C, the boiler Present temperature displayed on the screen is possible for continues to work normally, but measuring temperature values T≥-9°C. Temperature below -9°C is not possible to be indicator starts to flash slowly (image 21).
- Page 27 Heating installation handling 7.3.5 Warning with high temperature If temperature of the system increases to T≥85°C, the pump If temperature increases to T≥100 °C, display of its value is not possible to see on the screen so in this will appear code EH works continually (due to taking heating energy through pipe meaning that temperature is T≥100 °C (image 26).
- Page 28 Heating installation handling 7.3.6 Signal and code of warning and mistakes ☼ Pressure - slow flashing - Warning: Pressure near lower limit (0,4bar ≤ P ≤ 0,6bar) or upper limit (2,2bar ≤ P ≤ 2,6bar) of allowed pressure Measure: Bring the system to the necessary pressure value ☼...
- Page 29 Heating installation handling 7.3.7 Room temperature regulator This device is not designed for work without room temperature regulator. Room thermostat must be installed in reference room. Managing temperature of all rooms is done by this remote control. Radiators in reference room should not be equipped by thermo-static valves or these must always be open.
- Page 30 Cleaning and maintenance Cleaning and maintenance Establish a working pressure of at least 1 bar, DANGER! Life threat of electric power shock! depending on the height of the highest point of the Electric power work must be done only by installation.
- Page 31 Cleaning and maintenance Inspection and maintenance The commissioning, inspection and maintenance record serves At least once a year perform maintenance or when a as an attachment for copying check shows the status of installations that require Executed works should be authorised by signature and maintenance date Date:...
- Page 32 Environment protection/Waste disposal Environment protection /Waste disposal One of the basic concepts of business is environment protection. Quality of products, thriftiness and environment protection are equally valuable goals for us. It is critical to strictly comply with law and regulations on environment protection.
- Page 33 Troubles and troubleshooting Troubles and troubleshooting Troubleshooting on regulations and hydraulics must be done by an authorised firm For repairs use only original spare parts TROUBLE DESCRIPTION CAUSE MEASURE Provide power supply Boiler is out of power supply ...
- Page 34 Instruction for projecting Instruction for projecting 11.1 Pump Wilo-Para MSL/6-43/SC 1. Composite OEM pump housing 2. Pump inlet MS ¾ 'SN 3. Pump output terminal composite ¾ '' SN 4. Automatic air vent 5. Safety valve 3bar 6. Pressure sensor 7.
- Page 35 Instruction for projecting Maintenance Faults, causes and remedies Cleaning The troubleshooting must only be carried out by a qualified specialist, and Carefully remove dirt from the pump on a regular basis using a dry work on the electrical connection must only be carried out by a qualified duster.
- Page 36 EU regulation no. 811/2013 12. Product data sheet (in accordance with EU regulation no. 811/2013) Manufacturer MIKOTERM DOO Brand name eCompact Plus Models eCompact Plus 6kW eCompact Plus 9kW eCompact Plus 12kW eCompact Plus 18kW eCompact Plus 24kW eCompact Plus 27kW...
- Page 37 Note...
- Page 38 Mikoterm d.o.o. does not assume responsibility for possible errors in this booklet produced by printing or duplication, all images and schemes are in principle, it is necessary to adapt each to the actual situation on the ground. In any case, Mikoterm reserves the right to make changes that it deems necessary on its products.
