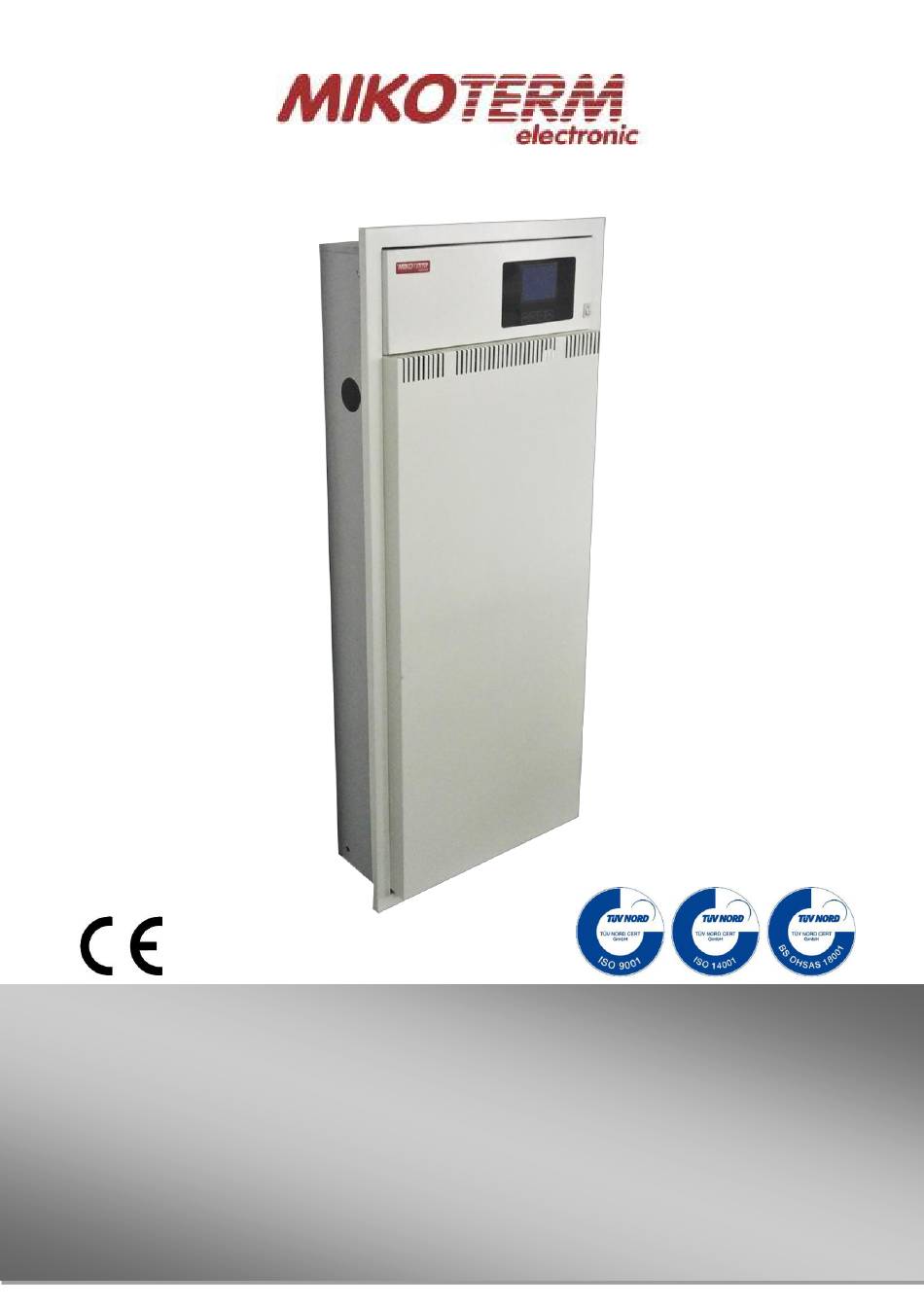

- Page 1 Guidebook for installation, handling and maintenance – ENG eCompact Electric block-boiler for heating systems with thermoregulatory microprocessor - IN WALL FU-eCompact-01/2020...
-
Page 2: Table Of Contents
CONTENT Content 1. Instructions for safe work 1.1 Description of symbols Instructions for safe work Device data 2.1. Typology 2.1.1 Statement on compliances 2.1.2 Regular application Instructions for mounting Instructions for work Inhibitors and anti-frost products Norms, regulations and standards Tools, materials and auxiliary measures 2.7 Minimum distances and burnable construction materials Product description... -
Page 3: Instructions For Safe Work
Instructions for safe work Installation and commissioning 1. Instructions for safe work Placement of device can be done only by authorised service 1.1 Description of symbols Boiler can be turned on only if installation is with corresponding pressure level and working pressure regular. -
Page 4: Device Data
Instructions for safe work / Device data Material damages due to freezing 2.1.2 Regular application When there is damage due to freezing drain water from the The boiler eCompact can be used only for heating the water for boiler, tank and pipelines for heating. Danger of freezing heating system and for indirect use of hot water. -
Page 5: Norms, Regulations And Standards
Device data Norms, regulations and standards 2.8 Product description eCompact type electric boiler modern This product is in compliance with the following regulations: microprocessor controlled block boiler designed EN 50110-1:2003 – Handling and work with electrical centralized heating systems. The device is made using many installations years of experience in the production of electric boilers, using ... -
Page 6: Waste Disposal
Device data 2.12.1 Technical data Waste disposal eCompact eCompact eCompact eCompact Unit 6 kW 9 kW 12 kW 16 kW Dispose packaging materials in ecologically sound manner Power Components that should changed dispose ecologically sound manner Usability level Division of 3×2 6×1,5... -
Page 7: Transportation
Transportation / Installation 3. Transportation Distances NOTE: Transport damages DANGER: Fire threat due to burnable materials Pay attention on instructions for and liquids! transportation on packaging Do not dispose burnable materials and liquids Use adequate transportation means, i.e. carts ... -
Page 8: Boiler Installation
Installation Boiler installation Connecting to the electric network The eCompact type electric boiler is designed for wall The connection of this device to the electrical network must be carried out by a qualified electrician. The devices are mounting(in wall). The wall must be of solid material, with a designed for a 3 x 230 / 400V connection. -
Page 9: Device Functions
Installation the room thermostat control with an extended operation of 4.5.1 Connect the external control of the boiler 2 minutes due to heat transfer from the heater after (room thermostat) switching off. Frost protection mode: In this mode the circulation pump The room thermostat connects to the regular clamps. -
Page 10: Commissioning
Commissioning 5. Commissioning All parameters of the heating system and the unit itself will When complete below described works fill appear on the display Commissioning log (chapter 5.3). Before commissioning NOTE: Material damage occurred due to unprofessional operating! Start-up without sufficient quantity of water destroys device ... -
Page 11: Setting The Boiler Operation
Setting the boiler operation 6. Setting the boiler operation Symbols that may appear on display 1 - Time 2 - Date 3 - Symbol of radiator (temperature of the system) 4 - Current temperature of the system (possible display from 99 to 99 °C) 5 - The set temperature of the system (possible display from 10 to 80 °C) -
Page 12: Setting The Operating Mode
Setting the boiler operation When the temperature in the system is less than 5 C or The desired operating mode is selected by setting the flashing greater than 80 C, the current temperature value flashes, a symbol with the keys and confirming with the OK warning sign (triangle) flashes and the warning code: button, which then proceeds to the next setting item. -
Page 13: Room Thermostat
Setting the boiler operation / Possible problems, causes and measures to be taken 7. Possible problems, causes Room thermostat and measures to be taken If a room thermostat is used, it must be installed in the reference room. The temperature control of all rooms heated by the system is via this remote control. -
Page 14: Pump
Pump 8. Pump Pump Wilo-Para MSL/6-43SC 1. Composite OEM pump housing 2. Pump inlet MS ¾ 'SN 3. Pump output terminal composite ¾ '' SN 4. Automatic air vent 5. Safety valve 3bar 6. Pressure sensor 7. Pump head with electronics 8. - Page 15 Pump Faults, causes and remedies Maintenance Cleaning The troubleshooting must only be carried out by a qualified specialist, and work on the electrical connection must only be carried out by a Carefully remove dirt from the pump on a regular basis using a dry qualified electrician.
-
Page 16: Product Data Sheet
EU regulation no. 811/2013 9. Product data sheet (in accordance with EU regulation no. 811/2013) Manufacturer MIKOTERM DOO Brand name eCompact Models eCompact 6kW eCompact 9kW eCompact 12kW eCompact 16kW Room heating: Seasonal energy-efficiency class Room heating: Nominal heat rated... - Page 17 Notes...
- Page 18 Mikoterm d.o.o. does not assume responsibility for possible errors in this booklet produced by printing or duplication, all images and schemes are in principle, it is necessary to adapt each to the actual situation on the ground. In any case, Mikoterm reserves the right to make changes that it deems necessary on its products.
