1.3 Panel Layout

1.3.1 The Front Panel

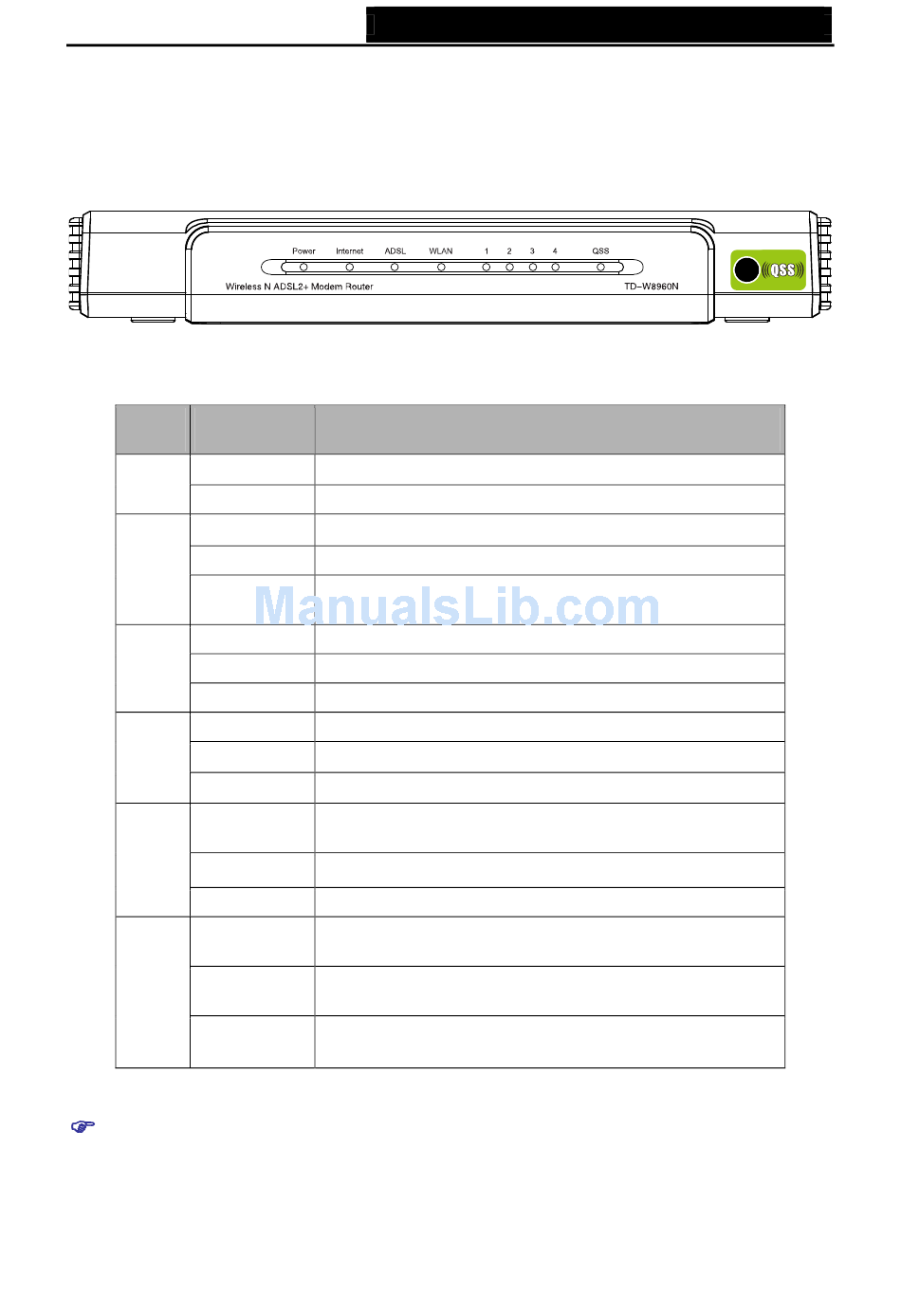

The Router's LEDs are located on the front panel.
The Router's LEDs and the QSS button are located on the front panel (View from left to right).
Name Status
On
Power
Off
On
Flashing
Internet
Off
On
ADSL
Flashing
Off
On
WLAN
Flashing
Off
On
LAN 1-4
Flashing
Off
On
QSS
Flashing
Off
Note:
After a device is successfully added to the network by QSS function, the QSS LED will keep on for
about 2 minutes and then turn off.
TD-W8960N Wireless N ADSL2+ Modem Router User Guide
Figure 1-1
Description
Power is on
Power is off
A successful PPP connection has been built
Data is being transferred over the Internet
There is no successful PPP connection or the Router
works on Bridge mode
The LINE port has connected to ISP's network
The LINE port is connecting to the ISP's network
The LINE port is disconnected
The Wireless function is enabled
Sending or receiving data over wireless network
The Wireless function is disabled
There is a device linked to the corresponding port but there
is no activity
There is an active device linked to the corresponding port
There is no device linked to the corresponding port
A wireless device has been successfully added to the
network by QSS function
A wireless device is connecting to the network by QSS
function
The wireless device failed to be added to the network by
QSS function. Or have no QSＳ connection
