UBBU
Bi-directional Unbalanced to Balanced Converters
UBBU 2 & 4 : 1& 2 Stereo Channel Converters
Full User Manual Can Be Downloaded From:
www.glensound.co.uk/Manuals/Signature/UBBU Manual.pdf
100 - 240 VAC
EXT DC +/-12V
UNBALANCED INPUTS
BALANCED INPUTS
UNBALANCED INPUTS
BALANCED INPUTS
Quick Start Guide
THIS UNIT MUST BE EARTHED

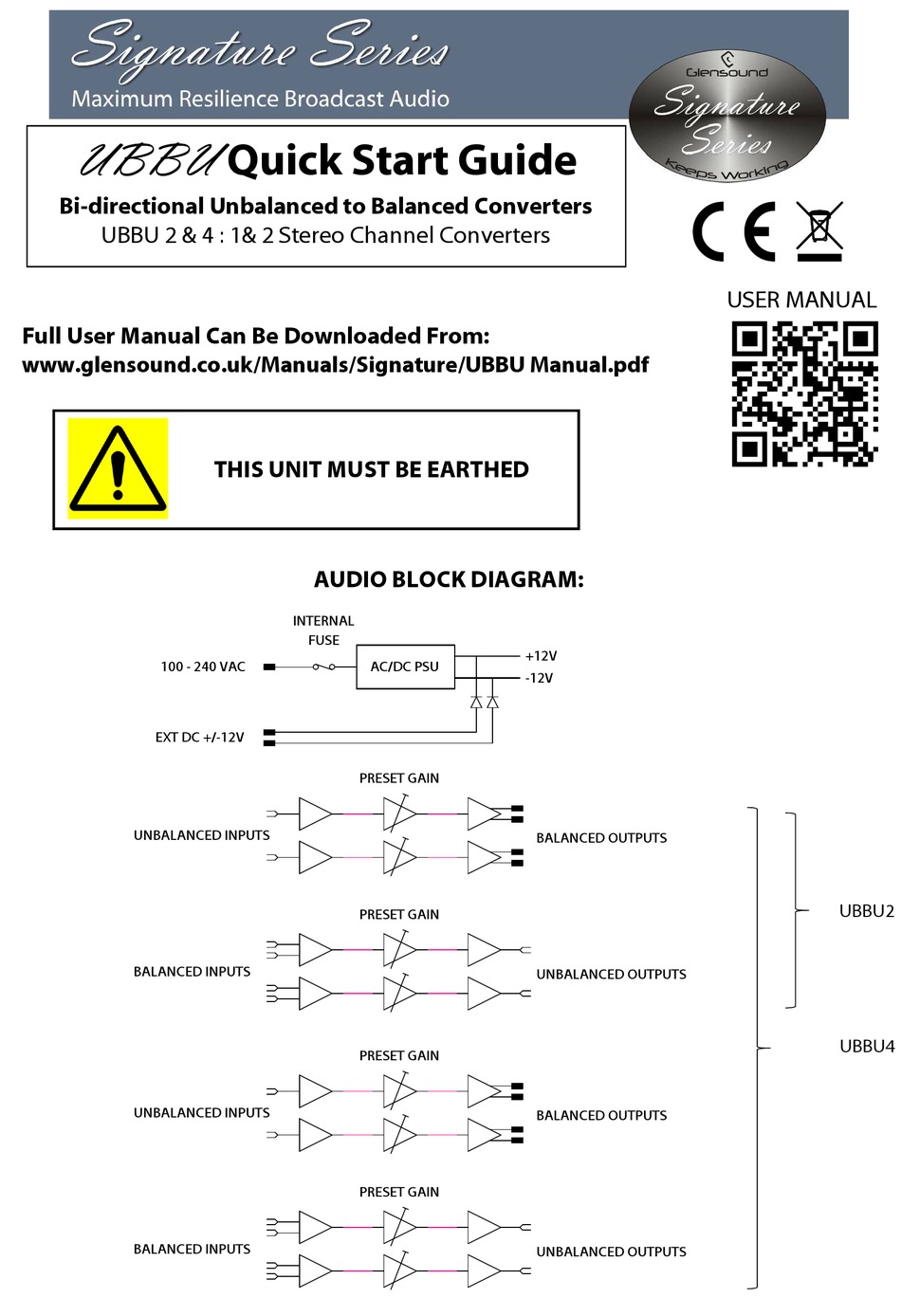

AUDIO BLOCK DIAGRAM:
INTERNAL
FUSE
AC/DC PSU
PRESET GAIN
PRESET GAIN
PRESET GAIN
PRESET GAIN
CEW
+12V
-12V
BALANCED OUTPUTS
UNBALANCED OUTPUTS
BALANCED OUTPUTS
UNBALANCED OUTPUTS
USER MANUAL
UBBU2
UBBU4
Advertisement
Related Manuals for Glensound Signature Series
Summary of Contents for Glensound Signature Series
- Page 1 Quick Start Guide Bi-directional Unbalanced to Balanced Converters UBBU 2 & 4 : 1& 2 Stereo Channel Converters USER MANUAL Full User Manual Can Be Downloaded From: www.glensound.co.uk/Manuals/Signature/UBBU Manual.pdf THIS UNIT MUST BE EARTHED AUDIO BLOCK DIAGRAM: INTERNAL FUSE +12V...
- Page 2 1: Ground/ Earth 2: INPHASE/ POSITIVE/ MIC + 3: MATE/ NEGATIVE/ MIC - XLR PLUG (MALE) RCA PHONO WIRING: CONTACT CONTACT: Signal SLEEVE SLEEVE: Common/ Earth Glensound 6 Brooks Place, Maidstone Kent, UK, ME14 1HE Tel: +44 (0)1622 753662 www.glensound.co.uk...
