HMS-1650
Installation Manual
Version: 03.06.17

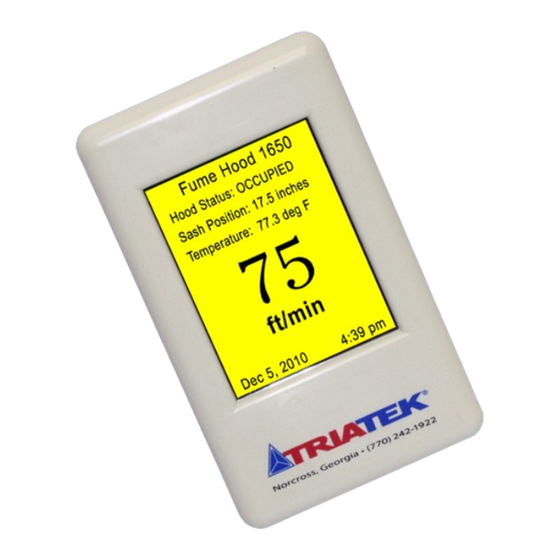

Triatek HMS-1650
Fume Hood Controller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMS-1650 and is the answer not in the manual?

Questions and answers

Related Manuals for TRIATEK HMS-1650

Summary of Contents for TRIATEK HMS-1650

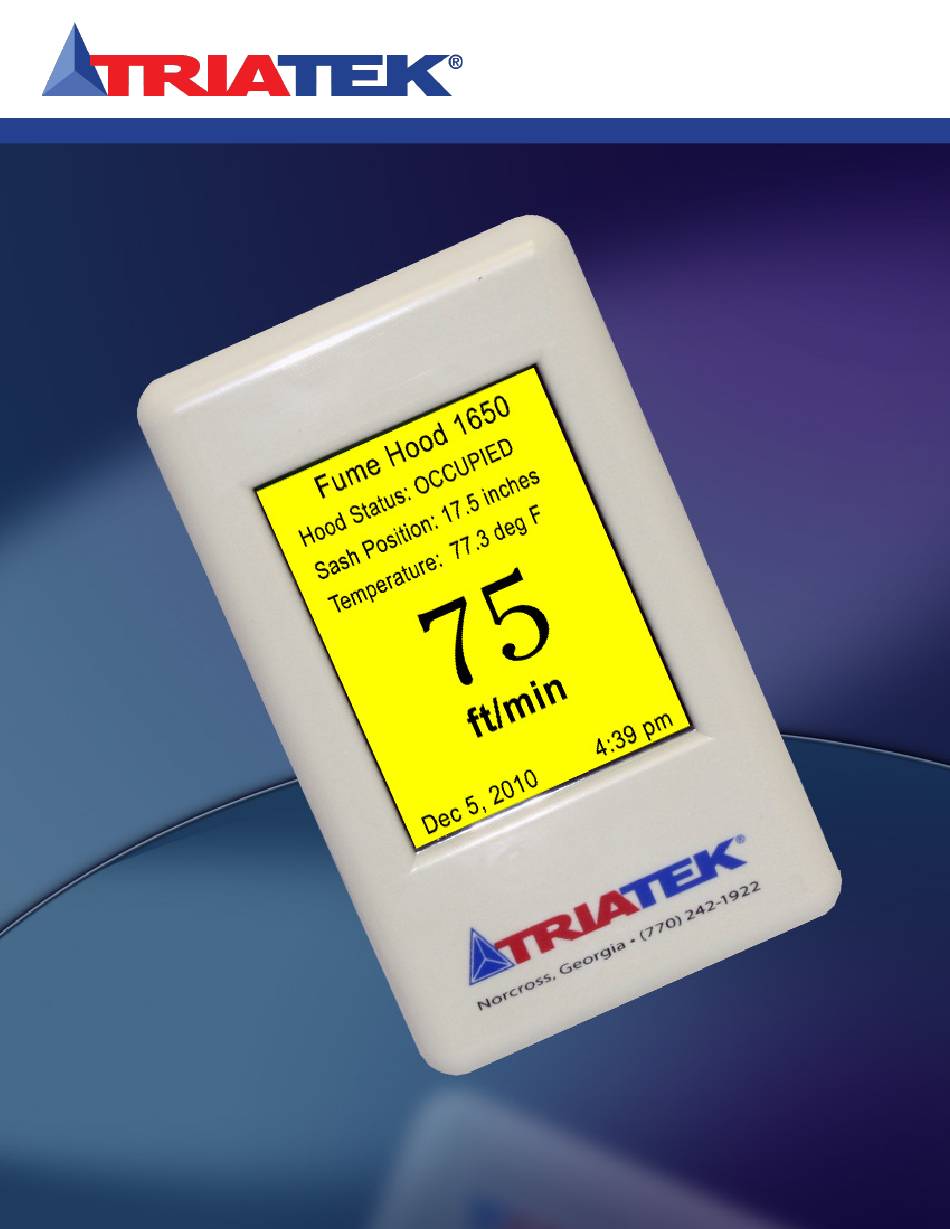

  • Page 1 HMS-1650 Installation Manual Version: 03.06.17 Triatek HMS-1650 Fume Hood Controller...
  • Page 2 HMS-1650 Fume Hood Controller Settings Fume Hood Name / Number Unit Model Number and Serial Number (ESN) This form should be completed during the initial configuration for each fume hood controller. See HMS-1650 Installation Manual for details. Network Setting Address...
  • Page 3 Delay Setting (0 – 60) Alarm Quiet Period Starting Hour (0 – 23) Alarm Quiet Period Ending Hour (0 – 23) Engineering Units Feet per Minute or Meters per Second Triatek reserves the right to change product specifications without notice.
  • Page 4 FAST ACTING ELECTRONIC ACTUATOR CORRECT CORRECT 120/24VAC, 30Va Transformer 120/24VAC, 20Va Third Party Supplied by Triatek Transformer Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 5: Table Of Contents

    Unit Setup Tree …………………………………………………………………………………………………………………………… 44 System Setup Tree ………………………………………………………………………………………………………………………… 45 Display Setup Tree ………………………………………………………………………………………………………………………… 46 Diagnostics Menu Tree …………………………………………………………………………………………………………………… 47 Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 6: Specifications

    Backlight Color ………………………………………………………………………………………………………………………………………… White Luminous Intensity ……………………………………………………………………………………………………………………… min 2500 cd/m2 Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.
  • Page 7 HMS-1650 GENERAL Specifications Mechanical HMS-1650 Display Housing …………………………………………………………………………………………………………… 3”W x 5”H x .75”D HMS-1650 Controller Housing …………………………………………………………………………………………………… 4.1”W x 6”H x 1.85”D Environmental Operating Temperature ………………………………………………………………………………………………………… 32° to 125° F Operating Operating Humidity …………………………………………………………………………………………………… 10% - 95% RH, Non-condensing HMS Air Flow Sensor Type of Sensor ………………………………………………………………………………………………………………...

  • Page 8: Overview

    Alarm Status indications of the monitored fume hood. configuration dipswitches on the controller module. Each analog output Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.
  • Page 9 Manual Override capabilities for both analog outputs and relay outputs, and a comprehensive Real-Time View Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 10: Installation

    Programming Section beginning on page 31. the fume hood. (See page 13) Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.
  • Page 11 HMS-1650 MOUNTING/WIRING HMS Case Dimensions Left Angle Side View Recommended Cable Type: Belden 1325A Right Side View Control Unit Triatek reserves the right to change product specifications without notice.

  • Page 12: Display Mounting Hole Pattern

    MOUNTING/WIRING Display Mounting Hole Pattern The HMS-1650 display backplate may be mounted directly to a standard single-gang wall box using the two slots along the centerline. Use the backplate as a template to mark the mounting holes and the cable access hole at the center of the backplate.

  • Page 13: Controller Mounting Hole Pattern

    HMS-1650 MOUNTING/WIRING Controller Mounting Hole Pattern Triatek reserves the right to change product specifications without notice.
  • Page 14 If unsure as to which type of sensor you have and/or how to properly wire the sensor you received, contact the factory at 888-242-1922. Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 15: Sidewall Sensor Types

    HMS-1650 MOUNTING/WIRING Sidewall Sensor Types SENSIRION Digital Sensor (Standard 9-Pin) Wire According To Illustration Found on Page 17. HONEYWELL Analog Sensor (3-Terminal) Wire According To Illustration Found on Page 18. Triatek reserves the right to change product specifications without notice.

  • Page 16: Sensor Mounting Hold Pattern/Placement

    If the hood is bypassed or in close proximity to items like baffles, deflectors, etc., contact the factory. 6.00" Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 17: Sensirion Digital Sidewall Sensor (9-Pin)

    Flexible Tubing (3 ft. Supplied) FIGURE 2 Alternate Sensor Mounting This port must be referenced to laboratory air for proper +Vin orientation and should be located away from turbulence. To HMS 1650 Triatek reserves the right to change product specifications without notice.

  • Page 18: Honeywell Analog Sidewall Sensor (3 Terminal)

    Control Unit Laboratory air for proper operation, and should be located away from air turbulence Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.
  • Page 19 HMS-1650 MOUNTING/WIRING Notes Triatek reserves the right to change product specifications without notice.

  • Page 20: Analog Output To Pneumatic Actuator

    S1 - 1 = OFF, S1 - 5 = OFF (AI - 1 set as 0-5V Input) Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 21: Analog Output To Electric Actuator

    AI_1, and G should be connected to AGND at the HMS-1650 backplane. Controller Configuration Dipswitch Settings S1 - 1 = OFF, S1 - 5 = OFF (AI - 1 set as 0-5V Input) Triatek reserves the right to change product specifications without notice.

  • Page 22: Analog Input Single Flow Sensor

    S1 - 1 = OFF, S1 - 5 = OFF (AI - 1 set as 0-5V Input) Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Due to continuous improvement, Triatek reserves the right to change product specifications without notice.

  • Page 23: Analog Input Dual Flow Sensors

    S1 - 1 = OFF, S1 - 5 = OFF (AI - 1 set as 0 - 5V Input) S1 - 2 = OFF, S1 - 6 = OFF (AI - 2 set as 0 - 5V Input) Triatek reserves the right to change product specifications without notice.

  • Page 24: Analog Input Sash Position Sensor

    S1 - 2 = OFF, S1 - 6 = ON (AI - 2 set as 0-10V Input) Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Due to continuous improvement, Triatek reserves the right to change product specifications without notice.

  • Page 25: Digital Input Occupancy Sensor

    HMS-1650 MOUNTING/WIRING Digital Input Occupancy Sensor Controller Configuration Slideswitch Settings S5 = Left (Active - Low Digital Input) Triatek reserves the right to change product specifications without notice.

  • Page 26: Power

    HMS-1650 MOUNTING/WIRING Power Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 27: Isolated Power Supply

    20A circuit breaker. This circuit breaker should be mounted in an approved electrical enclosure located separately, but in close proximity to this product. Triatek reserves the right to change product specifications without notice.

  • Page 28: Communications

    Controller Configuration Dipswitch Settings S3 - 7 = ON, S3 - 8 = ON (BACnet MS/TP protocol selected) Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 29: Metasys N2 Open

    (REF) must be connected to the "NETWK REF" terminals at the backplane. Controller Configuration Dipswitch Settings S3 - 7 = ON, S3 - 8 = OFF (Metasys N2 Open protocol selected) Triatek reserves the right to change product specifications without notice.
  • Page 30 HMS-1650 COMMUNICATIONS Notes Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 31: Introduction

    However, while in either Occupied or derivative) control mode, where the control output can be customized Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 32: Configuring Fume Hood Monitor

    18 inches. the Real-Time View option on the Diagnostics menu to monitor the Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 33: Calibrating Sash Position Sensor

    Configuring Sash Height Settings velocity to resume the target setpoint, and then click the Next button to The HMS-1650 monitors sash height for alarming purposes, if this unit advance to the next calibration screen. Move the sash to the full open has been equipped with a sash position sensor (POS-100).

  • Page 34: Changing Network Settings

    Display Setup --> Display Options, and deselecting the status information that should be disabled. For those Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 35: Module Settings

    ON = Enabled Mode Select OFF = FMS-1650 / CMS-1650 ON = HMS-1650 Operational Mode: OFF = Demo Mode ON = Run Mode Pushbutton Switch (SW1): Reset Button Pushbutton Switch (SW2): Reserved Triatek reserves the right to change product specifications without notice.
  • Page 36 ON = 0-10Vdc NOTES: To configure HMS-1650 for sidewall velocity sensor, set dipswitch positions 1 and 5 to OFF. To configure HMS-1650 for sash position sensor at AI-3 (default), set dipswitch position 3 to OFF and dipswitch position 7 to ON.”. For other inputs, see Table 1.
  • Page 37 LEFT = Digital Inputs pulled-high (triggered by active low input - default) RIGHT = Analog Outputs powered locally by HMS1650 (default) RIGHT = Digital Inputs pulled-low (triggered by active high input, up to 24Vdc) Triatek reserves the right to change product specifications without notice.
  • Page 38 AI-1 Low Warning Setpoint (Low Face Velocity Warning Setpoint) Read/Write AV - 21 AI-1 High Warning Setpoint (High Face Velocity Warning Setpoint) Read/Write Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.
  • Page 39 MSO - 5 AI-3 Alarm Status: 1=normal, 2=warning, 3=alarm Read-Only MSO - 6 AI-4 Alarm Status: 1=normal, 2=warning, 3=alarm Read-Only MSO - 7 TI-1 Alarm Status: 1=normal, 2=warning, 3=alarm Read-Only Triatek reserves the right to change product specifications without notice.
  • Page 40 Air Change Rate based on Flow Input at AI-3 Read-Only ADF - 19 Air Change Rate based on Flow Input at AI-4 Read-Only Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.
  • Page 41 ADI - 10 AI-4 Alarm Status: 1=normal, 2=warning, 3=alarm Read-Only ADI - 11 TI-1 Alarm Status: 1=normal, 2=warning, 3=alarm Read-Only ADI - 12 TI-2 Alarm Status: 1=normal, 2=warning, 3=alarm Read-Only Triatek reserves the right to change product specifications without notice.

  • Page 42: Cleaning The Hms-1650 Display

    Date Entry popup to quickly change the current displayed date. Hot-Spot Features of HMS-1650 Touchscreen Display Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.
  • Page 43 HMS-1650 COMPREHENSIVE WIRING DIAGRAM NOTE: Please refer to earlier pages in this manual for proper connection of the Honeywell sidewall sensor. Triatek reserves the right to change product specifications without notice.

  • Page 44: Flow Diagrams

                    Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 45: System Setup Tree

                                  Triatek reserves the right to change product specifications without notice.

  • Page 46: Display Setup Tree

                    Due to continuous improvement, Triatek reserves the right to change product specifications without notice. Triatek reserves the right to change product specifications without notice.

  • Page 47: Diagnostics Menu Tree

                                  Triatek reserves the right to change product specifications without notice.
