Crestron SSW Series Do Manual

DO
SSW Series
Room Availability Hallway Sign, Wall Mount

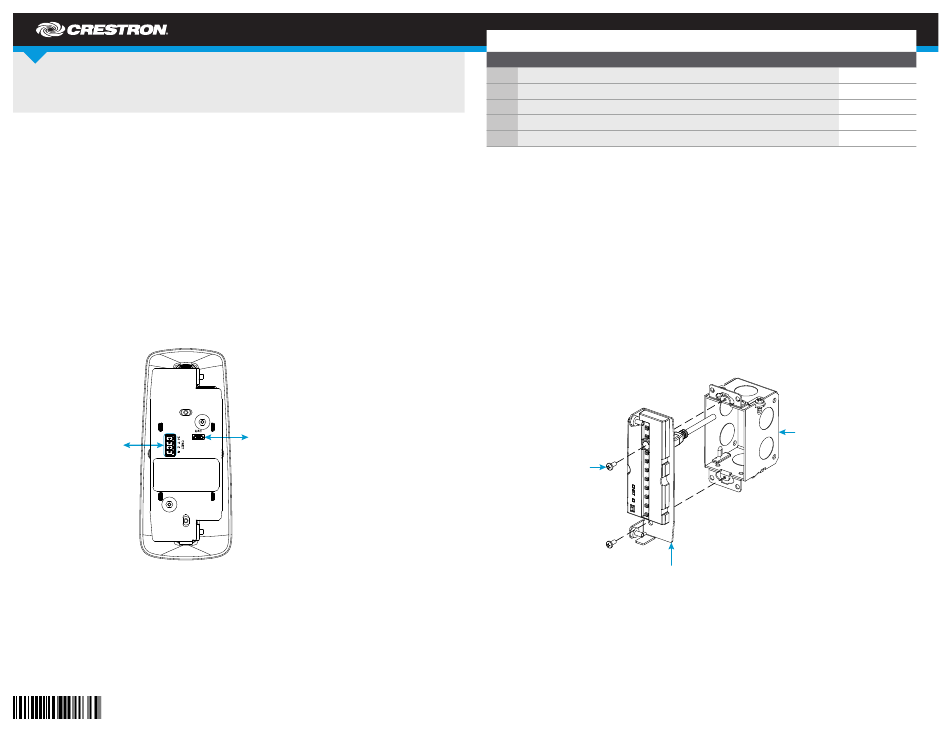

DO Connect the Device
The Crestron ® SSW room availability hallway sign may be powered and controlled by a Crestron
TSS-7, TSS-10, TSW-760 or TSW-1060 touch screen via USB, or by a Crestron control system or
DMPS3 device via a Cresnet network connection. Both connection methods are described below.
®
NOTE: All cable connections must be made prior to installing the SSW.
• USB: Use the included USB cable to connect the SSW to the touch screen. Connect
the cable's USB A connector to the touch screen and the micro USB connector to the
SSW assembly. Out-of-the-box functionality is established via the touch screen room
scheduling application, with no programming required.
The TSS-7 and TSW-760 may use either PoE (Power over Ethernet) or PoE+ to
NOTE:
supply power to the SSW over USB , but the TSS-10 and TSW-1060 must use only PoE+ to
supply power to the SSW.
• Cresnet: Use any standard Cresnet cable and the included 4-pin terminal block to
connect the SSW to a Crestron control system or DMPS3 device. The SSW is powered and
controlled over Cresnet via programming in SIMPL Windows or Crestron Studio
CNET (24 Y Z G):
To Cresnet ®
network device
The CNET ID button on the front of the assembly is used to identify the device on the
NOTE:
network using the Network Device Tree View in Crestron Toolbox™ software. For more information,
refer to the embedded Crestron Toolbox help file.
GUIDE
USB (Micro):
To touch screen
DO Check the Box
QTY
1 Bezel, Wall Sign
1 Cable, USB 2.0, A - micro B, 6 ft (1.83 m)
1 Connector, 4-Pin
2 Screw, 4-40 x 1/2 in, SEMS, Pan Head, Phillips
2 Screw, 6-32 x 5/16 in, Pan Head, Phillips
The brightness of the SSW may be custom programmed as follows:
• If the SSW is connected to a touch screen, brightness is controlled by sending a custom
property to the touch screen in Crestron Fusion
the embedded Crestron Fusion help file.
• If the SSW is connected to a control system, brightness is controlled via custom
programming in SIMPL Windows or Crestron Studio. For more information, refer to the
embedded SIMPL Windows or Crestron Studio help files.
DO Install the Device
The SSW installs over a standard 1-gang U.S. electrical box. Once installed, the touch screen
protrudes 8.43 in (214 mm) from the mounting surface.
To install the SSW:
software.
®
1. Once all cable connections have been made, attach the device assembly to the electrical
box using the two included 6-32 x 5/16 in screws and a Phillips screwdriver.
Screws (2):
6-32 x 5/16 in
NOTE: For retrofit installations, the SSW may be installed over a 1-gang plaster ring using
the same installation method described above.
ITEM
software. For more information, refer to
®
1-gang U.S.
electrical
box
Assembly
PART NUM.
4525866
2038114
2003576
2011592
2007221
