Summary of Contents for Celestron ASTRO FI 22201

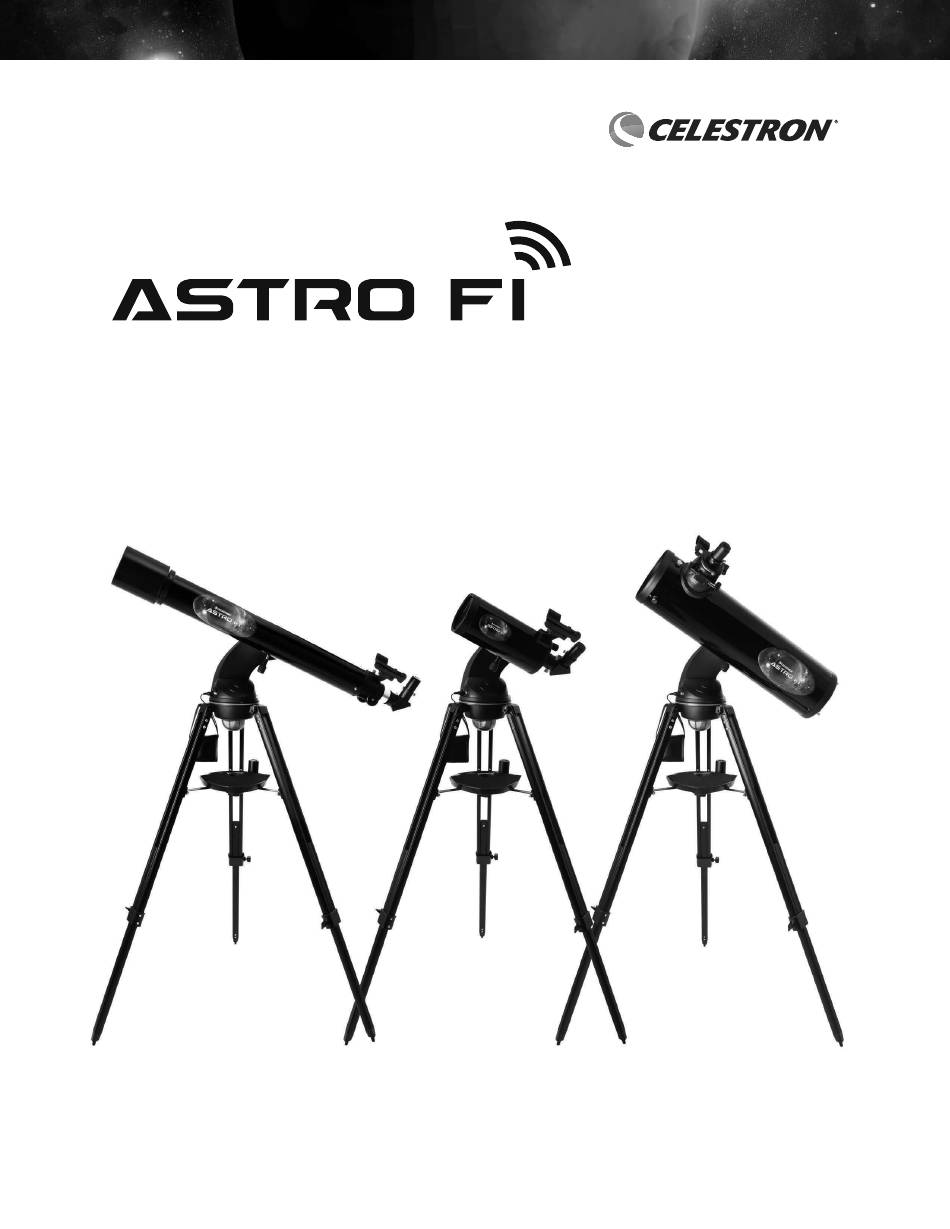

- Page 1 INSTRUCTION MANUAL MODEL # 22201, 22202, 22203 90 mm Refractor 102 mm Maksutov 130 mm Newtonian...
- Page 2 A s t r o F i T E L E S C OP E | ENGLISH...
-
Page 3: What's In The Box
A s t r o F i T E L E S C OP E WHAT’S IN THE BOX We recommend saving your telescope box so it can be used to store the telescope when it is not in use. Unpack the box carefully as some parts are small. -
Page 4: Assembling Your Telescope
6 or later, and Samsung smartphones or tablets with Android 4.0. Visit celestron.com for a complete compatibility list. Before you begin, you’ll need to install the free Celestron SkyPortal app on your device. Download the app from the App Store or Google Play. -
Page 5: The Starpointer Finderscope
A s t r o F i T E L E S C OP E THE EYEPIECES AND STAR DIAGONAL All models of the Astro Fi come with two eyepieces, a low power 25mm and a high power 10mm. The eyepiece you choose determines your magnifi... - Page 6 WiFi-ready status. Make sure the small switch near the power socket is in the RIGHT position as shown in the fi gure. 2. Go to your device’s WiFi settings, and connect to the “Celestron-xx” network. Wait for your device to confi rm that you have successfully connected.
- Page 7 ALIGNING YOUR ASTRO FI To take full advantage of your motorized Astro Fi, you must fi rst align the telescope with the sky using the Celestron SkyPortal app. Once aligned, your telescope will automatically locate any celestial object you select on your screen! The telescope also automatically tracks objects in the sky as the Earth rotates.
- Page 8 A s t r o F i T E L E S C OP E IMAGING WITH YOUR SMARTPHONE Now that you have observed with your telescope, the next step is taking a picture of what you are seeing. Your telescope has a smartphone adapter built right into the lens cap.
-
Page 9: Additional Resources
For assistance with this product, please contact our Technical Support department at (310) 328-9560, or you may contact Celestron Support online by going to our website (www.celestron.com) and clicking on the “Support” tab at the top of the page. Here, you may search through a comprehensive database of frequently asked questions or submit a request for assistance. -
Page 10: Specifications
A s t r o F i T E L E S C OP E SPECIFICATIONS SKU # 22201 22202 Optical Design Refractor Maksutov-Cassegrain Aperture 90 mm (3.5”) 102 mm (4.0”) Focal Length 910 mm 1325 mm Focal Ratio f/10.1 f/13 Optical Coatings Fully-coated... - Page 11 A s t r o F i T E L E S C OP E NOTES ENGLISH |...
- Page 12 A. Celestron warrants your telescope to be free from defects in materials and workmanship for two years. Celestron will repair or replace such product or part thereof which, upon inspection by Celestron, is found to be defective in materials or workmanship. As a condition to the obligation of Celestron to repair or replace such product, the product must be returned to Celestron together with proof-of- purchase satisfactory to Celestron.
