Sub-Zero Built-In Series Quick Start Manual page 2

Built-In Series Overlay Door Panel Retro-Fit Kit - For Over/Under Models
FREEZER DRAWER TRIM REMOVAL PROCEDURE:
1. At the back right-hand side of the top drawer trim, insert a flat blade screwdriver into the notch in the screw
cover and pry the cover away form the top trim, disengaging it from the top trim (See Figure 4).
2. With a T-20, 6-lobe Torx type bit, extract the top trim mounting screws and pull the top trim from the drawer
(See Figure 5).
3. With a T-15, 6-lobe Torx type bit, extract the bottom trim mounting screws and pull the bottom trim from the
drawer (See Figure 6).
DRAWER COMPONENTS INSTALLATION PROCEDURE (See Figure 7):
1. Install the new Freezer Drawer Bottom Trim reusing the screws just removed in step 3 above.
2. Install both Drawer Side Trim Fillers so that they overlap the side trim and hook up with the bottom Trim.
3. Install the existing 600 series drawer panel.
4. Reattach the top drawer trim.
5. Reinstall the screw cover.

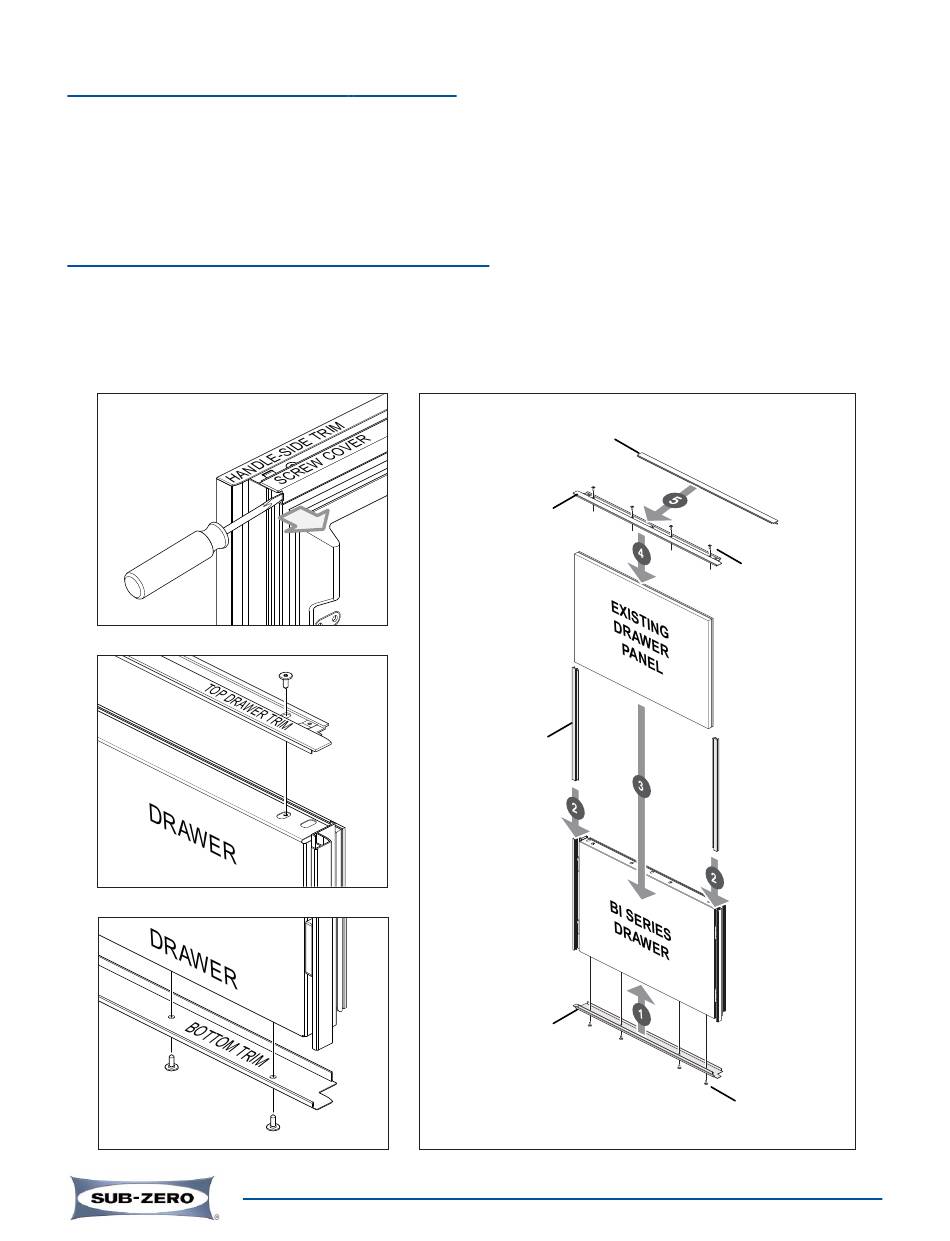

Figure 4. Screw Cover Removal
Figure 5. Top Trim Removal
Figure 6. Bottom Trim Removal
(7003402, 7003403)
SCREW COVER
TOP TRIM
SIDE TRIM
FILLER (2)
BOTTOM
TRIM
Figure 7. Drawer Component Installation
Page 2 of 3
SCREWS
SCREWS
7007804 / Rev A / January, 2008
