Signtex Moonlite LED MLW-RE Series Installation Instructions And Owner's Manual

Moonlite LED
™
Remote Series Operating from Central Battery System Series CBS
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
1
DEEP J-BOX
4" X 4" X 2 1/8"
BY OTHERS
1. See Fig 2., circuit wiring. Trim leads as required and connect color-matched 24VDC
input/output wiring as shown with standard wire nuts. Cap off BLUE wire from power
supply if security lighting not required.

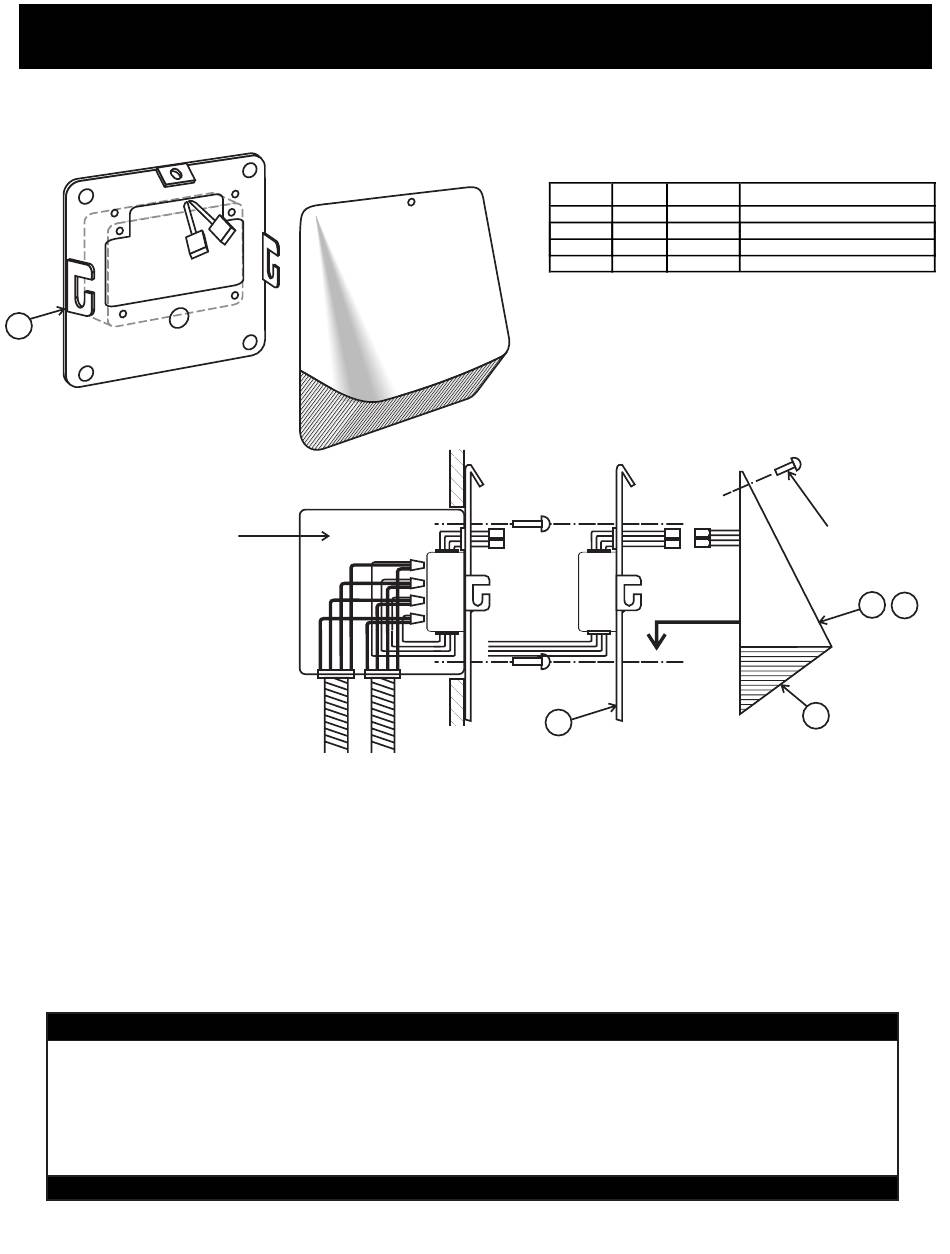

2. Mount Base Plate to J-Box with two #8-32 screws, flush to the wall.
3. Connect polarized lamp plugs and attach housing the Base Plate with side pins and
center locking screw provided.
4. Apply power and check lamp operation.
IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Disconnect AC power before servicing.
2. Refer to wiring diagram for proper connections.
3. All servicing should be performed by qualified personnel.
4. Consult your local building code for approved wiring and
installation.
5. Do not use outdoors.
6. Do not use this equipment for other than intended use.
7. Do not let power cords touch hot surfaces.
8. Mount and secure the fixture at a location and height
to avoid ready access and tampering by unauthorized
persons.
9. The use of accessory equipment is not recommended by
the manufacturer and may cause an unsafe condition.
SAVE THESE INSTRUCTIONS
ITEM QTY P/N
1 1 342001
2 1 342002
3 1 342003
4 1 608100
1
LED Wall Pack
Series MLW-RE
02.17.06
DESCRIPTION
BASE PLATE ASSBY
HOUSING ASSBY 2 LAMP
HOUSING ASSBY 3 LAMP
LENS
HOUSING
LOCK SCREW
2 3
4
