Signtex RAE-REC Series Installation Instructions & User Manual

Rapier accessible exit sign

Advertisement

Quick Links

Rapier Accessible Exit Sign
Remote From Central Battery System Series CBS
Installation Instructions & Users Manual
HORIZONTAL MOUNT SINGLE FACE
STANDARD
12 1/8"
4" x 4" J- BOX
REMOTE
CLASS 2 LOW VOLTAGE WIRING 18-22 AWG
DOUBLE FACE
STANDARD
12 1/8"
4" x 4" J- BOX
REMOTE
CLASS 2 LOW VOLTAGE WIRING 18-22 AWG
ALL MODELS
EMERGENCY POWER RATING (EPR):
SINGLE FACE- 4 WATTS
DOUBLE FACE- 8 WATTS

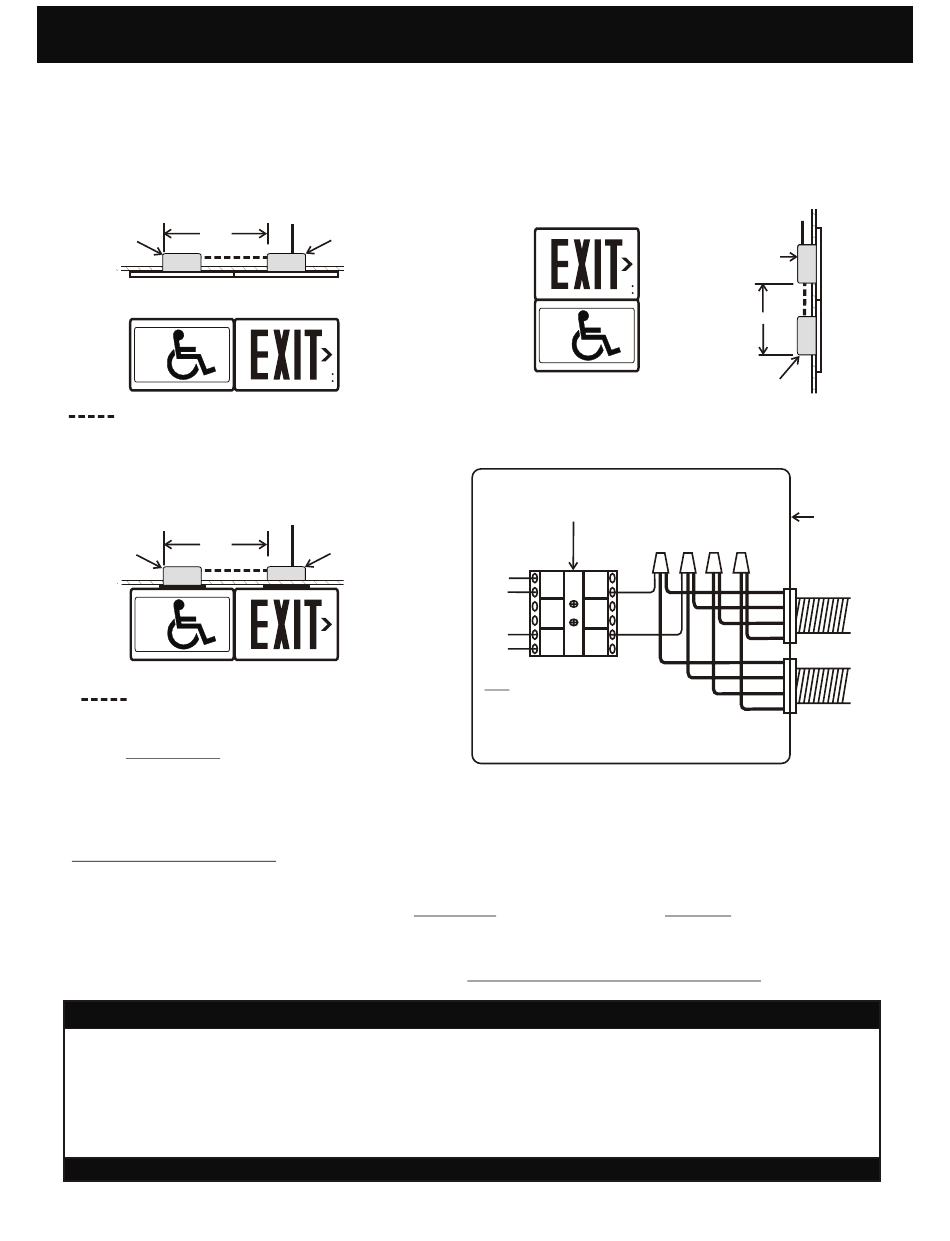

J-BOX INSTALLATION
1.
See Fig 1: Install a 4" x 4" J-box for Master sign and a 4" x 4" J-box for Remote sign. Position J-boxes approx ¼"
below finished panel surface and set in line, 12 1/8" apart for horizontal mount, and 8 ¼" apart for vertical mount.
NOTE- Location of J- boxes must be accurate to position the two signs correctly.
2.
See Fig 2: Attach low voltage input and output wiring to T erminal Block mounted on Master power supply assembly
(some fixtures may be shipped with wiring in place). Maintain color codes and polarities as shown.
IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Disconnect AC power before servicing.
2. Refer to wiring diagram for proper connections.
3. All servicing should be performed by qualified personnel.
4. Consult your local building code for approved wiring and
installation.
5. Do not use outdoors.
6. Do not use this equipment for other than intended use.
24 VDC
INPUT
STANDARD
4" x 4" J- BOX
MASTER
Fig. 1
24 VDC
INPUT
STANDARD
4" x 4" J- BOX
MASTER
SAVE THESE INSTRUCTIONS
VERTICAL MOUNT SINGLE FACE
MASTER SIGN ASSEMBLY
PUSH- WIRE
TERMINAL BLOCK
G
G
W
W
KEY
G- GREEN: COMMON GND: 24 VDC NEG
W- WHITE: EXITS AND CVRE: 12-24 VDC POS
R- RED: EMERGENCY: 24VDC POS
B- BLACK: SECURITY / NIGHT OPS: 24 VDC POS
7. Do not let power cords touch hot surfaces.
8. Mount and secure the fixture at a location and height
to avoid ready access and tampering by unauthorized
persons.
9. The use of accessory equipment is not recommended by
the manufacturer and may cause an unsafe condition.
Series RAE-REC
12.13.00
24 VDC
INPUT
STANDARD
4" x 4" J-BOX
8 1/4"
STANDARD
4" x 4" J-BOX
Fig. 2
J-BOX
G
W
24 VDC
INPUT
R
CIRCUIT
B
G
W
24 VDC
OUTPUT
R
CIRCUIT
B
