Moonlite LED
High Output Emergency Light
™
With Battery Backup
Installation Instructions & Users Manual
Recess Mount

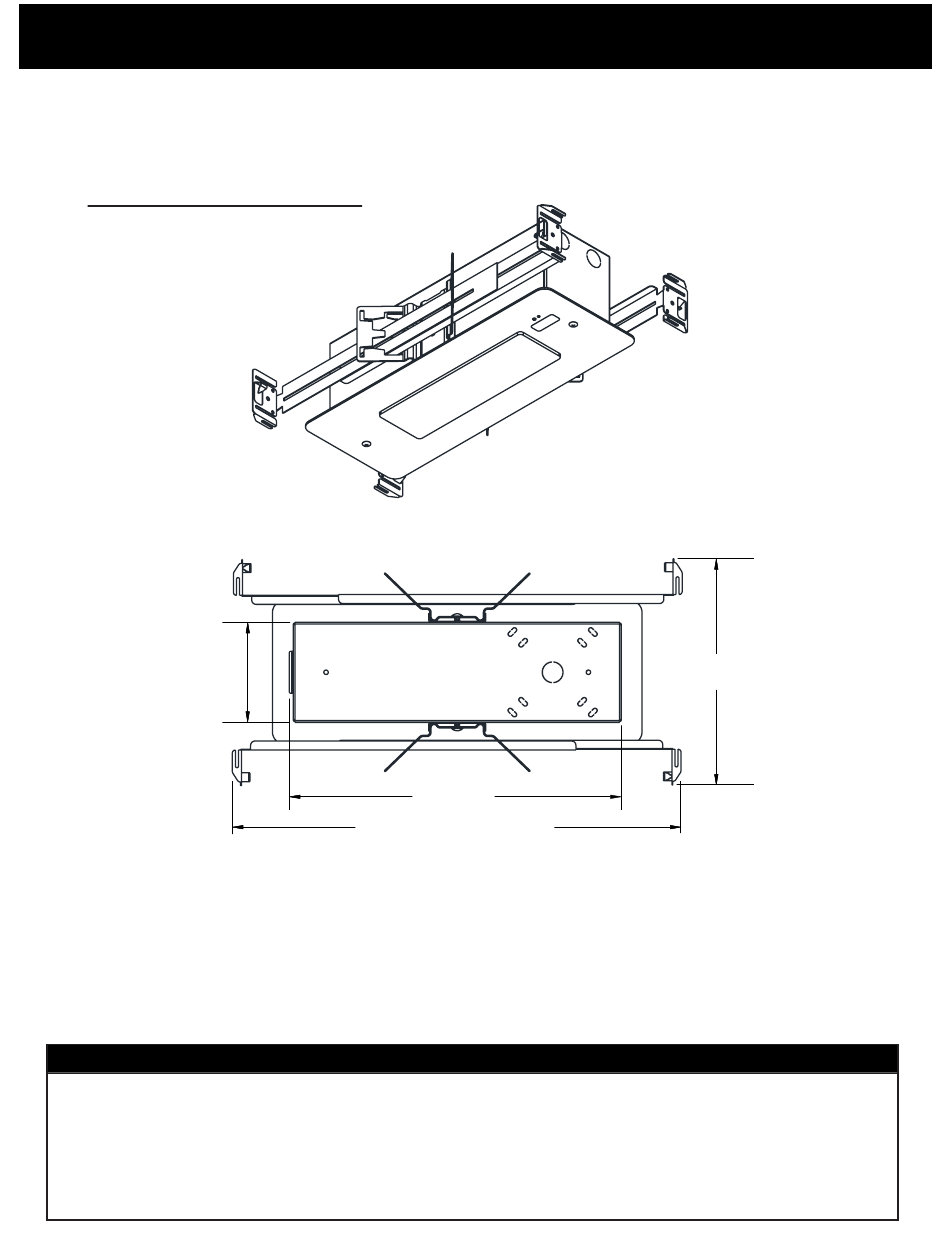

Fig 1
CUTOUT
4 3/16"
MIN
1. See Fig 1. Remove (2) #8 Trim Plate screws to remove Lamp Assembly and set aside. Loosen (2)
#8 Power Assembly nuts on inside of housing, slide out Power Assembly from Back Box and set
aside. Assemble adjustable hangars into wing brackets as shown. NOTE: Back Box can be mounted
with or without battery in place. To reduce weight, do not install battery. To install, see WIRE
CONNECTIONS & FINAL ASSEMBLY Pg ..
IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1
. Disconnect AC power before servicing.
2. Refer to wiring diagram for proper connections.
3. All servicing should be performed by qualified personnel.
4. Consult your local building code for approved wiring and
installation.
5. Do not use outdoors.
6. Do not use this equipment for other than intended use.
13 7/8" MIN
CUTOUT
ADJUSTABLE 14" - 24"
7. Do not let power cords touch hot surfaces.
8. Mount and secure the fixture at a location and height
to avoid ready access and tampering by unauthorized
persons.
9. The use of accessory equipment is not recommended by
the manufacturer and may cause an unsafe condition.
Series MHE-BB
02.19.00
9 1/2"
