  • Page 1 Manual GO-100 GO-100+ GO-200 ® w w w . g o e b e l - g r o u p . c o m...

  • Page 3: Table Of Contents

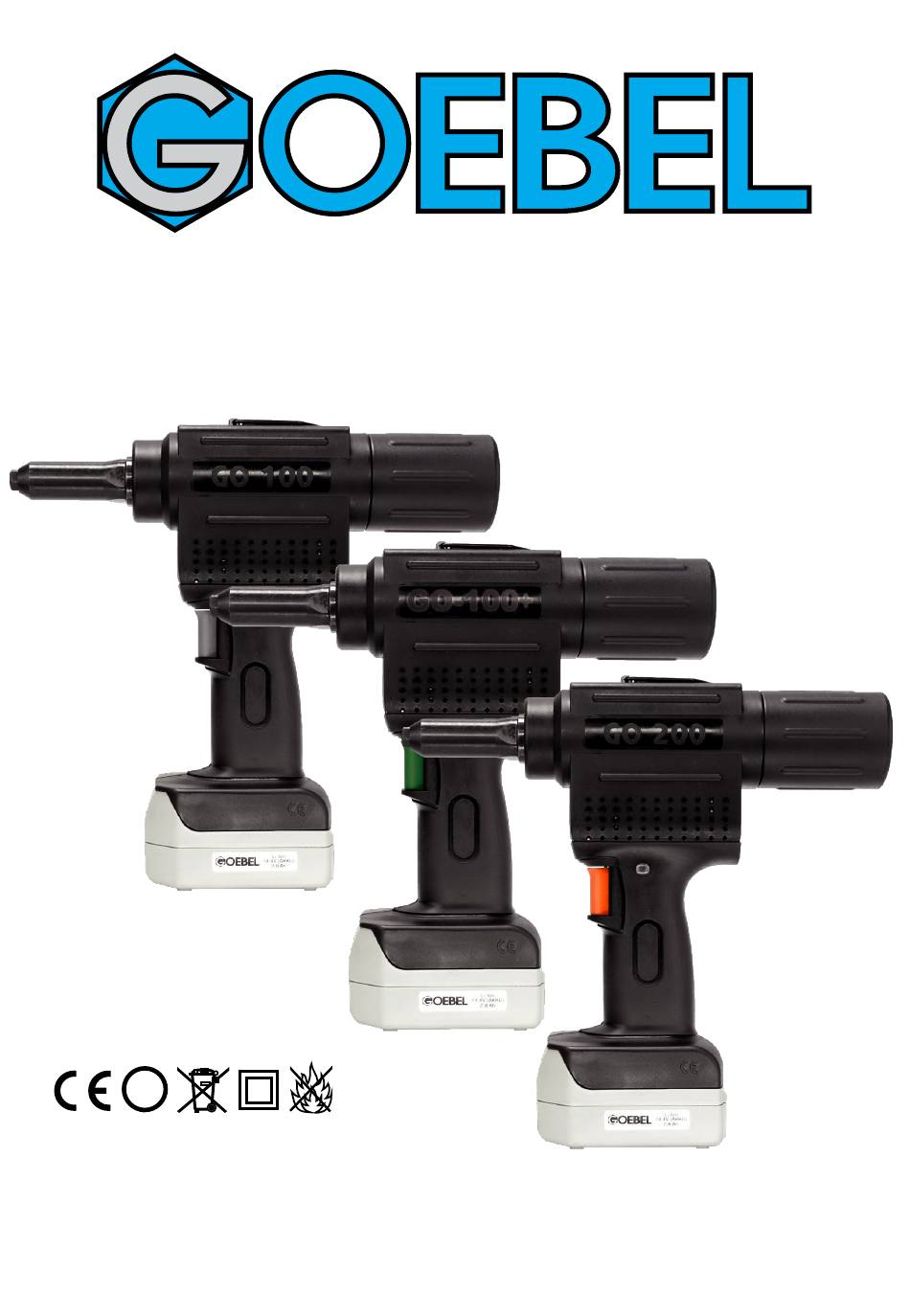

    Manual Goebel GO-100, GO-100+ and GO-200 Battery-powered Riveting Tools 1. Battery-powered Riveting Tool 1.1 Work Capacity 1.2 Equipment and Accessories 1.3 Technical Data 1.4 Parts List 2. Operation Instructions 2.1 Starting instruction 2.2 Operating instruction 2.3 Trouble Shooting 3. Battery and Charger 3.1 Technical Data...

  • Page 4: Battery-Powered Riveting Tools

    1. Battery-powered Riveting Tools Work Capacity Model GO-100 for standard blind rivets all materials dia 3/32“ up to 3/16“ (2.4 mm up to 5.0 mm). Model GO-100+ for Triple Claw Blind Rivets dia 3/16“ up to 9/32“ (5.2 mm up to 7.5 mm) Model GO-200 for high strength blind rivets all materials dia 5/32“...
  • Page 5 Model GO-100+ Refer to GO-100+ fig. A 1. nose pieces 2. front sleeve 3. hook 4. power illustration 5. mandrel collector 6. warning light 7. trigger 8. battery 9-10. accessories Accessories • Nose piece 22 – for riveting dia 3/16“ (5.2 mm) triple claw blind rivets, equipped on tool •...

  • Page 6: Technical Data

    • Wrench – for nose pieces changing • Battery charger set • Battery(s) 14.4V 1,4V 1,4Ah/4-cell or/and 14.4V 2,8Ah/8 -cell Technical Data Model GO-100 Tool weight 4,52 lbs (2,05 kg) (incl. 4-cell battery) Stroke 20 mm (787” )

  • Page 7: Parts List

    Spring Sleeve Set 22660 00047 Flat Cross Head Screws 22660 00064 Power Illustration 22660 00065 Power Illustration Cable 22660 00060 Tool Body Set Goebel GO-100 22660 00042 Mandrel Release Tube 22660 00052 Mandrel Collector 22660 00045 PCB Set 22660 00059...
  • Page 8 Spring Sleeve Set 22660 00047 Flat Cross Head Screws 22660 00064 Power Illustration 22660 00065 Power Illustration Cable 22660 00060 Tool Body Set Goebel GO-100 22660 00042 Mandrel Release Tube 22660 00052 Mandrel Collector 22660 00045 PCB Set 22660 00059...
  • Page 9 (6,4 mm) 22660 00047 Flat Cross Head Screws 22660 00064 Power Illustration 22660 00065 Power Illustration Cable 22660 00061 Tool Body Set Goebel GO-200 22660 00051 Mandrel Release Tube 22660 00052 Mandrel Collector 22660 00046 PCB Set 22660 00062 Gear Box Set...

  • Page 10: Operation Instructions

    2. Operating Instructions 2.1 Starting instructions Install battery on tool, check battery power on power indication: 4 LED lights on, power 95% ±5%; 3 LED lights on, power 75% ±5%; 2 LED lights on, power 50% ±5%; 1 LED light on, power 25% ±5% remaining, charging battery is recommended.

  • Page 11: Trouble Shooting

    2.3 Trouble Shooting 2.3.1 Blind rivet cannot be set Troubles and Causes Remedy When depressing the trigger, 4 LED Charge battery power indication lights blink in rotation, indicating low power Battery damaged Change battery Jaw assembly loose Tighten the assembly (see 4.) 2.3.2 No rest mandrel discharge Troubles and Causes Remedy...

  • Page 12: Battery And Charger

    To have the charger connected to proper power supply, insert the battery onto the charger. The Goebel Li-ion battery is protected against deep discharge by the “Electro- nic Cell Protection, (ECP)”. When the battery is empty, the tool is switched off by means of a protective circuit.

  • Page 13: Battery Safety Instructions

    3.2.2 Safety Instructions - The battery should be removed from the tool when the tool is stored or will not be used for a long period of time. - Never try to charge a damaged battery. - Do not insert a dirty or wet battery into the charger. - Never throw batteries into the waste, into into water.

  • Page 14: Service

    4.2 Service To keep the tool in good working order, it is advised to service the tool and replace the worn parts regularly. Service is available and guaranteed by suppliers/distributors. 5. Operating Safety Instructions It is IMPORTANT to follow the safety instructions for adequate protection against electrical shock, injuries or hazards: - This tool should be used exclusively to apply blind rivets, it cannot...

  • Page 15: Warranty

    6.1 Warranty This riveting tool has a 12 month warranty from the date of sales proved by invoice. Wearable and consumable parts are excluded from this warranty. Damages caused by common wearing, overloading or improper use and handling are excluded from the warranty. The quality faults of this tool will be covered by this warranty, and will be repaired or replaced at no cost.
  • Page 18 GO-100...
  • Page 24 www.goebel-group.com...

This manual is also suitable for:

Go-100+Go-200
