ANLEITUNG / MANUAL

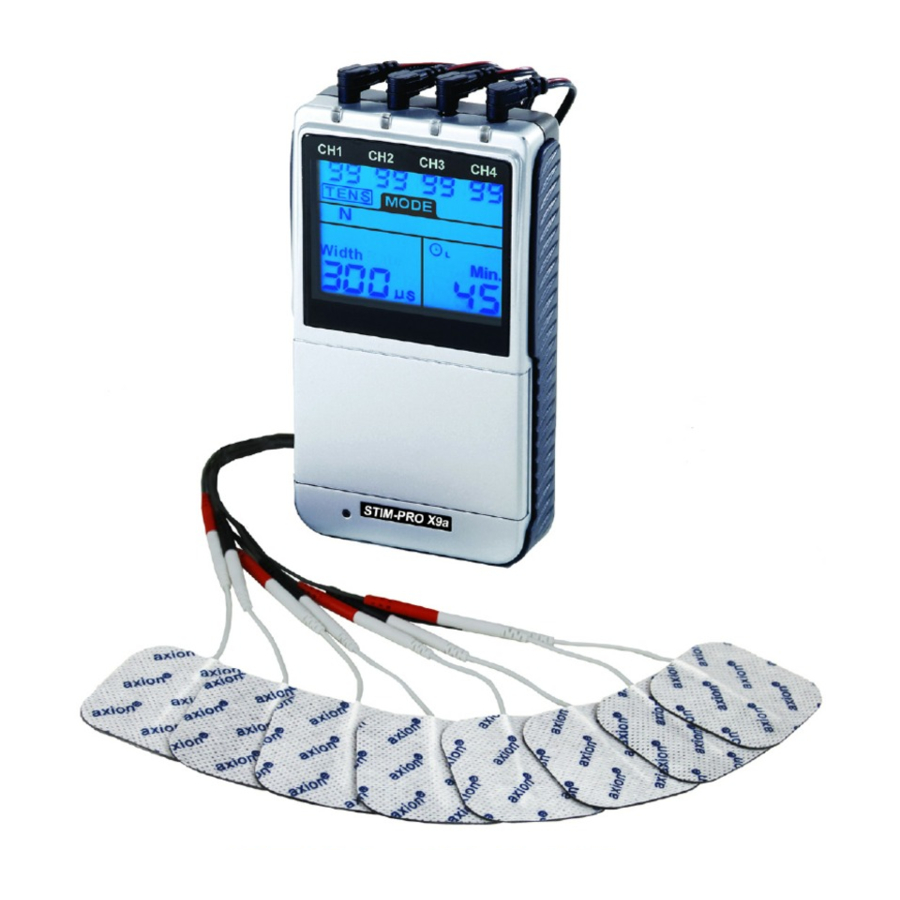

STIM-PRO X9+
axion GmbH
Mollenbachstr. 13
71229 Leonberg
Germany
2460
V 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STIM-PRO X9+ and is the answer not in the manual?

Questions and answers

Summary of Contents for Axion STIM-PRO X9+

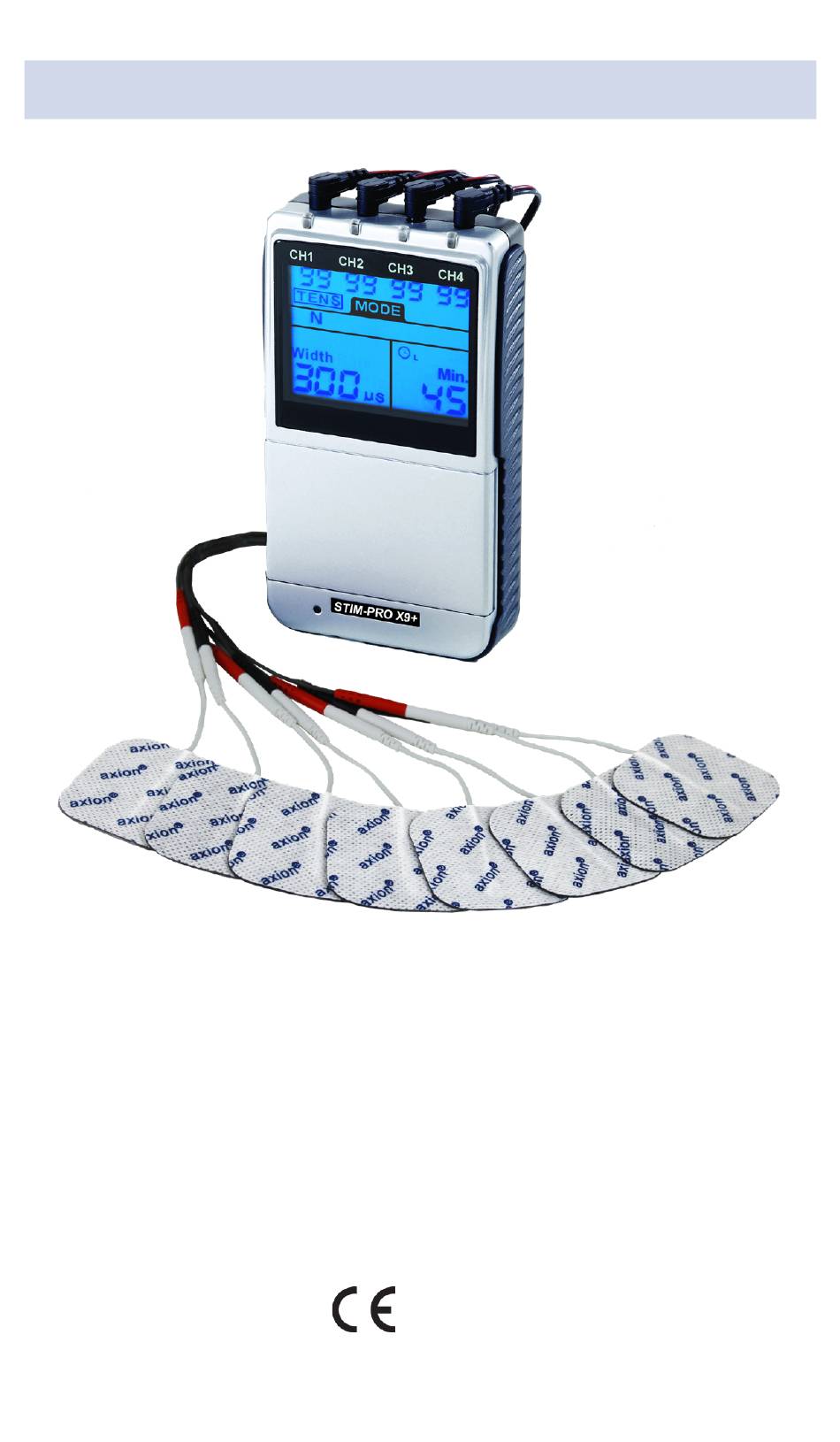

  • Page 1 ANLEITUNG / MANUAL STIM-PRO X9+ axion GmbH Mollenbachstr. 13 71229 Leonberg Germany 2460 V 1.1...
  • Page 3 STIM-PRO X9+ INHALTSVERZEICHNIS / CONTENT 2 – 27 Deutsche Bedienungsanleitung 28 – 53 Instruction Manual in English 54 – 79 Manuel d’utilisation Français 80 – 105 Manual de Instrucciones Español 106 – 131 Istruzioni per l’uso Italiano 132 – 157 Instrukcja Obsługi Polski...
  • Page 4 AXION EINLEITUNG Die primäre Zweckbestimmung des STIM-PRO X9+ im TENS-Betrieb ist die Behandlung / Linderung von Schmer- zen und die Stimulation der Muskulatur im EMS-Betrieb. Was ist Schmerz? Schmerz ist ein Alarmsystem des Organismus, mit dem weiterem Schaden vorgebeugt werden soll. Ohne Schmerz würden abnormale Veränderungen und schwerwiegende...
  • Page 5 STIM-PRO X9+ Schmerzsignal gar nicht erst bis zum Gehirn gelangt, wird der Schmerz auch nicht empfunden. Die zweite Betriebsart von TENS dient zur Stimulation des natürlichen Schmerz- kontrollmechanismus, der dem Körper eigen ist. Dieser “Burst“-Modus (B) mit niedriger Frequenz führt dazu, dass der Körper eigene schmerzstillende Stoffe freisetzt, die Endorphine genannt werden.
  • Page 6: Allgemeine Beschreibung

    AXION ALLGEMEINE BESCHREIBUNG Das Gerät ist ein batteriebetriebener Pulsgenerator, der elek trische Impulse über Elektroden an den Körper gibt und damit die Nerven und Muskeln unter der Haut erreicht. Der Mikroprozessor des STIM-PRO X9+ erzeugt elektrische Impulse, deren Intensität, Impulsdauer, Frequenz bei den ma- nuellen Modi über die jeweiligen Tasten eingestellt werden...
  • Page 7 STIM-PRO X9+ AUSWAHL EINES PROGRAMMS (P) Auswahl P - Modus Im Programm-Modus können Sie zwischen 37 verschie- denen Programmen für verschiedene Einsatzgebiete auswählen. Diese sind vollständig programmiert - stellen Sie einfach die Stromstärke für die angeschlossenen Kanäle ein und beginnen Sie die Behandlung. Das Programm startet sofort bei Einstellung der Intensität! Die meisten Programme laufen im Dauerbetrieb, erkenn- bar an dem “C”...
  • Page 8 AXION Programm – MODUS (P) Alle Parameter sind fest voreingestellt. TENS – STIMULATION Die teils vorgeschlagenen Einsatzgebiete für die einzelnen Programme haben sich in der Praxis als zumeist hilfreich erwiesen. Diese können unter Umständen auch für andere Indikationen eingesetzt werden, da jeder Patient höchst individuell auf die Stimulation ansprechen kann.
  • Page 9 STIM-PRO X9+ TENS – Programme P1 - P16 P 08 Chronische Schmerzen Anwendung z.B. bei Schmerzen im Nacken, Hüfte, Schultern, Ellbogen, Lumbago, Menstrualbeschwerden, Knie-Arthrose P 09 Rheumatische Schmerzen Schmerzen aufgrund rheumatoider Arthritis, ausstrahlen- dem Schmerz an Armen, Beinen, Füßen, durch Modulation auch für längere Anwendung geeignet P 10 Sweep-Modus 2 –...
  • Page 10 AXION EMS – STIMULATION Bitte beachten Sie, dass die folgende Programme aus mehreren Phasen bestehen. Programme 17-28 enthalten zu Beginn eine Aufwärm-Phase von ca. 60 Sekunden. Danach folgt die eigentliche kann. Stimulation, welche aus verschiedenen Phasen bestehen EMS – Programme P 17 - P 30 P 17 EMS –...
  • Page 11 STIM-PRO X9+ P 29 EMS – Relax I Muskelregeneration, Muskellockerung - gemäßigte Intenstität P 30 EMS – Relax II Muskelregeneration, Muskellockerung - gemäßigte Intenstität MASSAGE - Programme P 31 - P 32 P 31 Massage I Besteht aus 3 verschiedenen Massagephasen P 32 Massage II Besteht aus 3 verschiedenen Massagephasen...
  • Page 12 AXION STIMULATION BECKENBODEN- MUSKULATUR Programme P33 - P37 Nur in Verbindung mit einer Vaginal- oder Rektalsonde (nicht im Lieferumfang enthalten). Spürbare, aber noch angenehme Kontraktionen der Becken- bodenmuskulatur. Bitte benutzen Sie die Programme im Wechsel, um einen Gewöhnungseffekt zu vermeiden. Um eine optimale Stimulation zu gewährleisten, empfiehlt sich der...
  • Page 13 STIM-PRO X9+ START DES BECKENBODENTRAININGS 1. Verbindungskabel anschließen Nehmen Sie die Sonde aus der Verpackung und reinigen diese unter fließendem Wasser. Schließen Sie das Verbindungskabel an das Gerät sowie an die Vaginal- / Rektalsonde an. 2. Die Sonde einführen Wenn notwendig, suchen Sie die Toilette vor Beginn der Anwendung auf.
  • Page 14: Bedienung Des Gerätes

    AXION BEDIENUNG DES GERÄTES An/Aus Schalter und Intensität-Tasten Das Gerät kann durch Drücken des An/Aus Schalters ein- und ausgeschaltet werden. Die Stromstärke kann durch Drücken der Intensitätstaste verringert oder erhöht werden. Intensität kann in 100 Stufen linear pro Kanal angepasst werden.
  • Page 15: Gerät Einschalten

    STIM-PRO X9+ Dual - Timer Das Gerät verfügt über einen Timer von 1-60 Minuten und Dauerbetrieb (C). Der Timer kann durch Drücken der Set-Taste angewählt und mit den Tasten oder einge- stellt werden. Die Aktivität wird auto matisch abgeschaltet, wenn die Zeit abgelaufen ist. Anzeige der Zeit (L) für Kanal 1+2 / (R) für Kanal 3+4.
  • Page 16: Timer Einstellen

    AXION 3. Einstellung der Pulsweite (Width) Die Pulsweite kann von 30 bis 400 μs eingestellt werden. Drücken Sie die Taste, um in das Menü zu gelangen. Mit den Tasten können Sie die Parameter erhöhen oder verringern. Sollten zur Stimulation keine Vorga-...
  • Page 17: Modus Auswählen

    STIM-PRO X9+ (L) Timer CH1 & CH2 (R) Timer CH3 & CH4 Dauerbetrieb 6. Einstellung der Intensität Die Intensität kann von 0 – 100 eingestellt werden. Stellen Sie die benötigte Stromstärke durch Drücken der Tasten am jeweiligen Kanal 1-4 ein. Einstellung individueller EMS-Parameter Die Einstellungen können wie folgt vorgenommen werden: 1.
  • Page 18 AXION 3. Einstellung der Rampe (Ramp) Die Rampenzeit steuert die Dauer des An-/Abstiegs der Intensität, welche von 0 bis zum eingestellten Wert ansteigt und wieder auf 0 absinkt. Die Rampen- zeit ist von 1-8 Sekunden einstellbar. 4. Einstellung der Kontraktionszeit...
  • Page 19: Einstellung Der Frequenz

    STIM-PRO X9+ 7. Einstellung der Frequenz (Rate) Die Frequenz ist von 2Hz bis 150 Hz ein- stell bar. Drücken Sie die Taste , um ins Menü zu gelangen. Mit den Tasten können Sie die Frequenz erhöhen oder verringern. Sollten zur Stimulation keine Vorgaben zur Einstellung der Frequenz sei- tens des Therapeuten vorliegen, benutzen Sie bitte den Bereich zwischen 70 und 120 Hz.
  • Page 20: Über Das Gerät

    AXION ÜBER DAS GERÄT Vorderseite...
  • Page 21 STIM-PRO X9+ Rückseite...
  • Page 22 AXION BEHANDLUNGSZEITENSPEICHER Das Gerät verfügt über einen Anwendungszeitenspeicher für 60 Behandlungen bis maximal 999 Stunden. Individuelle Behandlungszeit zeigen/löschen Drücken Sie die “MODE”-Taste und schalten Sie gleichzeitig das Gerät ein. Im Digitaldisplay werden nun die Anzahl der Behandlungen und die Gesamtanwendungszeit darge stellt.
  • Page 23 STIM-PRO X9+ BATTERIEWECHSEL Um die Funktion zu gewährleisten, müssen bei Anzeige des Batteriesymbols die Batterien ersetzt werden. Wenn Sie das Gerät länger nicht benutzen entnehmen Sie bitte die Batterien. Stellen Sie sicher, dass das Gerät ausgeschaltet ist. Öffnen Sie das Batteriefach. Entnehmen Sie die Batterien (Abdeckung nach unten schieben) Neue Batterien einlegen (bitte auf Polarität / Eignung achten)
  • Page 24: Sicherheitstechnische Kontrollen

    AXION WARTUNG, TRANSPORT UND LAGERUNG Die Einheit kann mit einem Alkoholtuch mit 70% Alkohol gereinigt werden. Flecken können mit einem Reinigungs- mittel entfernt werden. Tauchen sie die Einheit nicht in Flüssigkeiten und setzen Sie sie keinen größeren Mengen Wasser aus.
  • Page 25: Kleine Störungen Selbst Beheben

    STIM-PRO X9+ eine sicherheitstechnische Kontrolle und Wartung muss durch autorisiertes Fachpersonal vor Inbetriebnahme und jedem Wiedereinsatz, jedoch spätestens nach 24 Monaten durchgeführt werden, die Bedienungsanleitung muss immer mit dem Gerät mit- geführt werden. Sollten Probleme und Defekte vorhanden ein, nehmen sie Kontakt mit ihrem Fachhändler auf. KLEINE STÖRUNGEN SELBST BEHEBEN Falls das Gerät nicht richtig funktioniert, können mögliche Störungen mithilfe der unterstehenden Hinweise gefun-...
  • Page 26: Technische Beschreibung

    AXION TECHNISCHE BESCHREIBUNG Kanäle 4 Kanäle - in der Intensität separat regelbar Intensität Einstellbar, 0 - 100 mA (in 1mA-Schritten) bei einer Last von minimal 500 Ohm je Kanal Impulsform Asymmetrisch, 2-Phasen-Rechteck-Impuls Spannung 0 - 50 V Stromversorgung 4x 1.5V AA - Batterien Größe...
  • Page 27 STIM-PRO X9+ TENS Im SD1-Modus werden die Intensität und die Pulsweite in einem Bereich von 40 % SD 1 - Modus verändert. Die Intensität nimmt zu, während die Pulsweite verringert wird und umgekehrt. Die Intensität verringert sich innerhalb von 5 Sekunden um 40 %, während die Pulsweite um 40 % erhöht wird.
  • Page 28 AXION TENS/EMS Siehe Abschnitt Programm Modus (P) Seite 6 - 10 Programm-Modus P Patienten- Speicherung von bis zu 60 Anwendungen. Maximale Anzeige bis zu 999 Stunden. erfüllungszähler Batterieanzeige Anzeige Batterie schwach. Bei Anzeige des Symbols Batterien kurz- fristig wechseln Betriebstemperatur Temperatur 0°...
  • Page 29: Garantie

    Geräteeinheit und beinhaltet Ersatzteile und Lohnkosten. Die Garantie umfasst jedoch nicht Schäden, die durch un- sachgemäße Benutzung, Nichtbeachtung der Bedienungs- anleitung, Verlust oder Sturz hervorgerufen worden sind. Hersteller: axion GmbH Mollenbachstr. 13 71229 Leonberg Deutschland www.tens-ems.com Hinweis auf Einstellung / Bedienung Elektrische Schutzklasse Nicht an Stromnetz 230V anschließen...
  • Page 30: What Is Pain

    AXION INTRODUCTION INTRODUCTION The primary functions of the STIM-PRO X9+ are pain relief and pain treatment with the TENS mode and electrical muscle stimulation with the EMS mode. What is pain? Pain is a warning system and the body’s method of telling us that something is wrong.
  • Page 31: What Is Ems

    STIM-PRO X9+ mode of TENS is for the purpose of stimulating the body’s own natural pain control. The “Burst”-mode (B) in a lower frequency may stimulate the organism, so that analgesic substances are set free which are called endorphins. For further details please refer to your doctor.
  • Page 32: General Description

    AXION GENERAL DESCRIPTION The device is a battery-operated pulse generator that trans- mits electrical impulses via electrodes to the body. These impulses reach the nerves and muscles through the skin. The electronics of the STIM-PRO X9+ creates electrical impulses that can be modified in intensity, pulse duration and frequency.
  • Page 33 STIM-PRO X9+ Steps to select a program (P) Select P mode with In program mode you can choose between 37 different programs for various areas of application. These are fully pre-programmed - just set the intensity for the connected channels and start the application! The program starts immediately when you set the intensity! Most programs run in continuous mode, recognizable by a “C”...
  • Page 34: Program Mode (P)

    AXION Program mode (P) All parameters are set by default. TENS – STIMULATION The programs have proven to be helpful in most cases for the suggested applications. However, they might be used for the treatment of other injuries or discomforts as well. Every patient responds individually to stimulation current.
  • Page 35 STIM-PRO X9+ TENS – Programs P1 - P16 Chronic pain Application in case of pains in the neck, hip, shoulders, elbows, rheumatic pains, back pain (lumbago), menstrual problems and knee arthrosis. Rheumatic pain Pains due to rheumatoid arthritis, radiating pain on arms/ legs/feet, through modulation suitable for long-term use.
  • Page 36 AXION EMS – STIMULATION Please note that the respective programs consist of several phases. Programs 17 – 28 contain a warming-up phase of approx. 60 seconds, followed by the stimulation itself which may also consist of various phases. EMS – Programs P17 - P30 EMS –...
  • Page 37 STIM-PRO X9+ EMS – Relax I muscle regeneration, muscle relaxation – moderate intensity EMS – Relax II muscle regeneration, muscle relaxation – moderate intensity MASSAGE - Programs P31 - P32 Massage I consists of three different massaging phases Massage II consists of three different massaging phases What are small and large muscle groups? The muscles can be devided into small and large muscle...
  • Page 38 AXION STIMULATION OF THE PELVIC FLOOR MUSCLES Programs P33 - P37 Application only possible in conjunction with a vaginal or rectal probe (not part of the scope of delivery). Noticeable but pleasant contractions of the pelvic floor musculature. Please alternate the programs in use to prevent habituation effects.
  • Page 39: Performing Pelvic Floor Exercises

    STIM-PRO X9+ PERFORMING PELVIC FLOOR EXERCISES 1. Connecting the wires Unpack the vaginal / rectal probe, clean it under running water and dry it. Connect the wires to the device and attach it to the probe. 2. Inserting the probe Begin by emptying your bladder.
  • Page 40: Operating The Device

    AXION OPERATING THE DEVICE Power On/Off button and intensity control The device can be switched on and off by pressing the On/ Off button. The intensity can be reduced or increased by pressing the intensity buttons. The intensity can be set per channel from 0 to 100mA in steps of 1mA.
  • Page 41: Low Battery Indicator

    STIM-PRO X9+ Dual timer The unit has a timer of 1-60 minutes and Continuous mode. It can be adjusted by pressing the and the controls. The application will end when the time is up. Displaying time (L) for channels 1+2 / (R) for channels 3+4 Low battery indicator If this symbol is shown, the battery is low and the batteries need to be replaced immediately.
  • Page 42: Set Pulse Width

    AXION 3. Set pulse width The pulse width can be set from 30 μs to 400 μs. Press control to enter this setting. Then press the control to change the settings. If no instructions regarding the pulse width are given in therapy, set the control to 70 –...
  • Page 43: Adjusting The Intensity

    STIM-PRO X9+ (L) Timer CH1 & CH2 (R) Timer CH3 & CH4 Continuous 6. Adjusting the intensity The intensity can be adjusted from 0 – 100. Press control to adjust the setting of the respective channels 1-4. How to set personal EMS parameters The settings can be adjusted according to the following steps: 1.
  • Page 44 AXION 3. Set ramp time The ramp time controls the time of output current that increase from 0 to the setting level, and from the setting value back to 0. The ramp time is adjustable from 1 to 8 seconds.
  • Page 45 STIM-PRO X9+ 7. Set Pulse Rate The pulse rate is adjustable from 1Hz to 150Hz. Press control to enter this setting. Then press the control to change the settings. If no instructions regarding the pulse rate are given in therapy, set the control to 70 – 120 Hz. 8.
  • Page 46: Construction Of The Device

    AXION CONSTRUCTION OF THE DEVICE Front...
  • Page 47 STIM-PRO X9+ Back...
  • Page 48: Patient Compliance Meter

    AXION PATIENT COMPLIANCE METER This unit can store 60 sets of operation records. Total treatment time up to 999 hours can be stored. Check & delete individual records Press “Mode” control and turn on the power simultaneously. The LCD will show the number of records and operation time.
  • Page 49: Battery Recharging

    STIM-PRO X9+ BATTERY RECHARGING When the low battery indicator is shown, the batteries need to be replaced. Remove the batteries if the device is not likely to be used for some time. Make sure the power is off. Open the battery compartment (push the cover downwards) Remove the batteries Insert the new batteries.
  • Page 50: Safety Checks

    AXION MAINTENANCE, TRANSPORTATION AND STORAGE OF THE DEVICE Non-flammable cleaning solution (containing 70% of alcohol) is suitable for cleaning the device. Stains and spots can be removed with a cleaning agent. Do not submerge the device in liquids or expose it to large amounts of water.
  • Page 51: Conformity To Safety Standards

    STIM-PRO X9+ The device must be subjected to safety checks and maintenance by authorized technicians before use and each re-use, but at least every 24 months. Please consult your distributor if there are any problems with the device and accessories. The manual must always be carried with the device.
  • Page 52: Technical Description

    AXION TECHNICAL DESCRIPTION Channel 4 channels – with adjustable intensity Intensity Adjustable, 0 – 100 mA (in steps of 1 mA) with 500 ohm load on each channel Pulse amplitude Asymmetrical, Bi-phasic square pulse Output voltage 0 – 50 V Power source 4pcs 1.5V AA-batteries...
  • Page 53 STIM-PRO X9+ TENS The SD1 (Strength-Duration) mode consists of automatic modulation inten- SD 1 mode sity and pulse width in 40% range. The intensity is always increasing while the pulse width is decreasing and vice versa. The intensity is decreased by 40% while the pulse width is increased by 40% in 5 seconds.
  • Page 54: Scope Of Delivery

    AXION TENS/EMS P See section Program mode (P) – pages 32 – 36 program mode Patient compliance This unit can store 60 sets of operation records. The maximum recordable time is meter 999 hours. Low battery A low battery indicator will show up on the LCD when the battery is low.
  • Page 55: Warranty

    The warranty does not apply to damage resulting from improper handling, the failure to follow the operating instructions, loss or dropping. Manufacturer: axion GmbH Mollenbachstr. 13 71229 Leonberg, Germany www.tens-ems.com/en Advice for operation...
  • Page 56 AXION INTRODUCTION La fonction du STIM-PRO X9+ est de traiter/soulager la dou- leur grâce à une opération nommée TENS et de stimuler les muscles grâce à une opération nommée EMS. Qu’est-ce que la douleur ? La douleur est un système d’alarme dans le corps qui a pour but d’éviter des dommages aggravés.
  • Page 57 STIM-PRO X9+ douleur jusqu’au cerveau. Les cellules du cerveau traitent les signaux de la douleur. Si les signaux de la douleur n’at- teignent pas le cerveau, la douleur n’est pas ressentie. Le second mode de fonctionnement de la TENS est utilisé pour stimuler le mécanisme de contrôle naturel de la douleur dans le corps.
  • Page 58: Description Générale

    AXION DESCRIPTION GÉNÉRALE L’appareil est un générateur d’impulsions fonctionnant avec une batterie, qui produit des impulsions électriques via des électrodes vers le corps, atteignant ainsi les nerfs qui trans- mettent l’information liée à la douleur. Le microprocesseur du STIM PRO X9+ génère des impulsions électriques dont l’intensité, la durée d’impulsion, la fréquence peuvent être...
  • Page 59 STIM-PRO X9+ SÉLECTIONNER UN PROGRAMME (P) Sélectionner le mode P En mode programme, vous disposez de 37 programmes dédiés à diverses applications. Tous leurs paramétres sont entièrement pré-programmés. Ajustez l’intensité du canal connecté et commencez le traitement. La plupart des programmes fonctionnent en mode conti- nu, reconnaissable au “C”...
  • Page 60 AXION PROGRAMMES PRÉ-RÉGLÉS : MODE (P) Tous les paramètres sont préréglés. STIMULATION PAR TENS Le domaine d’application proposé pour chaque programme s’est avéré très efficace dans la pratique. Cependant, les programmes peuvent également être utilisés pour d’autres indications, car chaque patient réagit différemment à...
  • Page 61 STIM-PRO X9+ P 08 Conçu pour le traitement des douleurs chroniques Soulage les douleurs de la nuque, des hanches, des épaules, du coude. Soulage également l‘arthrose du genou ainsi que les douleurs liées à la dysménorrhée. P 09 Traitement des rhumatismes Ce traitement par modulation, permet de soulager les douleurs liées à...
  • Page 62 AXION STIMULATION PAR EMS NB : Chacun des programmes est composé de plusieurs phases. Les programmes allant de P17 à P28 sont, au début, dotés d‘une phase d’échauffement d’environ 1 minute. Ensuite, on atteint la phase de stimulation en question, qui est elle-même, composée de plusieurs phases.
  • Page 63 STIM-PRO X9+ P 29 Programme I de relaxation / régénération Régénération et relaxation musculaire - intensité modérée P 30 Programme II de relaxation / régénération Régénération et relaxation musculaire - intensité modérée Programmes Massage : P31à P32 P 31 Massage I Programme doté...
  • Page 64: Contre-Indications

    AXION STIMULATION DES MUSCLES DU PLANCHER PELVIEN Programmes P33 à P37 Programmes à utiliser uniquement en combinaison avec une sonde vaginale ou anale (celles – ci ne sont pas in- clues dans la livraison). Les contractions au niveau des muscles du plancher pelvien sont perceptibles mais restent agréables.
  • Page 65 STIM-PRO X9+ COMMENCER LA RÉÉDUCATION PÉRINÉALE 1. Brancher le câble de connexion Retirez la sonde de son emballage et lavez-la soigneusement à l’eau courante. Branchez le câble de connexion à l’appareil et reliez la sonde vaginale ou la sonde anale au câble de connexion. 2.
  • Page 66: Utiliser L´appareil

    AXION UTILISER L´APPAREIL Touche ON/OFF et touche d’intensité L’appareil peut être allumé et éteint en appuyant sur le bouton power on / off. L’intensité peut être réduite ou aug- mentée en appuyant sur les boutons up/down. L’intensité peut être réglée dans un intervalle linéaire de 1 à 100 pour chaque canal.
  • Page 67: Allumer L'appareil

    STIM-PRO X9+ Double chronomètre L’appareil dispose d’un chronomètre allant de 1 à 60 minutes et d’un mode de fonctionnement en continu (C). Le chronomètre peut être ajusté avec les touches L’activité s’arrête automatiquement quand le temps est écoulé. Affichage du temps (L) pour les canaux 1+2 / (R) pour 3+4. Affichage du niveau de charge des piles Le symbole s’affiche lorsque les piles sont faibles.
  • Page 68 AXION 3. Régler la largeur d’impulsion (Width) La largeur d’impulsion peut être ajustée entre 30 à 400 μs. Appuyez sur la touche pour accéder au menu. Appuyez pour augmenter ou réduire les valeurs. Si votre médecin ne vous a pas donné...
  • Page 69 STIM-PRO X9+ (L) Durée CH1/CH2 (R) Durée CH3/CH4 Continu 6. Régler l’intensité L’intensité peut être réglée entre 0 et 100. Réglez l’intensité souhaitée en appuyant sur les touches correspon- dant à chacun des canaux 1-4. ETAPES POUR RÉGLER UN PROGRAMME EMS INDIVIDUEL Les réglages peuvent être effectués ainsi : 1.
  • Page 70 AXION 3. Régler la durée de rampe (Ramp) La durée de rampe détermine le temps de montée et le temps de descente de l’intensité. Celle-ci monte de 0 à la valeur choisie et redescend de nouveau jusqu’à 0. La durée de rampe est réglable de 1 à...
  • Page 71 STIM-PRO X9+ 7. Régler la fréquence (Rate) La fréquence peut être réglée entre 1 et 150 Hz. Appuyez sur pour accéder au menu. Appuyez sur pour augmenter ou réduire les valeurs de la fréquence. Si votre médecin ne vous a pas recommandé de valeurs pour le réglage de la fréquence, choisissez une valeur comprise entre 70 et 120 Hz.
  • Page 72: Face Avant

    AXION A PROPOS DE L´APPAREIL FACE AVANT...
  • Page 73 STIM-PRO X9+ FACE ARRIÉRE...
  • Page 74 AXION MÉMORISER LA DURÉE DES SÉANCES L’appareil offre la possibilité de mémoriser jusqu’à 60 séan- ces d’une durée maximum de 999 heures. Afficher / supprimer la durée des séances individuelles Appuyez simultanément sur la touche “MODE” et la touche d’allumage de l’appareil. L’écran digital affiche le nombre de traitements et le temps total d’utilisation.
  • Page 75: Changement Des Piles

    STIM-PRO X9+ CHANGEMENT DES PILES Pour assurer un fonctionnement correct, vous devez chan- ger les piles après un certain temps. Retirez les piles si vous n’utilisez pas l’appareil pendant une longue période. Assurez-vous que l’appareil soit éteint. Ouvrez le compartiement à piles (pour cela, faites glisser le couvercle vers le bas) Retirez les piles Insérez de nouvelles piles.
  • Page 76: Contrôles De Sécurité

    AXION ENTRETIEN, TRANSPORT ET RANGEMENT L’appareil peut être nettoyé avec un linge propre et de l’alcool à 70%. Les tâches peuvent être retirées avec un détergent doux. N’immergez pas l’appareil dans un liquide, et ne l’exposez pas à un grand volume d’eau.
  • Page 77: Normes De Sécurité

    STIM-PRO X9+ Le manuel d’utilisation doit être en permanence joint à l’appareil. S’il y avait un problème ou un défaut, contactez le fabricant. RÉSOUDRE LES PROBLÈMES MINEURS VOUS-MÊME Si l’appareil ne fonctionnait pas correctement, les problè- mes possibles peuvent être détectés en suivant les ins- tructions suivantes.
  • Page 78: Description Technique

    AXION DESCRIPTION TECHNIQUE Canaux 4 canaux – leur intensité peut être réglée séparément Intensité Ajustable, 0-100 mA (par intervalle de 1mA) à un minimum de 500 Ω par canaux Forme d‘impulsion Asymétrique, impulsion rectangulaire 2-phase Voltage 0 - 50 V Source d’énergie...
  • Page 79 STIM-PRO X9+ TENS Mode Avec le mode SD1, l’intensité et la largeur d’impulsion sont baissées à 40%. L’intensité SD 1 augmente lorsque la largeur d’impulsion di- minue, et inversement. L’intensité est réduite de 40% en 5 secondes, et la largeur d’intensi- té...
  • Page 80: Contenu De Livraison

    AXION Programmes TENS/ Voir la section programme mode (P) pages 58 - 62. EMS Mode P Mémorisation du Possibilité de mémoriser jusqu’à 60 séances d’une durée maximum de 999 nombre de traitement heures. Une pile est affichée Affichage du faible niveau des piles Température de...
  • Page 81 Cependant, la garantie ne couvre pas les dommages résul- tant d’un usage incorrect, du non-respect des instructions d’utilisation, la perte ou le bris dû à une chute. Fabriquant: axion GmbH Mollenbachstr. 13 71229 Leonberg Allemagne www.tens-ems.com/fr Conseil de fonctionnement Classe de protection électrique...
  • Page 82 AXION INTRODUCCIÓN La finalidad del dispositivo STIM-PRO X9+ se centra en el tratamiento/alivio de dolores a través del modo TENS y la estimulación de la musculación mediante el modo EMS. ¿Qué es dolor? El dolor es un mecanismo de alerta que utiliza el cuerpo para informarnos que algo está...
  • Page 83 STIM-PRO X9+ natural del control del dolor. Este modo utiliza frecuencias bajas para estimular al organismo a que libere unas sus- tancias analgésicas llamadas endorfinas que aliviarán el dolor. Para más información póngase en contacto con su médico o terapeuta. EMS es un método de tratamiento de las lesiones muscu- lares, internacionalmente reconocido y probado.
  • Page 84: Descripción General

    AXION DESCRIPCIÓN GENERAL El dispositivo cuenta con un generador de impulsos a pilas que envía señales eléctricas a través de los electrodos al cuerpo, las cuales alcanzan los nervios y músculos. El micro- procesador del STIM-PRO X9+ genera impulsos eléctricos y su intensidad, duración, y pulsaciones por segundo pueden...
  • Page 85 STIM-PRO X9+ CONFIGURAR UN PROGRAMA (P) Seleccionar modo P El Modo P dispone de 37 programas para diferentes tipos de aplicaciones. Estos están preprogramados, simplemente tendrá que seleccionar la intensidad y comenzar la sesión. El programa empezará, tan pronto como la intensidad suba de cero.
  • Page 86 AXION Programa – Modo (P) Todos los parámetros son fijos. ESTIMULACIÓN TENS Los beneficios en los usos propuestos en estos programas han sido demostrados en la práctica. Estos programas también pueden ser uti- lizados para otros fines, o dependiendo del paciente pueden no tener los resultados previstos.
  • Page 87 STIM-PRO X9+ TENS – Programas P1 - P16 P 08 Dolores crónicos Aplicaciones para dolor en el cuello, cadera, hombros, co- dos, lumbago, osteoartritis de rodilla o dolores menstruales. P 09 Dolores reumáticos El dolor debido a la artritis reumatoide, dolor referido en los brazos, piernas o pies.
  • Page 88 AXION ESTIMULACIÓN EMS Tenga en cuenta que los programas constan de varias fases. Los pro- gramas 17-28 comienzan con un período de calentamiento de unos 60 segundos, seguido por una estimulación real, que también puede constar de diferentes fases. EMS – Programas P17 - P30 P 17 EMS –...
  • Page 89 STIM-PRO X9+ P 29 EMS – Relajación I Regeneración muscular, relajación del músculo - intensidad moderada P 30 EMS – Relajación II Regeneración muscular, relajación del músculo - intensidad moderada MASAJE – Programas P31 - P32 P 31 Masaje I Se compone de 3 fases de masaje diferentes P 32 Masaje II...
  • Page 90 AXION ESTIMULACIÓN DEL SUELO PÉLVICO Programas P33 - P37 Junto con una sonda vaginal o rectal (no incluida). Con este entrenamiento sentirá unas agradables contracciones en los músculos del suelo pélvico. Con el fin de evitar un efecto de habituación se puede variar temporalmente de programa.
  • Page 91 STIM-PRO X9+ USO DEL ENTRENADOR DE SUELO PÉLVICO 1. Conectar el cable de conexión Retire la sonda del embalaje, límpiela con agua corriente y séquela. Conecte el cable de conexión a la sonda. 2. Inserción de la sonda Si es necesario utilice el baño antes. Para una fácil inserción, túmbese y flexione las rodillas.
  • Page 92: Uso Del Dispositivo

    AXION USO DEL DISPOSITIVO Encender/Apagar regulador de intensidad El dispositivo se enciende y apaga mediante el botón ON/ OFF. La intensidad puede ser regulada mediante los boto- nes de ascenso y descenso de cada canal en intervalos de 1 hasta 100. La luz debajo de cada canal indica actividad.
  • Page 93: Indicador De Batería

    STIM-PRO X9+ Temporizador El dispositivo cuenta con un temporizador de 1 a 60 minu- tos y una opción continua (C). Se puede configurar pulsando la SET y las teclas . La unidad se apagará una vez transcurrido el tiempo. El tiempo (L) para el canal 1 + 2 / (R) para el canal 3 + 4. Indicador de batería Indica que la batería esta baja y se debe cambiar las pilas.
  • Page 94: Ajuste Del Tiempo

    AXION 3. Ajuste de la duración del pulso (Width) La duración de la pulsación puede ser configurada desde 30 μs a 400 μs. Pulse para seleccionarla, y con las teclas podrá aumentarla o dismi- nuirla. Si no dispone de un tratamiento con unos parámetros definidos se recomienda...
  • Page 95 STIM-PRO X9+ (L) CH1 y CH2 (R) CH2 y CH3 Tiempo continuo 6. Ajuste de la intensidad La intensidad puede seleccionarse en un rango de 0 – 100. Establezca la intensidad deseada a través de los botones en cada canal. Configuración de parámetros individuales EMS La configuración se puede realizar de la siguiente manera:...
  • Page 96 AXION 3. Tiempo de Rampa (Ramp) El tiempo de rampa controla el tiempo de subida y bajada de la intensidad. Se pasará de 0 a el valor de ajuste, y enton- ces volverá de nuevo a 0. El tiempo de rampa se puede ajustar entre 1-8 seg.
  • Page 97 STIM-PRO X9+ 7. Ajuste de la frecuencia (Rate) La frecuencia puede ser configurada entre 1Hz a 150 Hz. Pulse para seleccionarla y con las teclas podrá aumentarla o disminuirla. Si no dispone de un trata- miento con unos parámetros definidos se recomienda entre 70-120 Hz.
  • Page 98: Parte Delantera

    AXION DISPOSITIVO Parte delantera...
  • Page 99: Parte Trasera

    STIM-PRO X9+ Parte trasera...
  • Page 100 AXION MEMORIA DE SESIONES El dispositivo ofrece la posibilidad de grabar hasta 60 sesio- nes con una duración máxima de 999 horas. Ver y borrar el tiempo de tratamiento individual Presione el botón MODE y encienda el dispositivo al mismo tiempo.
  • Page 101: Cambio De Las Pilas

    STIM-PRO X9+ CAMBIO DE LAS PILAS Con el fin de garantizar un óptimo funcionamiento, las baterías deben ser reemplazadas tras un cierto periodo de tiempo. Retirar las pilas en caso de no utilizarse por un periodo de tiempo continuado. Compruebe que el dispositivo se encuentra apagado. Abra la cubierta del compartimento de las pilas.
  • Page 102: Controles De Seguridad

    AXION MANTENIMIENTO, TRANSPORTE Y CONSERVACIÓN El dispositivo puede ser limpiado con un paño en alcohol. Las manchas se pueden eliminar con un producto de limpieza. No sumergir la unidad o exponerla al contacto con agua. Conserve la almohadilla protectora en el maletín para ga- rantizar un transporte seguro.
  • Page 103: Normas De Seguridad

    STIM-PRO X9+ El manual de instrucciones debe siempre llevarse con el dispositivo. En caso de existir problemas o defectos, póngase en con- tacto con su distribuidor. SOLUCIÓN DE PEQUEÑAS AVERÍAS Si el dispositivo no funciona correctamente, puede deberse a causas que pueden ser identificadas con la ayuda de las indicaciones dadas a continuación.
  • Page 104: Especificaciones Técnicas

    AXION ESPECIFICACIONES TÉCNICAS Canales 4 canales – con intensidad independientemente regulable Intensidad Ajustable de 0-100 mA en intervalos de 1mA. con una carga de al menos 500 Ω por canal Onda Bifásica asimétrica Voltaje 0 - 50 V Fuente de 4 pilas 1.5V AA...
  • Page 105 STIM-PRO X9+ TENS En el modo SD1 variaran la intensidad y el ancho del pulso un 40%. La intensidad Modo SD1 aumenta a medida que el ancho del pulso se reduce y viceversa. La intensidad disminuye en de 5 segundos en un 40%, mientras que el ancho del pulso se incrementa un 40%.
  • Page 106 AXION Programas Ver sección Modo Programa (P) Páginas: 84-88 TENS EMS Modo P Registro de Grabación de hasta 60 sesiones, con una duración máxima de 999 horas. sesiones Indicador de batería Muestra batería baja. Cuando aparezca deberán cambiarse las pilas.
  • Page 107 La garantía no es aplicable a aquellos daños causados por un uso indebido, por no seguir las reglas descritas en este manual o por caídas o por golpes bruscos. Fabricante: axion GmbH Mollenbachstr. 13 71229 Leonberg Alemania www.tens-ems.com/es Nota sobre la configuración...
  • Page 108 AXION INTRODUZIONE Lo scopo primario specifico del dispositivo STIM-PRO X9+ in modalità TENS è quello di trattare/lenire i dolori e stimolare la muscolatura in modalità EMS. Cos’è il dolore? Il dolore è un sistema di difesa con cui l’organismo cerca di prevenire i danni.
  • Page 109 STIM-PRO X9+ gio di dolore non arriva al cervello, il dolore non viene percepito. La seconda modalità di funzionamento della TENS serve alla stimolazione del naturale meccanis- mo di controllo del dolore, proprio del corpo. La modalità “Burst” [impulso] (B) a bassa frequenza è in grado di stimo- lare l’organismo a rilasciare sostanze con proprietà...
  • Page 110: Descrizione Generale

    AXION DESCRIZIONE GENERALE Il dispositivo è un generatore di impulsi a batteria che, tramite elettrodi, invia impulsi elettrici al corpo. Tali impulsi giungono fino ai nervi, che veicolano il messaggio di dolore. Il microprocessore dello STIM-PRO X9+ genera impulsi elettrici le cui intensità, durata impulso e frequenza possono essere...
  • Page 111 STIM-PRO X9+ SELEZIONE DI UN PROGRAMMA (P) Selezionare modalità P Nella modalità programma è possibile scegliere tra 37 diversi programmi per diversi campi di applicazione. Questi programmi sono completamente programmati – è sufficiente impostare l’intensità di corrente per i canali collegati e iniziare il trattamento.
  • Page 112 AXION PROGRAMMA – MODALITÀ (P) Tutti i parametri sono preimpostati e non possono essere modificati. STIMOLAZIONE TENS I campi di applicazione di volta in volta suggeriti per i singoli program- mi hanno dimostrato, nella pratica, di essere per lo più utili. In deter- minate circostanze, questi possono essere utilizzati anche per altre indicazioni, poiché...
  • Page 113 STIM-PRO X9+ Programmi TENS P1 - P16 P 08 Dolori cronici Utilizzo per es. in caso di dolore a collo, anche, spalle, gomiti, lumbago, dolori mestruali, artrosi alle ginocchia P 09 Dolori reumatici Dolori causati da artrite reumatoide, dolore diffuso a braccia, gambe, piedi, adatto anche a un utilizzo prolungato grazie alla modulazione P 10...
  • Page 114 AXION STIMOLAZIONE EMS Si prega di notare che ogni programma è composto da più fasi. I pro- grammi dal 17 al 28 includono all’inizio una fase di riscaldamento di ca. 60 secondi, poi segue la stimolazione vera e propria, composta da diverse fasi.
  • Page 115 STIM-PRO X9+ P 29 EMS – Relax I Rigenerazione muscolare, scioglimento muscolare – intensità moderata P 30 EMS – Relax II Rigenerazione muscolare, scioglimento muscolare – intensità moderata MASSAGE - Programmi P31 - P32 P 31 Massage I Costituito da 3 diverse fasi di massaggio P 32 Massage II Costituito da 3 diverse fasi di massaggio...
  • Page 116 AXION STIMOLAZIONE DELLA MUSCOLA- TURA DEL PAVIMENTO PELVICO Programmi P33 - P37 Solo in combinazione con una sonda vaginale o rettale (non inclusa nella fornitura). Contrazioni percettibili ma non fastidiose della muscolatura del pavimento pelvico. Vi suggeriamo di alternare i programmi per evitare l’effetto assuefazione.
  • Page 117 STIM-PRO X9+ INIZIO DELL’ALLENAMENTO DEL PAVIMENTO PELVICO 1. Collegare il cavo di collegamento Prendere la sonda dalla confezione e pulirla sotto l’acqua corrente. Collegare il cavo di collegamento al dispositivo e alla sonda vaginale / rettale. 2. Inserire la sonda Se necessario, prima di avviare il dispositivo, cercare i servizi igienici.
  • Page 118: Funzionamento Del Dispositivo

    AXION FUNZIONAMENTO DEL DISPOSITIVO Interruttore on/off e tasti intensità Per accendere e spegnere il dispositivo premere on/off. Per aumentare o diminuire l’intensità di corrente premere il relativo tasto. È possibile adattare l’intensità in modo graduale in 100 livelli per canale.
  • Page 119: Indicatore Della Batteria

    STIM-PRO X9+ Timer doppio Il dispositivo dispone di un timer da 1 a 60 minuti e per il funzionamento in continuo (C). Il timer può essere selezionato agendo sul tasto Set e impostando il tempo desiderato con i tasti . Il funzionamento si interrompe automaticamente una volta trascorso il tempo impostato.
  • Page 120: Impostazione Del Timer

    AXION 3. Impostazione dell’ampiezza impulso (Width) L’ampiezza degli impulsi può essere impostata da 30 μs a 400 μs. Premere il tasto Tper aprire il menù. Con i tasti è possibile aumentare o diminuire i parametri. Nel caso in cui il terapeuta non abbia fornito indicazioni in merito all’ampiezza dell’impulso, regolarla...
  • Page 121 STIM-PRO X9+ (L) Timer CH1 & CH2 (R) Timer CH3 & CH4 Continuo 6. Regolazione dell’intensità L’intensità può essere impostata da 0 a 100. Impostare la po- tenza necessaria premendo i tasti sui rispettivi canali 1-4. Impostazione dei parametri EMS individuali È...
  • Page 122 AXION 3. Impostazione della salita impulso (Ramp) Il tempo di salita regola la durata della salita/discesa dell’intensità, che salirà da 0 al valore impostato e poi ridiscenderà a 0. Il tempo di salita dell’impulso è regolabile tra 1 e 8 secondi.
  • Page 123: Impostazione Della Frequenza

    STIM-PRO X9+ 7. Impostazione della frequenza (Rate) La frequenza può essere regolata tra 1Hz e 150 Hz. Premere il tasto per aprire il menù. Con i tasti è possibile au- mentare o diminuire la frequenza. Nel caso in cui il terapeuta non abbia fornito indica- zioni in merito alla frequenza della stimola- zione, regolarla sulla scala 70-120 Hz.
  • Page 124 AXION SUL DISPOSITIVO FRONTE...
  • Page 125 STIM-PRO X9+ Rückseite...
  • Page 126 AXION MEMORIA TEMPI DI TRATTAMENTO Il dispositivo dispone di una memoria per i tempi di utilizzo per 60 trattamenti e fino a massimo 999 ore. Visualizzare & cancellare un tempo di trattamento personalizzato Premere il tasto MODE e, in contemporanea, accendere il dispositivo.
  • Page 127: Sostituzione Della Batteria

    STIM-PRO X9+ SOSTITUZIONE DELLA BATTERIA Per garantire il corretto funzionamento del dispositivo, dopo un determinato periodo di tempo, è necessario sostituire la batteria. In caso di inutilizzo prolungato del dispositivo, rimuovere la batteria. Assicurarsi che il dispositivo sia spento. Aprire il vano batteria. Rimuovere la batteria.
  • Page 128: Controlli Tecnici Di Sicurezza

    AXION MANUTENZIONE, TRASPORTO E CONSERVAZIONE Il dispositivo può essere pulito con un panno imbevuto d’alcol (alcol 70%). È possibile rimuovere eventuali macchie utilizzando un detergente. Non immergere il dispositivo in sostanze liquide né utilizzare troppa acqua per pulirlo. Riporre il dispositivo nella sua custodia, avvolto nella protezione di spugna, in modo da evitare possibili danneggiamenti durante il trasporto.
  • Page 129 STIM-PRO X9+ Le istruzioni per l’uso devono sempre essere conservate insieme al dispositivo. In caso di problemi o guasti, contat- tare il venditore specializzato. RIPARARE DA SOLI I PICCOLI GUASTI Se il dispositivo non funziona correttamente, grazie ai consigli indicati in seguito, è possibile trovare e risolvere alcuni piccoli guasti.
  • Page 130: Descrizione Tecnica

    AXION DESCRIZIONE TECNICA Canali 4 canali – regolabili in intensità separatamente Intensità Regolabile 0-100 mA (in intervalli da 1mA) in caso di carico mimino di 500 Ohm per canale Forma impulso Impulso rettangolare bifasico asimmetrico Tensione 0 - 50 V Alimentazione 4 batterie AA da 1.5 Volt...
  • Page 131 STIM-PRO X9+ TENS In modalità SD1 l’intensità e l’ampiezza dell’impulso variano in un intervallo del 40%. Modalità SD 1 L’intensità aumenta, mentre l’ampiezza de- ll’impulso diminuisce, e viceversa. L’intensità diminuisce del 40% entro 5 secondi, mentre l’ampiezza dell’impulso aumenta del 40%. Nei 5 secondi successivi l’intensità...
  • Page 132 AXION TENS/EMS P Vedi capitolo Modalità programma (P) Pagine 140 - 114 Modalità programma Contatore Fino a 60 memorizzazioni di utilizzo. Visualizzazione massima fino a 999 ore. prestazioni paziente Visualizzazione Indicatore livello batteria basso stato di carica Temperatura di Temperatura: da 0 ° C a 40 °C 30 % - 75 % umidità...
  • Page 133: Garanzia

    La garanzia, tuttavia, non copre eventuali danni causati da uso improprio, mancata osservanza delle istruzioni per l’uso, perdita o caduta. Produttore: axion GmbH Mollenbachstr. 13 71229 Leonberg Deutschland www.tens-ems.com/en...
  • Page 134 AXION WSTĘP Podstawowym celem użycia elektrostymulatora STIM-PRO X9+ jest leczenie / łagodzenie bólu i stymulacja mięśni za pomocą prądów EMS. Czym jest ból? Ból jest systemem alarmowym organizmu, który ma na celu zapobiegnięcie jego dalszym szkodom. Bez bólu anormalne zmiany i poważne urazy pozostałyby niezauważone. Stały utrzymujący się...
  • Page 135 STIM-PRO X9+ Prądy tens o umiarkowanej intensywności oraz o wysokiej częstotliwości mogą blokować przekazywanie sygnałów bólu do mózgu, dzięki czemu ból nie jest odczuwalny. Jest to działanie podobne do tego, które wywołują środki przeci- wbólowe. Impulsy elektryczne są interpretowane w pod- wzgórzu, gdzie są...
  • Page 136 AXION Ogólna charakterystyka urządzenia Urządzenie jest generatorem impulsów elektrycznych, które przezskórnie za pomocą elektrod przymocowanych do skóry, są przekazane do nerwów i mięśni. Wbudowany do STIM- PRO X9+ mikroprocesor wytwarza impulsy elektryczne, których intensywność, szerokość oraz częstotliwość można ustawić za pomocą odpowiedniego przycisku. Wszystkie funkcje są...
  • Page 137 STIM-PRO X9+ WYBÓR PROGRAMU (P) Wybór trybu P W trybie P możecie Państwo wybrać pomiędzy 37 różnymi programami w zależności od rodzaju terapii prądami tens lub ems. Programy te są całkowicie zaprogramowane- tutaj należy wybrać jedynie odpowiednią intensywność prądu dla kanału do którego podłączyli Państwo elektrody i możecie zacząć...
  • Page 138 AXION PROGRAM – MODUŁ (P) Wszystkie parametry są zaprogramowane i nie mogą być zmienione. STYMULACJA PRĄDAMI TENS Przykłady zastosowania określonego programu wynikają z praktyki. Ustawienia wybrane do danego programu pomogły w wypadku podanych schorzeń. Jednakże nie oznacza to, że programów nie należy stosować...
  • Page 139 STIM-PRO X9+ TENS – Programy P1 - P16 P 08 Ból przewlekły Do zastosowania przy bólu szyi, bioder, ramion, kolan, (lum- bago), chorobie zwyrodnieniowej stawu kolanowego, bólach miesiączkowych, artrozie kolana. P 09 Ból reumatyczny Ból spowodowany reumatycznym zapaleniem stawów, promieniujący ból w ramionach, nogach, stopach, dzięki modulacji nadaje się...
  • Page 140 AXION STYMULACJA - EMS Należy pamiętać, że programy składają się z kilku etapów. Programy od 17 do 28 zawierają 60 sekundowy okres rozgrzewki. Potem następuje rzeczywista stymulacja, która może również składać się z różnych etapów. EMS – Programy P17 - P30 P 17 EMS –...
  • Page 141 STIM-PRO X9+ P 29 EMS – Relaks I Regeneracja mięśni, rozluźnienie mięśni – umiarkowana intensywność P 30 EMS – Relaks II Regeneracja mięśni, rozluźnienie mięśni – umiarkowana intensywność MASAŻE – Programy P31 - P32 P 31 Masaż I Składa się z 3 różnych faz masażu P 32 Masaż...
  • Page 142 AXION STYMULACJA MIĘŚNI DNA MIEDNICY Programy P33- P37 Stosować tylko i wyłącznie w połączeniu z sondą wagi- nalną lub rektalną. (Sonda nie wchodzi w skład dostawy.) Skurcze mięśni dna miednicy powinny być odczuwalne ac- zkolwiek przyjemne. Aby uniknąć przyzwyczajenia mięśni, programy należy stosować...
  • Page 143 STIM-PRO X9+ W JAKI SPOSÓB ZACZĄĆ TRENING MIĘŚNI DNA MIEDNICY 1. Podłączenie kabla Sondę należy wyciągnąć z opakowania oraz wymyć pod bieżącą wodą. Kabel przyłączający należy podłączyć do sondy oraz do urządzenia do elektrostymulacji. 2. Wprowadzanie sondy Jeżeli jest to konieczne przed rozpoczęciem terapii, zalecamy skorzystanie z toalety.
  • Page 144: Obsługa Urządzenia

    AXION OBSłUGA URZĄDZENIA Przyciski do włączenia i wyłączenia urzą- dzenia oraz do ustawienia intensywności Urządzenie włącza lub wyłącza się za pomocą przycisku do włączania i wyłączania. Intensywność prądu można zmnie- jszyć lub zwiększyć za pomocą przycisków do zwiększenia lub zmniejszenia intensywności. Intensywność prądu moż- na dostosować...
  • Page 145: Włączenie Urządzenia

    STIM-PRO X9+ Podwójny timer Urządzenie posiada wbudowany timer od 1 do 60 minut oraz stały tryb pracy C. Timer można wybrać za pomocą przycisku SET oraz ustawić za pomocą przycisków . Urządzenie automatycznie się wyłącza po upłynięciu ustawionego czasu. (L) na wyświetlaczu pokazuje czas dla kanałów 1+2 / (R) na wyświetlaczu pokazuje czas to czas dla kanałów 3+4 Wyświetlacz wskaźnika baterii Pojawienie się...
  • Page 146 AXION 3. Ustawienie szerokości, czasu trwania impulsu (Width) Szerokość impulsów można ustawić indywidualnie od 30μs do 400μs. W tym celu nalezy przycisnąć przycisk , aby wejść do menu. Za pomocą przycisków ustawia się parametry, można je zwiększyć lub zmniejszyć. W wypadku braku zaleceń...
  • Page 147 STIM-PRO X9+ (L) Timer CH1 & CH2 (R) Timer CH3 & CH4 Ciągłość 6. Ustawienia intensywnosci / natężenia prądu Intensywność może zostać ustawiona w zakresie od 0 – 100. Naciskając przyciski na każdym kanale 1-4 , można indywidualnie ustawić natężenie prądu. Ustawienie indywidualnych parametrów EMS 1.
  • Page 148 AXION 3. Ustawienie czasu wzrastania / czasu opadania (Ramp) Czas wzrastania / czasu opadania (rampe) reguluje czas wzrastania / opa- dania intensywności, która wzrasta z 0 do wybranej wartości. Czas wzrastania / czasu opadania można ustawić od 1 do 8 sekund.
  • Page 149 STIM-PRO X9+ 7. Regulacja czestotliwosci (Rate) Częstotliwość jest regulowna i można ją ustawić pomiędzy 1 Hz a 150 Hz. Naciśnij przycisk , aby wejść do tego menu. Za pomocą przycisków można zwiększyć częstotliwość lub ją zmniejszyć. W wypadku braku zaleceń lekarza lub tera- peuty, skorzystaj z zakresu od 70 –...
  • Page 150 AXION O URZĄDZENIU PRZÓD URZĄDZENIA...
  • Page 151 STIM-PRO X9+ TYŁ URZĄDZENIA...
  • Page 152 AXION PRZECHOWYWANIE PAMIĘCI Urządzenie posiada pamięć na 60 zabiegów do maksymalnie 999 godzin. Pokazanie lub wykasowanie indywidualnego czasu terapii Naciśnij przycisk “MODE” jednocześnie włącz urządzenie. Na wyświetlaczu cyfrowym pojawi się teraz liczba zabiegów i całkowitego czasu aplikacji. Naciskając klawisze można zobaczyć poszczególne aplikacje. Aby usunąć apli- kację, należy przytrzymać...
  • Page 153: Wymiana Baterii

    STIM-PRO X9+ WYMIANA BATERII Aby urządzenie pracowało prawidłowo, gdy na wyświet- laczu pojawi się symbol baterii, należy wymienić baterie. Baterie należy wyjąć gdy urzadzenie jest nieużywane przez długi czas. W celu prawidłowej wymiany baterii należy: UpewniĆ się, że urządzenie jest wyłączone. Otworzyć...
  • Page 154: Kontrola Bezpieczeństwa Technicznego

    AXION KONSERWACJA, TRANSPORT, PRZECHOWANIE Aparat tens można czyścić za pomocą husteczek do czyszczenia nasiączonych 70% alkoholem. Urządzenia nie należy zamaczać w płynach oraz należy je chronić przed dostaniem się do niego większej ilości wody. W celu zapewnienia bezpiecznego transportu urządzenie należy umieścić...
  • Page 155 STIM-PRO X9+ Kontrola i przegląd techniczny urządzenie muszą zostać przeprowadzone przez autoryzowany personel przed od- daniem do eksploatacji i każdym ponownym oddaniem do użycia, jednakże nie później niż po upływie 24 miesięcy. Instrukcja obsługi musi być zawsze dołączona do urzą- dzenia.
  • Page 156: Opis Techniczny

    AXION OPIS TECHNICZNY Kanały 4 kanały – intensywność każdego kanału jest oddzielnie regulowana Intensywność Regulowana, 0 – 100 mA (ze zmianą o 1mA) na obciążenie co najmniej 500 omów na kanał Formy impulsów Asymetryczny, 2-fazowy kwadratowy impuls Napięcie 0 - 50 V...
  • Page 157 STIM-PRO X9+ TENS Modus Ten tryb jest kombinacją modulacji szerokoś- ci impulsów i częstotliwości. Obie wartości są modulacyjny M automatycznie zmieniane cyklicznie. Częs- totliwość i szerokość impulsu zmienia się po 0,5 sekundy na 50% wartości początkowej, po upływie następnej 0,5 sekundy wraca do poziomu wyjściowego.
  • Page 158 AXION EMS A Naprzemienne stymulacje w obu kanałach. Cykl odpowiada długości Moduł ustawionego czasu aktywnego, plus czas Asynchroniczy rampy. Należy pamiętać, że czas czynny nie może być mniejszy niż dwukrotność czasu rampy. Czas aktywny > wzrost rampy + spadek rampy TENS/EMS P Patrz sekcja trybu, moduły, program (P)
  • Page 159 Gwarancja nie obejmuje również defektów, które powstały w wyniku spadnięcia urządzenia na ziemię. Gwarancją nie jest również objęta utrata urządzenia. Producent: axion GmbH Mollenbachstr. 13 71229 Leonberg Deutschland www.tens-ems.com/pl Informacja odnośnie ustawienia/ obsługi Elektryczna klasa ochronna Nie podłączać...
