ENGLISH
Before using this product, be sure to read "Read this first!" (pages 3 to 6).
Bitte lesen Sie sorgfältig die „Bitte lesen Sie zuerst diesen Hinweis!" vor der Nutzung dieses
Produkts. (Seiten 7 bis 8).
DEUTSCH
Weitere Informationen finden Sie auf der Panasonic-Webseite (http://pro-av.panasonic.net/en/
manual/index.html) und in der Bedienungsanleitung (HTML).
Avant d'utiliser cet appareil, assurez-vous de lire la section « Lire ces informations en premier ! »
(pages 9 à 11).
FRANÇAIS
Pour de plus amples informations, visiter le site Web de Panasonic (http://pro-av.panasonic.net/
en/manual/index.html) et consulter le mode d'emploi (HTML).
Prima di utilizzare il prodotto, assicurarsi di leggere "Leggere prima quanto segue!" (pagine 12 a
13).
ITALIANO
Per maggiori informazioni, per favore visitare il sito web Panasonic (http://pro-av.panasonic.net/
en/manual/index.html), e fare riferimento alle istruzioni per l'uso (HTML).
Antes de usar este producto, asegúrese de leer "Lea esto primero" (páginas 14 a 16).
ESPAÑOL
Si desea obtener más información, visite el sitio web de Panasonic (http://pro-av.panasonic.net/
en/manual/index.html) y consulte las instrucciones de funcionamiento (HTML).
Before operating this product, please read the instructions carefully and save this manual for future use.
SS1215HM1066 -YI
Printed in Japan
Operating Instructions
AK-HVF100G
Model No.
LCD View Finder
ENGLISH
VQT5M42-1
Advertisement
Table of Contents
Related Manuals for Panasonic AK-HVF100G
Summary of Contents for Panasonic AK-HVF100G
- Page 1 Avant d’utiliser cet appareil, assurez-vous de lire la section « Lire ces informations en premier ! » (pages 9 à 11). FRANÇAIS Pour de plus amples informations, visiter le site Web de Panasonic (http://pro-av.panasonic.net/ en/manual/index.html) et consulter le mode d’emploi (HTML). Prima di utilizzare il prodotto, assicurarsi di leggere “Leggere prima quanto segue!” (pagine 12 a 13).
- Page 2 Pre bezpečnostné informácie a dôležité oznámenia súvisiace s produktom navštívte Slovensky túto webovú stránku. Za varnostne informacije in pomembna obvestila v zvezi z izdelkom obiščite Slovenščina naslednje spletno mesto. Besök följande webbplats för säkerhetsinformation och viktiga meddelanden om Svenska produkten. http://pro-av.panasonic.net/en/manual/index.html...
-
Page 3: Read This First
Read this first! Read this first! indicates safety information. CAUTION: WARNING: Do not remove panel covers by unscrewing. • To reduce the risk of fire, do not expose this No user serviceable parts inside. Refer servicing equipment to rain or moisture. to qualified service personnel. - Page 4 Read this first! IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 5 Read this first! EMC NOTICE FOR THE PURCHASER/USER OF THE APPARATUS 1. Applicable standards and operating environment (AK-HVF100G) The apparatus is compliant with: • standards EN55103-1 and EN55103-2, and • electromagnetic environments E1, E2, E3 and E4. 2. Pre-requisite conditions to achieving compliance with the above standards <1>...
- Page 6 Read this first! AEEE Yönetmeliğine Uygundur. AEEE Complies with Directive of Turkey. Декларація про Відповідність Вимогам Технічного Регламенту Обмеження Використання деяких Небезпечних Речовин в електричному та електронному обладнанні (затвердженого Постановою №1057 Кабінету Міністрів України) Виріб відповідає вимогам Технічного Регламенту Обмеження Використання деяких Небезпечних Речовин в електричному та електронному...
-
Page 7: Bitte Lesen Sie Zuerst Diesen Hinweis
Stellen Sie sicher, dass die Ventilationsöffnungen im Gehäuse nicht durch Vorhänge oder andere Materialien blockiert werden; anderenfalls besteht die Gefahr von Bränden aufgrund von Überhitzung. Hergestellt von: Panasonic Corporation, Osaka, Japan Name und Adresse des Importeurs gemäß EU-Bestimmungen: Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Deutschland Entsorgung von Altgeräten... - Page 8 DEUTSCH Bitte lesen Sie zuerst diesen Hinweis! EMV-HINWEIS FÜR DEN KÄUFER/ANWENDER DES GERÄTS 1. Anwendbare Standards und Betriebsumgebung Dieses Gerät entspricht: • Standards EN55103-1 und EN55103-2, und • elektromagnetische Umgebungen, E1, E2, E3, und E4. 2. Erforderliche Bedingungen zur Einhaltung der oben genannten Standards <1>...
-
Page 9: Lire Ces Informations En Premier
FRANÇAIS Lire ces informations en premier ! Lire ces informations en premier ! Informations concernant la sécurité. AVERTISSEMENT: ATTENTION: • Pour réduire les risques d’incendie, évitez Ne pas dévisser le couvercle. d’exposer cet appareil à la pluie ou à l’humidité. Il ne se trouve à... - Page 10 3. Changez la méthode de connexion utilisée pour l’appareil. 4. Connectez l’appareil à une autre prise électrique sur laquelle l’alimentation n’est partagée par aucun autre appareil. Fabriqué par : Panasonic Corporation, Osaka, Japon Nom et adresse de l’importateur en accord avec les règlements de l’Union Européenne :...
- Page 11 FRANÇAIS Lire ces informations en premier ! Affichage a cristaux liquides En raison des caractéristiques des moniteurs LCD, l’affichage prolongé d’images fixes lumineuses ou le fonctionnement prolongé dans des environnements à température élevée ou à humidité élevée peut provoquer des images résiduelles, une réduction de la luminance, une surexposition, des effets de bandes ou des défauts et la détérioration du panneau, qui causeront l’apparition de zones à...
-
Page 12: Leggere Prima Quanto Segue
Non togliere il coperchio svitandolo. All’interno non ci sono parti riparabili dall’utente. Per le riparazioni, rivolgersi a personale tecnico qualificato. Fabbricato da: Panasonic Corporation, Osaka, Giappone Nome e indirizzo dell'importatore in conformità con le normative UE: Panasonic Marketing Europe GmbH Panasonic Testing Centre... - Page 13 ITALIANO Leggere prima quanto segue! AVVISO EMC PER L’ACQUIRENTE/UTENTE DELL’APPARATO 1. Standard applicabili e ambiente operativo L’apparato è conforme a: • standard EN55103-1 e EN55103-2, e • ambienti elettromagnetici delle classi E1, E2, E3 e E4. 2. Prerequisiti essenziali per la conformità agli standard sopra menzionati <1>...
-
Page 14: Lea Esto Primero
ESPAÑOL Lea esto primero Lea esto primero indica información de seguridad. ADVERTENCIA: PRECAUCIÓN: • Para reducir el riesgo de producir un incendio, No quite la cubierta desatornillándola. no exponga este equipo a la lluvia ni a la Las piezas del interior no requieren mantenimiento humedad. - Page 15 3. Cambiar el método de conexión utilizado para el aparato. 4. Conectar el aparato a otra toma de corriente que no comparta su energía con otros dispositivos. Fabricado por: Panasonic Corporation, Osaka, Japón Nombre y dirección del importador conforme a las normas de la UE:...
- Page 16 ESPAÑOL Lea esto primero Pantalla de cristal liquido Debido a las características de los monitores LCD, la visualización prolongada de imágenes fijas brillantes o el funcionamiento prolongado en entornos con una temperatura o humedad altas pueden producir imágenes residuales, reducción de la luminancia, quemaduras y franjas, o defectos y degradación en el panel que den lugar a áreas con el brillo cambiado permanentemente.
-
Page 17: Table Of Contents
Contents Contents Read this first! Bitte lesen Sie zuerst diesen Hinweis! Lire ces informations en premier ! Leggere prima quanto segue! Lea esto primero Before using the camera Features Accessories Description of parts Front Rear Using the external DC power supply Preparation Mounting to the camera Attaching the hood... -
Page 18: Before Using The Camera
Before using the camera Before using the camera r LCD f The LCD monitor is manufactured with high-precision technology and has an effective pixel count of over 99.99%, but there are 0.01% of the pixels either missing or constantly lit (red, blue, green). This is normal and not a cause for concern. f The LCD protective panel is specially treated. -
Page 19: Description Of Parts

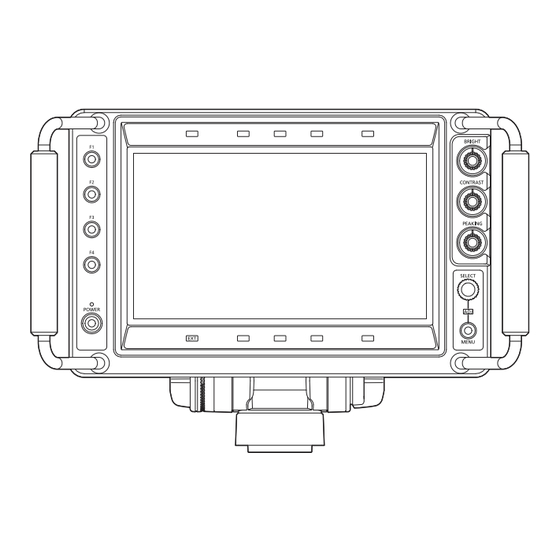

Description of parts Description of parts Front 1 <F1>/<F2>/<F3>/<F4> buttons A function can be assigned to each button by [MAIN MENU] → [FUNCTION] → [FUNCTION1] to [FUNCTION4]. The function assigned to each is operated by pressing the button. For details, refer to [FUNCTION] (page 31). 2 <POWER>... -
Page 20: Rear
Description of parts Rear 1 <INPUT> switch This switches the input (<CAM>/<SDI>). Supported signal format for each input is as follows. f <CAM>: 1080/59.94i, 1080/50i f <SDI>: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p 2 <SDI IN> terminal This inputs the SDI signal. 3 Tilt friction knob This adjusts the operation torque of tilting. -
Page 21: Using The External Dc Power Supply
Using the external DC power supply Using the external DC power supply DC cable External DC power supply <DC IN> terminal Connect the <DC IN> terminal of the unit with the external DC power supply. Turn on the <POWER> switch on the external DC power supply (when there is a <POWER> switch on the external DC power supply). -
Page 22: Preparation
Preparation Preparation Mounting to the camera Connector cover V-shaped groove V-shaped projection Lock release button Fig. 1 Fig. 2 Turn off the power of the camera and this unit. Press the lock release button on the camera and remove the connector cover. (Fig. 1) Align the V-shaped projection of this unit to the V-shaped groove on the camera, and slide and push in until it is locked. -
Page 23: Attaching The Hood
Preparation Attaching the hood Groove Fig. 1 Fig. 2 Screws Fig. 3 Hook the tab on the hood to the groove at the top. (Fig. 1, Fig. 2) Fix with the two screws at the bottom of the hood. (Fig. 3) r To remove Loosen the two screws at the bottom of the hood. -
Page 24: Panning Operation
Preparation NOTE t Do not hold onto the hood of the unit when adjusting the tilting. Panning operation Pan lock lever Move the pan lock lever to the opposite direction from <LOCK>. Panning operation is possible when moved to the opposite direction from <LOCK>. Adjust the angle. -
Page 25: On-Screen Display
On-screen display On-screen display Information of the operation status, function, image adjustment condition, and menu is displayed in the screen. Operation status display 1080/59.94i FILM a: Input display Displays the selected input line ([SDI] or [CAM]). (page 20) Sets the display condition with [MAIN MENU] → [SYSTEM CONFIG] → [STATUS DISPLAY]. b: Film mode display This is displayed when [MAIN MENU] →... -
Page 26: Function Display
On-screen display Function display <F1>/<F2>/<F3>/<F4> buttons F1 : MONO F2 : WFM F3 : FOCUS-IN-RED F4 : MARKER MONO ON Press the <F1>/<F2>/<F3>/<F4> button. Function assigned to each button and the condition of that function is displayed. f This display disappears after two seconds of inaction. f Display condition can be changed with [MAIN MENU] →... -
Page 27: Camera Menu Display
On-screen display Camera menu display The menu of the camera (only AK-UC3000G/AK-UC3000GS and AK-HC5000G/AK-HC5000GS) can be operated from this unit. <F1>/<F2>/<F3>/<F4> buttons F1 : MONO F2 : WFM F3 : FOCUS-IN-RED F4 : CAM MENU CAM MENU ON <SELECT> dial button <MENU>... -
Page 28: Menu Operations
Menu operations Menu operations The menu operation method, structure of the setting menu, and details of the setting menu are described. Basic operations <SELECT> dial button [ MAIN MENU ] MARKER FUNCTION VIDEO CONFIG SYSTEM CONFIG HOURS METER UP TALLY FOCUS ASSIST Fig. -
Page 29: Menu Structure
Menu operations [ASSIGN] setting ([ASSIGN] condition display) <SELECT> dial button [ FOCUS-IN-R ] <MENU> button Select the function to be assigned to the <SELECT> dial button with [MAIN MENU] → [FUNCTION] → [ASSIGN]. Press the <SELECT> dial button. Press the <MENU> button to close the menu. Turn the <SELECT>... -
Page 30: Menu List
Menu operations [FOCUS ASSIST] Sets the function of the focus assist. Menu list [MARKER] Item Setting content [EXIT] Returns to the upper level. [MARKER] — Sets if the marker is displayed in the screen or not. [ON], [OFF] f Factory setting: [OFF] [BOX MARKER] is set to [OFF] when [BOX MARKER] is [ON1]/[ON2] and [MARKER] is set to [ON]. - Page 31 Menu operations [FUNCTION] Item Setting content [EXIT] Returns to the upper level. [FUNCTION1] Selects the function assigned to the <F1> button. [SCAN]: Switches between the underscan and normal display. [WFM]: Displays the waveform display screen. [MARKER]: Displays the marker. [FOCUS-IN-RED]: Switches the enable/disable of the function to enhance the focused part of the image (disabled when [WFM] is displayed, disabled when there is no input signal, setting is cleared when the power is turned off, and the detection sensitivity can be changed with the <SELECT>...
- Page 32 Menu operations Item Setting content [FUNCTION4] Selects the function assigned to the <F4> button. [SCAN]: Switches between the underscan and normal display. [WFM]: Displays the waveform display screen. [MARKER]: Displays the marker. [FOCUS-IN-RED]: Switches the enable/disable of the function to enhance the focused part of the image (disabled when [WFM] is displayed, disabled when there is no input signal, setting is cleared when the power is turned off, and the detection sensitivity can be changed with the <SELECT>...
- Page 33 Menu operations Item Setting content [SHARPNESS MODE] Selects the edge width of the contour correction (during peaking). [HIGH]: Narrow edge [LOW]: Wide edge f Factory setting: [HIGH] [SHARPNESS H] Sets the horizontal contour correction. Adds to the operation of the <PEAKING> knob. [0]…[30] f Factory setting: [0] [SHARPNESS V]...
-
Page 34: Maintenance And Inspection
Maintenance and Inspection [TALLY BRIGHT] Item Setting content [EXIT] Returns to the upper level. [UP TALLY] Sets the brightness of the up tally lamp. [HIGH]: Turns on (bright). [LOW]: Turns on (dark). [OFF]: Turns off. f Factory setting: [LOW] [FRONT TALLY] Sets the brightness of the front tally lamp. -
Page 35: Specification
Specification Specification Dimensions 231 mm (9-1/8 inches) 340 mm (13-13/32 inches) 193 mm (7-5/8 inches) Specifications General Power DC e 12 V (supplied from camera or XLR) Power consumption 18 W indicates safety information. Ambient operating temperature 0 °C – 45 °C (32 °F – 113 °F) Storage temperature −20 °C –... -
Page 36: Connector Pin Assignment Table
G TALLY R TALLY Not used P REQ UP TALLY UNREG-GND Not used VF12 V Not used Not used VF12 V FGND Not used VF12 V (LCD ACT) D02-29PF-N-F0 (Japan Aviation Electronics Industry) Web Site: http://www.panasonic.com © Panasonic Corporation 2016...
