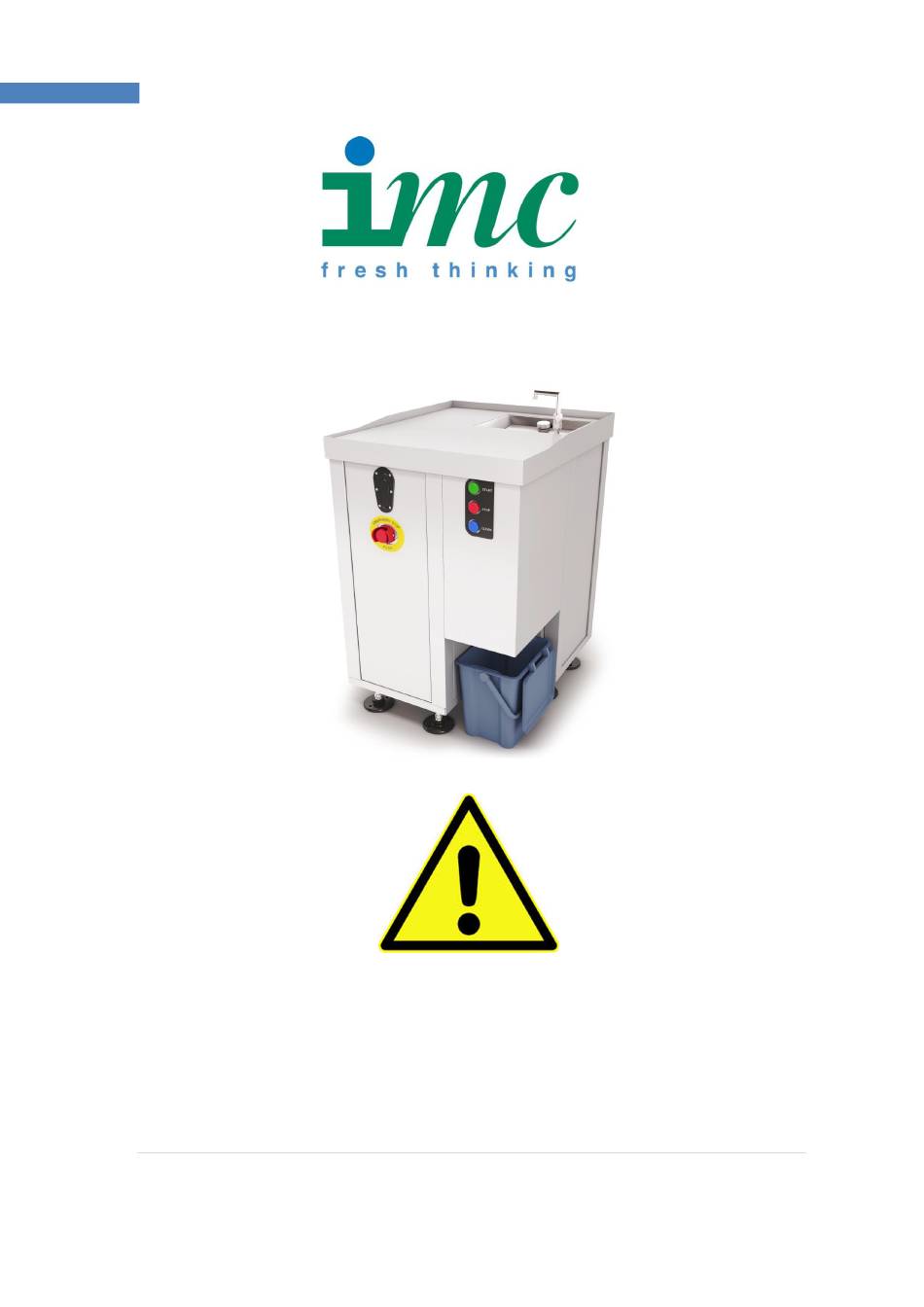

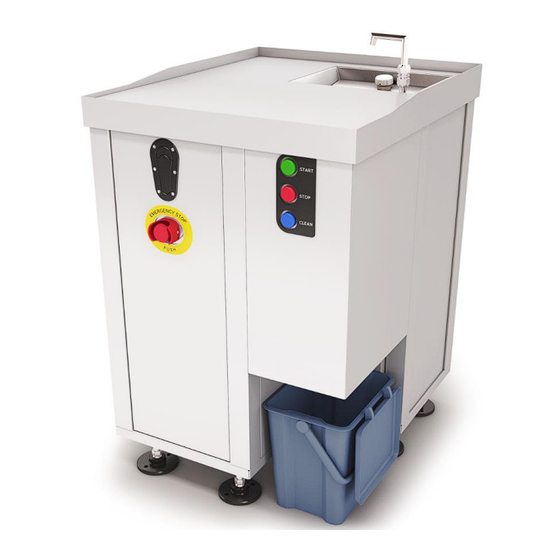

- Page 1 WasteStation Compact WasteStation Compact SINGLE PHASE MODEL (240V-50HZ) F79/240 INSTALLATION AND OPERATING MANUAL PLEASE LEAVE WITH OPERATOR A34/101 R1 ECNs 8894/8854 January 2020 P a g e...
-
Page 2: Table Of Contents
EXPLODED VIEW 1 ......................19 EXPLODED VIEW 2 ......................20 EXPLODED VIEW 3 ......................21 EXPLODED VIEW 4 ......................22 PARTS LIST F79/240 WasteStation Compact ............... 23 SPARES ........................... 23 FAULT DIAGNOSIS ......................24 ORDERING SPARE PARTS ....................25 FURTHER INFORMATION ....................25... -
Page 3: Machine Dimensions
WasteStation Compact MACHINE DIMENSIONS P a g e... - Page 4 WasteStation Compact View on Rear of Machine Showing Connections for Services P a g e...
-
Page 5: Introduction
1 off (wall mounted self-adhesive) GUARANTEE This machine is guaranteed by IMC for 2 Years (UK warranty only) from the date of its purchase from IMC, or from one of its stockists, dealers or distributors. The guarantee is limited to the replacement of faulty parts or products and excludes any consequential loss or expense incurred by purchasers. -
Page 6: Installation Options
The machine is operated from the wall mounted control box. SELECTION OF SITE Select the site of the WasteStation Compact with care so that it is convenient both for the major source of food waste and for access by machine operators. The machine should be installed as close to the existing drains as is reasonably practicable. -
Page 7: Order Of Connection For All Installation Options
Supply (Water Fittings) Regulations and Byelaws. The purpose of these regulations is to protect your drinking water supply from contamination. The WasteStation Compact is supplied with a cold-water air break, customers are to ensure that the HOT water supply is compliant and has an approved air break or back flow prevention. -
Page 8: Waste Outlet Connection
Ensure the installation complies with local water regulations. Every machine is run and tested by IMC before dispatch. The water flow adjustments will require resetting when installed in the final location. A ‘full bore’ service valve should be installed in the pipe work to each of the water inlets and these should be set fully open to start with, adjusting to suit during installation. -
Page 9: Electrical Connection
WasteStation Compact ELECTRICAL CONNECTION All electrical work must be carried out by a qualified electrician and in accordance with the IEE Codes of Practice. Examine the rating plate located on the rear panel (next to the mains inlet) to ensure that the characteristics shown are correct for the supply available. The supply cable fitted is the minimum required for connection to the mains supply. -
Page 10: Machine Ratings
The supply to the machine must also be protected by a 30mA RCD (type A, curve B) such as IMC part number G35/039, which may be purchased separately from the IMC Spares Department (contact details shown on final page of this document) WARNING: This machine must be earthed WARNING: This machine must not be PAT tested under any circumstances. -
Page 11: Operation Of Machine
WasteStation Compact OPERATION OF MACHINE During the operation of the machine certain indicator lights will be illuminated on the front control box these give an indication of what operation the machine is carrying out. MACHINE RUNNING MODES & INDICATOR LIGHTS When the machine is running the button lights on the front of the machine will be constantly lit or flash, the meaning of this is explained below. -
Page 12: Initial Operation
By the time the knob is fully unscrewed and the safety baffle open, the rotor in the grinding chamber will have completely stopped. When these checks, tests and adjustments are completed, the IMC WasteStation Compact is ready for use. - Page 13 WasteStation Compact 13 | P a g e...
-
Page 14: Normal Operation
Food Waste Disposers can jam under overload or if unsuitable materials are placed inside. IMC machines are designed to withstand this and no damage will normally result, as the machine will switch itself off. It is necessary to clear the jam as follows: Switch off at the mains isolating switch. -
Page 15: Note
Daily: Clean down thoroughly after use especially inside the hopper. Unscrew the safety interlock knob and open the baffle to gain access internally Cleaning is assisted by the use of a low-pressure spray, an IMC Pre-Rinse Spray or a Reel- Kleen retractable hose reel. -
Page 16: Usage
AND WATER SUPPLY ARE TURNED OFF AT THE MAIN SUPPLY AND WATER STOPCOCK. USAGE 1 THE IMC WASTESTATION COMPACT IS DESIGNED FOR THE DISPOSAL AND DEWATERING OF FOOD WASTE. DO NOT PUT CLING FILM, LIQUID FAT, STRING, CLOTH, PLASTIC, WIRE, GLASS, CORK, STYROFOAM, BOILING WATER, HOT SOUP, HOT LIQUID, BONES OR METAL OBJECTS INTO THE MACHINE. -
Page 17: Circuit Diagram
WasteStation Compact CIRCUIT DIAGRAM: WASTESTATION COMPACT 240V- 1PHASE-50Hz 17 | P a g e... -
Page 18: Parts List - Macerator
WasteStation Compact PARTS LIST - MACERATOR 18 | P a g e... -
Page 19: Exploded View 1
WasteStation Compact EXPLODED VIEW 1 19 | P a g e... -
Page 20: Exploded View 2
WasteStation Compact EXPLODED VIEW 2 20 | P a g e... -
Page 21: Exploded View 3
WasteStation Compact EXPLODED VIEW 3 21 | P a g e... -
Page 22: Exploded View 4
WasteStation Compact EXPLODED VIEW 4 22 | P a g e... -
Page 23: Parts List F79/240 Wastestation Compact
WasteStation Compact PARTS LIST F79/240 WASTESTATION COMPACT PART No. DESCRIPTION E79/260 Rear Panel S79/043 Hopper Interlock Switch Assy’ S79/239 Baffle Assy Full E79/257 Side Panel RHS S79/243 Upper Bin Panel Assy’ E79/262 Lower Bin Panel A21/052 Single Aerocatch E79/258 Front Panel G45/121 Emergency Stop ‘Switch Only’... -
Page 24: Fault Diagnosis
WasteStation Compact FAULT DIAGNOSIS Machine does not start Cause Action Electrical supply is not turned on. Switch on supply. The mains isolator is switched off or RCD has tripped Call site electrician to switch on the isolator or reset the RCD. If problem persists contact service... -
Page 25: Ordering Spare Parts
AND SERIAL NUMBER of the machine. This is to be found on the rating plate located near the supply cable. For installations outside the UK please contact your supplier. For information on IMC spares and service support (if applicable), please call IMC on +44 (0) 1978 661155. Alternatively, contact us via email or fax: IMC Spares Desk...
