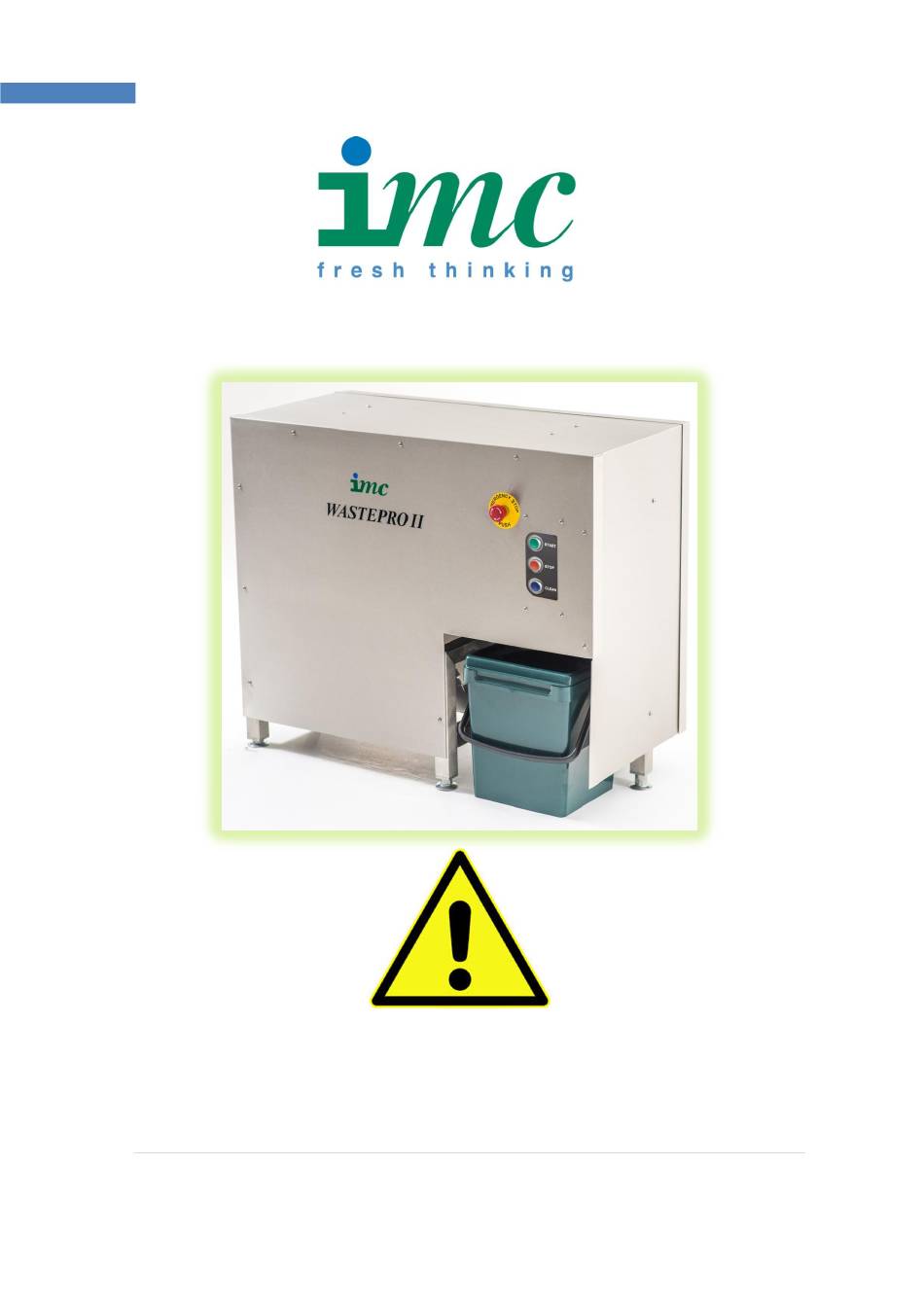

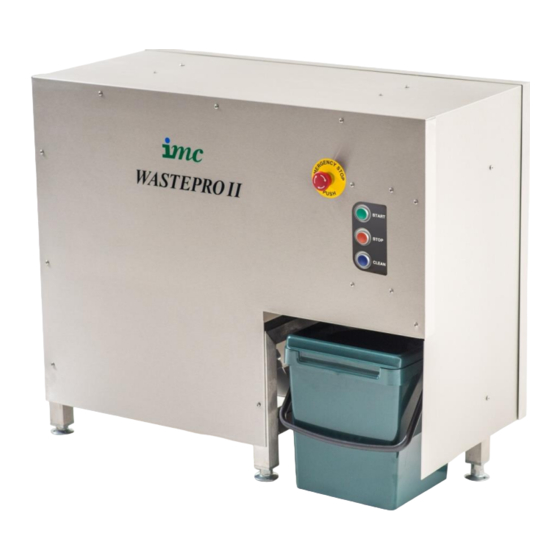

- Page 1 WastePro II WastePro II INSTALLATION, OPERATING AND MAINTENANCE MANUAL PLEASE LEAVE WITH OPERATOR A34/046 R4 ECN 8664 June 2019 P a g e...
- Page 2 WastePro II EC DECLARATION OF CONFORMITY (Guarantee of Production Quality) We, Imperial Machine Company Limited of: Unit 1, Abbey Road, Wrexham Industrial Estate, Wrexham, LL13 9RF Declare under our sole responsibility that the following machines; Food Waste Disposers, Impactor Range, Potboy, WastePro, WastePro II, WasteStation, Burnishers, Composters and Bench systems As described in the technical construction file (TCF) documentation, are in conformity with the protection...
-
Page 3: Table Of Contents
WastePro II INDEX MACHINE DIMENSIONS ..................... 4 INTRODUCTION........................5 MODEL INFORMATION ...................... 5 ON DELIVERY........................6 GUARANTEE ........................6 INSTALLATION OPTIONS ....................7 FOR THE INSTALLER ......................7 SELECTION OF SITE ......................7 ORDER OF CONNECTION FOR ALL INSTALLATION OPTIONS ..........7 SUPPLY CONNECTIONS ...................... -
Page 4: Machine Dimensions
WastePro II MACHINE DIMENSIONS 150 MAX SERVICES P a g e... -
Page 5: Introduction
WastePro II View on Rear of Machine Showing Connections for Services (Water & Power connections are internal) FROM PUMP, 1 1/2" SERIAL No. WASTE OUTLET 2" INTRODUCTION This machine is intended for the processing of macerated food waste matter by dewatering of the macerated food waste and discharge of the dewatered food waste into a receptacle. -
Page 6: On Delivery
1 off (wall mounted, self-adhesive) GUARANTEE This machine is guaranteed by IMC for 1 Year from the date of its purchase from IMC, or from one of its stockists, dealers or distributors. The guarantee is limited to the replacement of faulty parts or products and excludes any consequential loss or expense incurred by purchasers. -
Page 7: Installation Options
FOR THE INSTALLER These Instructions contain important information designed to help the user obtain the maximum benefit from the investment in an IMC WastePro II. Please read them carefully before starting work, and consult with the supplier in the event of any queries. -
Page 8: Supply Connections
Ensure the installation complies with local water regulations. Every machine is run and tested by IMC before dispatch. The water flow adjustments are made when installed in the final location. A service valve should be installed in the pipe work to the water inlet and this should be set fully open to start with, adjusting to suit during installation. -
Page 9: Electrical Connection
WastePro II ELECTRICAL CONNECTION All electrical work must be carried out by a qualified electrician and in accordance with the IEE Codes of Practice. Examine the rating plate located on the rear panel (next to the mains inlet) to ensure that the characteristics shown are correct for the supply available. -
Page 10: Testing
WastePro II The tabulation below illustrates typical fuse ratings with a 2.2 kW macerator connected & for an ambient temperature of 25-35° centigrade. Should the environment temperature be greater or the macerator be of a different rating than this, rate accordingly. ARNING –... -
Page 11: Wastepro Ii Running Modes & Indicator Lights
WastePro II WASTEPRO II RUNNING MODES & INDICATOR LIGHTS When the machine is running the button lights on the front of the machine will be off, constantly lit or flash, the meanings of which is explained below Solid Green Flashing Green No Lights Machine Running Machine Stopping... -
Page 12: Initial Operation
7. With the machine running unscrew the interlock knob on the (Connected) Macerator .The machine will switch itself off almost immediately. When these checks, tests and adjustments are completed, the IMC WastePro II is ready for use. NORMAL OPERATION 1. Ensure that safety baffle is closed and the interlock knob is screwed down fully on the (Connected) Macerator. -
Page 13: Releasing A Jam (Connected Macerator)
Daily: Clean down thoroughly after use especially inside the hopper. Unscrew the safety interlock knob and open the baffle to gain access internally Cleaning is assisted by the use of a low-pressure spray, an IMC Pre-Rinse Spray or a Reel- Kleen retractable hose reel. - Page 14 ARE TURNED OFF AT THE MAIN SUPPLY AND WATER STOPCOCK. USAGE 1 The IMC WastePro II is designed for the disposal and dewatering of food waste. Fat can safely be disposed of provided it has solidified. DO NOT PUT CLING FILM, LIQUID FAT, STRING, CLOTH, PLASTIC, WIRE, GLASS, CORK, STYROFOAM, BOILING WATER, HOT SOUP, HOT LIQUID OR METAL OBJECTS INTO THE MACHINE.
-
Page 15: Wiring Diagram - Wastepro Ii 400 Volts 3 Phase
WastePro II WIRING DIAGRAM – WASTEPRO II 400 VOLTS 3 PHASE 15 | P a g e... -
Page 16: Exploded View 1
WastePro II EXPLODED VIEW 1 16 | P a g e... -
Page 17: Exploded View 2
WastePro II EXPLODED VIEW 2 17 | P a g e... - Page 18 WastePro II 18 | P a g e...
-
Page 19: Exploded View 3
WastePro II EXPLODED VIEW 3 19 | P a g e... -
Page 20: Parts List F78/020 & F78/030 Wastepro Ii
WastePro II PARTS LIST F78/020 & F78/030 WASTEPRO II PART NO DESCRIPTION E78/028 Rear Panel S78/042 Front Panel Assy’ (labelled, no controls) D25/004 Washer D19/149 Screw S78/040 Controller Box Assy’ S78/041 Starter Box Assy’ G45/121 Emergency Stop Switch S78/034 Starter box & Bracket Assy’ S78/021 WastePro II Full Assembly G45/139... -
Page 21: Fault Diagnosis
WastePro II FAULT DIAGNOSIS Machine does not start Cause Action Electrical supply is not turned on. Switch on supply. The mains isolator has tripped. Call site electrician to reset the isolator. If problem persists contact service personnel. Waste bin is full (flashing red light) Empty and then replace the bin Waste bin is out of position (solid red light) Replace the bin in its correct position... -
Page 22: Ordering Spare Parts
AND SERIAL NUMBER of the machine. This is to be found on the rating plate located at the rear of the machine. For installations outside the UK please contact your supplier. For information on IMC spares and service support (if applicable), please call IMC on +44 (0) 1978 661155. Alternatively, contact us via email or fax: IMC Spares Desk...
