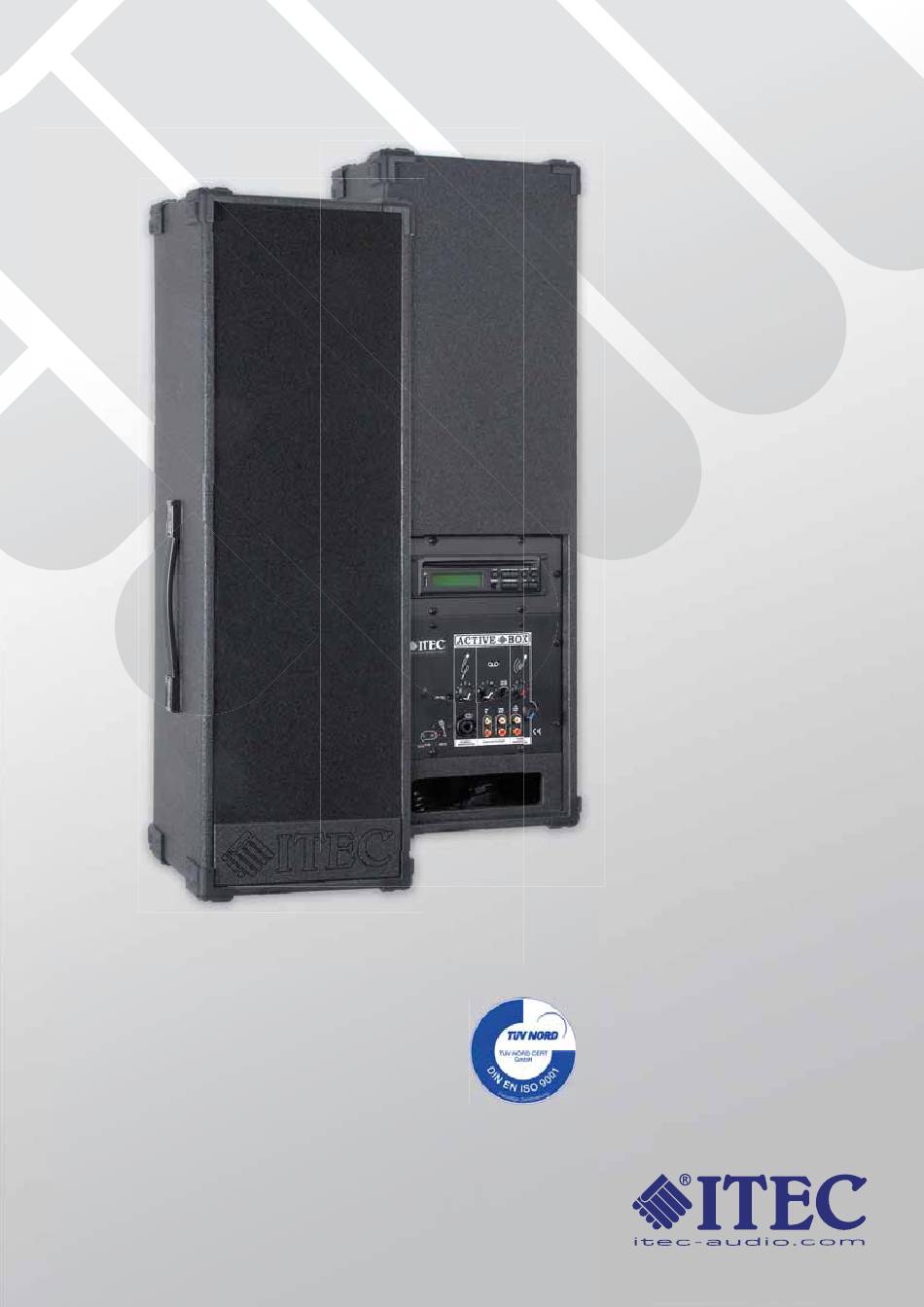

ACTIVE-BOX
MANUAL INSTRUCTION
Designed and Manufactured by
ITEC Tontechnik und
Industrieelektronik GesmbH
8200 Laßnitzthal 300
Austria / Europe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTIVE-BOX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Itec ACTIVE-BOX

  • Page 1 ACTIVE-BOX MANUAL INSTRUCTION Designed and Manufactured by ITEC Tontechnik und Industrieelektronik GesmbH 8200 Laßnitzthal 300 Austria / Europe...
  • Page 2: Table Of Contents

    Use the ACTIVE-BOX as an additional and enriching sub-system together with the ITEC LECTERN SUCCESS interfaced either via cable or wireless via radio-transmission. However you are going to use the versatile ACTIVE-BOX, you will certainly add the perfect sound to many successful events with this compact, high performance tool so easy to handle.
  • Page 3: How To Stand The Active-Box

    In case the ACTIVE-BOX is connected (socket 10) to the mains supply (220V), the red mains indicator light (3) will show in addition to the ON/OFF indicator light (2). As soon as you switch off the ACTIVE-BOX the battery will start recharging immediately with the mains indicator light (3) staying On and the ON/OFF indicator light (2) disappearing (see 13.
  • Page 4: Music Attenuation (Optional)

    Cable connection: the ACTIVE-BOX is connected to the LECTERN SUCCESS by means of the attached cable. At the ACTIVE-BOX plug the signal cable in one of the CASS/CD LINE IN cinch sockets(5a), at the LECTERN SUCCESS plug it in one of the LINE OUT cinch sockets. The volume control CASS/CD (7) lets you choose how loud the ACTIVE-BOX shall be in proportion to the LECTERN SUCCESS;...
  • Page 5: Connecting An External Amplifier

    Do not store below a temperature of 5°C Recharge after use. Not having used the ACTIVE-BOX for months we recommend you switch it on for several hours and then recharge it. 14. GENERAL ADVICE - Do not place microphones and speakers close to each other in order to avoid acoustic feedback; too great a distance, on the other hand, between microphone and speaker has an unnatural effect on the audience (the sound, bear in mind, does not come from the person speaking) and makes speaking more diffi...
  • Page 6: Changing Batteries Of Radio Microphones

    Note the poles (- pole at spring contact, left)! Battery type: 2 „AA“ 1.5V Mignon Battery status on display. Hereby ITEC Tontechnik und Industrieelektronik GmbH declares that these radio systems comply with the directive 2014/53/EU. The EU Declaration of Conformity for each product is available at https://www.itec-audio.com/products/itec-microphones-and-conference-technology/.
  • Page 7: Controls

    AUTO MUTE for music attenuation (optional) DC 12V socket (for additional ITEC equipment) battery level indicator volume control for 2nd radio microphone (optional) ACTIVE-BOX...
  • Page 8: The Integrated Cd-Player (Optional)

    ACTIVE-BOX 17. The integrated CD-Player (optional): This CD-Player is able to read following formats: CD, CD-R, CD-RW, MP3. The integrated USB-data link enables the connection to a USB-Stick. In the card slot, an SD card can be inserted. Insert CD, plug USB fl ash drive or insert SD card. With FUNCT-Button you can choose the required medium (CD/USB/Card).
  • Page 9 ACTIVE-BOX Programming: It is possible to choose in which order the tracks on the CD should be played. There to push the “Prog”-button on your remote control: Programming of an AUDIO-CD: The display appears P-01 and right therefrom the track number. With the “Cue”- and “Rev”- button - or the number buttons - you can set up the requested track.
  • Page 10: The Integrated Usb-Player/Recorder (Optional)

    ACTIVE-BOX 18. USB/SD Card Player/Recorder (Optional) You can connect USB storage media to the USB port ( 4 ) (e.g.: USB memory stick). Alternatively, you can also use an SD card. SD card slot For playback only fi les in .mp3 format can be used! If a USB stick and an SD card are inserted when the device is switched on, the device chooses the USB stick as the current storage, otherwise the medium last used.
  • Page 11 ACTIVE-BOX Previous title Start / Pause Next track On/Off, Volume Stop Playback Mode Recording SD-Card Slot LED-Display USB-Port ACTIVE-BOX www.itec-audio.com...
  • Page 12 Cable microphone EM 300 Media-Player CD/MP3/USB-Player (built-in), USB-Player/Recorder, Bluetooth Miscellaneous Tripod, transport bag, various audio cables ITEC- Tontechnik und Industrieelektronik GesmbH, A-8200 Lassnitzthal 300 / Austria / Europe Tel.: +43 (0)3133 / 3780-0, offi ce@itec-audio.com, www.itec-audio.com ACTIVE-BOX ACTIVE-BOX www.itec-audio.com www.itec-audio.com...
