Summary of Contents for Itec AV-BOX

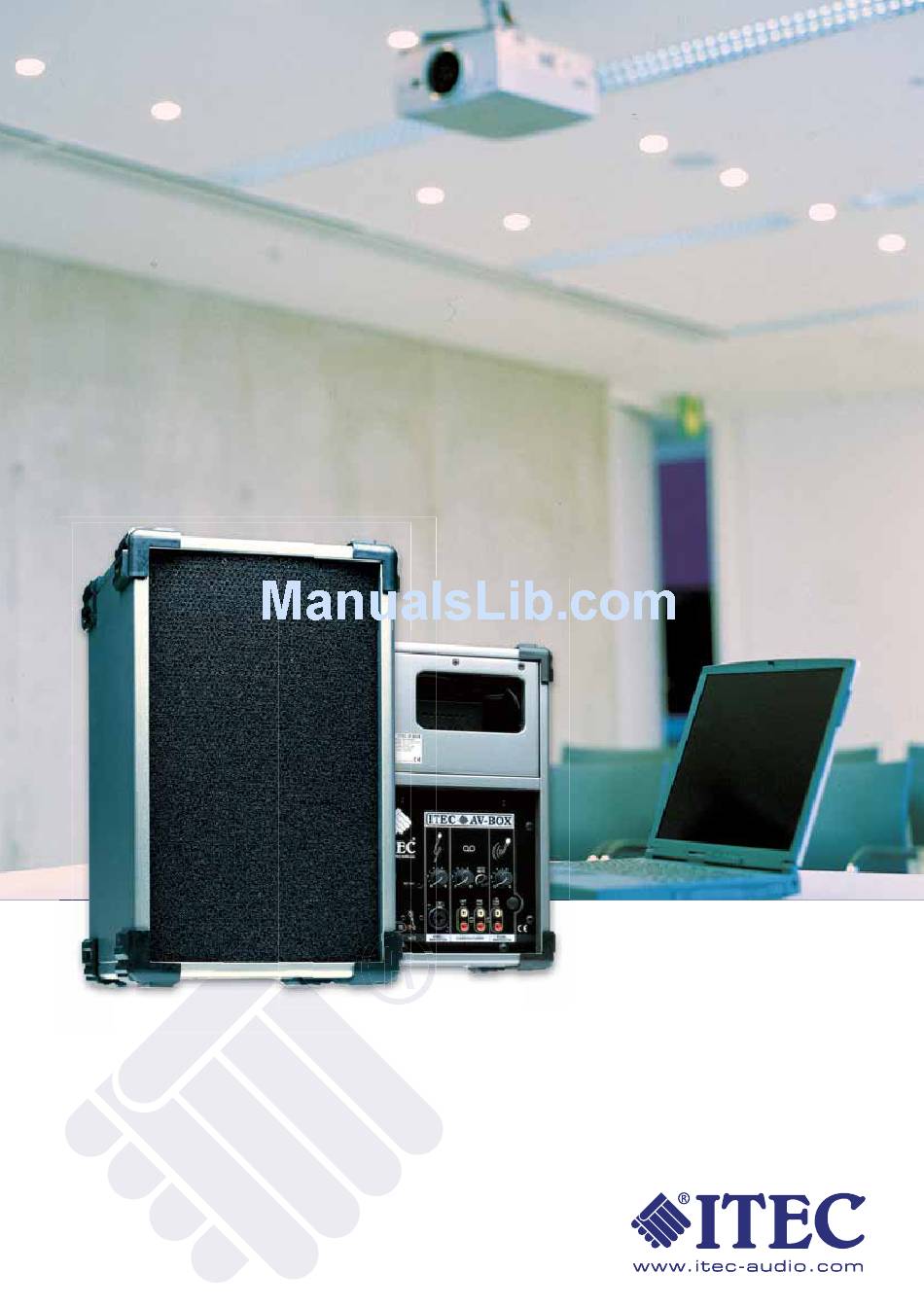

  • Page 1 AV-BOX INSTRUCTION MANUAL...
  • Page 2 Use the ITEC AV-BOX as an additional and enriching sub-system together with the ITEC LECTERN SUCCESS interfaced either via cable orwireless via radio-transmission. However you are going to use the versatile ITEC AV-BOX, you will certainly add the perfect sound to many successful events with this compact, high performance tool so easy to handle.
  • Page 3: Table Of Contents

    2. How to start 3. Using a cable microphone 4. Playback 5. Music attenuation 6. Using a radio microphone 7. Connecting the ITEC LECTERN SUCCESS 8. Recording 9. Connecting an external amplifi er 10. Connecting an external radio receiver 11. DC 12V socket 12.
  • Page 4: How To Use The Tripod-Stand

    In case the ITEC AV-BOX is connected (socket 10) to the mains supply (220V), the red mains indicator light (3) will show in addition to the ON/OFF indicator light (2). As soon as you switch off the ITEC AV-BOX the battery will start recharging immediately with the mains indicator light (3) staying On and the ON/OFF indicator light (2) disappearing (see 12.
  • Page 5: Playback

    Using ITEC WT-702, ITEC WT-801 or AKG: This is the case when red LED fl ash after switching on; permanently red light means to change the batteries. Using ITEC WM-702 or TOA: This is the case when the green LED light shows; when the red LED light shows the batteries should be replaced.
  • Page 6: Connecting The Itec Lectern Success

    Cable connection: the ITEC AV-BOX is connected to the LECTERN SUCCESS by means of the attached cable. At the ITEC AV-BOX plug the signal cable in one of the CASS/CD LINE IN cinch sockets(5a), at the LECTERN SUCCESS plug it in one of the LINE OUT cinch sockets. The volume control CASS/CD (7) lets you choose how loud the ITEC AV-BOX shall be in proportion to the LECTERN SUCCESS;...
  • Page 7: Dc 12V Socket

    Do not store below a temperature of 5°C Recharge after use. Not having used the ITEC AV-BOX for months we recommend you switch it on for several hours and then recharge it. 13. General advice Do not place microphones and speakers close to each other in order to avoid acoustic feedback too great a distance, on the other hand, between microphone and speaker has an unnatural effect on the audience (the sound, bear in mind, does not come from the person speaking) and makes speaking more diffi...
  • Page 8: Changing Batteries Of Radio Microphones

    14. Changing batteries of radio microphones Attention: old batteries are hazardous waste; dispose of properly! ITEC WM-716 - hand held microphone (also WM 816 and WM 702) Slide battery lid open, remove top battery and then pull the white plastic strip to remove the other two batteries from the battery compartment.
  • Page 9 If status LED fails to fl ash momentarily the batteries are dead: Insert new batteries. 5. To close the batterie compartment, slide the battery compartment lid onto the battery compartment from below to the point that it will click shut. ITEC AV-BOX www.itec-audio.com...
  • Page 10: Controls

    AUTO MUTE for music attenuation (optional) DC 12V socket (for additional ITEC equipment) socket for external radio receiver (1/4” stereo jack) ITEC AV-BOX www.itec-audio.com...
  • Page 12 Microphone connector, symmetrical, combinational XLR/jack plug, 12V phantom power Line-Input Stereo-cinch socket Line-Output Stereo-cinch socket for recording devices ITEC- Tontechnik und Industrieelektronik GesmbH, A-8200 Lassnitzthal 300 / Austria / Europe Tel.: +43 (0)3133 / 3780-0, offi ce@itec-audio.com, www.itec-audio.com ITEC AV-BOX www.itec-audio.com...
