4xB
4xB
A x 16 (m6x8)
B X 16 (m8X20)
R011073
R011009
Tools required: Drill driver, PHILLIPS bit PH2. Hex key 4mm and 5mm.
*** For technical support please call 1.800.374.7438 #2007, servicetech@sisergo.com ***
4xB
4xB
2xA
H x 10 (5x50mm)
R011029
Ellehaven Series
Components Required:
1. Leg upright x2
2. Support bar x2
3. Control box x1
4. Control switch x1
5. Control switch mount plate x1
6. 120v Power Cord x1
7. Network Cable x4
8. Cable tray x1 (Optional)
9. Hardware Bag x1
10. Battery Pack x1 (Optional)
11. DC Cable with 2-pole minift plug x1 (Optional)
12. Hook & Loop (150mm) x2
13. Hook & Loop (350mm) x1

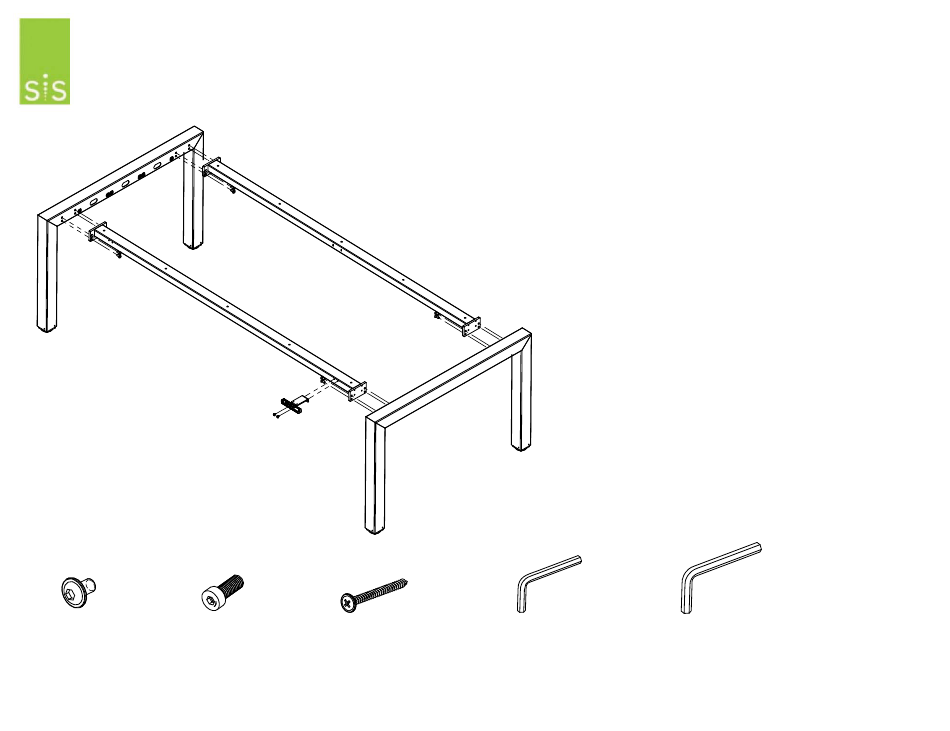

Assembly Steps:
1. Attach leg uprights(1) to either end of support
bars (2) with eight M8x20mm machine screws (B)
per support bar(2).
2. Attach control switch mount plate (5) to support
bar (2) with M6x8 machine screw (A).
NOTE: Depending on frame model, table may not
include optional cable managemet tray (8). If not,
skip to step 6 on page 3.
4 mm HEX WRENCH
R011921
Page: 1 of 4
4-Leg Electric
5 mm HEX WRENCH
R011905
Advertisement
Table of Contents
Related Manuals for SIS Ellehaven Series
Summary of Contents for SIS Ellehaven Series
- Page 1 Page: 1 of 4 Ellehaven Series 4-Leg Electric Components Required: 1. Leg upright x2 2. Support bar x2 3. Control box x1 4. Control switch x1 5. Control switch mount plate x1 6. 120v Power Cord x1 7. Network Cable x4 8.
- Page 2 Page: 2 of 4 Ellehaven Series 4-Leg Electric Optional Cable Tray Assembly: 3. Determine cable tray mounting position. There are three optional mounting positions for the cable management tray (8); down the center of the fra,e (Position 1), next to the rear support bar (Position 2), or next to the front support bar (Position 3).
- Page 3 Page: 3 of 4 Ellehaven Series 4-Leg Electric 6. Place control box (3) in cable tray. Warning! Only connect a control box that is marked, "Programed for Ellehaven Frame." This is the only unit that is designed to work with this frame assembly.
- Page 4 Page: 3a of 4 Ellehaven Series 4-Leg Electric Optional Battery Pack Installation 11. Place battery pack (10) in cable tray. NOTE: For frame models that do not utilize a cable tray mount battery pack (10) to underside of worksurface using two 10mm screws.
- Page 5 Page: 4 of 4 Ellehaven Series 4-Leg Electric 15. Attach assembled base to worksurface using ten 5x50mm wood screws (H). Table is ready for use! Tools required: Drill driver, PHILLIPS bit PH2. *** For technical support please call 1.800.374.7438 #2007, servicetech@sisergo.com ***...
