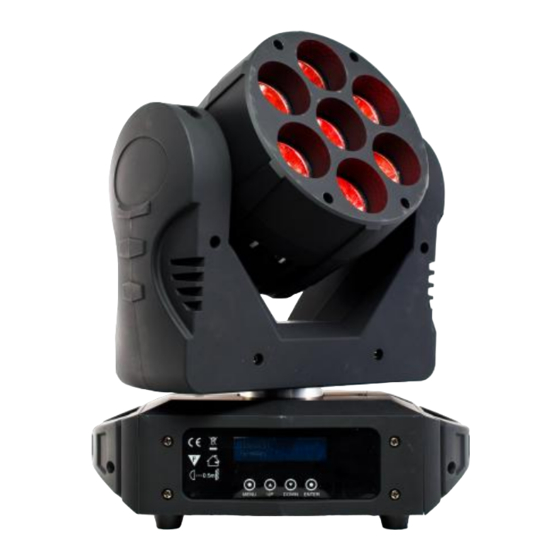

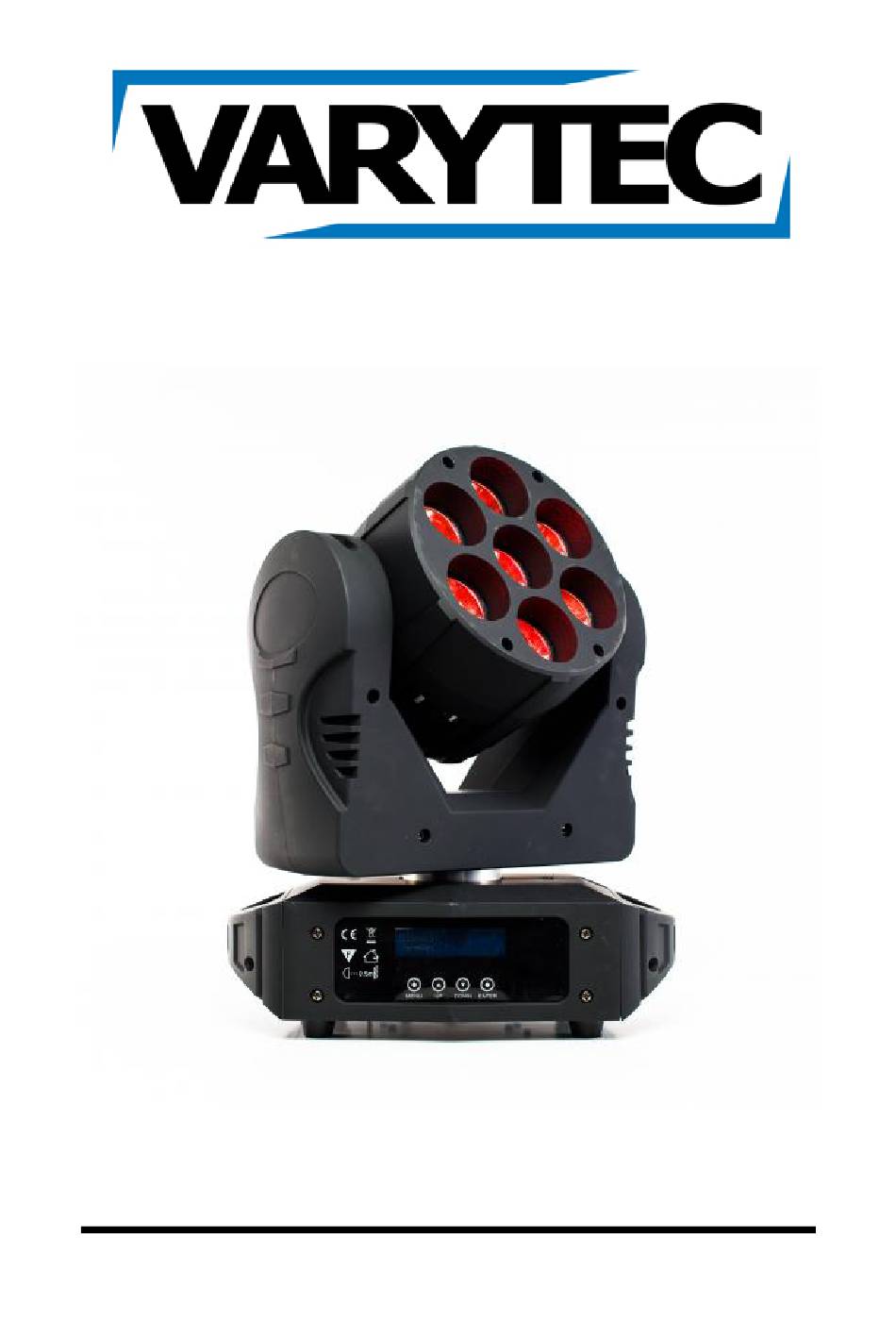

- Page 1 Manual LED RealBeam 7 RGBW...
-
Page 2: Table Of Contents
Table of content Safety instructions ..........................3 1.1. Instructions for a safe and efficient operation ................3 1.1. Additional Information for safety ....................4 Statement ............................5 2.1. Product description ........................5 2.1. Introduction to the product ....................... 6 2.1.1. Technical Data ......................... -
Page 3: Safety Instructions
1. Safety instructions • This Device is suitable for indoor use only. • All modifications will void the warranty. • Repairs have to be carried out by skilled personnel only. • Only use fuses of the same type and original parts as spare parts. •... -
Page 4: Additional Information For Safety
1.1. Additional Information for safety Exessive temperature Ta=40°C Please do not use the device if the temperature exceeds 40°C/104°F. Drop safety To avoid injuries carry the package only by twos. If you install the device the mounting bracket has the ability to carry the tenfold load of the weight of the device. -
Page 5: Statement
2. Statement When we send out the goods, they are well packaged and also at best condition. Every product was tested before delivery. If you recognize mistakes or damages please contact the delivery agent or the supplier. Please read this manual faithful. In this manual you can find information about the handling and the safety regulations of this product. -
Page 6: Introduction To The Product
2.1. Introduction to the product 2.1.1. Technical Data Power supply Voltage 110V-240V / 50-60Hz Light source Lamp type LED 4in1 Wattage 105W Color spectrum RGBW Number 7x15W RGBW Optics Beam angle 7/13° Functions 540°/630° Tilt 270° Control Sound-to-light Automatic Master-Slave 9/12 channels Artnet Hardware... -
Page 7: Controlling
3. Controlling 3.1. Description of the display By pressing MENU you can get into the menu. You can reach the desired point in the menu by hitting UP/DOWN. Confirm with ENTER. You can change the settings with the UP/DOWN buttons, too. Store your setting with ENTER. -
Page 8: Dmx Chart
3.3. DMX chart 3.3.1. 9 Channels Value Channel Value to Description from Pan movement 0-540° Tilt Tilt movement 0-180° Pan fine Fine Pan movement Tilt fine Fine Tilt movement Dimmer Dimmer/ Strobe slow-fast Strobe Dimmer Dimmer red LEDs Green Dimmer green LEDs Blue Dimmer blue LEDs White... - Page 9 Macro color 19 Macro color 20 Macro color 21 Macro color 22 Macro color 23 Macro color 24 Macro color 25 Macro color 26 Macro color 27 Macro color 28 Macro color 29 Macro color 30 Macro color 31 Macro color 32 Macro color 33 Macro color 34 Macro color 35...
- Page 10 10 / 12...
- Page 11 11 / 12...
- Page 12 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 12 / 12...
